Product Details
Specifications

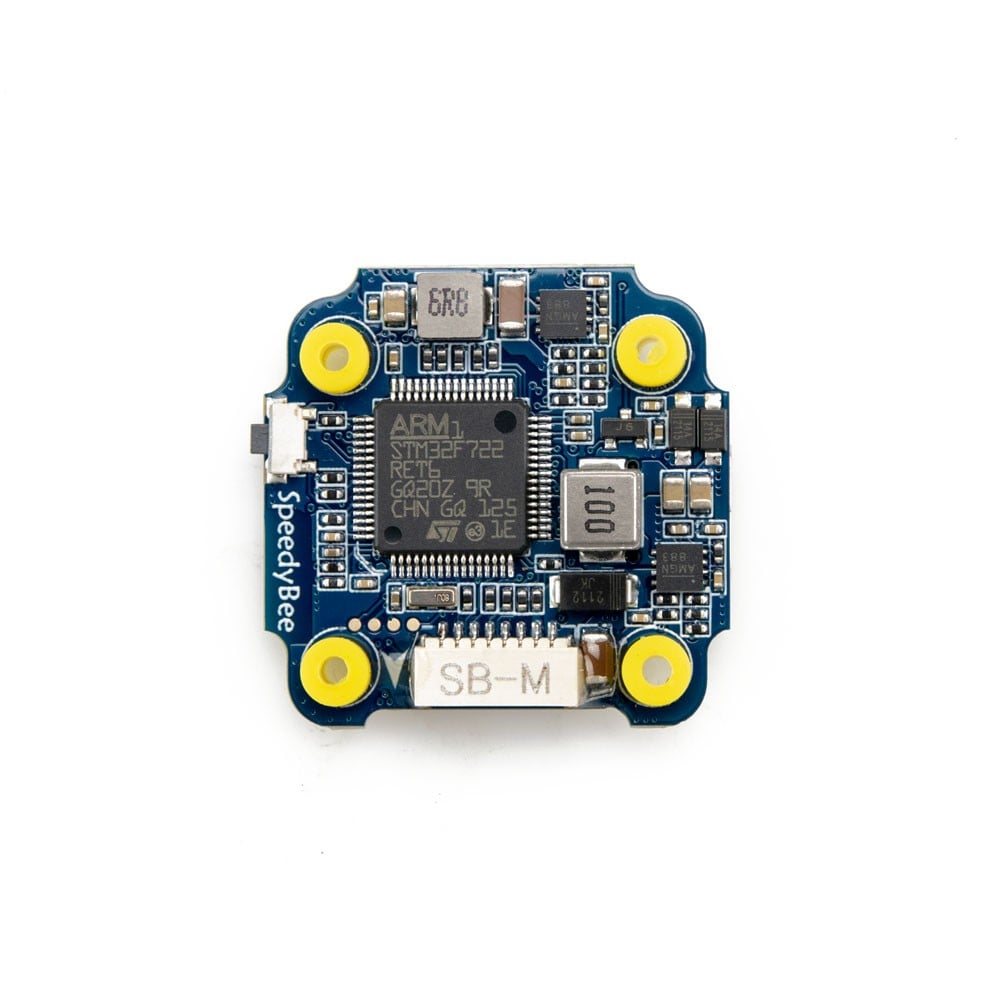

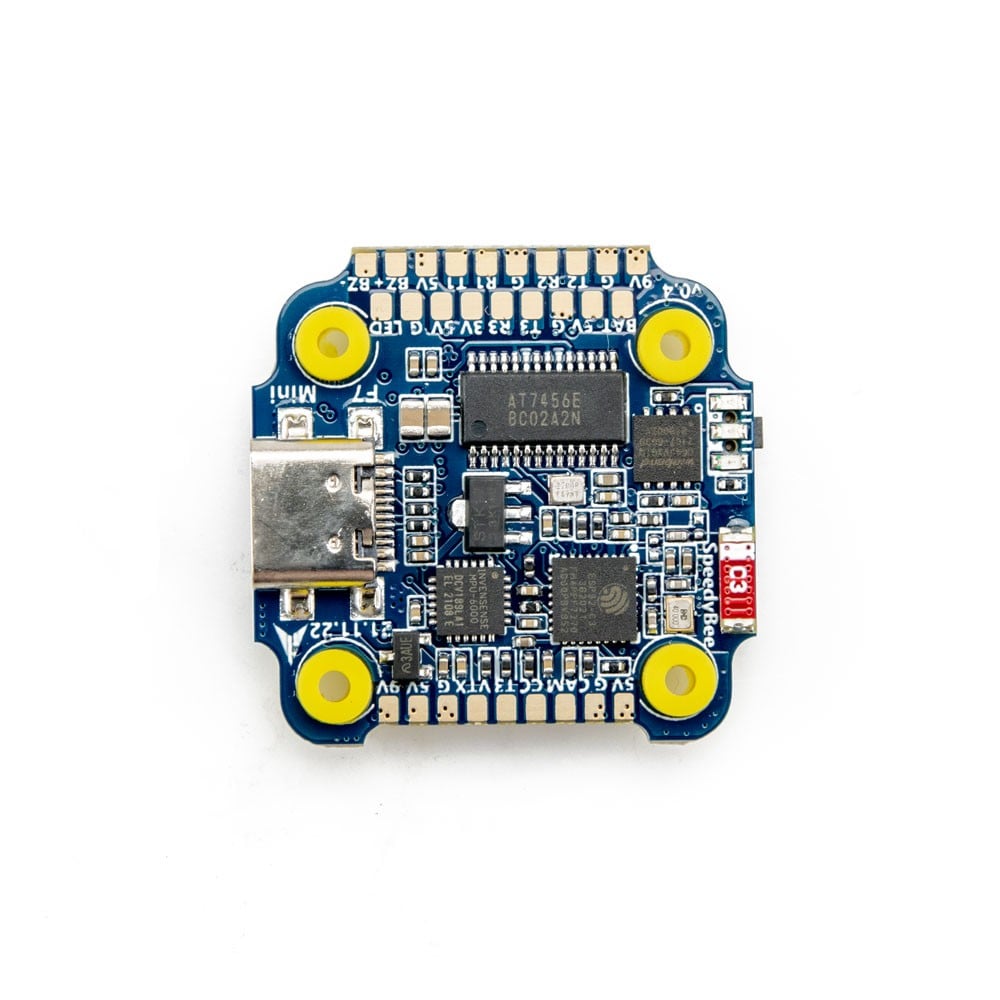

SpeedyBee F7 Mini FC
- Input Voltage: 3-6S
- MCU: STM32F722
- Gyro: MPU6000
- Barometer: No
- OSD Chip: AT7456E
- Bluetooth: Yes
- DJI Air Unit Soldering Pads: Supported
- BlackBox: 8MB Flash
- Current Sensor: Yes
- BEC: Yes
- ESC Signal Pads: 4
- UARTs: 3(UART1, UART2, UART3)
- ESC Telemetry: R4(UART4)
- LED Pad: Used for WS2812 LED
- Buzzer: Yes
- Firmware: BetaFlight(Default), EMUFlight, INAV
- Firmware Target: SPEEDYBEEF7MINI
- Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
- Weight 5.7g
Includes
- 1x F7 Flight Controller
- 1x Manual and App Download Card
- 1x 8pin JST Cable
- 5x M2 Grommets
- 5x M3 Grommets
