Product Details
You're tired of ESCs (Electronic Speed Controllers) that promise the moon but deliver barely enough juice to lift your drone off the kitchen table. Let's be real, your 6S motors are craving for power like a caffeine addict needs coffee on a Monday morning.
Remember the days of stuttering motors and ineffective flips? Those dismal times when your drone acted like it had one too many at a robot party? Yep, we get the feels too. Your current ESCs just aren't cutting it—kinda like using a lawnmower to trim a bonsai.

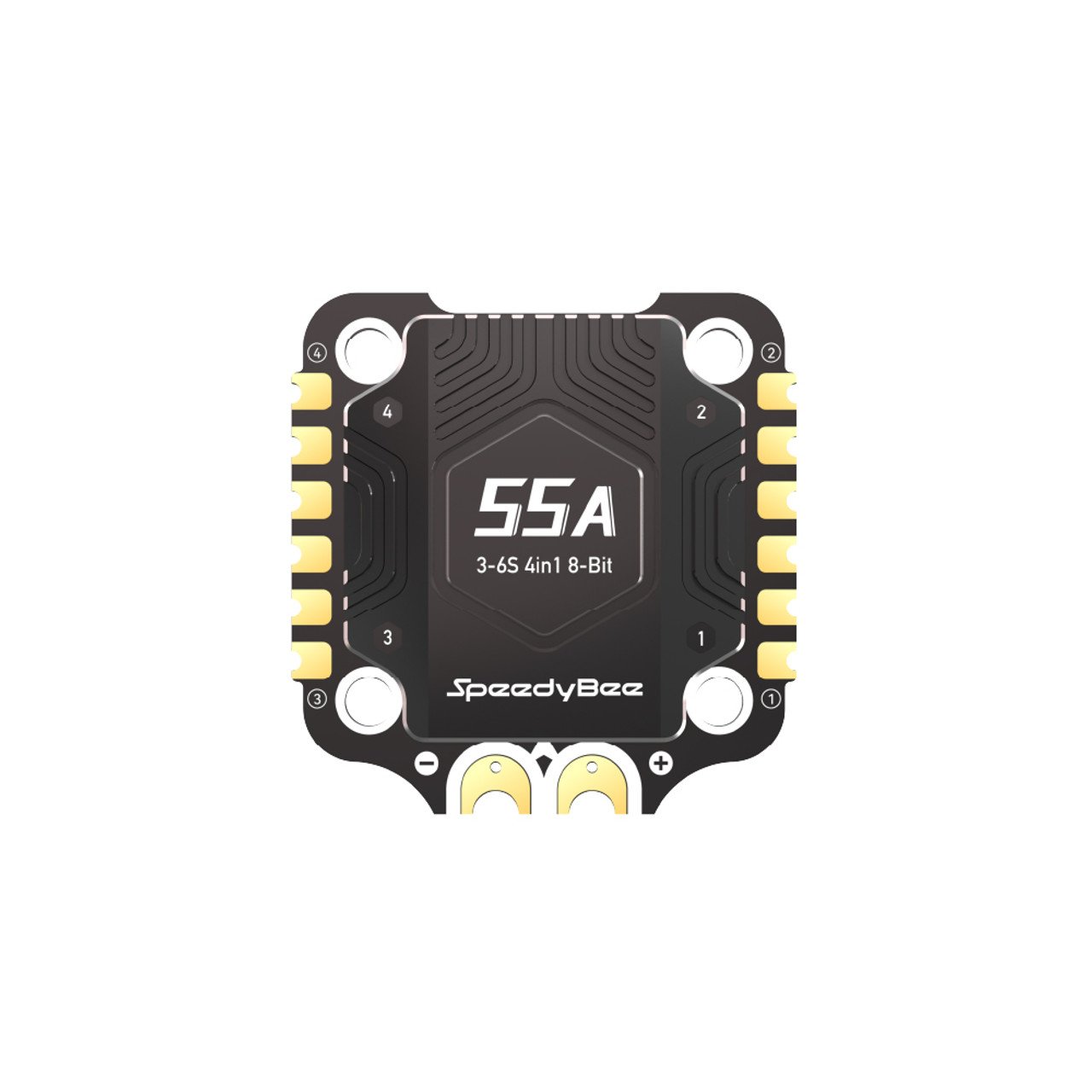

Enter the SpeedyBee BLS 55A 4in1 ESC . This is the Hulk of ESCs, the James Bond of power management—suave yet strong, always cool under fire. Designed to be the heart surgeon for your FPV drone, ensuring each motor receives precise, high-voltage love.
🌟 Key Highlights
- 55A of Pure Power : Ready to juice up your high-powered 6S motors. It's not just an ESC, it's a ticket to the sky!
- Built to Last : Upgraded copper thickness and MOSFET specs for handling currents like a pro boxer handles punches.
- Cool Under Pressure : Features an aluminium alloy heat sink for that extra cool factor—literally.
- Wireless Convenience : Full configuration support in the SpeedyBee app. Because who needs wires in 2023?
- Burst of Energy : Can handle burst currents up to 70A for 10 seconds. Talk about a power trip!
- Sleek & Compact : Measuring at 45.6(L) * 44(W) * 8mm(H) and weighing only 23.5g, this baby won't weigh you down.
Specifications

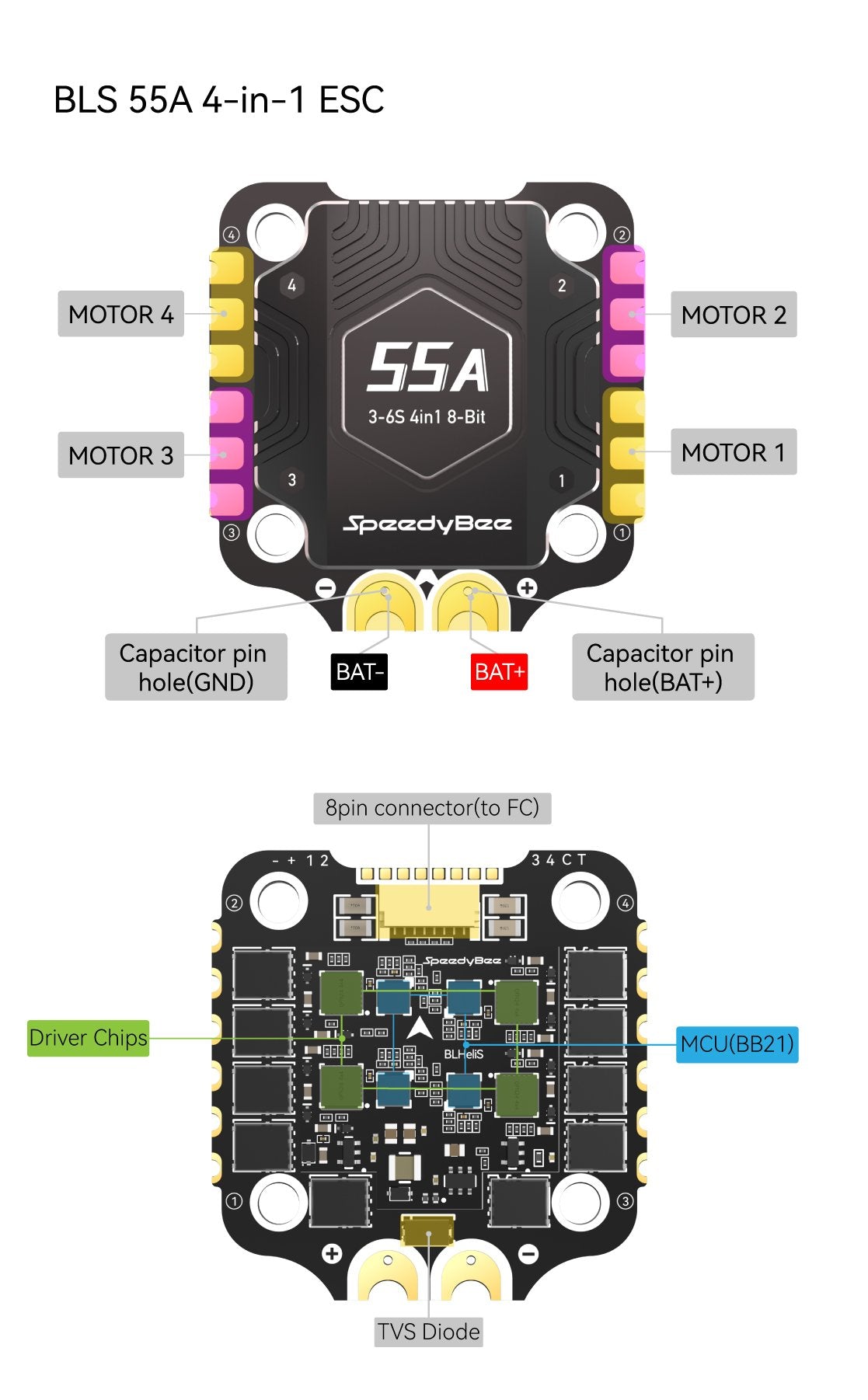

| Product Name | SpeedyBee BLS 55A 30x30 4-in-1 ESC |
| Firmware | BLHeli_S J-H-40 |
| Wireless Configuration | Full Configuration Supported in the SpeedyBee app |
| PC Configurator Download Link | https://esc-configurator.com/ |
| Continuous Current | 55A * 4 |
| Burst Current | 70(10 seconds) |
| TVS Protective diode | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=400 Offset=0) |
| ESC Telemetry | Not supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 44(W) *8mm(H) |
| Weight | 23.5g |
Included
- 1x SpeedyBee BLS 55A 4in1 ESC
- 1x Accesories Kit (contents may vary based on supply)
