Product Details

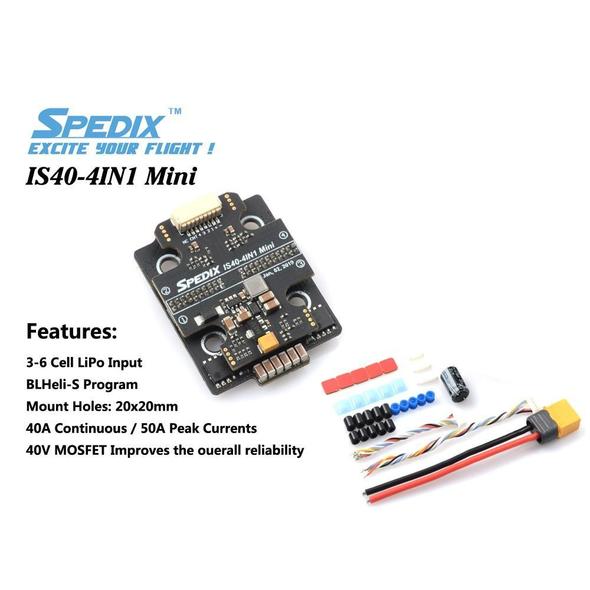

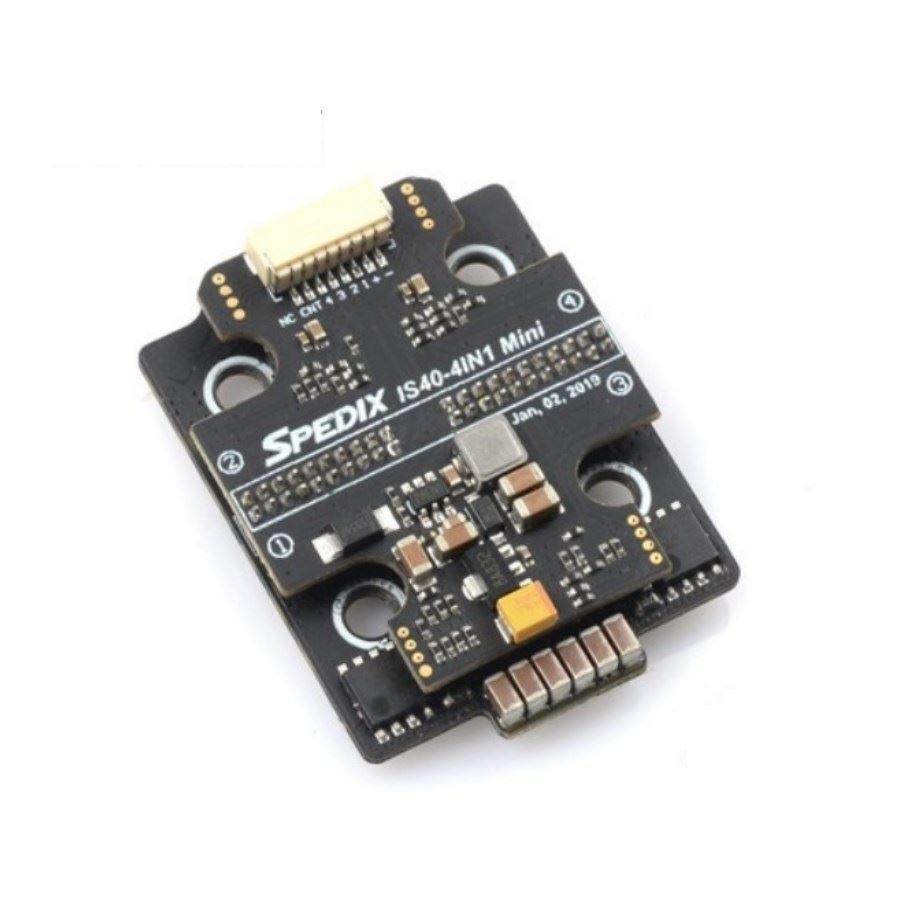

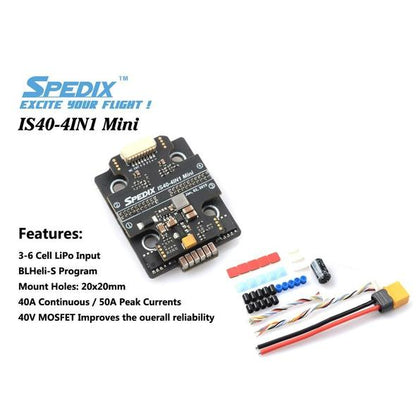

The IS40 is a 20x20mm 4in1 ESC that runs BLheli_S and supports 3-6S Lipo. It packs in the reliability and low noise you love about a Spedix ESC. This ESC features a separated power and control board to allow for a tiny sized ESC with seriously impressive specs (40A, with 6S support)
Key Features

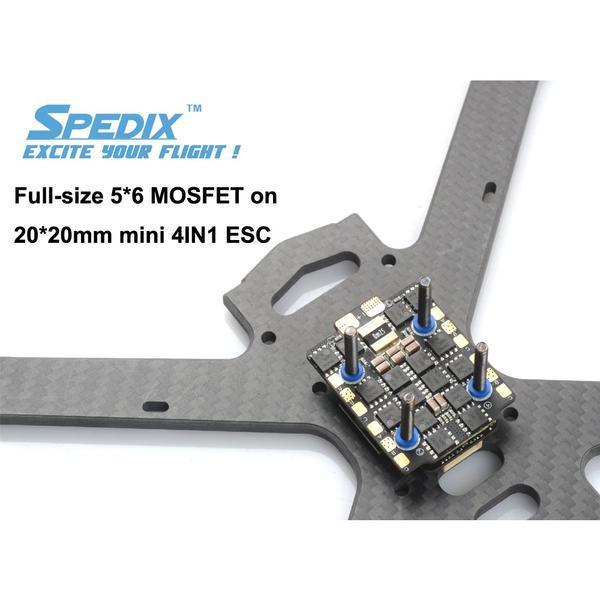

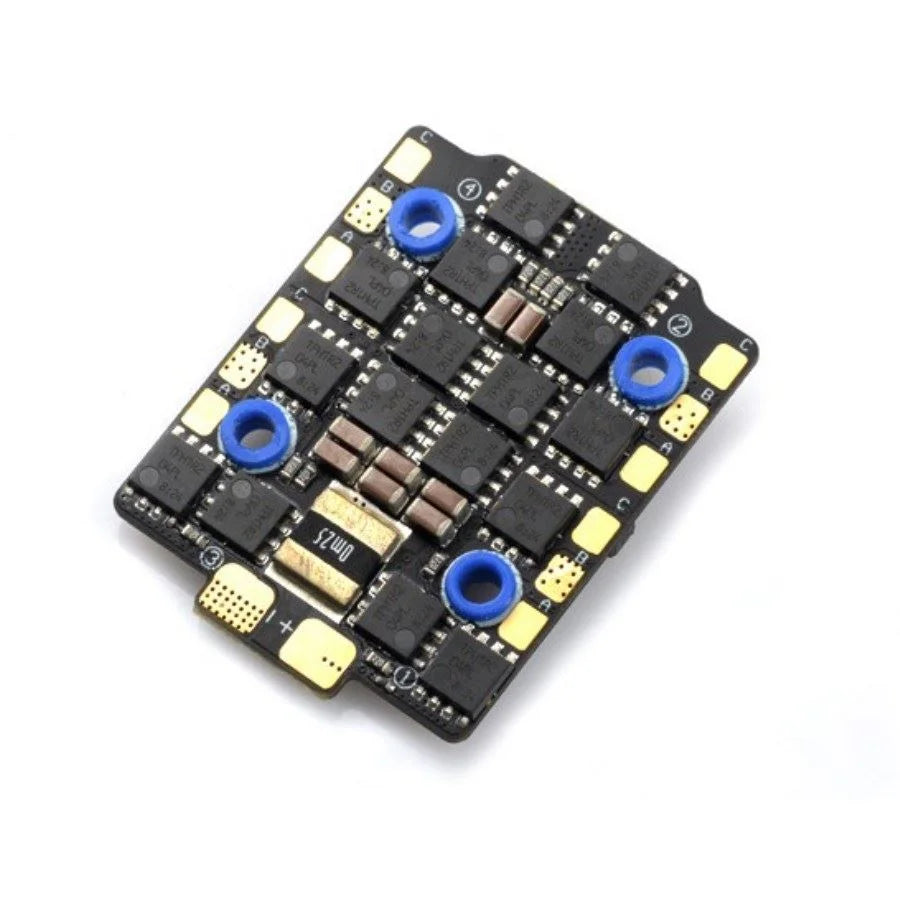

- Innovative double-deck design enables the implementation of full-size 5*6 MOSFET on 20*20mm mini 4IN1 ESC.

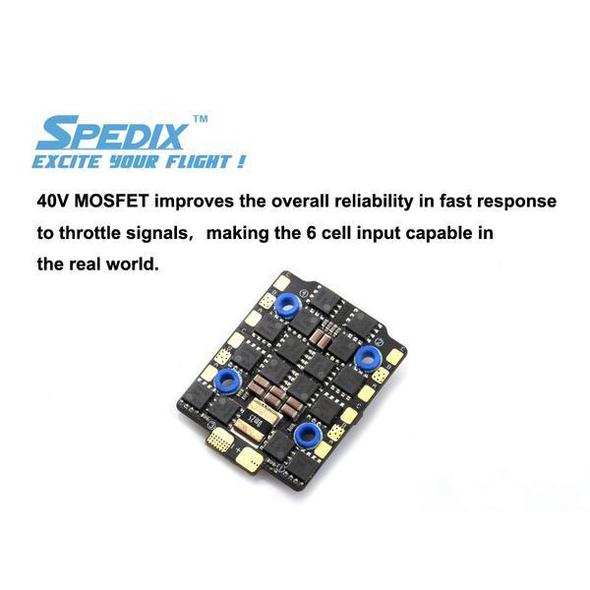

- 40V MOSFET improves the overall reliability in fast response to throttle signals，making the 6 cell input capable in the real world.

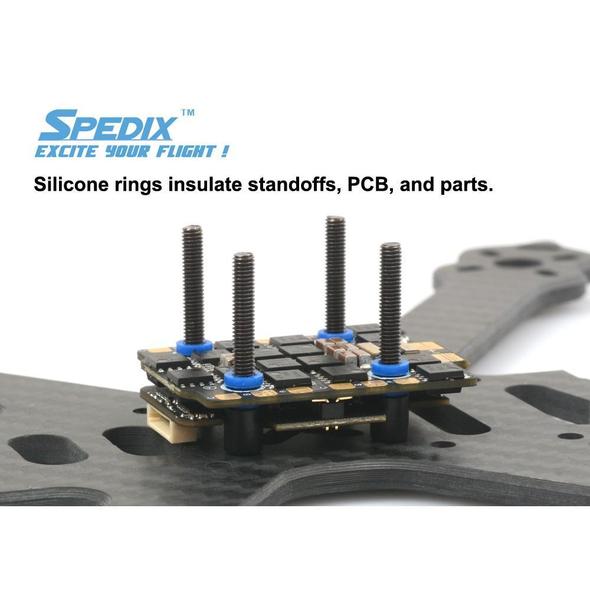

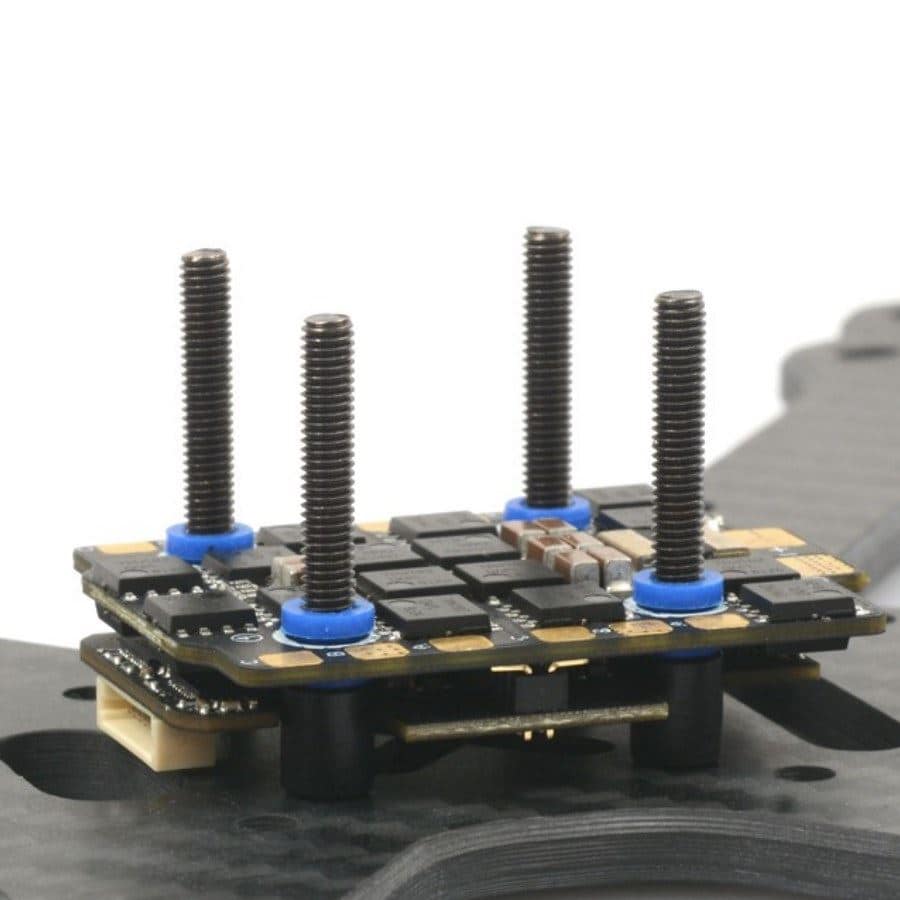

- Silicone rings insulate standoffs, PCB, and parts.
- Extremely small size makes mounting on smaller frames easier than ever.
Specification
- Brand name: Spedix
- Item name: IS40 40A ESC
- Input:3-6 Cell LiPo
- Continuous Current: 40A
- Burst Current: 50A≤10S
- BEC: No
- Current Detection: YES
- Firmware: BLHeli_S
- Dimensions: 40x31x8mm
- Mount Holes: 20x20mm
- Weight：13.2g
Included
- 1 x IS40 40A Blheli_S 2-6S 4 IN 1 Brushless ESC
