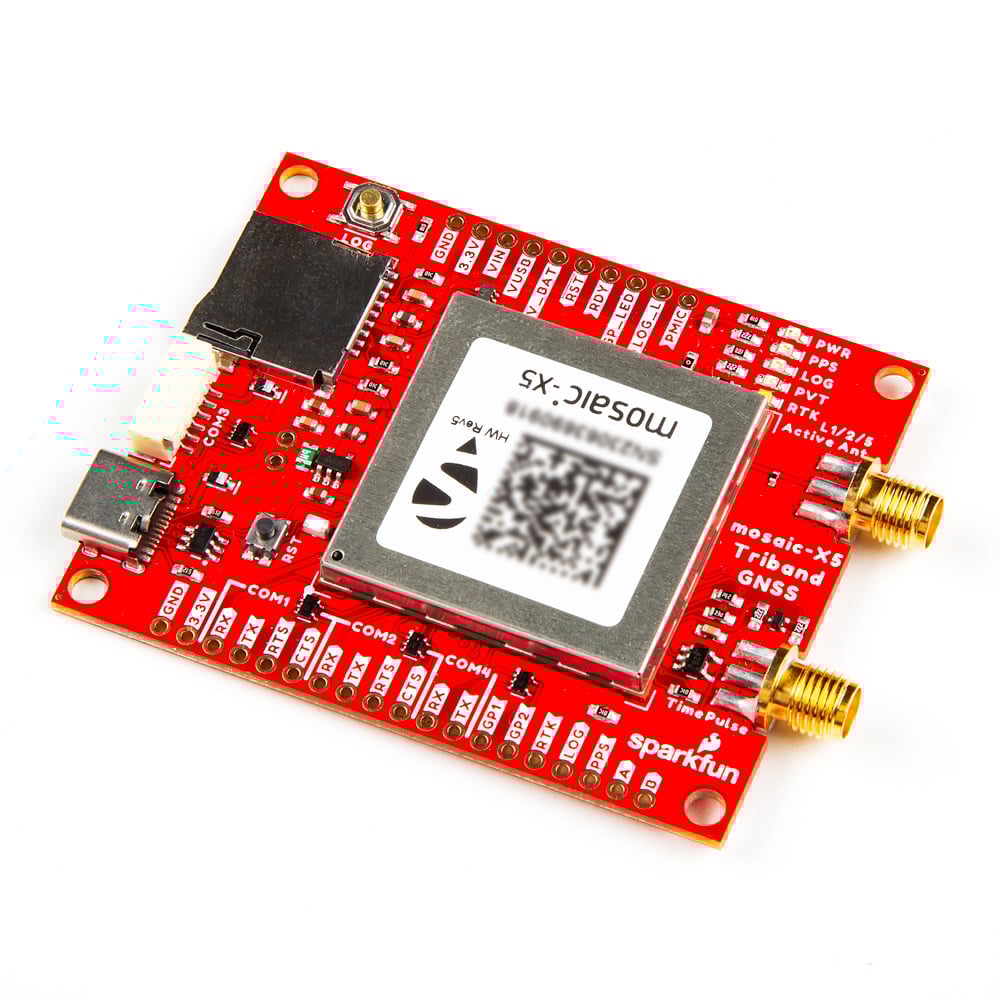

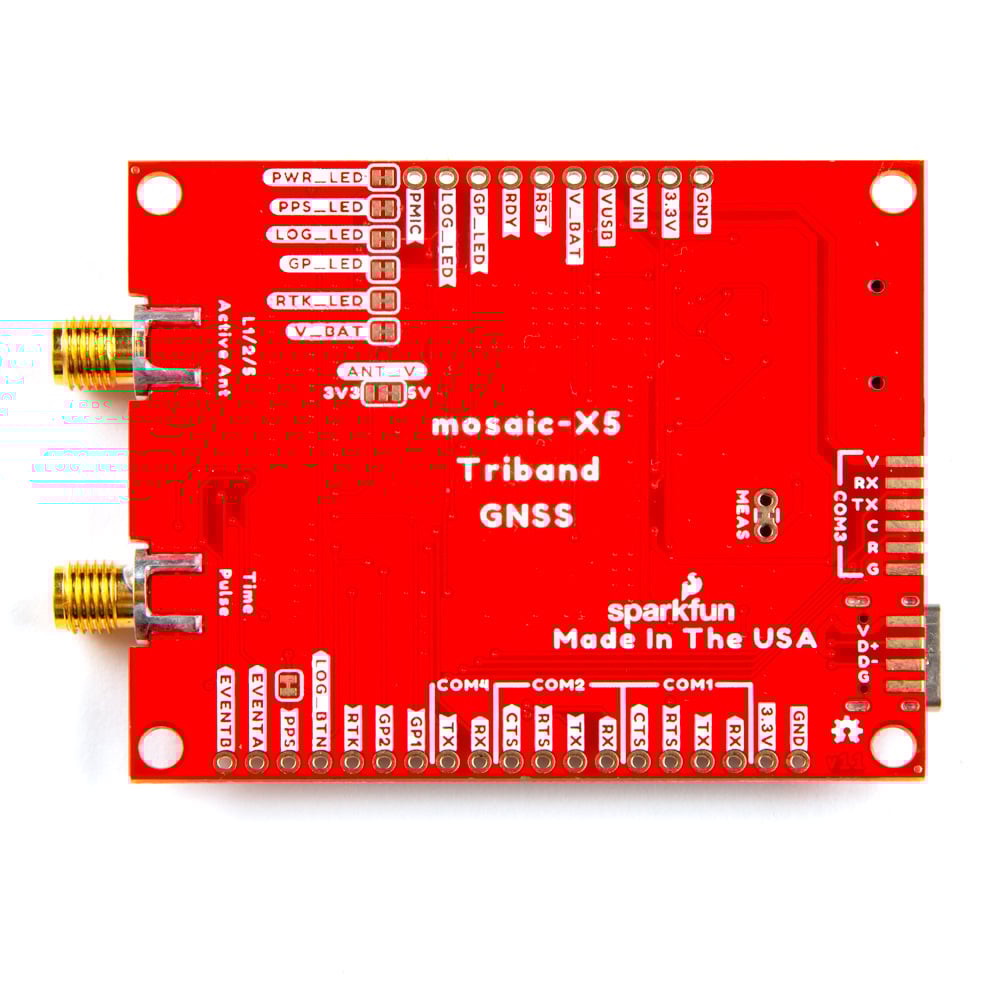

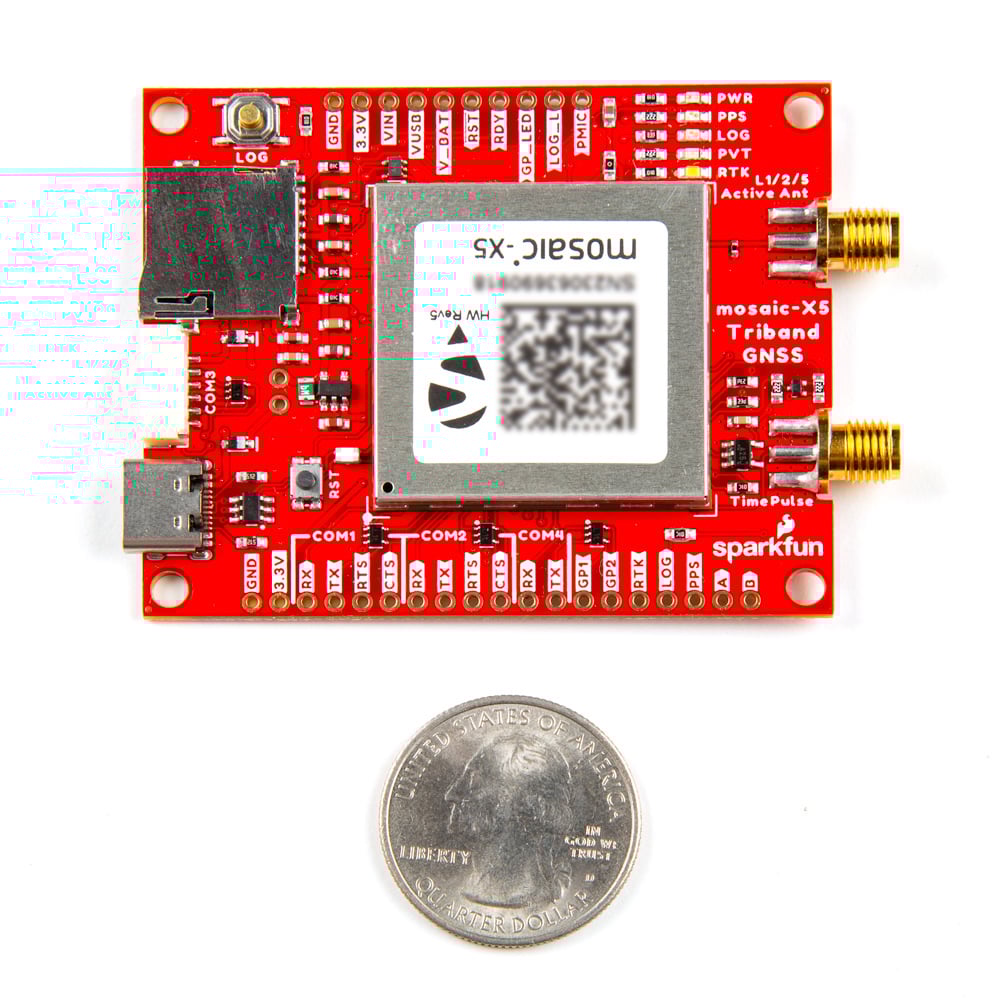

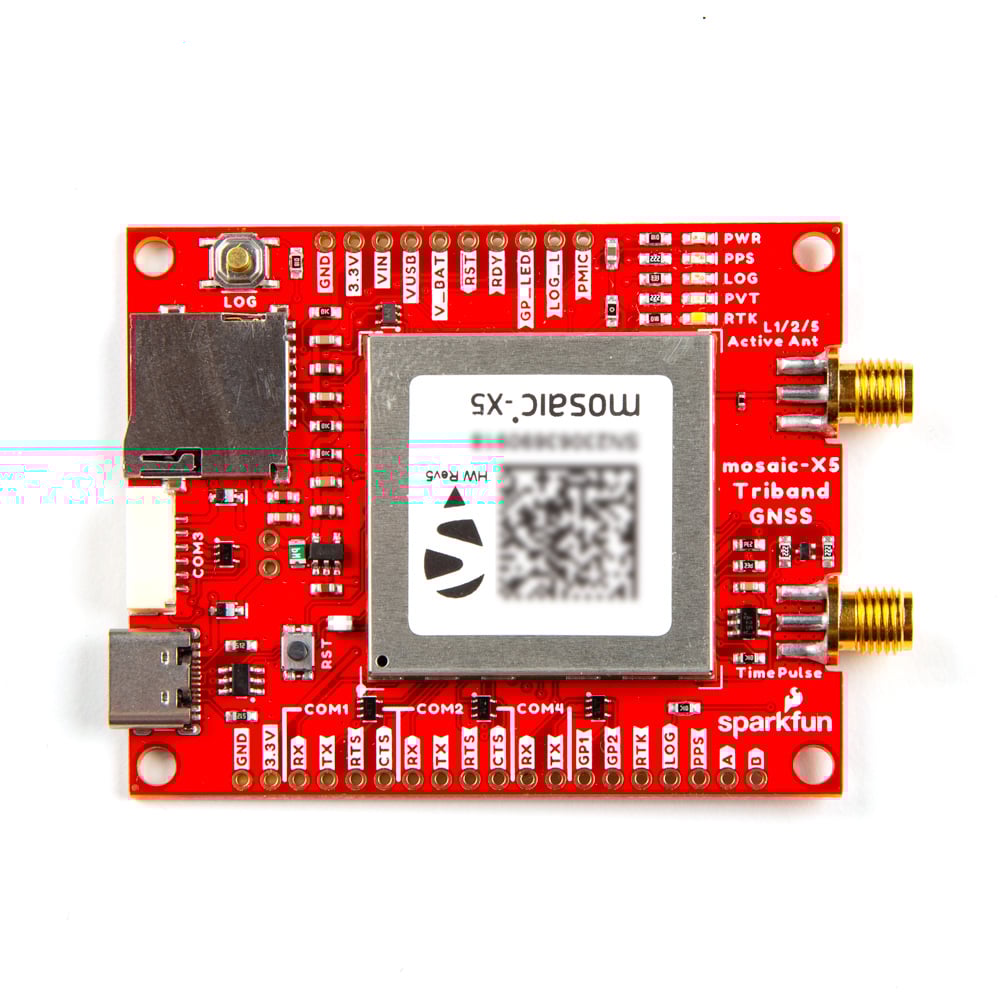

SparkFun Triband GNSS RTK Breakout (mosaic-X5)

SparkFun Triband GNSS RTK Breakout (mosaic-X5)

GPS-23088

£609.95 GBP
£609.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

Optimize Your Navigation Experience with the SparkFun mosaic-X5 Triband GNSS RTK Breakout

Embark on a journey of precision and ease with the SparkFun mosaic-X5 Triband GNSS RTK Breakout. This cutting-edge device is your ticket to accessing L1, L2, and L5 bands simultaneously, making it an ideal choice for various applications requiring high-accuracy positioning. At its core lies the Septentrio mosaic-X5, a compact and highly efficient GNSS receiver, designed to provide centimeter-level accuracy.

Key Features:

  • Multi-Constellation Support: Enjoy comprehensive coverage with support for GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), and NavIC (India), including regional systems like SBAS and QZSS.
  • AIM+ Technology: Benefit from Septentrio's advanced AIM+ technology for interference mitigation and anti-spoofing, ensuring top-tier reliability.
  • RTK Capabilities: The mosaic-X5 excels in Real Time Kinematics, functioning both as a base station and a rover. Achieve remarkable horizontal accuracy of 6mm and vertical accuracy of 1cm using RTK, along with a timing precision of 5ns.
  • High Update Rates: Ideal for dynamic applications, the module provides position updates at 100Hz.
  • User-Friendly Interface: Access the internal web server via USB, and leverage Septentrio's extensive video tutorials and software packages for seamless operation.

Ease of Use:

  • No Programming Skills Required: Start/stop data logging with a simple button press, and manage SD card operations effortlessly.
  • Compatibility: The board supports command-line interface for advanced users and is compatible with 3rd-party software packages.
  • Versatile Design: Perfect for various project requirements, offering a balance between Septentrio's developer kit and evaluation kit form factors.

Technical Specifications:

Triband GNSS RTK Breakout:

  • mosaic-X5 GNSS Receiver
  • USB-C Connector
  • µSD Card Slot (up to 32GB w/ FAT32 file system)
  • SMA Connectors:
    • GPS Antenna (Active, Multi-band)
    • PPS Output (3.3V)
  • Status LEDs
    • Power (Red)
    • Pulse-Per-Second (Yellow)
    • Data Logging (Green)
    • Position/Velocity/Time Solution (Blue)
    • RTK Mode (White)
  • Buttons
    • Log
    • Reset
  • I/O Logic-Level: 3.3V
  • 6-pin JST GH connector (GHR-06V-S)
    • Polarized
    • Locking
  • ESD Protection Diodes

mosaic-X5 Module:

  • Voltage Range: 3.135 to 3.465V
    • Max current: 500mA
  • RTK Accuracy
    • Horizontal: 0.6cm (±0.5ppm)
    • Vertical: 1cm (±1ppm)
  • GNSS Support
    • GPS: L1C/A, L1PY, L2C, L2P, L5
    • GLONASS: L1CA, L2CA, L2P, L3 CDMA
    • Beidou: B1I, B1C, B2a, B2b, B2I, B3
    • Galileo: E1, E5a, E5b, E5 AltBoc, E6
    • QZSS: L1C/A, L1 C/B, L2C, L5
    • NavIC: L5
    • SBAS: Egnos, WA
  • Time to Fix
    • Cold Start: < 45s
    • Warm: < 20s
    • Reacquisition: 1s
  • Timing Precision: 5ns
  • Update Rate: 100Hz
  • Latency: < 10ms
  • VANT Voltage Range: 3.0 to 5.0V
    • Max current: 150mA
  • Interfaces:
    • UART (x4)
    • Ethernet (Not available for this product)
    • USB 2.0
    • SD Card
    • GPIO/LEDs

In the Box:

  • mosaic-X5 GNSS Receiver

Recommendations:

For optimal performance, pair the mosaic-X5 module with the GNSS Multi-Band L1/L2/L5 Surveying Antenna - TNC (SPK6618H) from our catalog. This antenna is specifically designed to support all the GNSS frequency bands compatible with the mosaic-X5 module.
