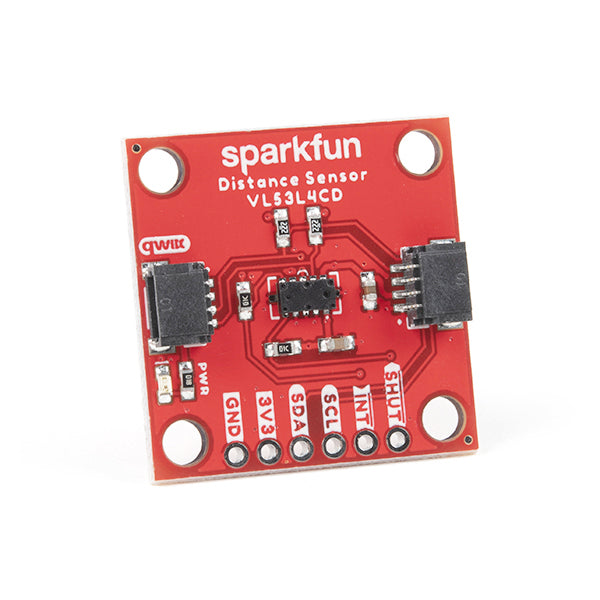

Product Details
To make it even easier to get your readings, all communication is enacted exclusively via I2C, utilizing our handy Qwiic system so no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.
Each VL53L4CD sensor features a precision to be 1mm with an accuracy around +/-7mm (white target: 88%, indoor, no infrared) and a minimum read distance of this sensor is 1mm. The field of view for this little breakout has a typical full field of view of 18° with a read rate of up to 100Hz. Make sure to power this board appropriately since it will need 2.6V-3.5V to operate. Lastly, please be sure to remove the protective sticker on the VL53L4CD before use otherwise it will, most assuredly, throw off your readings.
Features
-
Operating Voltage
- 2.6V to 3.5V
- (typically 3.3V via Qwiic cable)
-
Average Current Consumption
- 22mA typically
- 24mA max
- 40mA peak current (including VSCEL)
- Measurement Range: 1mm to 1300mm
- Resolution: ±1mm
- Light Source: Class 1 940nm VCSEL
- Field of View: 18°
- Max Read Rate: 100Hz
- 2x Qwiic Connectors
- 7-bit unshifted I 2 C Address: 0x29
-
Operating Temperature Range
- -30°C to +85°C
- Power LED
-
Jumpers
- Pull-up Resistors
- LED
Note: The I 2 C address of the VL53L1X is 0x29 and is hardware defined. A multiplexer/Mux is required to communicate to multiple VL53L1X sensors on a single bus. If you need to use more than one VL53L1X sensor consider using the Qwiic Mux Breakout.
Note: CLASS 1 LASER PRODUCT CLASSIFIED IEC 60825-1 2014.
