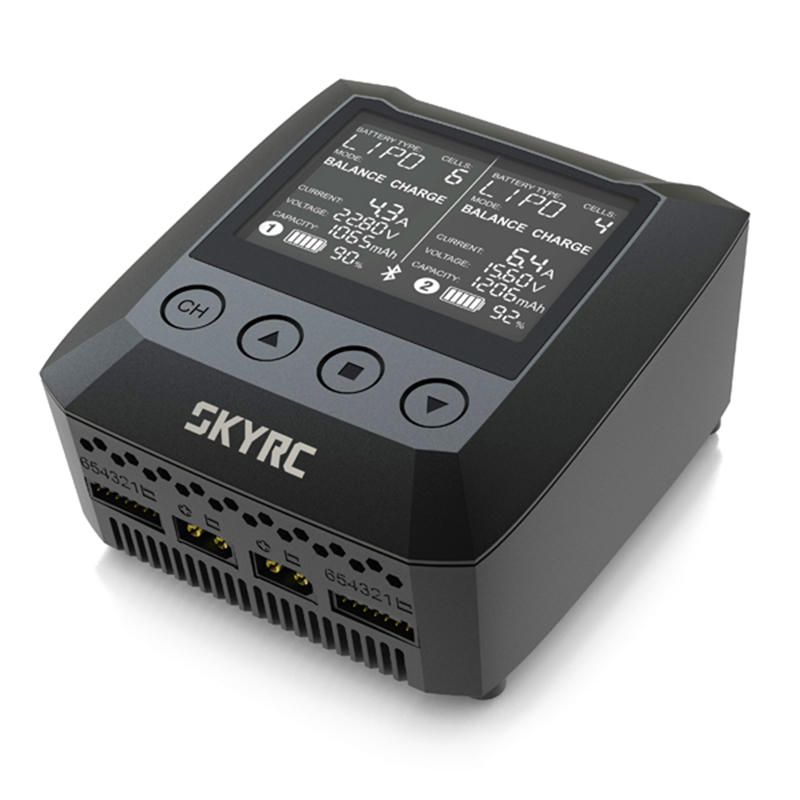

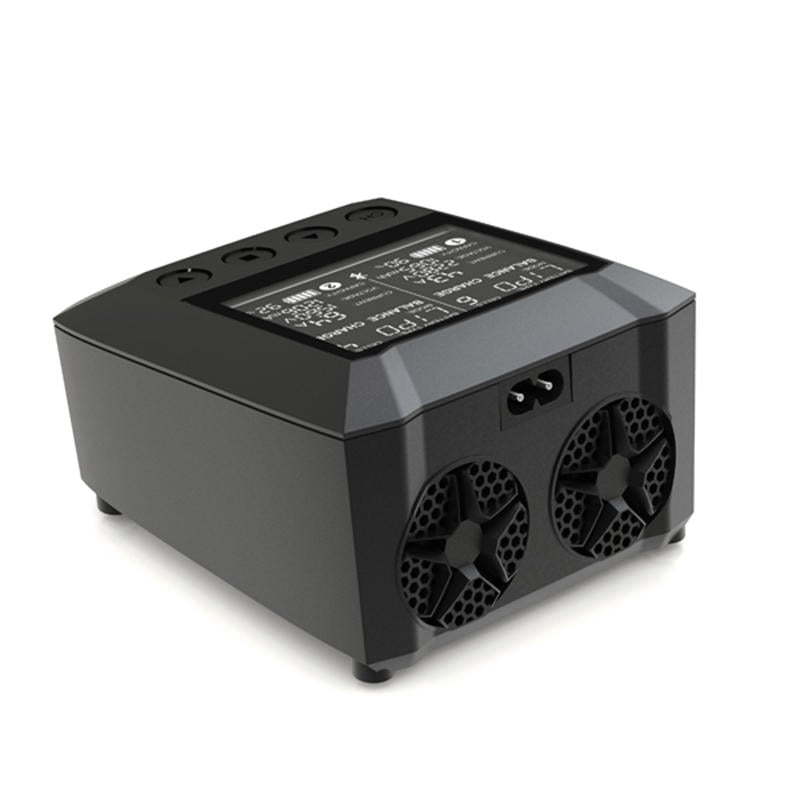

SkyRC B6 Nano Duo AC Charger 2x100W

SkyRC B6 Nano Duo AC Charger 2x100W

130-86D-121

£120.84 GBP
£0.00 GBP £120.84 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock
View full details

Product Details

The B6 duo packs a pretty substantial charger into a form factor considerably smaller than similar chargers. As the name suggest the Duo means that this charger has two 2x100W charging circuits built in, so you can charge two different batteries at the same time. In addition this charger is smartphone enabled which make monitoring and usage and firmware updates much easier through the free SkyRC App.
The operation and UI of the SkyRC B6 nano duo two channels charger has been optimized to be hassle-free for basic usage. Being app-enabled, the user experience can be largely expanded, more features and advanced settings are provided within the free app.
Multiple safety protections are implemented, such as, reverse polarity protection, charging time limit, charging capacity limit.

Key Features

  • AC Input Voltage : 100-240V

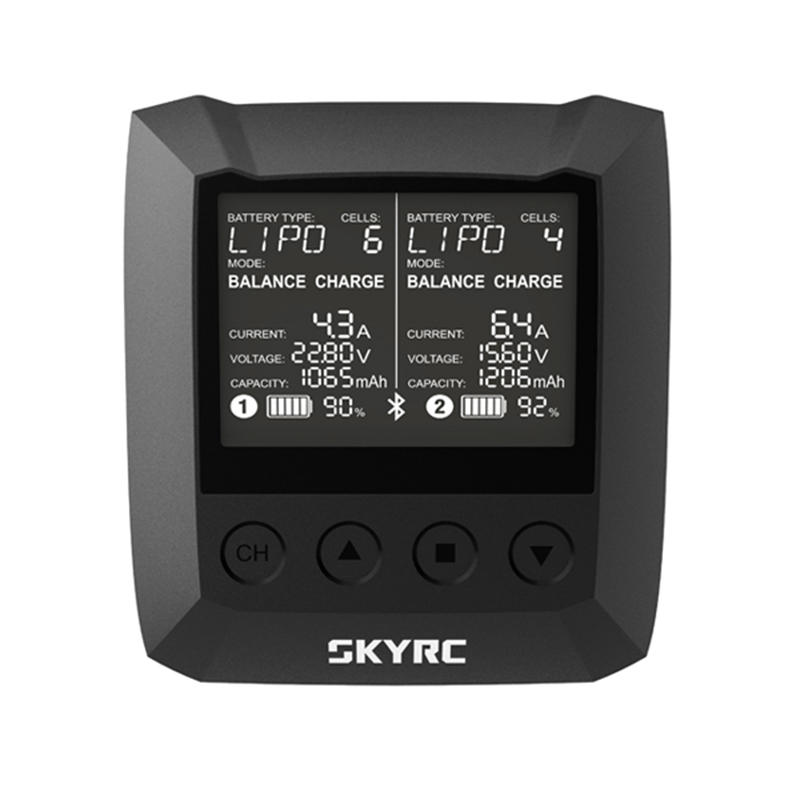

  • Display Type: LCD
  • Case Material: Plastic
  • Controls: Four Buttons
  • Case Size: 127x115x71mm
  • Weight: 561g

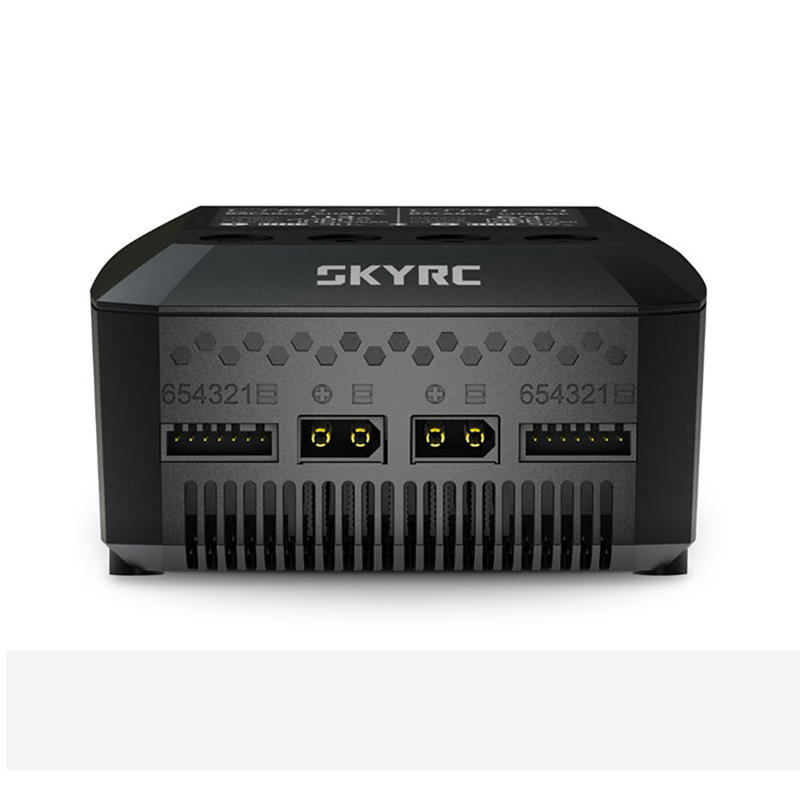

  • External Port: 2-6S Balance Socket-XH, Battery Socket, AC Input
  • Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
  • Charge Voltage: NiMH/NiCd: Delta peak detection
    LiPo: 4.18-4.25V/cell Lilon: 4.08^.2V/cell
    LiFe: 3.58-3.7V/cell LiHV: 4.25-4.35V/cell
  • Balance Current: 1000mA/cell Max
  • Reading Voltage Range: 0.1-26.1V/cell
  • Battery Types/Cells: LiPo/Lilon/LiFe/LiHV: 1-6cells
  • NiMH/NiCd: 1-15cells Pb: 2-20V
  • Battery Capacity Range: NiMH/NiCd: 100-50000mAh
  • LiPo/Lilon/LiFe/UHV: 100-50000mAh Pb: 100-50000mAh
  • Charge Current: 0.1A-15.0A
  • Safety Timer: 1-720minutes off
  • Charge Wattage: 200W(100WX2)
  • Discharge Current: 0.1A-3.0A
  • Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1 V/cell
    LiPo: 3.0-3.3V/cell Lilon: 2.9-3.2V/cell
    LiFe: 2.6-2.9V/cell LiHV: 3.1-3.4V/cell
    Pb: 1,8V
  • Discharge Wattage: 8W
  • Balance Cells: 2-6 cells
  • Charge Method: CC/CV for lithium types and lead (Pb) batteries
  • Delta-peak Sensitivity for NiMH/NiCd.
  • B6 nano duo supports power distribution when one single channel is working, the max power is 200W; when two channels are workings, it is 100W per channel.
