Seeedstudio SenseCAP Indicator D1L – 4" IoT Dev Platform

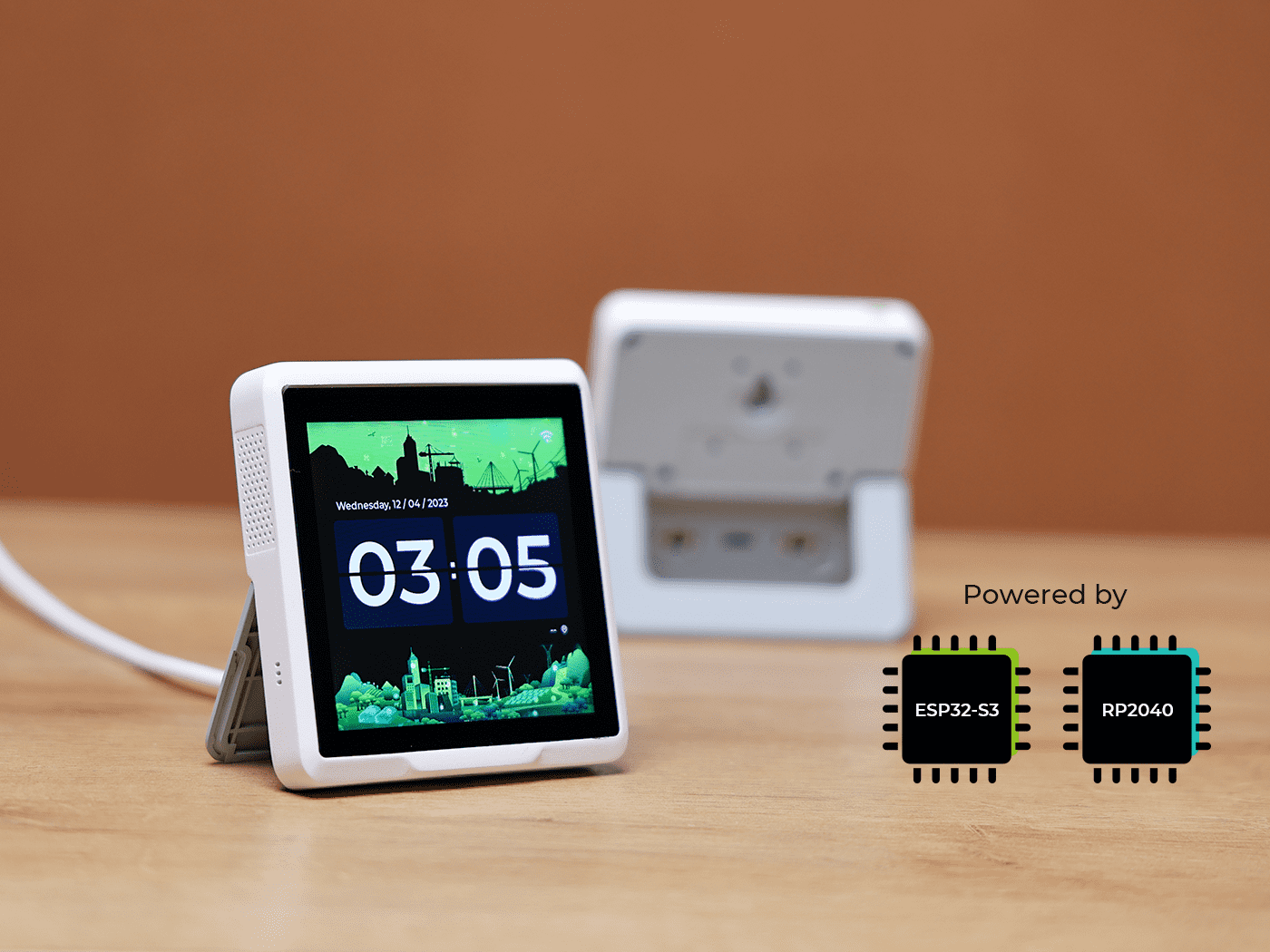

The Seeedstudio SenseCAP Indicator D1L isn’t just a dev board—it’s a slick 4-inch touchscreen IoT platform powered by an ESP32-S3 and RP2040 combo. That means dual-brain flexibility for Wi-Fi, Bluetooth, and peripheral-heavy projects without the breadboard chaos. Whether you’re prototyping dashboards, DIY controllers, or “totally work-related” smart home toys, this little slab is basically the love child of a dev kit and a mini tablet. (Fourth-wall nod: yes, we’re padding SEO with “IoT development platform.”)
Why You Want It
Because blinking LEDs on an Arduino only gets you so far. The D1L gives you a bright 4-inch capacitive touchscreen, dual-core brains, and enough I/O to make your side project feel like an actual product. With ESP32-S3 for connectivity and RP2040 for peripheral control, you get a powerhouse dev environment that saves you from juggling multiple boards. Bonus: it looks polished enough to pass off as “finished” in a demo. (Snake-oil callout: it won’t make your UX pretty—that’s on you.)
Specifications

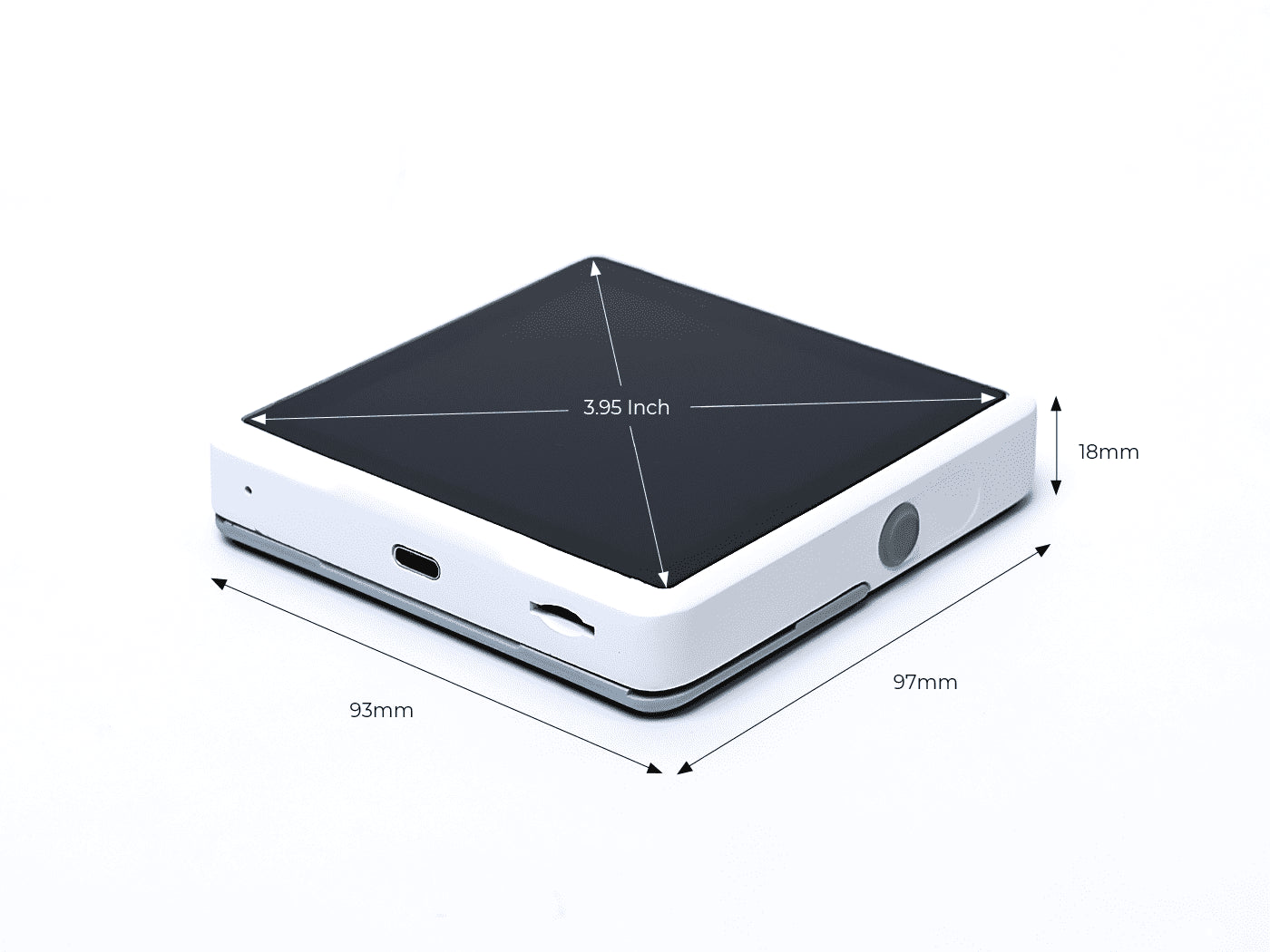

| Screen | 3.95 Inch, Capacitive RGB Touch Screen | |
| Screen Resolution | 480 x 480 pixels | |
| Power Supply | 5V DC, 1A | |
| Battery | N/A | |
| Processor |
ESP32-S3: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz RP2040: Dual ARM Cortex-M0+ up to 133MHz |
|
| Flash |
ESP32S3: 8MB RP2040: 2MB |
|
| External Storage | Support up to 32GB Micro SD Card (not included) | |
| Wi-Fi | 802.11b/g/n, 2.4GHz | |
| Bluetooth | Bluetooth 5.0 LE | |
| LoRa®(SX1262) | LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity/-136dBm@SF12 BW=125KHz RX Sensitivity, Up to 5km (depending on gateway antenna and environments) | |
| Sensors(Optional) |

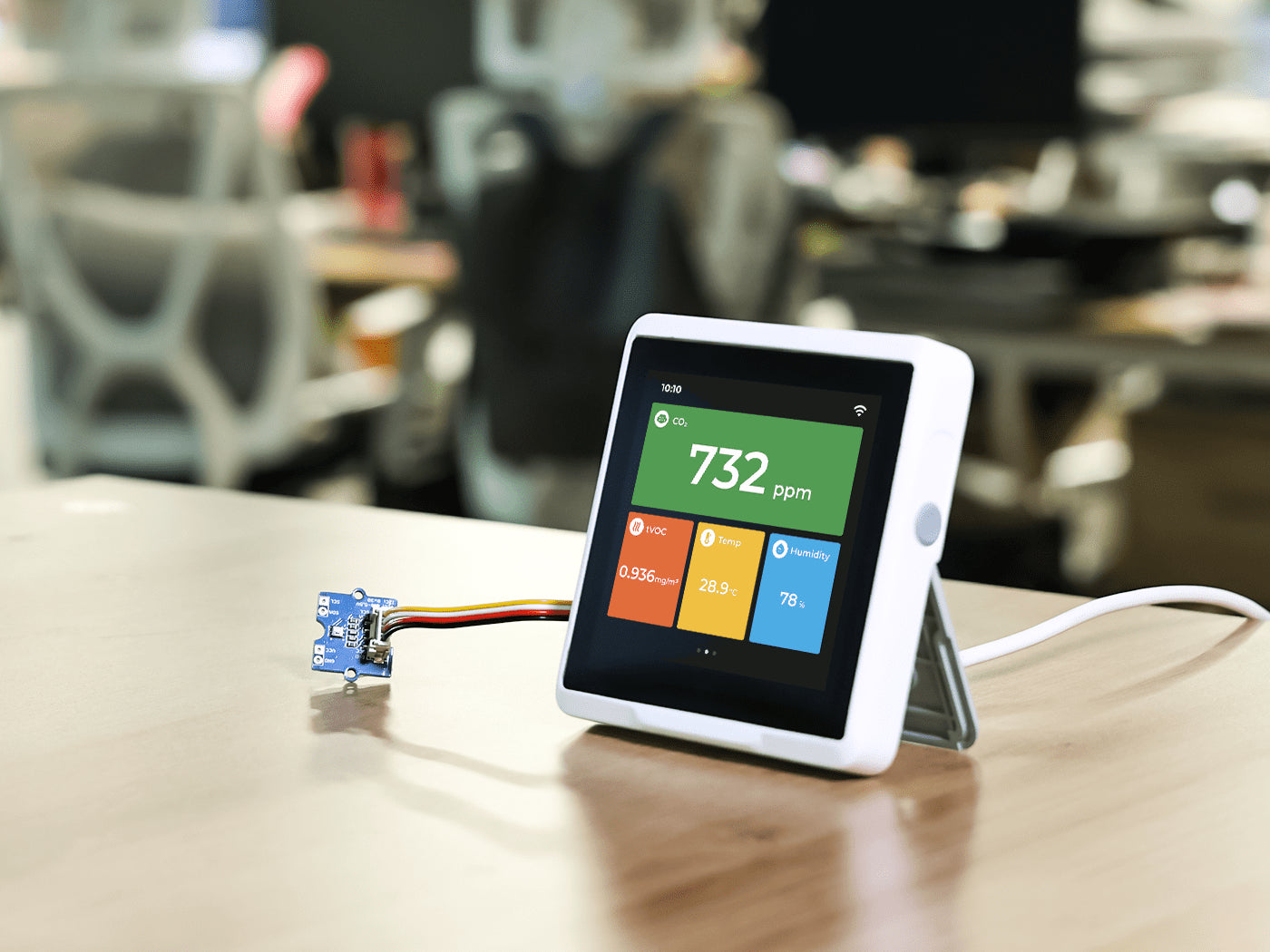

Built-in CO2 (SCD41) |
Range: 0-40000ppm Accuracy: 400ppm - 5000ppm ±(50ppm+5% of reading) |
|
Built-in TVOC (SGP40) |
Range: 1-500 VOC Index Points | |
|
External Temperature and Humidity Sensor |
Range: -40 ~ + 85 ℃/± 0.3 ℃; 0 ~ 100% RH/± 2% RH (25 ℃) | |
| Buzzer | MLT-8530, Resonant Frequency：2700H | |
What’s in the Box*

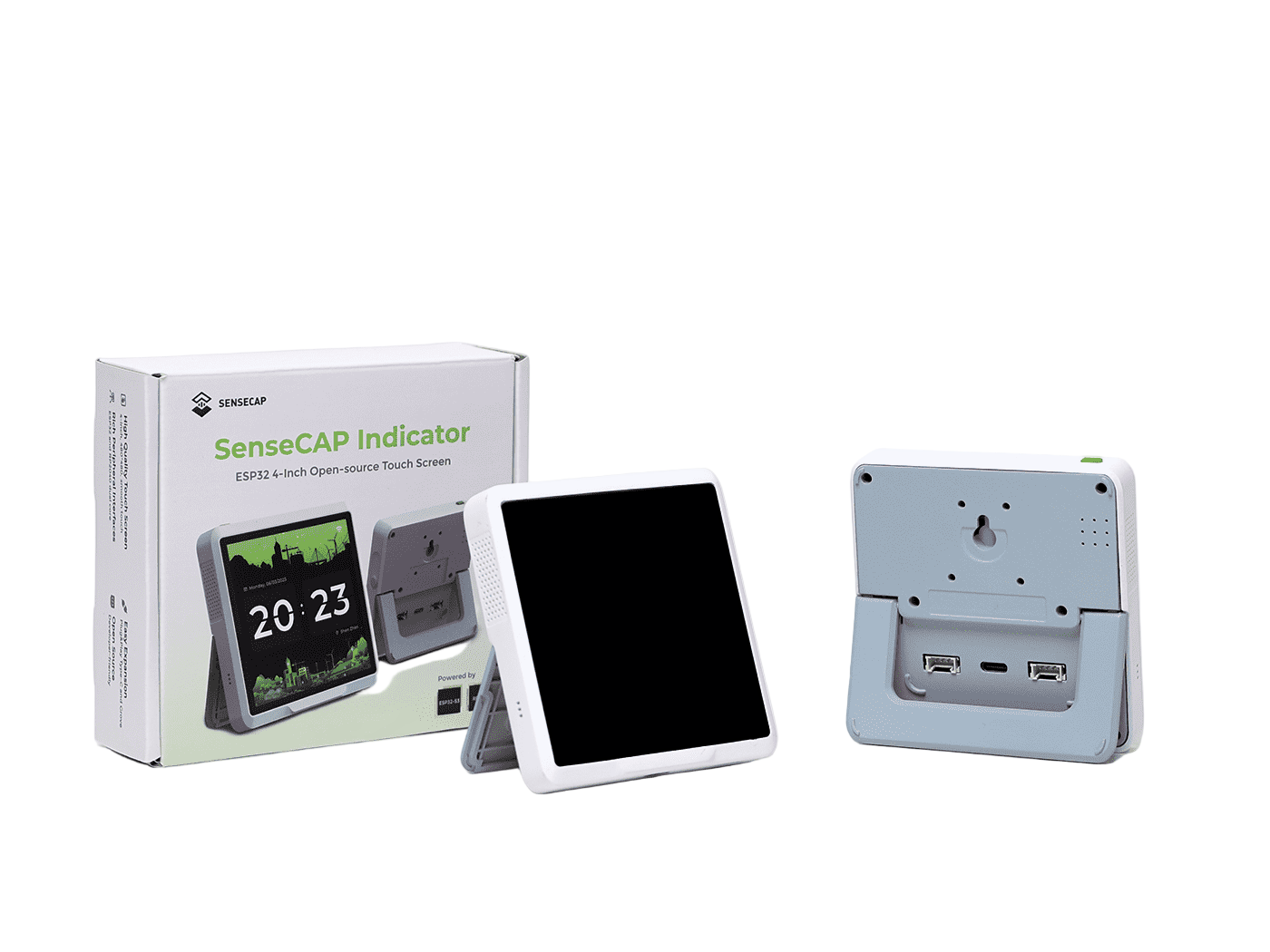

- 1× Seeedstudio SenseCAP Indicator D1L
- 1× USB-C cable
- 1× Quick start guide
Disclaimer
You’ll always get the D1L—the cable and paperwork may vary, but the dual-chip brain is guaranteed.
Still Here?
Okay, tinkerer—the SenseCAP Indicator D1L gives you a touchscreen, dual MCU brains, and IoT-ready connectivity. Grab one now, or keep pretending your breadboard spaghetti counts as “user interface design.”
