Product Details

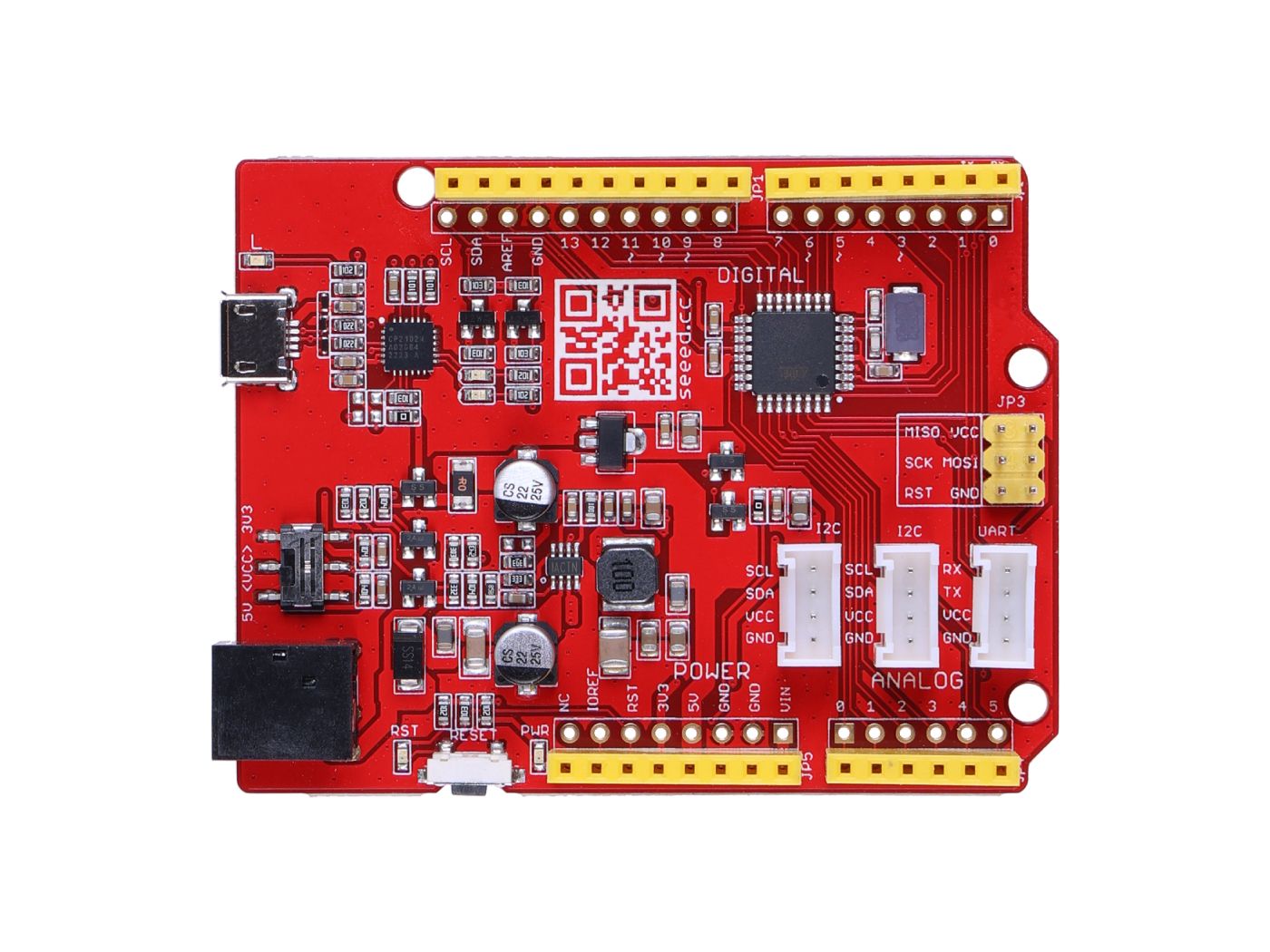

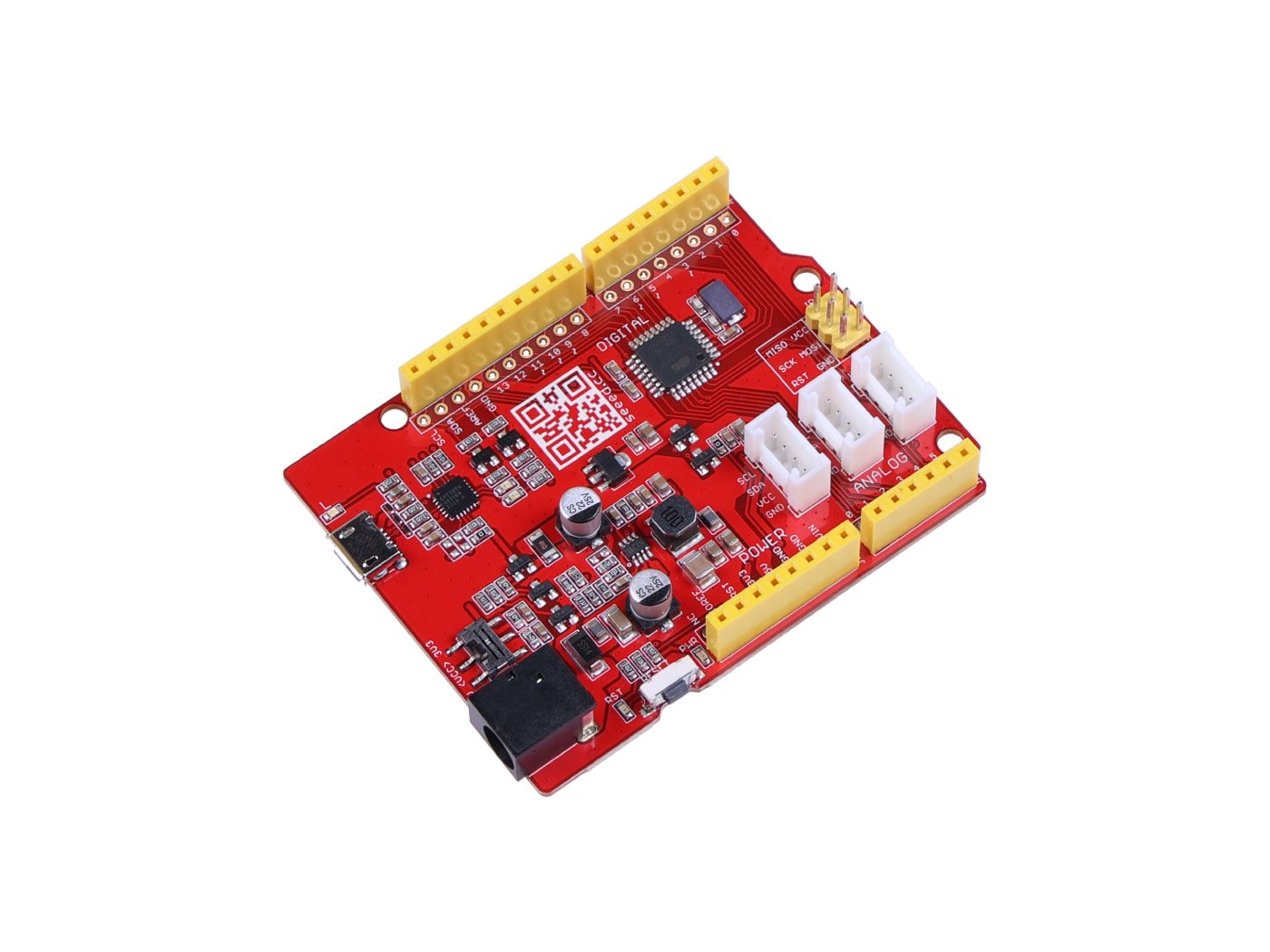

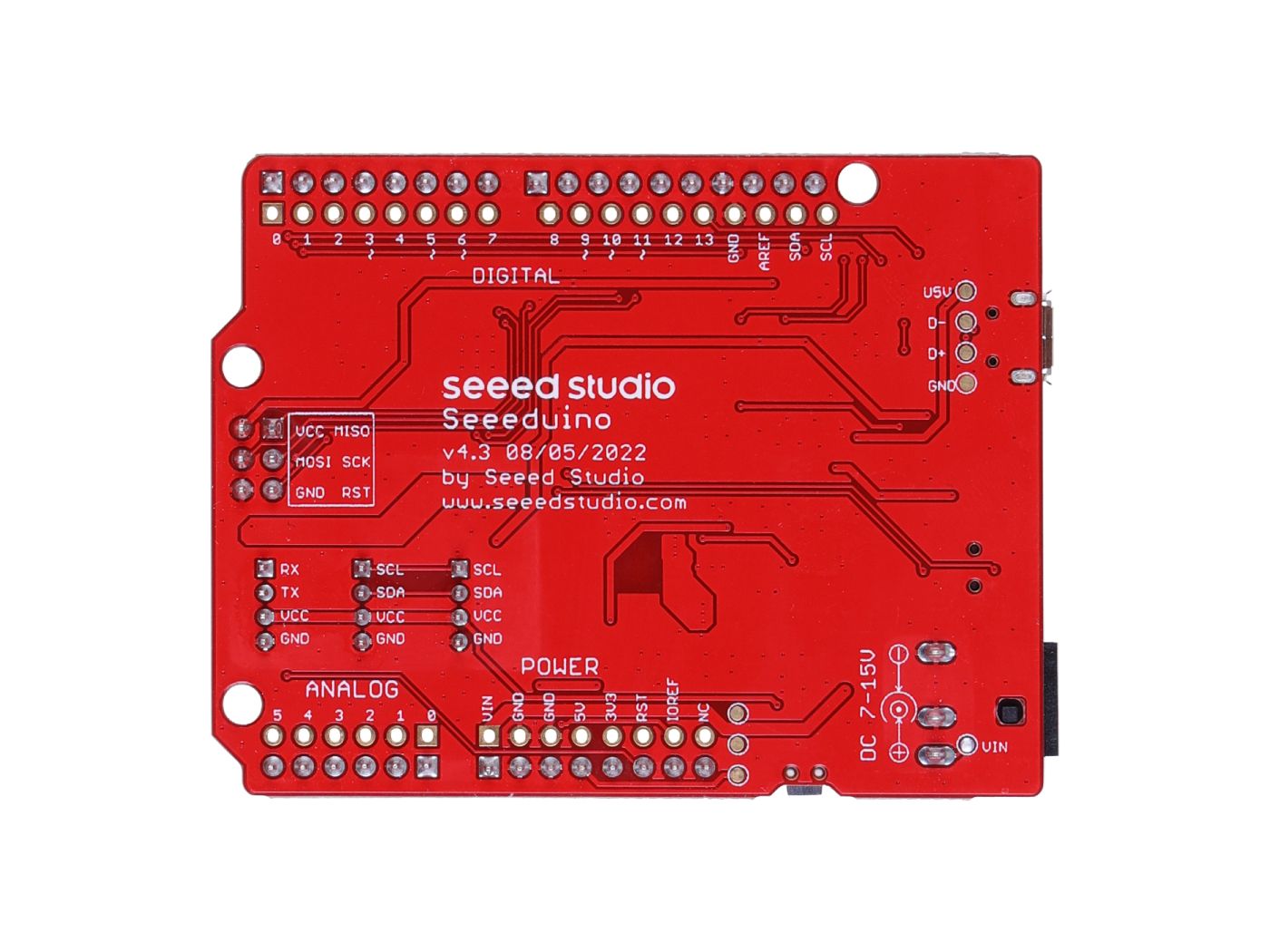

The Seeeduino V4.3 is not your typical Arduino-compatible board—it's the bread and butter for anyone serious about tinkering, without the hassle of jumpers or soldering. Powered by the reliable ATmega328P microcontroller and based on the classic Arduino UNO bootloader, this board is a stable, user-friendly, and versatile platform for your DIY electronics projects.
With 14 Digital I/O Pins (including 6 PWM outputs) and 6 Analog Inputs, Seeeduino V4.3 offers the flexibility you need for a wide range of applications. Whether you're building a robot or an IoT device, this board's compatibility with Arduino UNO-R3 shields means you have plenty of expansion options.
Switching between 3.3V and 5V operation is as easy as flipping a switch—literally. This feature is a lifesaver when you need to optimize power consumption without losing performance. Plus, with 3 on-board Grove connectors, the Seeeduino V4.3 allows for easy integration with a vast ecosystem of Grove modules, simplifying your prototyping process.
Key Features of Seeeduino V4.3
- Microchip ATmega328P Microcontroller : The heart of the board, known for its reliability and versatility.
- Arduino UNO Bootloader : Ensures compatibility with a wide range of Arduino software and tools.
- 14 Digital I/O Pins : Includes 6 PWM outputs for precise control over motors and LEDs.
- 6 Analog Inputs : Capture more data with six channels for sensors and other analog inputs.
- ISP Header : For easy programming and debugging.
- Micro USB for Programming and Power : Ditch the bulky cables and keep things sleek.
- 3 On-Board Grove Connectors : Seamless integration with Grove modules—no soldering, no fuss.
- 3.3/5V System Operation Power Switch : Adjust voltage settings to suit your project's needs.
Technical Specifications
- Dimensions : 115mm x 78mm x 25mm
- Weight : 41g
- Microcontroller : ATmega328P
- Operating Voltage : 3.3V/5V switchable
- Input Voltage : 7-15V DC via Jack
- DC Current per I/O Pin : 40 mA
- Clock Speed : 16 MHz
- Flash Memory : 32 KB (ATmega328P) of which 2 KB used by bootloader
- RAM : 2 KB
- EEPROM : 1 KB
What's in the Box?
- 1x Seeeduino V4.3 Board
