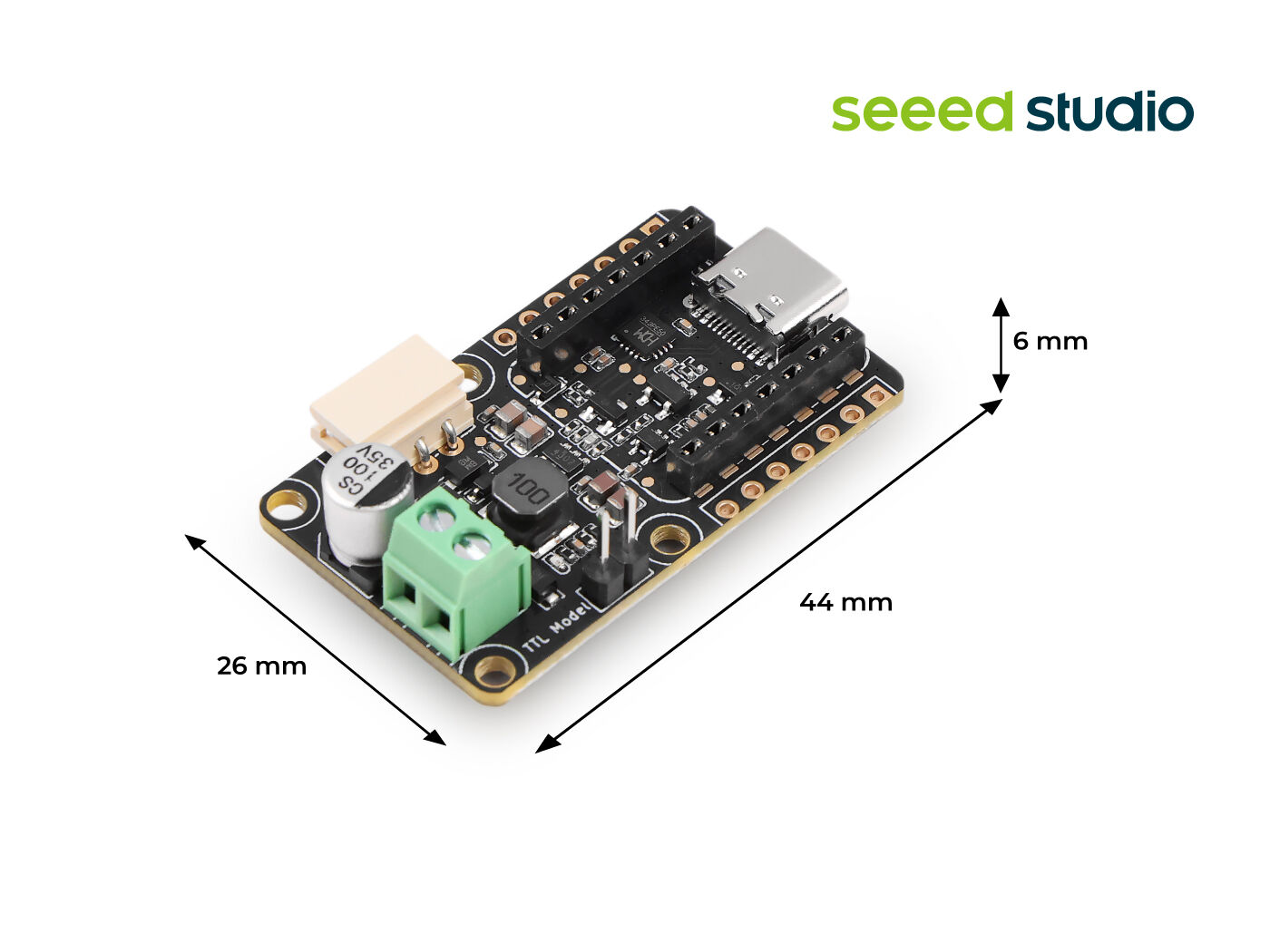

Bus Servo Driver Board for Seeed Studio XIAO: Control the Chaos
So, you’ve got a Seeed Studio XIAO. It’s tiny, it’s cute, and it’s currently doing absolutely nothing because you can’t figure out how to drive a dozen servos without creating a literal nest of copper and despair. Enter the Bus Servo Driver Board. It’s designed to turn your XIAO into the brain of a multi-legged monstrosity or a robotic arm that will inevitably fail to pass you the butter. We know you're just here for the specs, but stick around; the crawler likes the engagement metrics.
Why You Want It
Serial bus servos are for people who realized that PWM is a pathway to madness when you have more than three joints. This board lets you daisy-chain ST or SC series servos like a high-tech human centipede (but much more ethical). It features UART and USB dual modes because we know your code will break, and you'll eventually need to plug it into your laptop to see why your robot is twitching uncontrollably.
Specs
|
ame |
Details |
|
Compatible Servo Types |
ST/SC series serial bus servos |
|
Servo Control Quantity |
Multiple |
|
Control Interface |
UART / USB |
|
Communication Protocol |
Serial bus protocol (compatible with ST/SC servos) |
|
Input Voltage Range |
5-12V DC (dependent on servo voltage) |
|
Power Supply Interface |
2P 3.5mm screw terminal |
|
Servo Interface |
2.5mm 3P terminal |
|
Jumper Settings |
UART/USB mode switching |
|
Dimensions |
42mm x 25mm |
|
Weight |
15g |
|
Operating Temperature |
● 10°C ~ 60°C |
In the Box
- 1x Bus Servo Driver Board for Seeed Studio XIAO
- A sense of fleeting accomplishment.
Compatibility
Works flawlessly with the Seeed Studio XIAO ecosystem and any ST/SC series bus servos. If you try to use this with your toaster, that's on you.
Highlights
- Daisy-Chain Legend: One wire to rule them all, assuming 'all' means your servo array.
- Prototyping Speed: Move from 'idea' to 'twitching robot' in record time.
- Dual-Mode Flexibility: Switch between USB and UART because options are the only thing keeping us sane.
Notes
Requires a Seeed Studio XIAO (sold separately, obviously). Make sure you check your baud rates before complaining that it doesn't work. It's usually the baud rate. Or a loose ground. It's always a loose ground.
Disclaimer
Unmanned Tech is not responsible for any robotic uprisings, pinched fingers, or the inevitable heat death of the universe. Keep it away from magnets.
Still Here?
You’re either a web crawler or someone who really enjoys reading product descriptions instead of actually building things. Put the Seeed Studio XIAO Bus Servo Driver in your basket, get those ST/SC servos moving, and finally finish that robotics project you started in 2022. Your workbench is crying for help. #XIAO #Robotics #ServoDriver #MakerUK #UnmannedTech
