Product Details

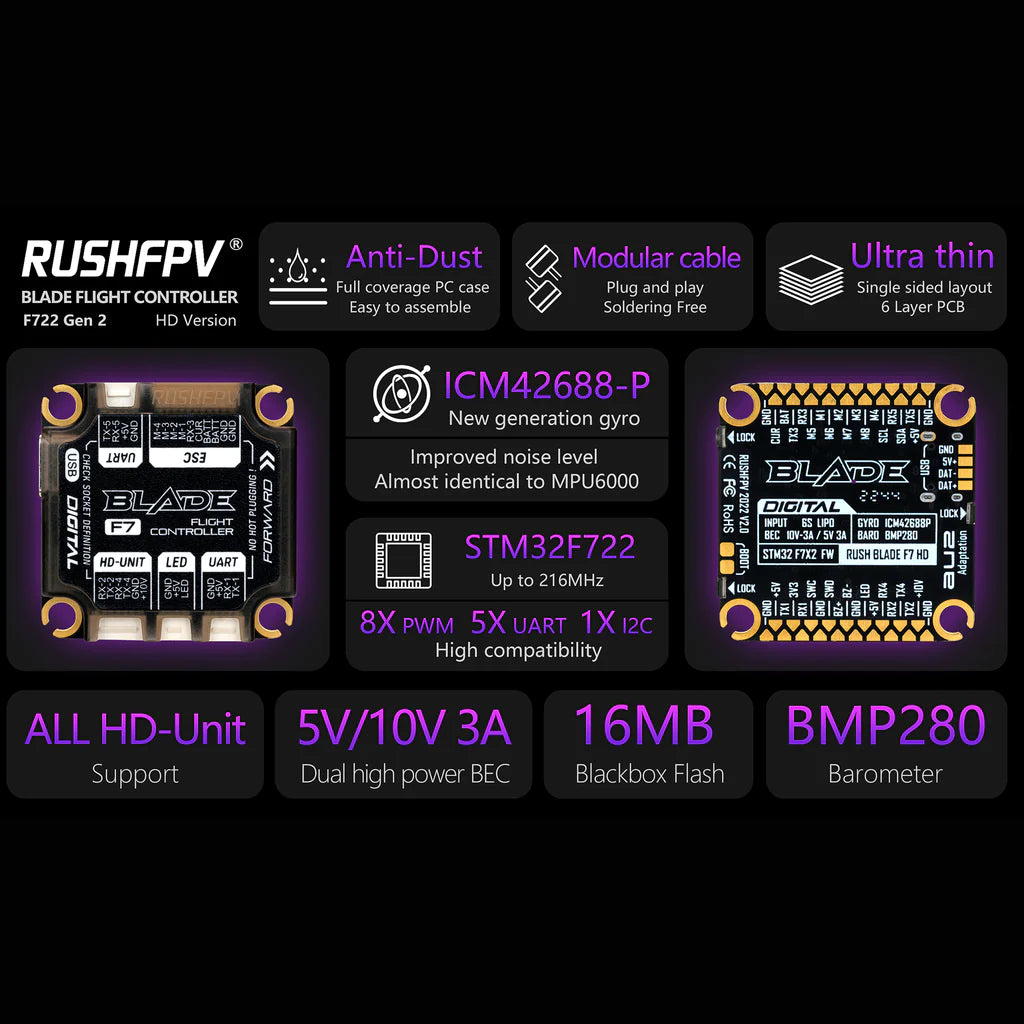

Features
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- ICM42688P gyroscope, independent low-noise power supply.
-
Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port.
Dual high power synchronous rectifier BEC, supports up to 36V input and provides stable 5V/10V 3A
output. -
Modular cable design, with reliable locking structure, can be installed quickly, while retaining
full-featured pads on the back, providing more expansion support. - Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
- PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings
Specifications
- MCU： STM32F722RET6
- GYRO： ICM42688P
- BLACKBOX ：16MB FLASH
- BEC
- INPUT 7-36V / 3-6S LIPO
- OUTPUT 1 5V 3A
- OUTPUT 2 10V 3A
- PORT 8×PWM 5×UART 1×I2C
- ADC V-BATT / CURR-ESC
- LED WS2812 LED STRIP
- SIZE 36.5mm*37mm*5.2mm
- BARO
- MOUNTING HOLES
- BMP280
- 30.5*30.5mm
- TARGET RUSH_BLADE_F7_HD WEIGHT 11g(without cable
Includes

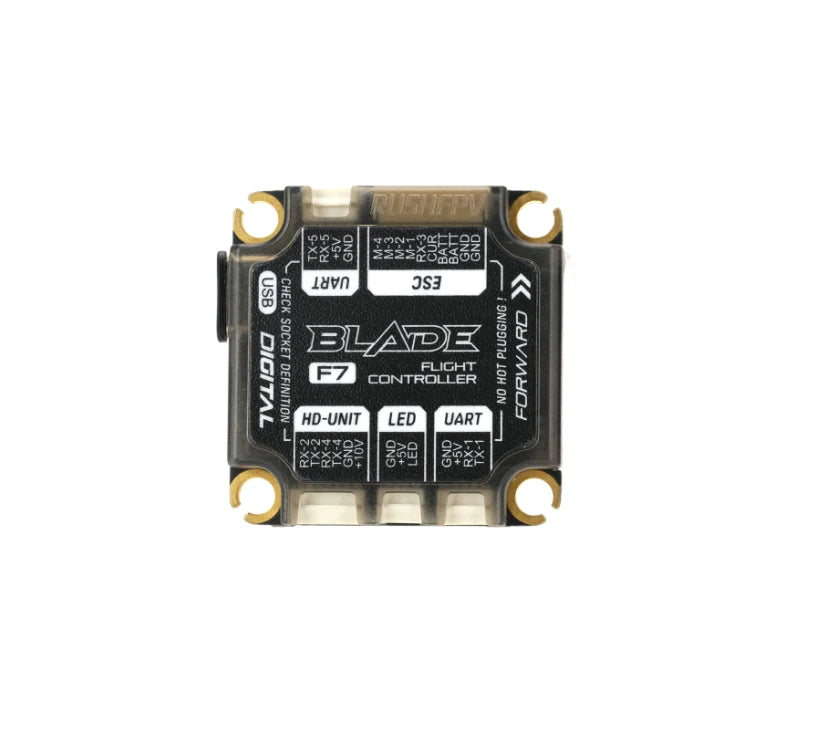

- 1 x RUSH BLADE F722 30x30 Flight Controller For DJI HD
- 1x Accessories Pack
