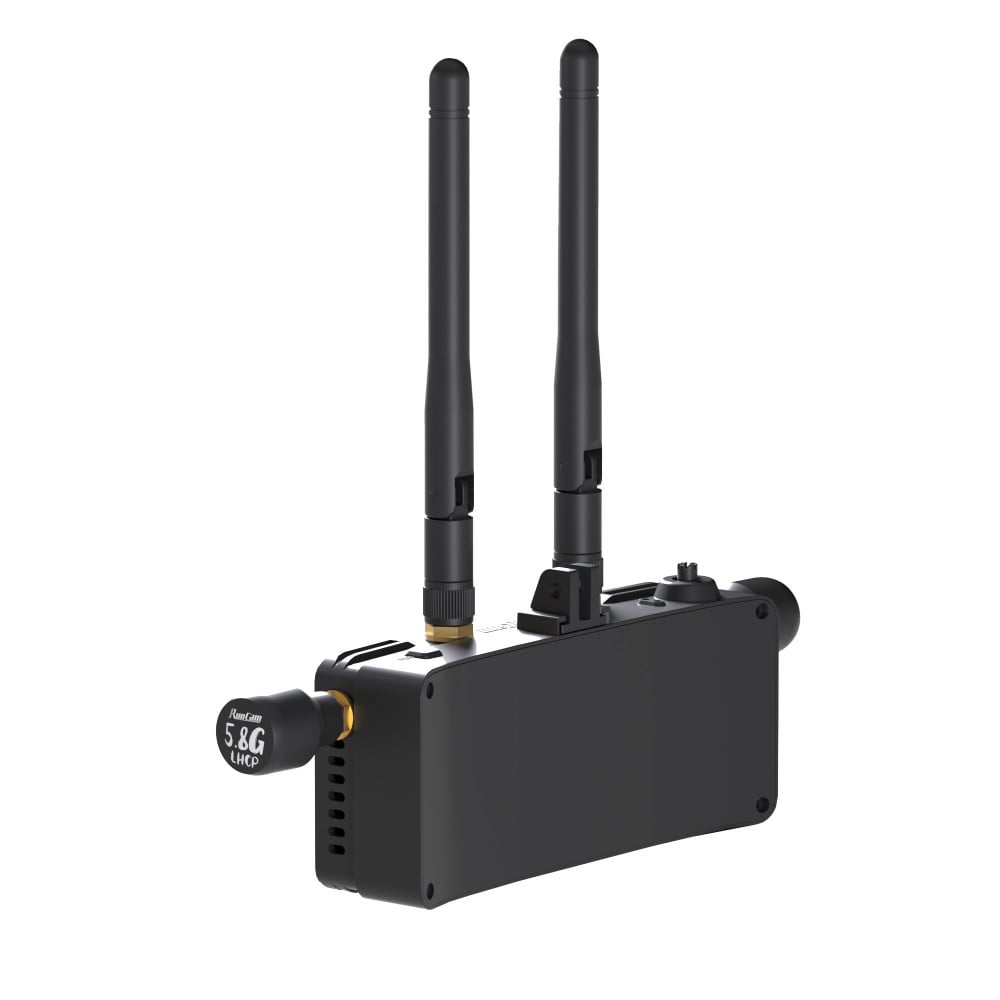

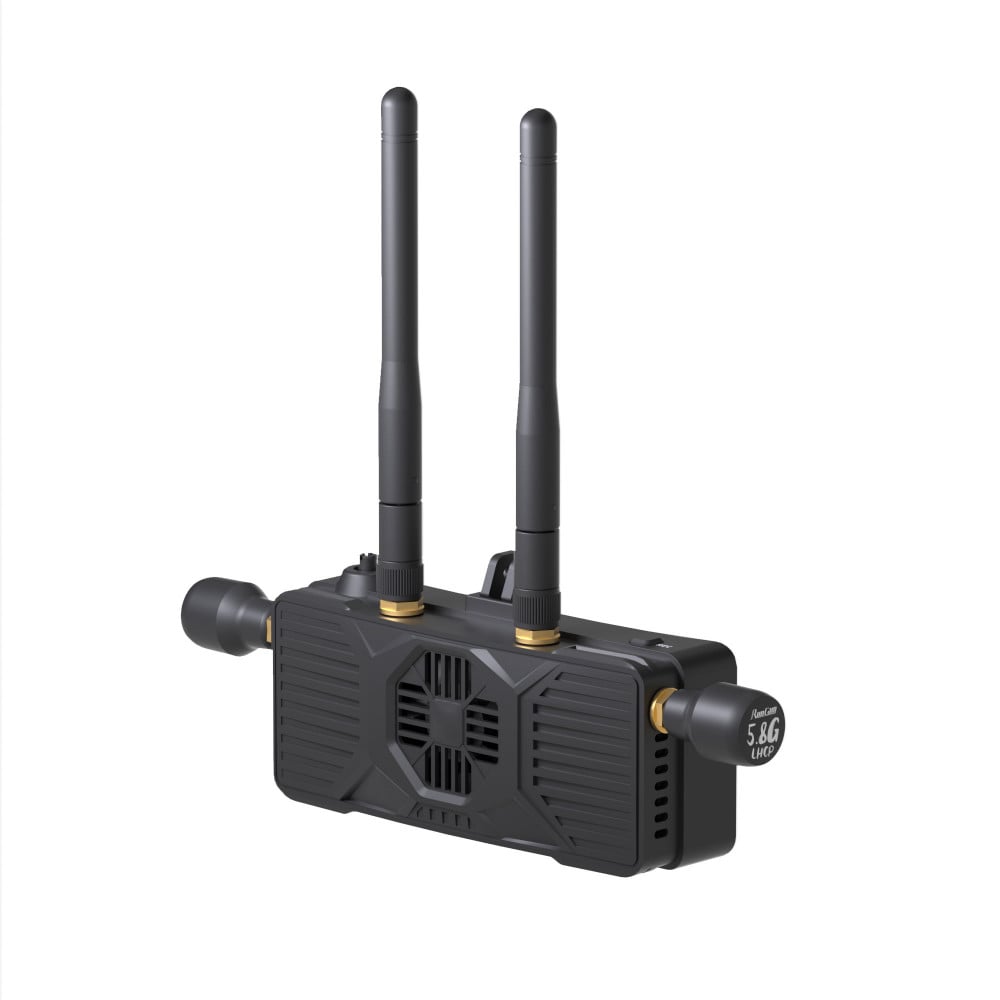

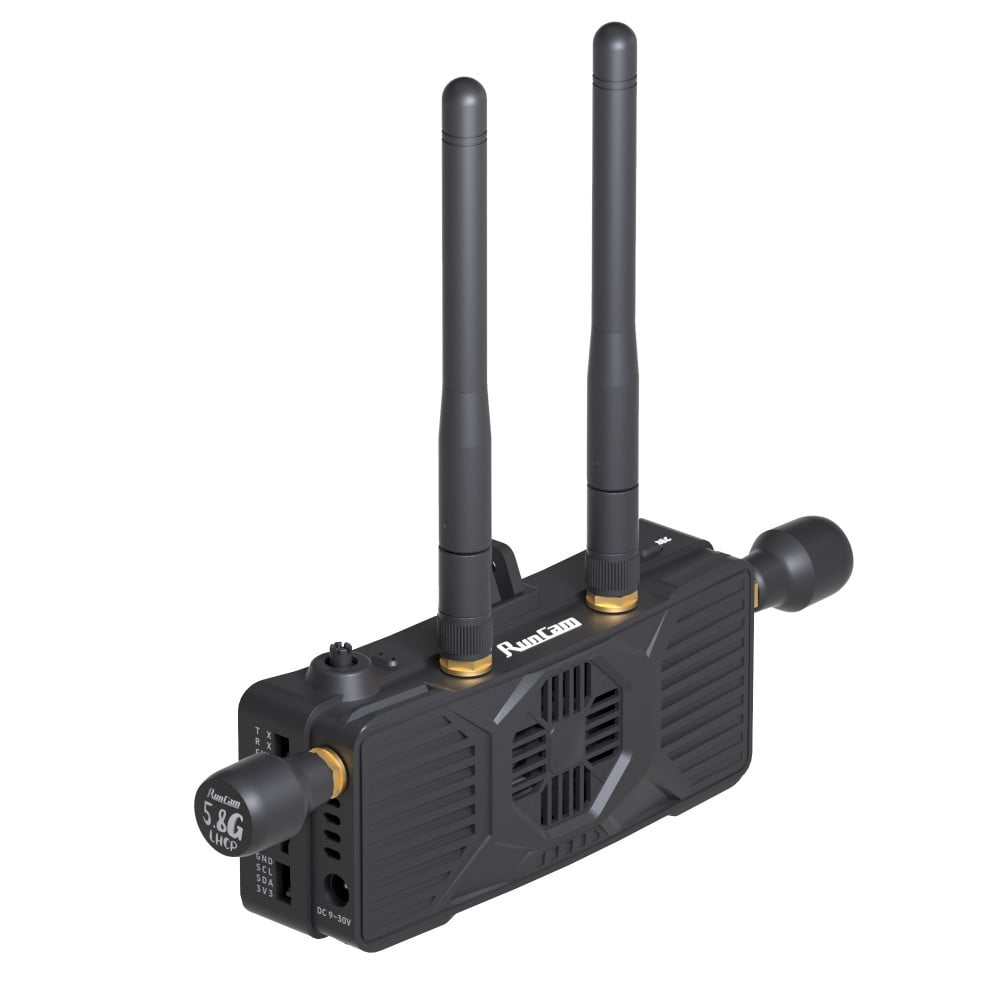

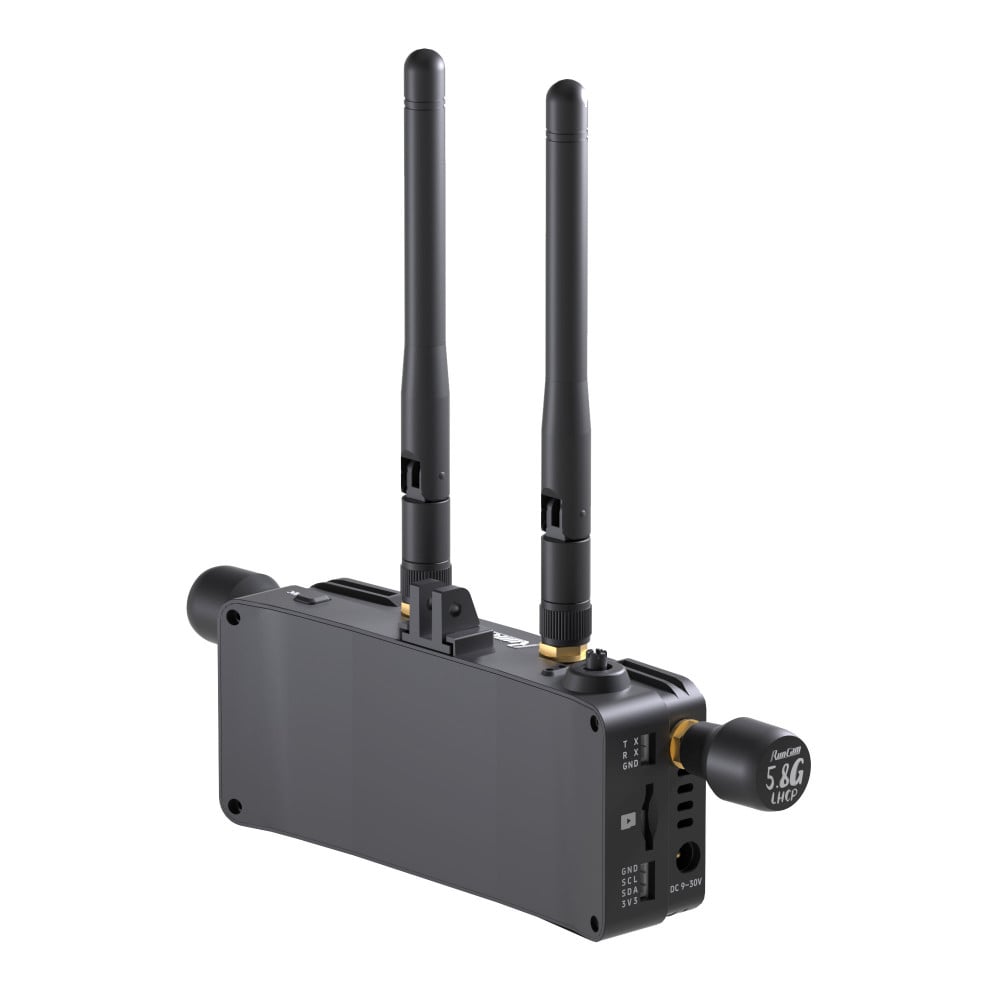

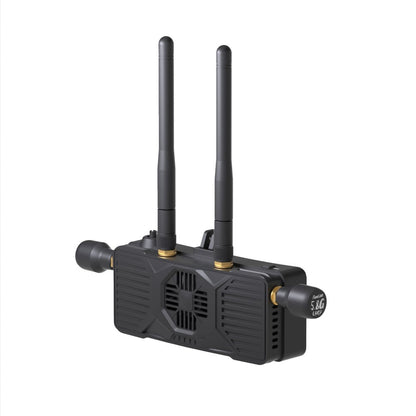

WiFiLink RX: Open Source 5.8GHz HD FPV Video Receiver with HDMI Output
Take your FPV experience to the next level with the WiFiLink RX 5.8GHz Wireless Video Receiver . Engineered for FPV pilots seeking high-quality video links, this receiver outputs crisp 1080p or 720p video at a smooth 60fps through its Mini-HDMI port , perfect for connecting to goggles or monitors.
Operating reliably within the 5180MHz to 5885MHz frequency range , the WiFiLink RX helps you maintain a stable video connection. Its versatile 9-30V power input (compatible with 3S to 6S LiPo batteries) ensures seamless integration into most ground station power setups.
Capture every moment of your flight! The WiFiLink RX boasts robust recording options, featuring 32GB of built-in storage (partially used by system files) and support for MicroSD cards up to 256GB . This receiver is designed for flexibility, supporting popular systems like Ruby FPV and OpenIPC .

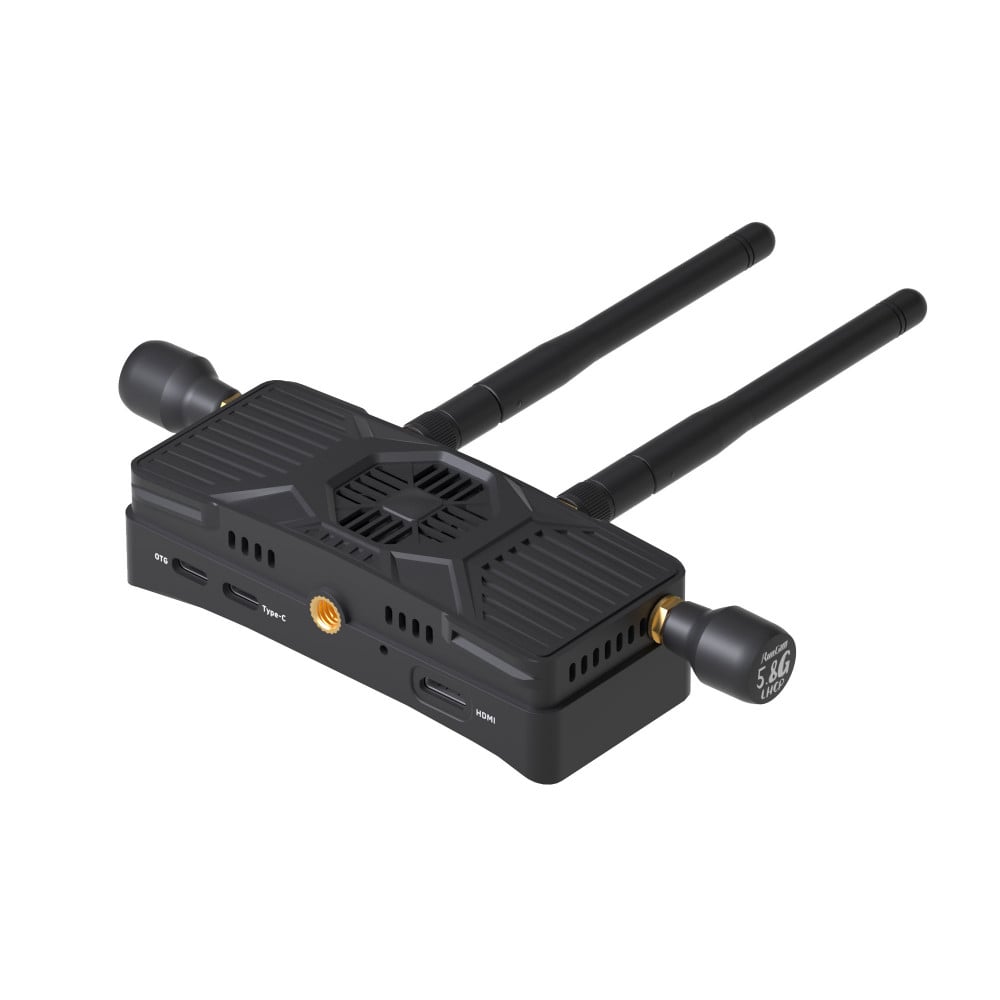

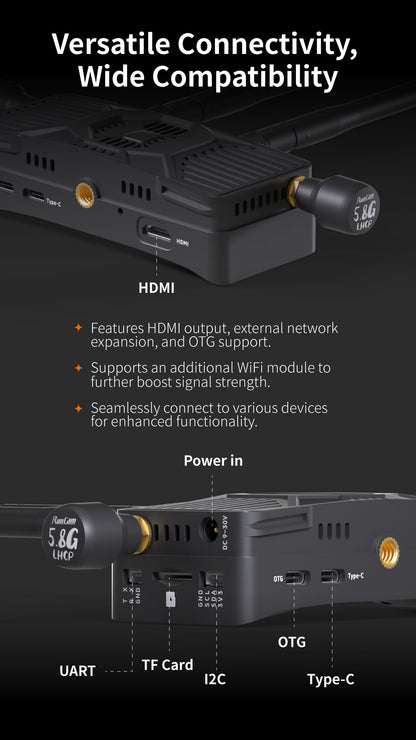

Connectivity is key, and the WiFiLink RX delivers with Mini-HDMI output, a Micro-SD card slot, DC 5.5x2.1mm power input, a Type-C port, and OTG functionality . Its compact dimensions and manageable weight make it a practical addition to your FPV gear.
Specifications:
- Model: WiFiLink RX
- Frequency: 5180Mhz ~ 5885Mhz
- Transmission Power: < 25dBm (FCC), < 14dBm (CE), < 20dBm (SRC), < 25dBm (MIC)

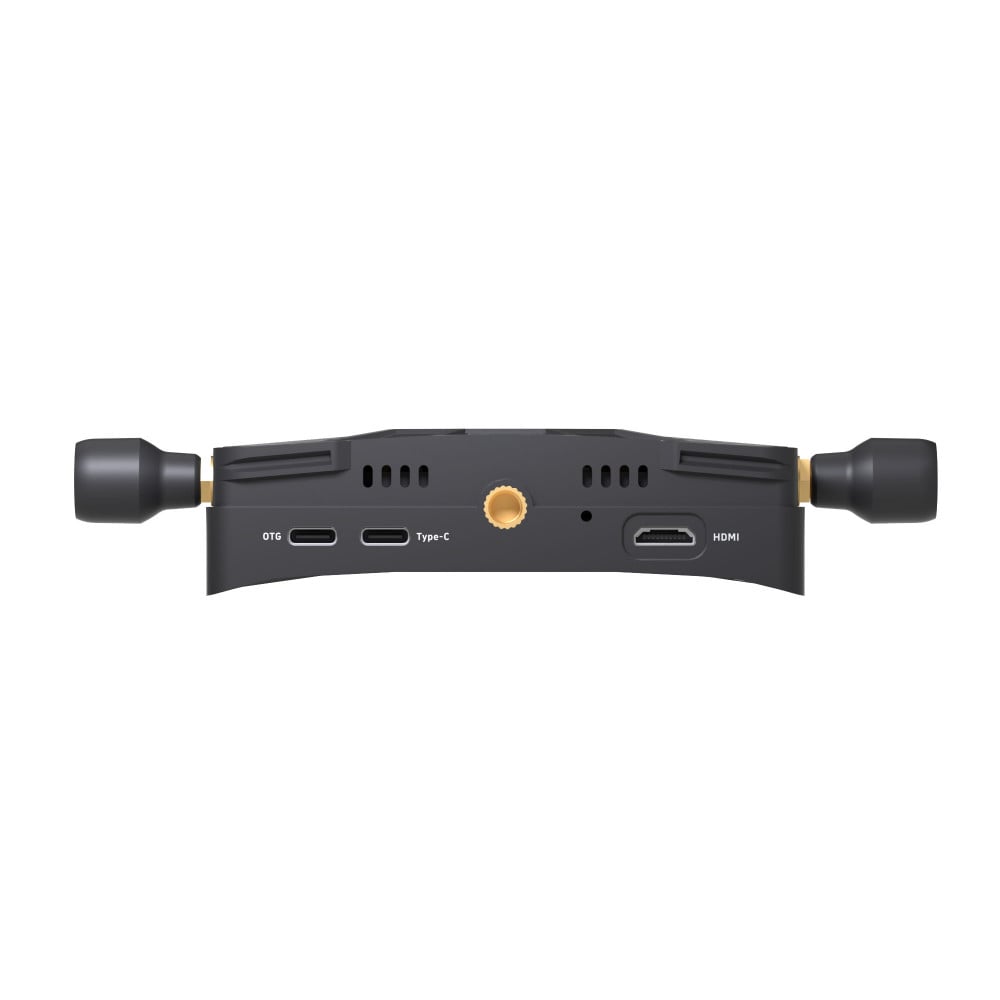

- Interfaces: Mini-HDMI, Micro-SD Slot, DC 5.5x2.1mm Power Input, Type-C, OTG
- Mini-HDMI Output Resolution: 1080P 60fps / 720P 60fps
- Power Input: 9V ~ 30V (Supports 3S ~ 6S LiPo Battery Input)
- MicroSD Card Support: Up to 256GB
- Built-in Storage: 32GB (Includes system files)
- Supported Systems: Ruby FPV / OpenIPC
- Dimensions (L x W x H): 110.0mm x 27.3mm x 46.0mm
- Weight: 122.0g (±1g) (antenna excluded)

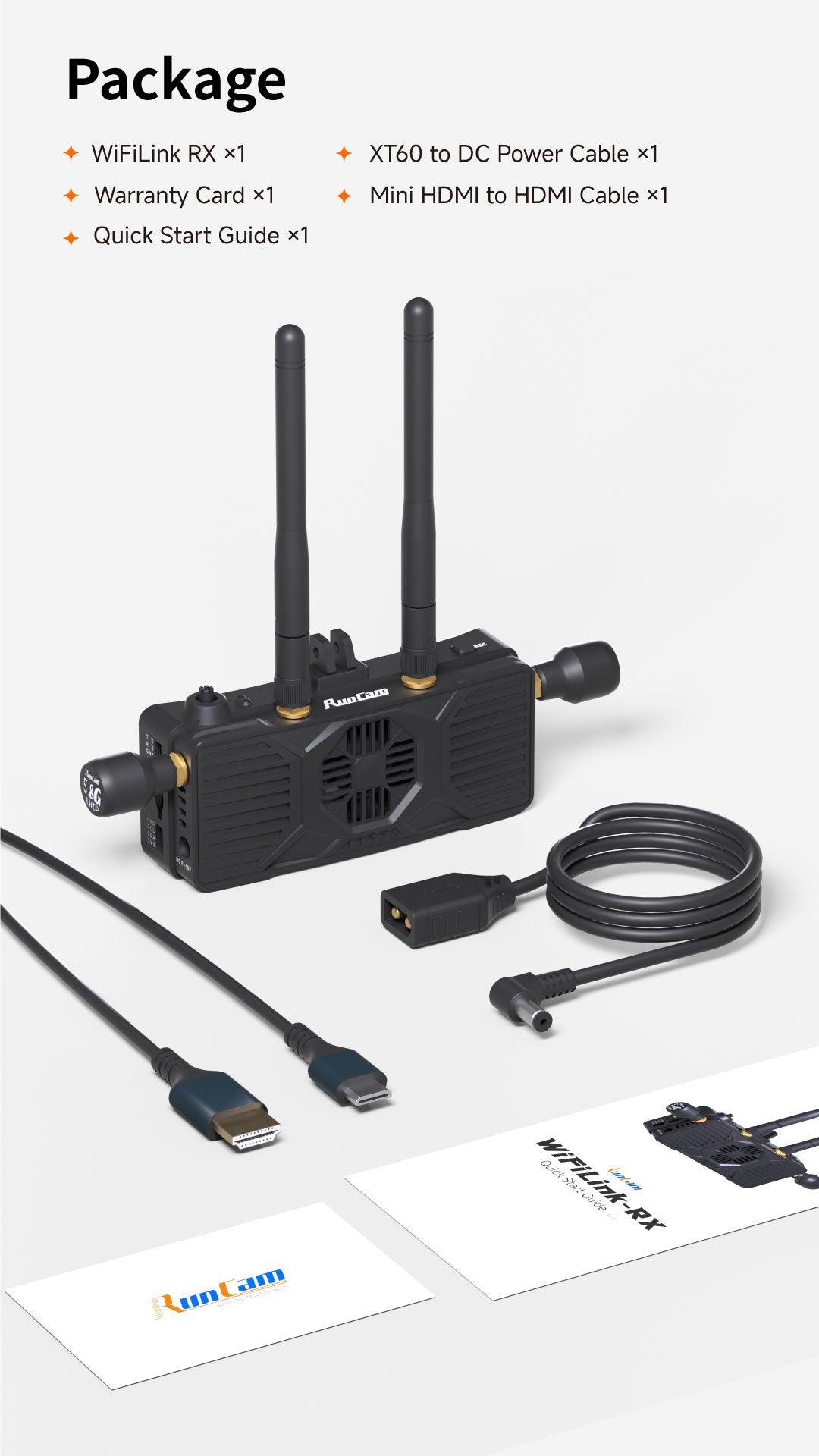

What's Included in the Box:
- 1 x WiFiLink RX Video Receiver Unit
Disclaimer: Please note that the specific accessories included in the box (such as cables or antennas, if applicable) may vary depending on the production batch and supply availability.
