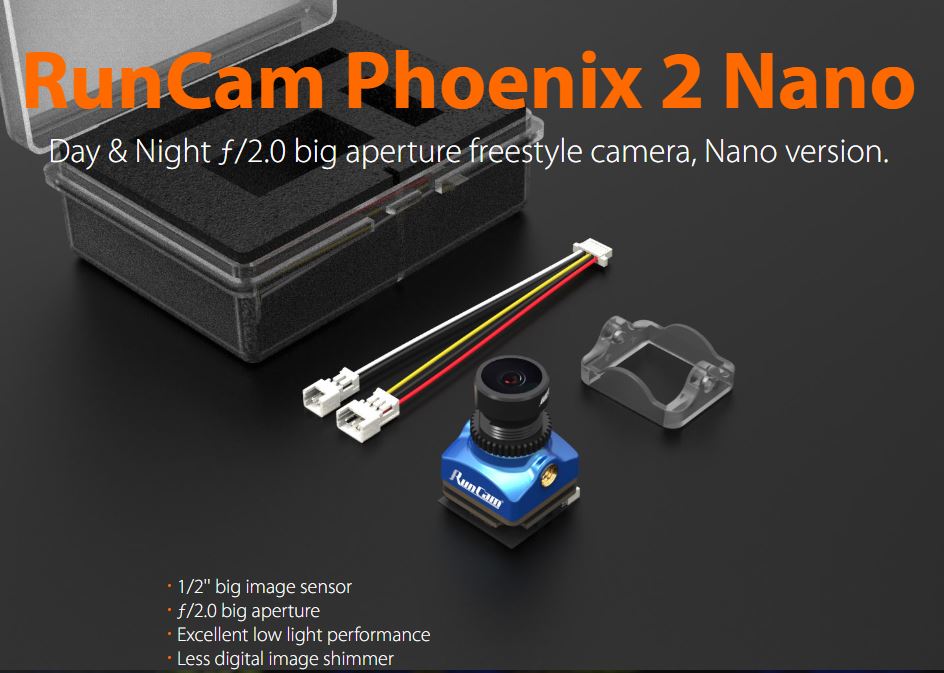

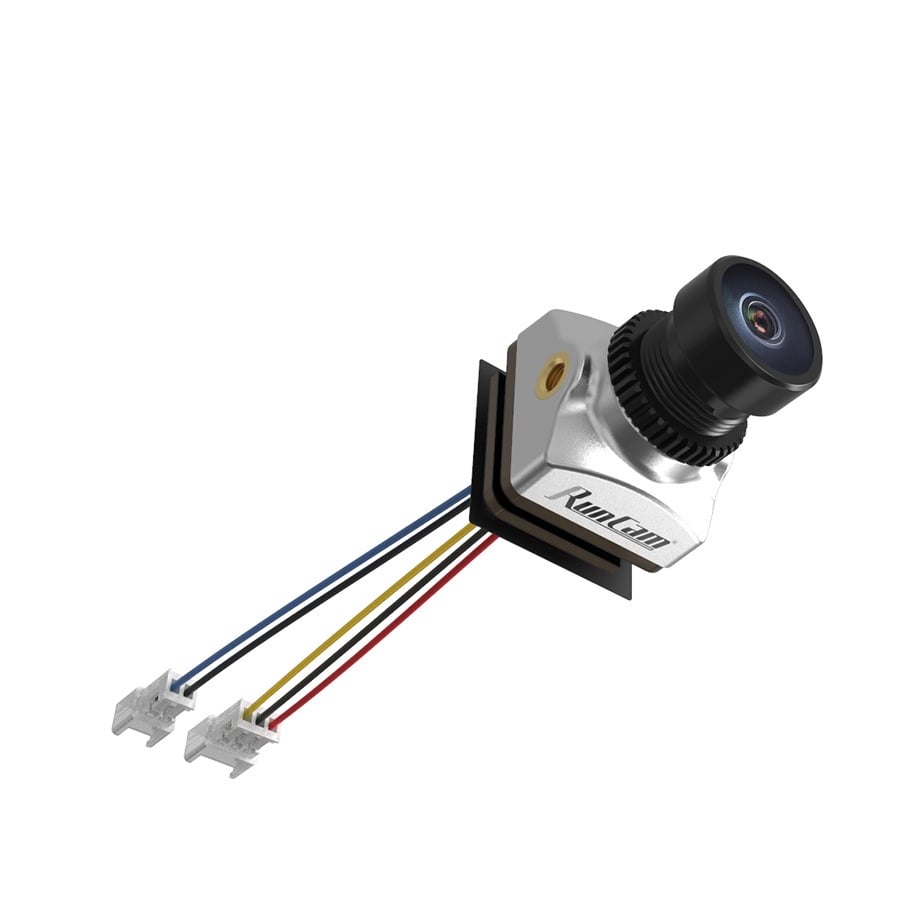

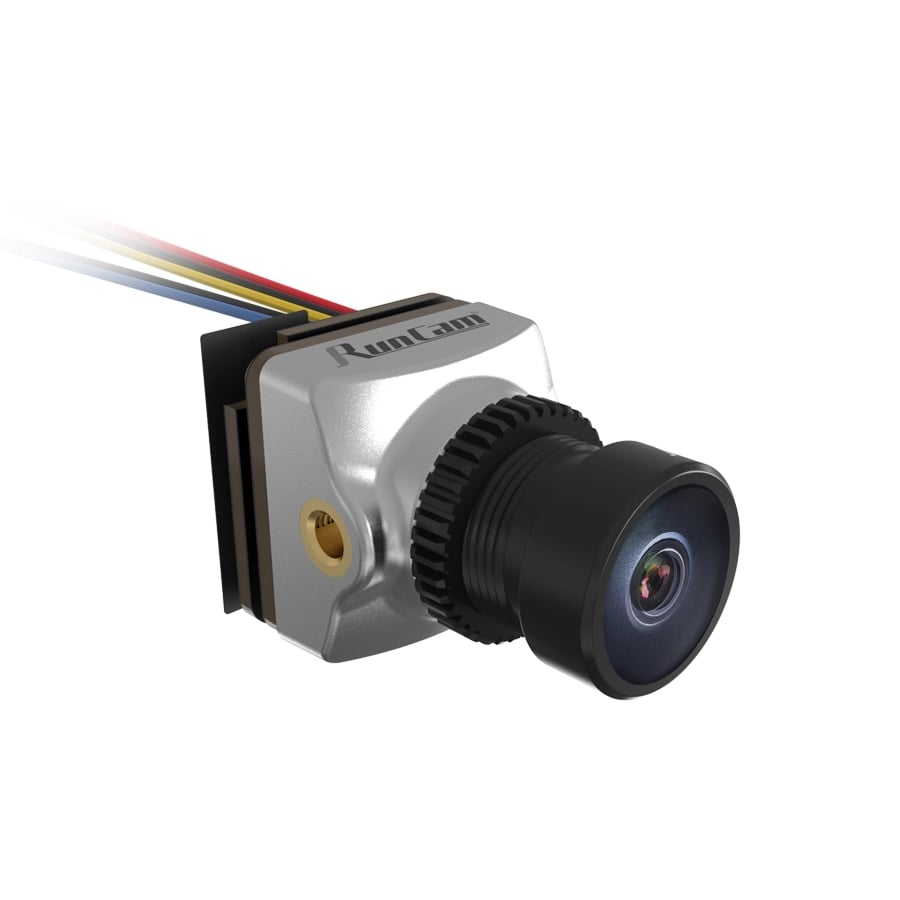

Product Details
The Runcam Phoenix V2 nano, uses a massive 1/2" sensor to give the incredibly vivid high resolution images for your FPV feed. Other sensor improvements include lower latency and less digital shimmer.\n
\n\n Features\n
\n- \n
- \n With the same CPU and 1/2'' high-performance image sensor as the RunCam Phoenix 2,\n
\n the RunCam Phoenix 2 Nano produces vivid high-resolution pictures.\n \n - \n Thanks to the 1/2'' super global WDR image sensor and the ƒ/2.0 big aperture 7G glass lens,\n

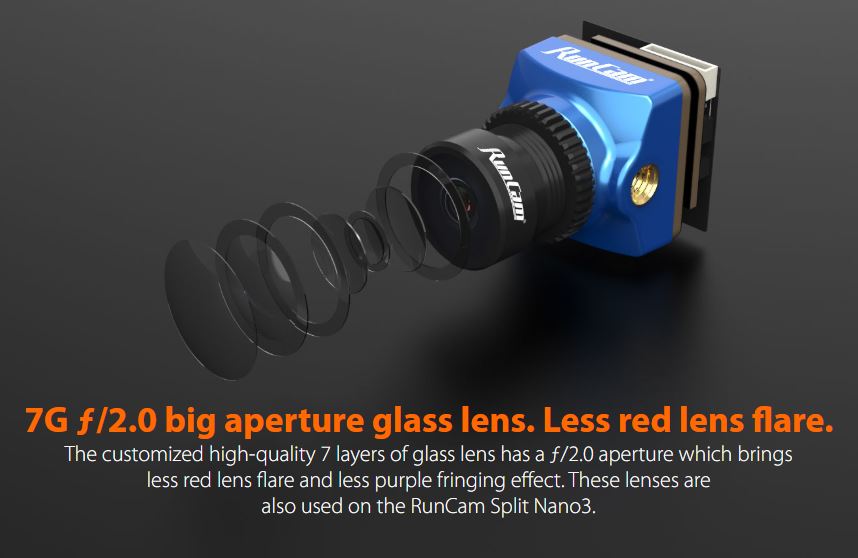

\n the Phoenix 2 Nano's low light performance is even better than the RunCam Eagle.\n \n - \n ƒ/2.0 big aperture lens. Less red lens flare.The customized high-quality 7 layers of glass lens has a ƒ/2.0 aperture which brings less red lens flare and less purple fringing effect. These lenses are also used on the RunCam Split Nano3.\n \n

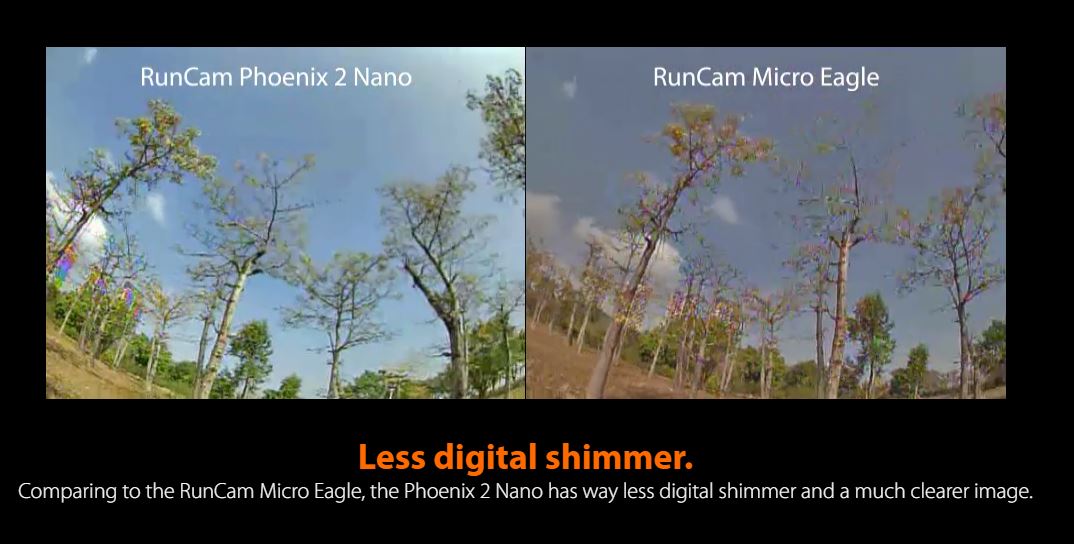

- \n Less digital shimmer.Compare to the RunCam Eagle, the RunCam Phoenix 2 has way less digital shimmer and a much cleaner image.\n \n
\n \n Phoenix_2_Nano_Manual_EN\n \n
\n\n
\n
\n
\n
\n
\n
\n
\n
\n Specifications\n
\n| \n Model\n | \n\n RunCam Phoenix 2 Nano\n | \n
| \n Image Sensor\n | \n\n 1/2" COMS Sensor |
| Horizontal Resolution | 1000TVL |
| Lens | 2.1mm (M8) FOV155° (4:3) |
| Screen Format | 4:3 / 16:9 switchable |
| Mirror/Flip | Available |
| Signal System | PAL / NTSC Switchable |
| S/N Ratio | >50dB (AGC OFF) |
| Electronic Shutter Speed | Auto |
| Auto Gain Control (AGC) | Auto |
| Min. Illumination | 0.001Lux@1.2F |
| WDR | Global WDR |
| Day/Night | Color/BW/EXT/Auto |
| Menu Control | Cable Control |
| Power | DC 5-36V |
| Current | 190mA@5V/80mA@12V |
| Housing Material | ABS |
| Net Weight | 5g |

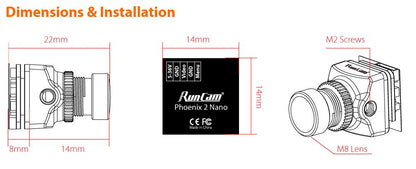

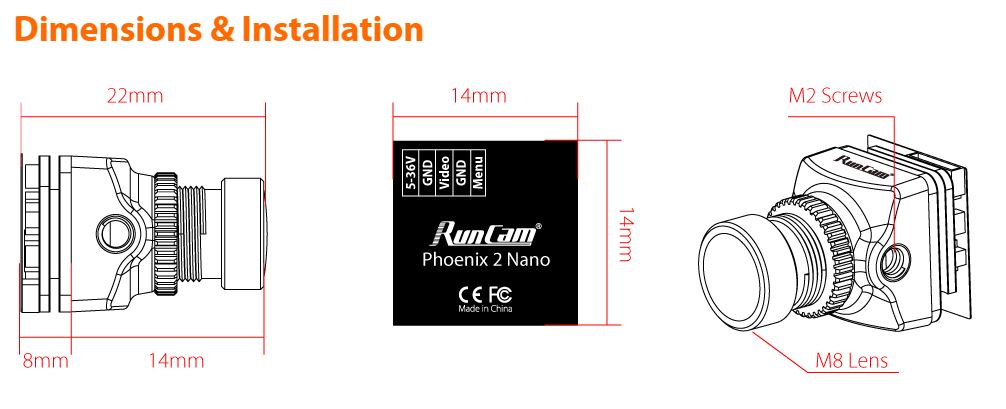

| Dimensions | 14mm*14mm*22mm |
