Product Details
Features
- 8 Channels for Drones : The HDL FPV Transmission system and the FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.
- Embedded DJI Remote Controller Receiver : Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly.

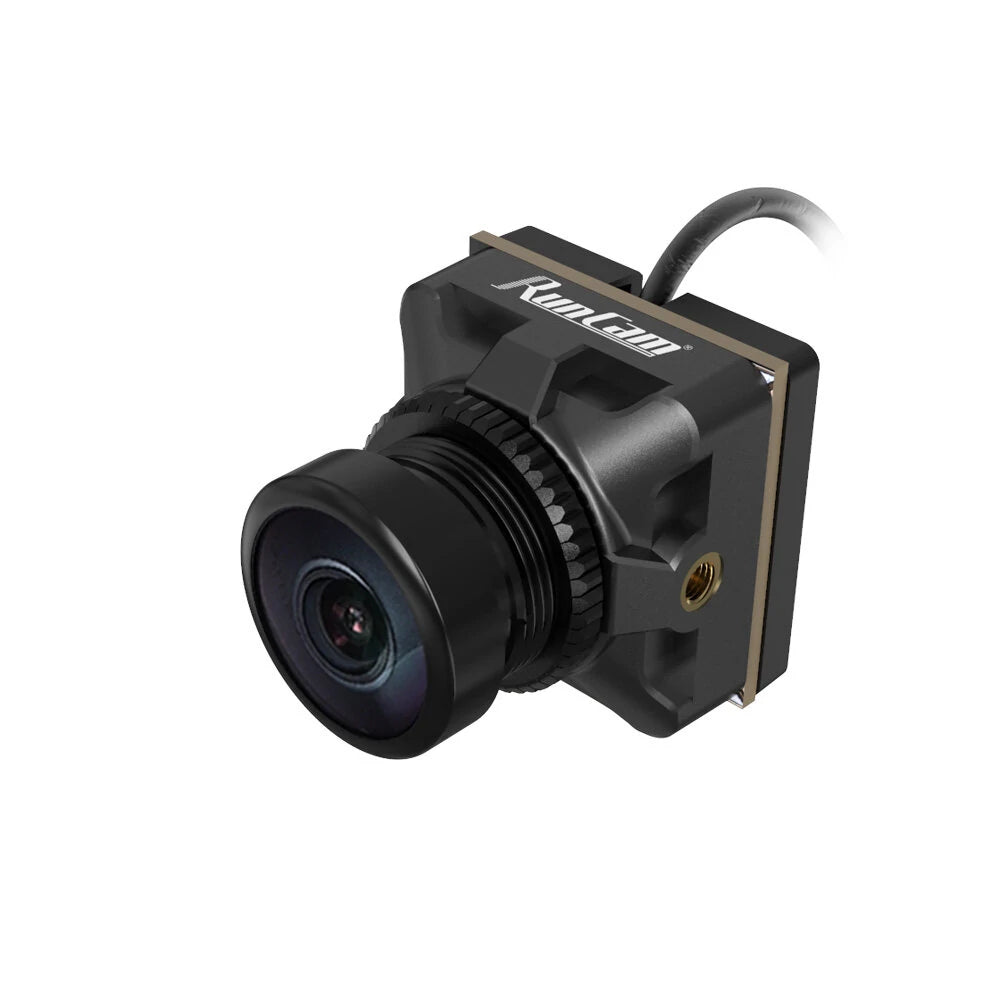

- Runcam Phoenix HD Camera : 1/2 inch Sensor, up to 10650 mV/Lux-sec ultra-high sensitivity sensor, excellent for low light flying.
- 1280 x 720 60fps resolution : with only 32ms latency, which is suitable for freestyle flying.
User Manual
Specifications
| Model | RunCam LINK Phoenix HD Kit |
| Frequency | 5.725-5.850 GHz |
| Max. Distance | FCC/SRRC: <4 km & CE: <0.7 km |
| Power | 7.4-26.4 V@ 4-9W |
| Dimensions | 29×29×13 mm |
| Net Weight | 19.5 g |
| Model | RunCam Phoenix HD |
| Image Sensor | 1/2" |
| Resolution | 1280*720@60fps |
| LENS | FOV D:157° H:133° V:72° |
| Shutter | Rolling Shutter |
| Coaxial Cable | 120 mm |
| Dimensions | L19mm*W19mm*H23.5mm |
| Net Weight | 7.5g |

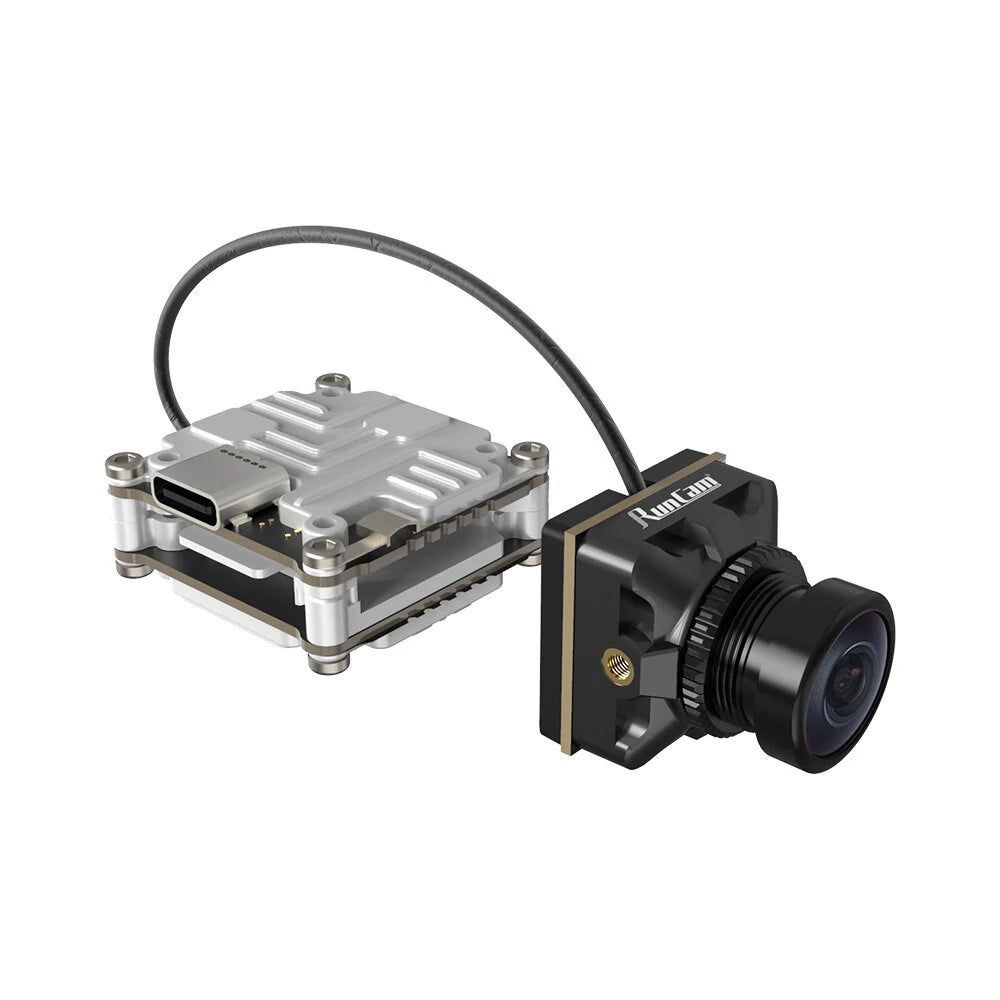

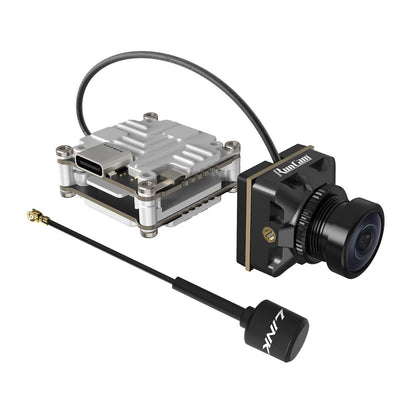

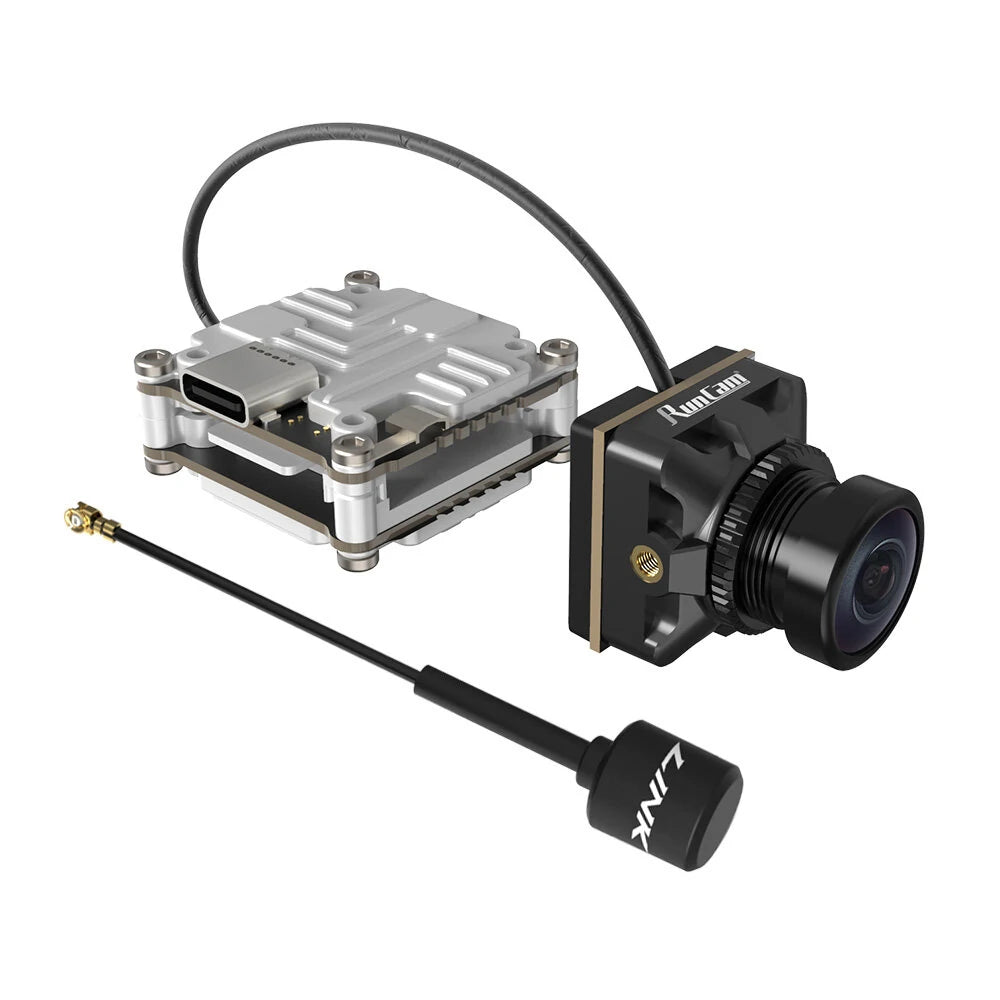

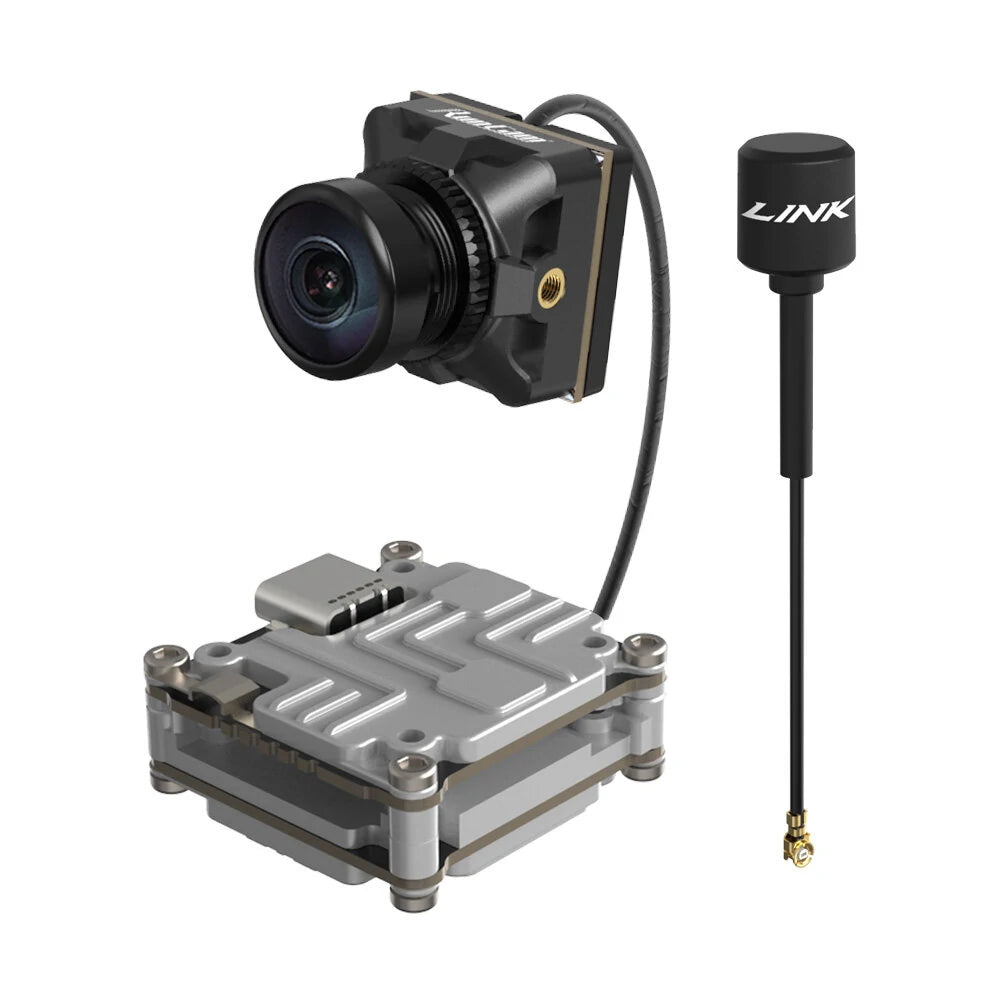

Included
- 1 x Phenix HD Camera
- 1 x Runcam Link HD VTX (Vista air unit)
- 1 x Antenna
- 1 x Cable Wire
