Product Details

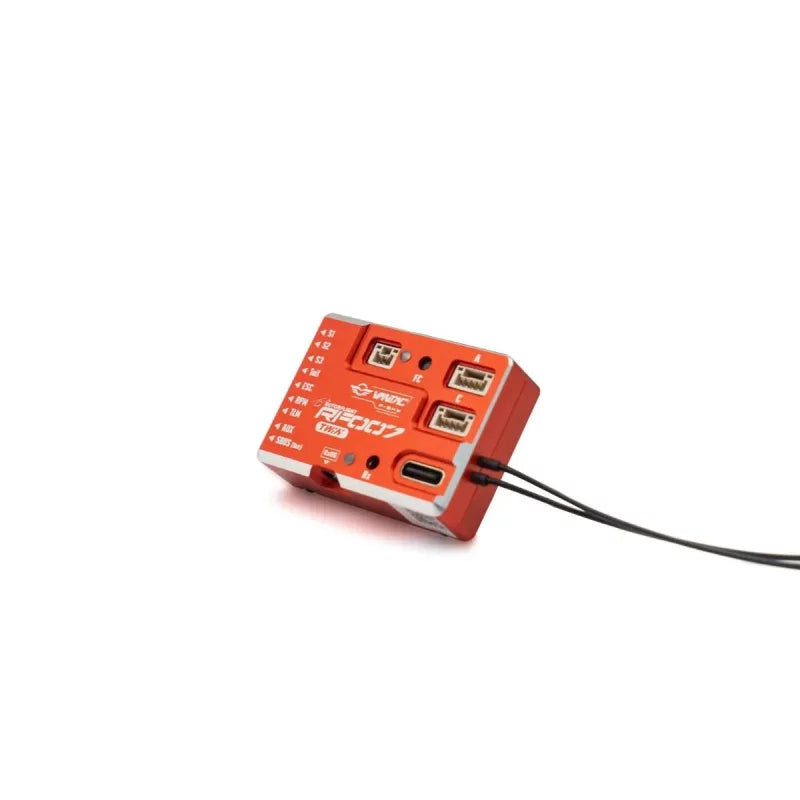

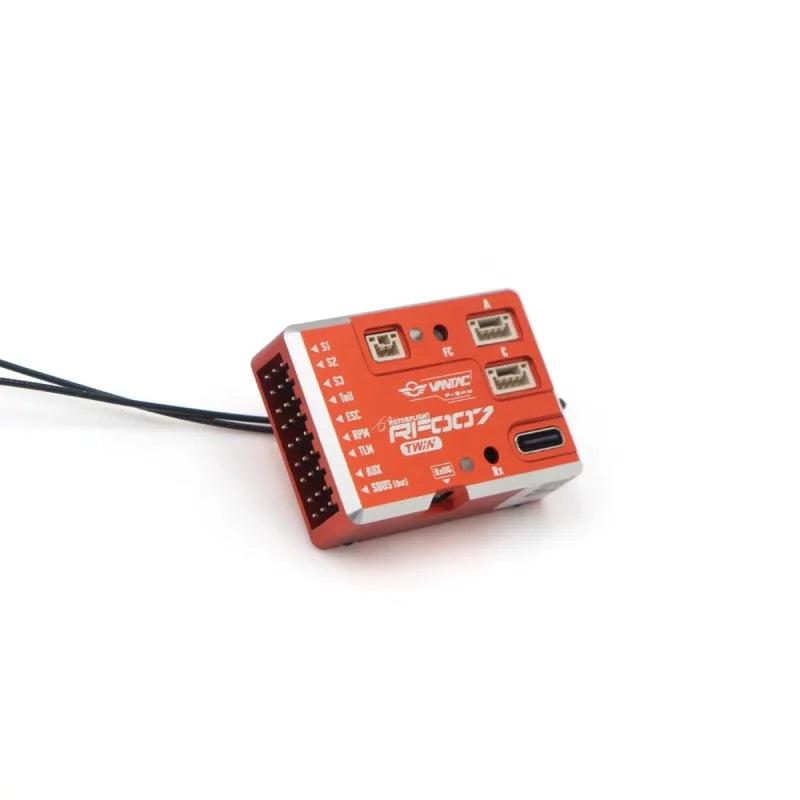

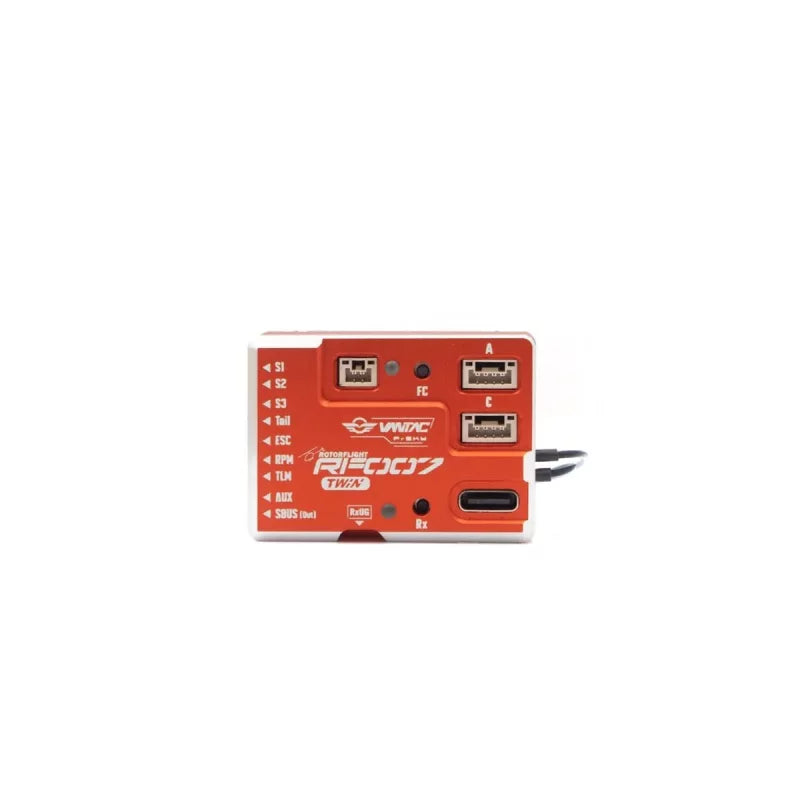

Rotorflight RF007 TWIN Flight Controller - Dual TW Receiver, CNC Heatsink, 128MB Blackbox
Meet the Rotorflight RF007 TWIN—the flight controller with more built-in intelligence than your average group chat. Designed for RC helicopters and optimized for Rotorflight 2.x firmware, this unit is engineered for high-speed, high-precision flight control with minimal drama.
Inside its sleek CNC aluminum case (which doubles as a heatsink), the RF007 TWIN houses a dual 2.4GHz TW R6 receiver, STM32F722 processor, ICM-42688P gyro, barometer, and 128MB of Blackbox storage. Whether you're pushing aerobatics or just trying to avoid another tail-in crash, this FC has your back—literally.
Features:
✅Rotorflight 2.x Firmware - tailored for helicopters, no extra fluff
✅ Built-in Dual 2.4GHz TW R6 Receiver - no spaghetti of external modules
✅ STM32F722 MCU - fast, reliable, not prone to mid-air existential crises
✅ ICM-42688P IMU + SPL06 Barometer - responsive orientation and altitude data
✅ 128MB Onboard Blackbox - for analyzing why that last flip didn't flip
✅ Full CNC Aluminum Case - protects internals, dissipates heat like a boss
✅ Wide Input Voltage (5-16V) - compatible with 2S-4S power setups
✅ Multiple Outputs - 9 servo/ESC headers, SBUS, UART, I²C, VBAT up to 80V

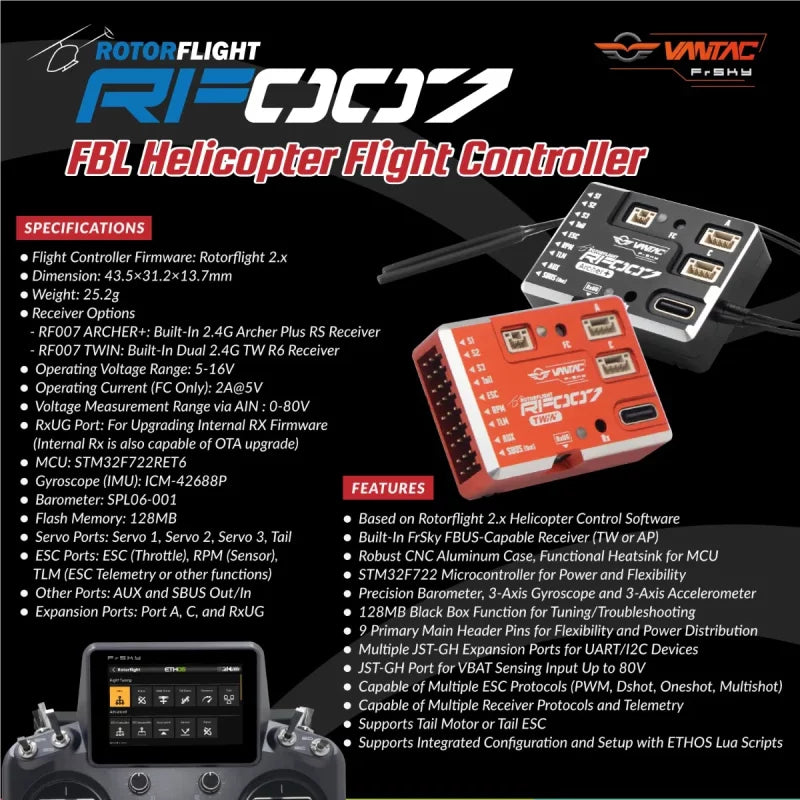

Specifications:
- Dimensions 43.5 × 31.2 × 13.7 mm
- Weight 25.2g
- Input Voltage 5-16V (FC only: 125mA @ 5V)
- Blackbox Storage 128MB onboard flash
- Receiver Built-in TW R6 Dual 2.4GHz
- IMU Sensor ICM-42688P
- Barometer SPL06-001
- Microcontroller STM32F722RET6
- Outputs 9x servo/ESC headers, AUX, SBUS I/O, Port A/C, RxUG
- Max Voltage Sensing VBAT/AIN up to 80V
What's in the Box:
- 1 × RF007 TWIN Flight Controller (dual TW receiver onboard)
- 2 × JST-GH 4-pin receiver cables
- 1 × USB-A to USB-C cable
- 1 × JST-GH 2-pin VBAT/AIN cable
- 1 × RxUG firmware update cable
- 3 × Double-sided foam tapes
- 1 × Printed manual
⚠️ Note: Included accessories may vary depending on availability. Don't be surprised if a cable changes color or the manual ends up in slightly different English.
