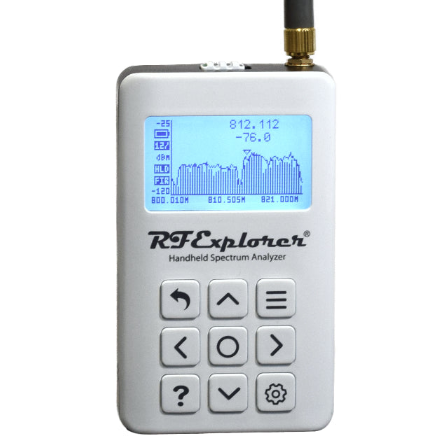

RF Explorer 6G WB PLUS Spectrum Analyzer

This is the RF Explorer 6G WB PLUS Slim Spectrum Analyzer—the pocket-sized truth machine that tells you exactly how bad your RF environment really is. SEO appeasement up front: RF Explorer 6G WB PLUS, handheld spectrum analyzer, 6GHz spectrum analyzer. If you’re skimming (we know): it scans wideband up to 6 GHz, fits in your bag, and exists to end arguments about “it should work here.”

Why You Want It

Because guessing RF channels is how you get snow, dropouts, and shame. The 6G WB PLUS lets you visualize interference across a massive frequency range—Wi-Fi, FPV, LTE bleed, mystery noise from that building over there. It’s fast, portable, and brutally honest. Use it to pick clean channels, troubleshoot links, or just confirm that yes, the airwaves are on fire. Knowledge hurts less than static.

Specifications

• Frequency Range: 50 kHz – 6 GHz (wideband, actually wide)
• Form Factor: Slim handheld analyzer
• Display: Integrated LCD spectrum display
• Span: Wideband sweep capability
• Connectivity: USB for PC control & data logging
• Battery: Internal rechargeable battery
• Use Case: RF troubleshooting, FPV channel planning, lab & field work

Applications

• RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
• WiFi analysis and fine tuning
• Interference hunting
• EMC pre-testing
• RF device tuning (with Signal Generator working as Tracking SNA): See this link for more details

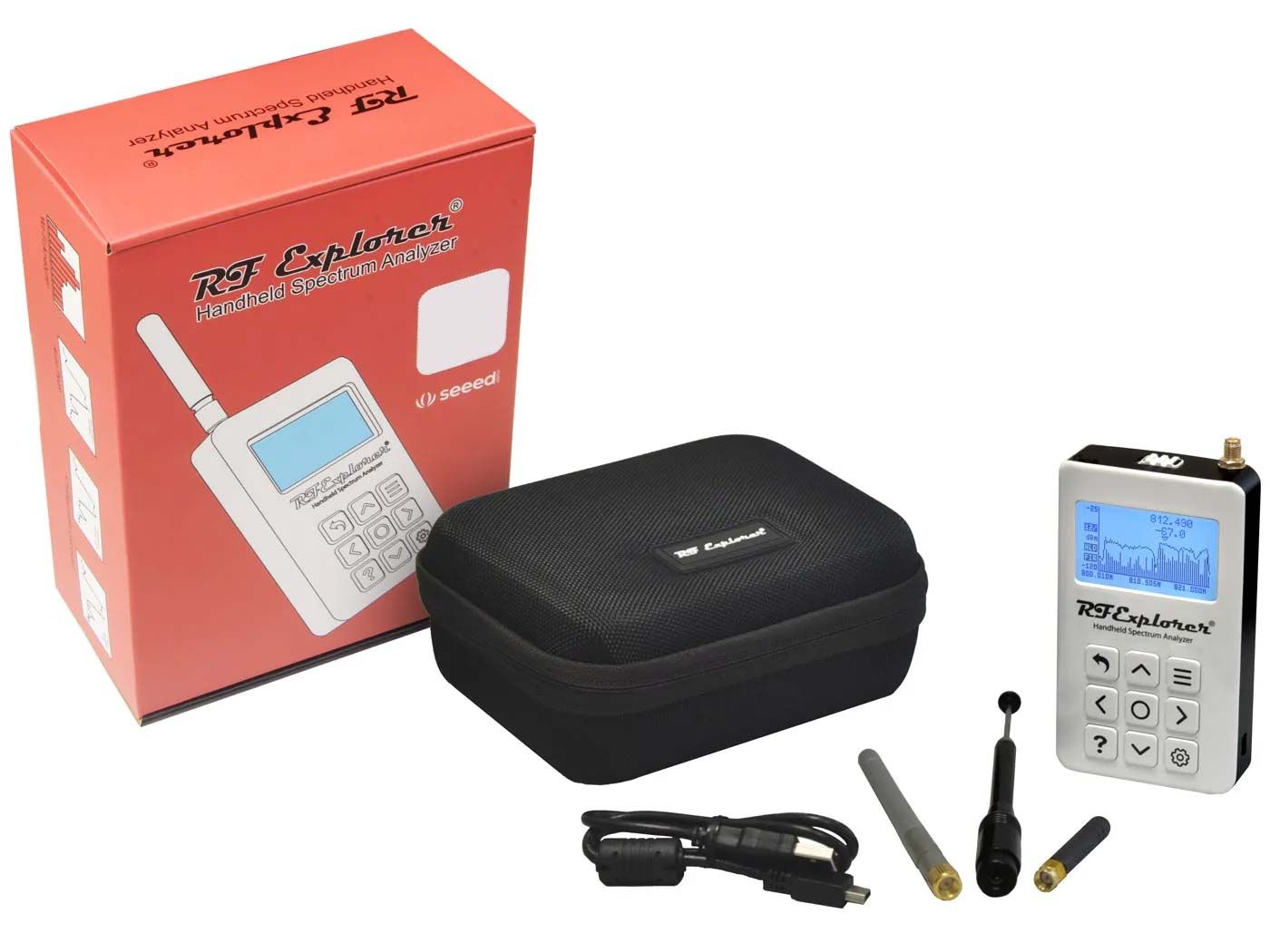

What’s in the Box*

• 1 x Spectrum Analyzer
• 1 x Mini USB cable
• 1 x Dual band 144/430MHz Telescopic antenna
• 1 x UHF 400-900Mhz antenna
• 1 x Dual band 5/2.4GHz antenna
• 1 x EVA case

Specifications: http://www.rf-explorer.com/6GWBP

Getting started: www.rf-explorer.com/start

Software options: www.rf-explorer.com/software

Downloads: www.rf-explorer.com/downloads

Disclaimer

*Accessory list may change without notice. Will not fix bad antennas. Physics remains undefeated. Supply chains are a myth, deal with it. Stop guessing RF. The RF Explorer 6G WB PLUS shows you exactly who’s ruining your signal.
