Product Details

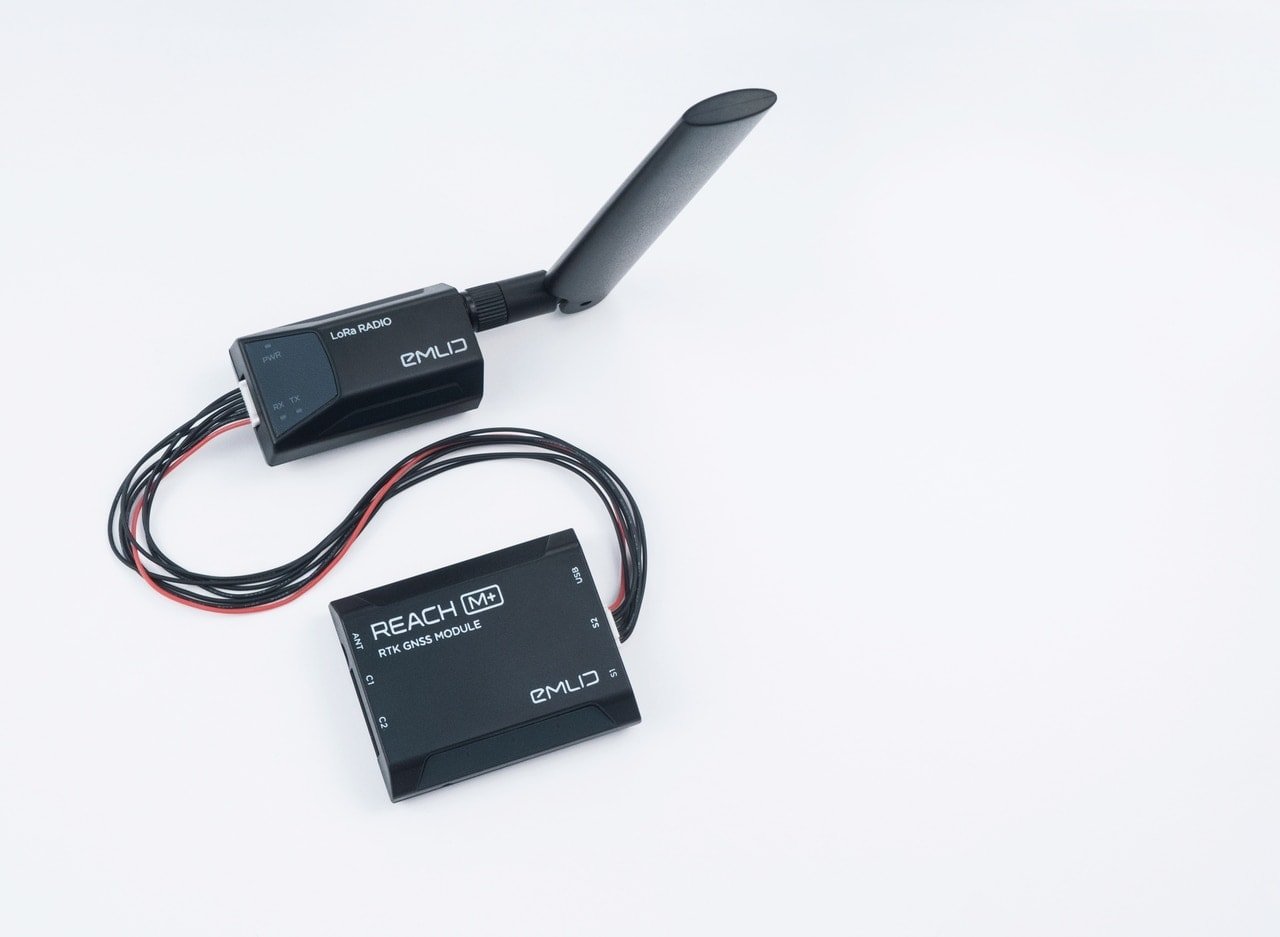

This is a LoRa radio from Emlid that allows you to connect to your Reach M+ RTK module. This enables the Reach M+ module to receive corrections directly from your Reach RS+ ground station. The LoRa Radio specification allows for a transmission range of up to 8Km giving you alot of flexibility in terms of your RTK ground station location.
Specifications
- Frequency: 862-1020 MHz
- Output power: 100 mW
- Transmission range: up to 8 km
- Antenna connector: RP-SMA
- Weight: 17gr, 32gr with antenna
- Size: 50x29x19.6 mm

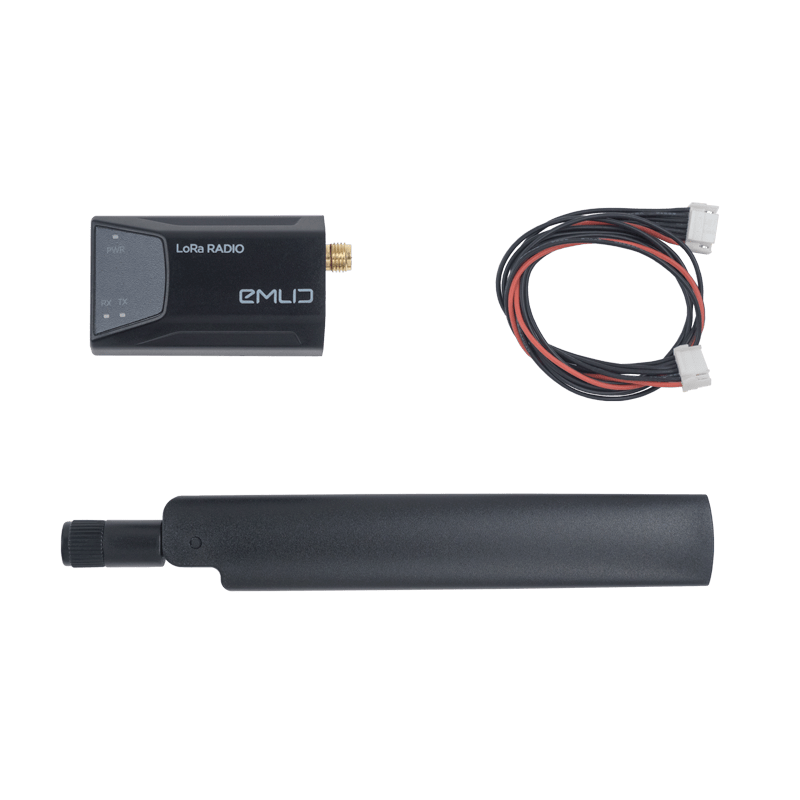

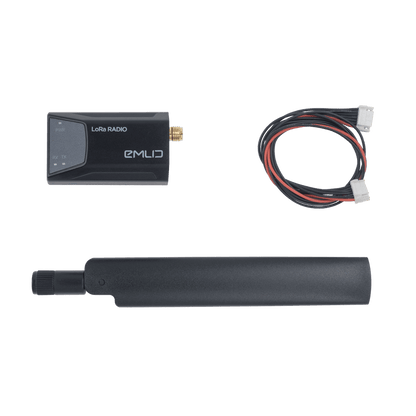

Kit Contents
- LoRa Radio
- Antenna
- Cable for connection to M2 / M+
Requires ReachView 2.15.3 or higher. Not compatible with the original, Edison-based, Reach.
