Product Details
The building on the success of the GTS V2 motors, RcInPower have incorporated a unibell motor design in the smoox series. No only do these motors look the part, the high build quality and great performance make them one of the best motors around.

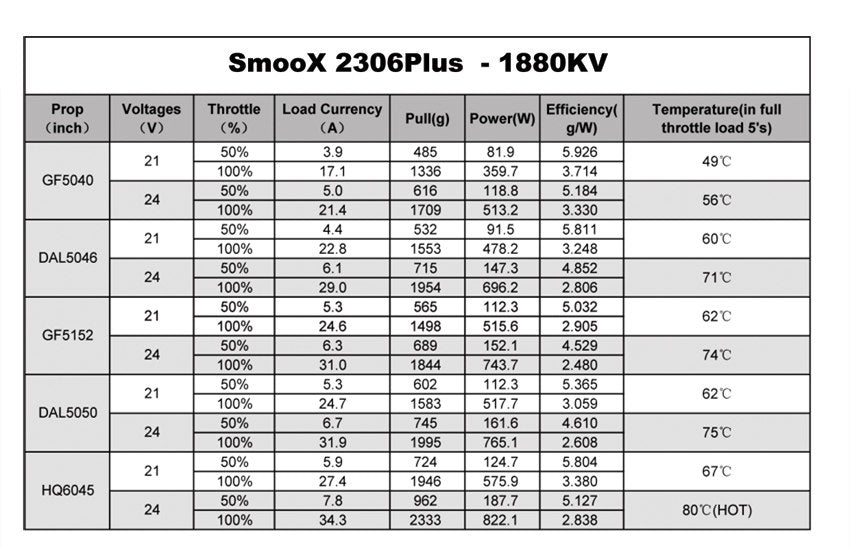

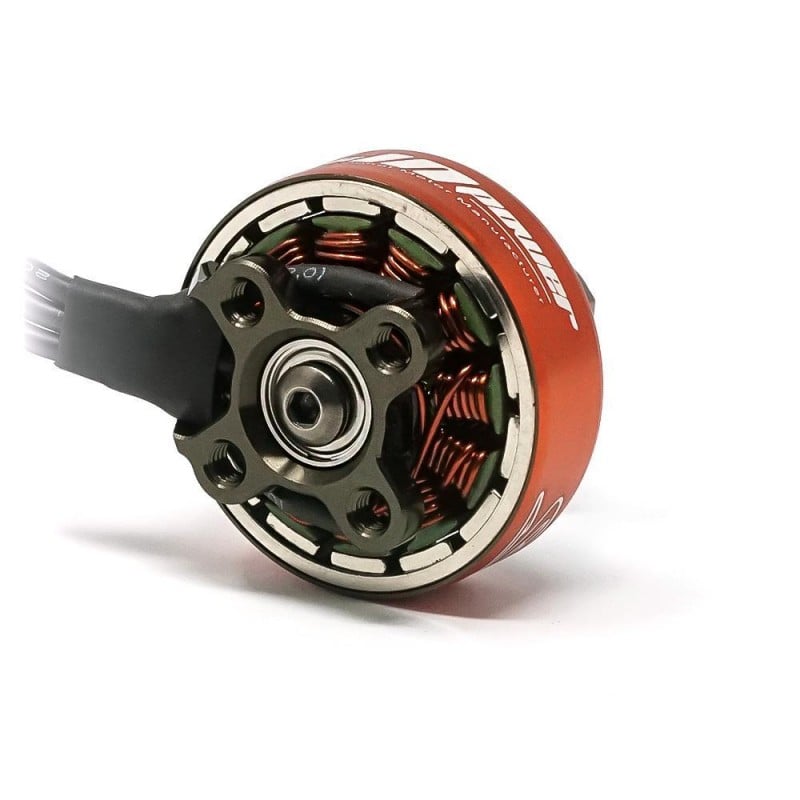

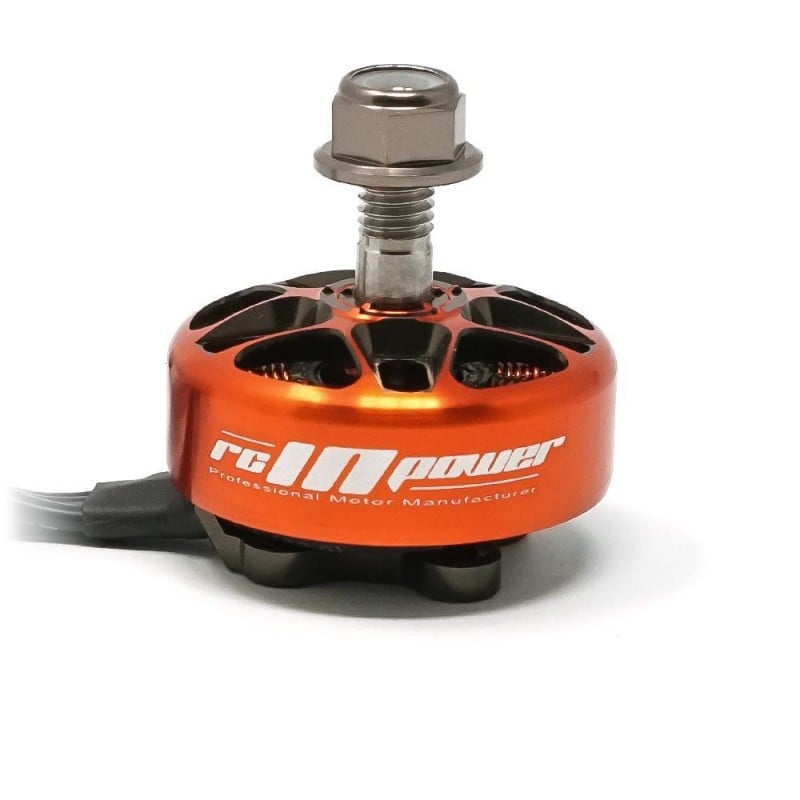

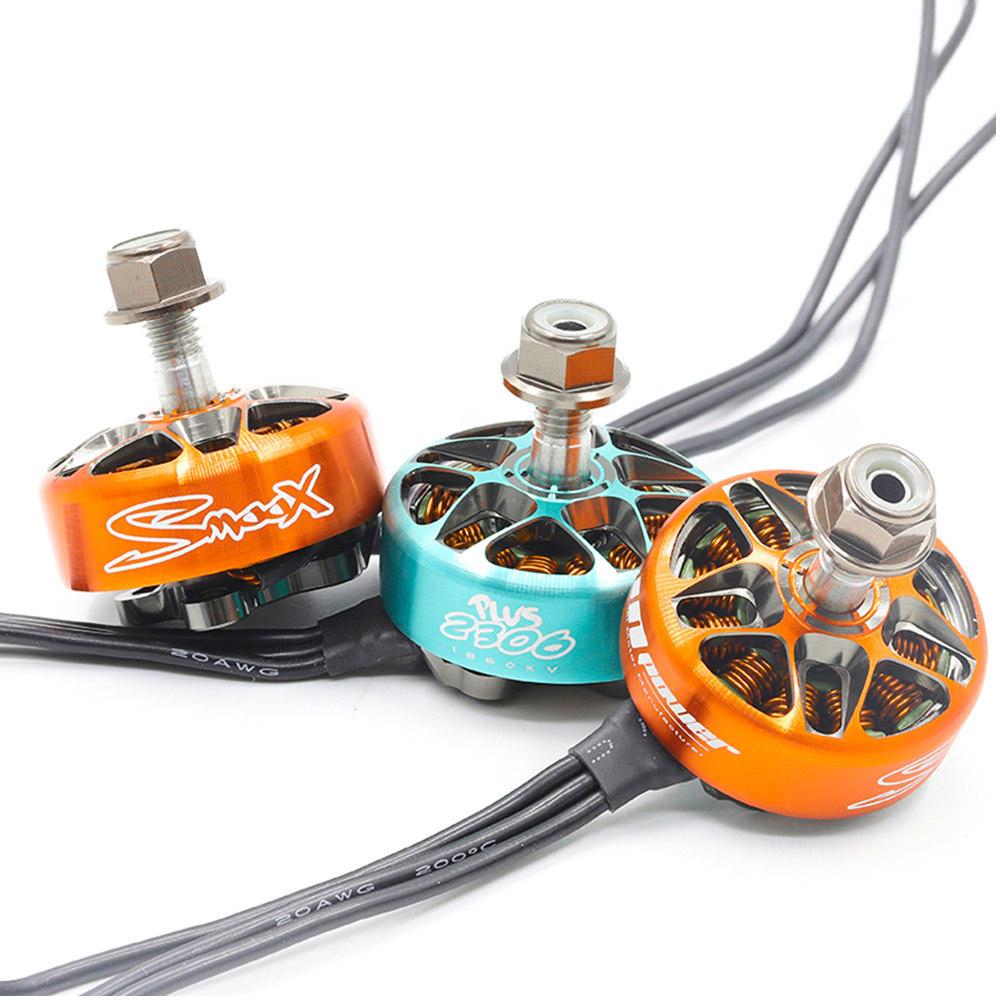

- 1880kV (orange) is best for 6S builds

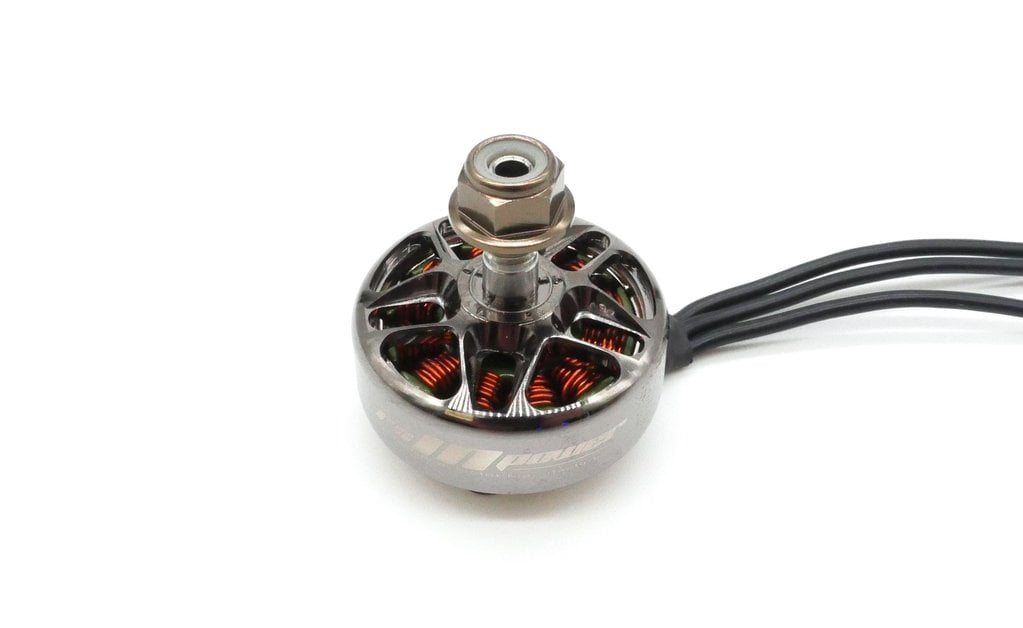

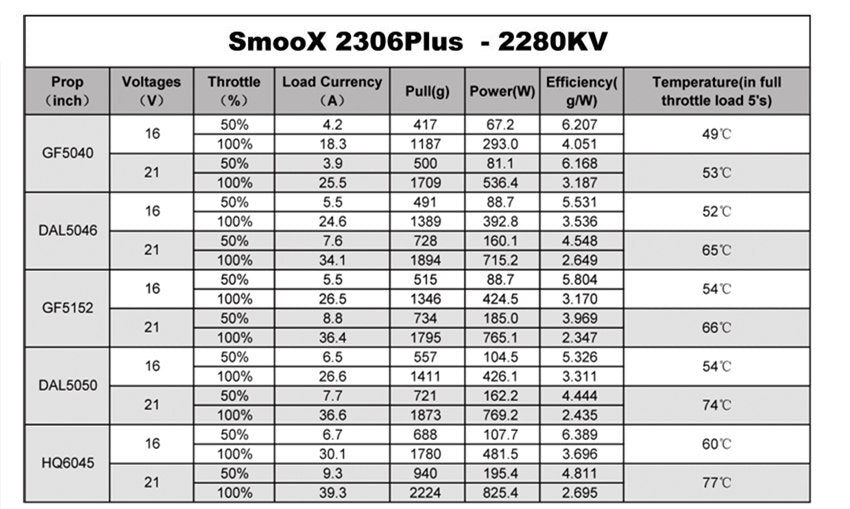

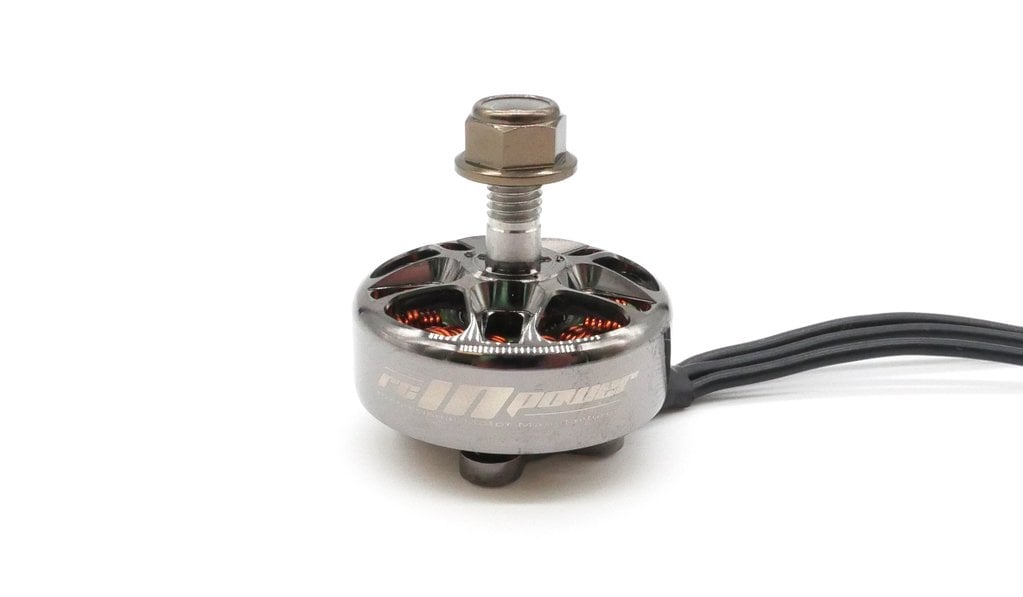

- 2280kV (silver) is best for 4-5S builds

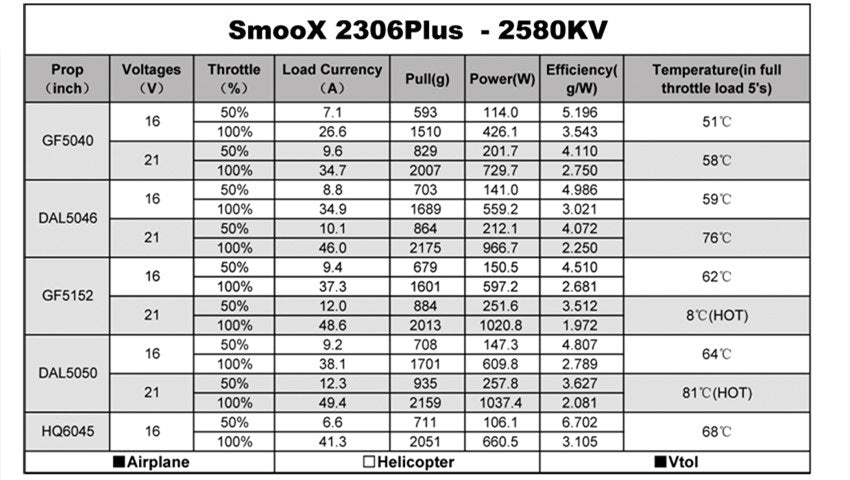

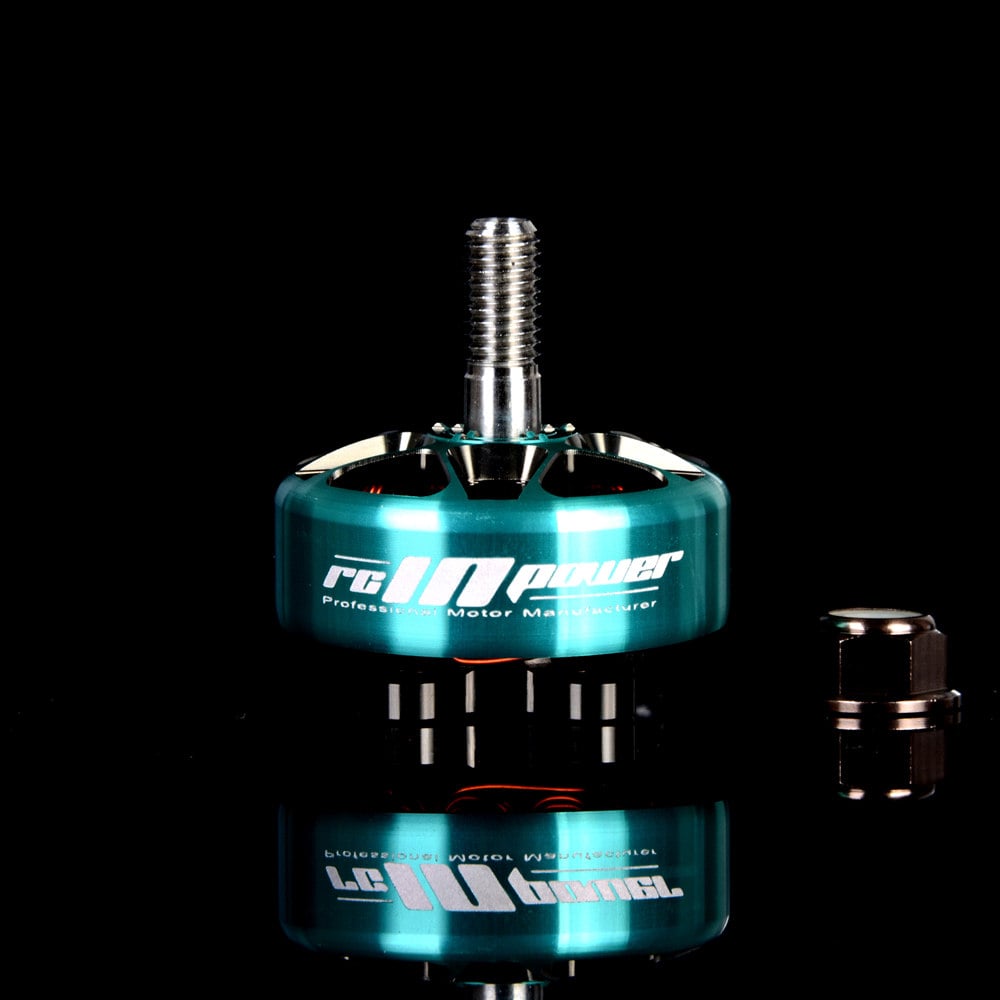

- 2580kV (blue) is best for 4S builds
Specifications
- Brand Name: RCINPOWER
- Model: SmooX 2306 Plus
- Item Name: 2306 1880KV 5-6S / 2280KV 2580KV 4-5S Motor
- KV: 1880KV / 2280KV / 2580KV ( Optional)
- Color: Blue / Orange/ Black ( Optional)
- Version: CW Screw Thread
- Quantity: One PC
- Configuration: 12N14P
- Stator Diameter: 23mm
- Stator Length: 6.6mm
- Shaft Diameter: 4mm ( Hollow)
- Idle Current(10V): 1.35A @ 1880KV ; 1.95A @ 2280KV ; 2.3A@2580KV
- Max. Con. Power (5S): 900W @ 1880KV; 850W @ 2280KV ; 1100W@2580KV
- Internal Resistance: 49mΩ@ 1880KV ; 40mΩ @ 2280KV ; 30mΩ @2580KV
- Max. Current(5s): 36A @ 1880KV ; 40A @2280KV ; 55A @ 2580KV
- Cable Length: 15cm

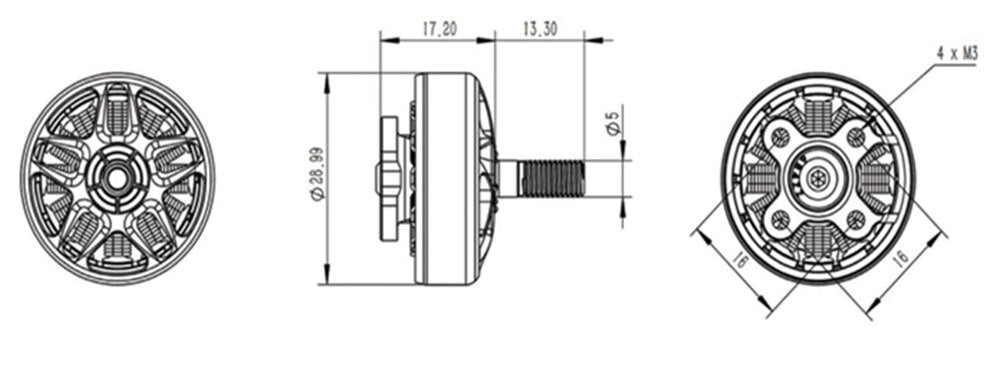

- Motor Dimension(Dia*Len):29x30.5mm
- Weight: 33g ( 3cm wire)
Included
- 1 x Smoox 2306.5 plus Brushless Motor
- 1 x prop nut
