Product Details
Features
- Updated main board design from STM32F207 to STM32F407
- EdgeTX operating system installed from the factory
- Added internal ExpressLRS module support

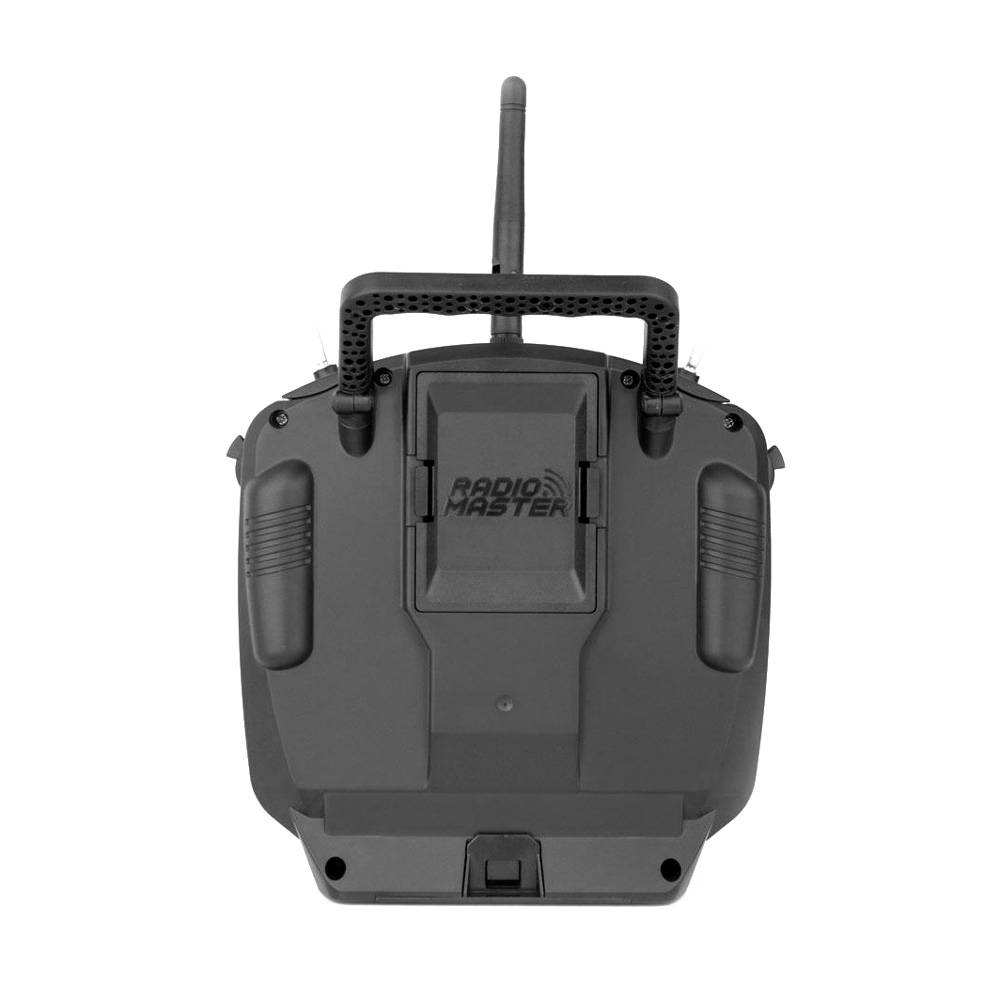

- Updated rear case with comfortable grips
- Precision hall-effect gimbals as standard
- Improved USB-C QC 3.0 Charging
- Improved S1 / S2 slider grip
- Provide M1 and M2 modes
- SD Card included

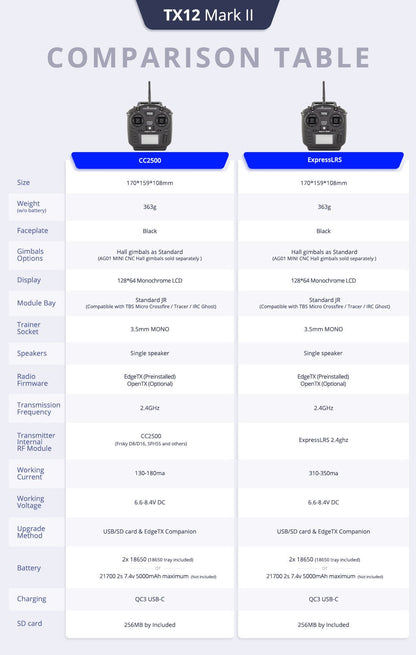

TX12 MK2 Comparison Table
- Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
- Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)
- Working Current: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)
- External module: JR/FrSKY/Crossfire compatible
- Channels: Up to 16 (depending on the receiver)
- Display: 128*64 Monochrome LCD display
- RF Chip: ExpressLRS (ELRS) / CC2500
- Gimbal: High precision hall gimbals
- Frequency: 2.400GHZ-2.480GHZ
- Voltage Range: 6.6-8.4v DC
- USB Charging: QC3 USB-C

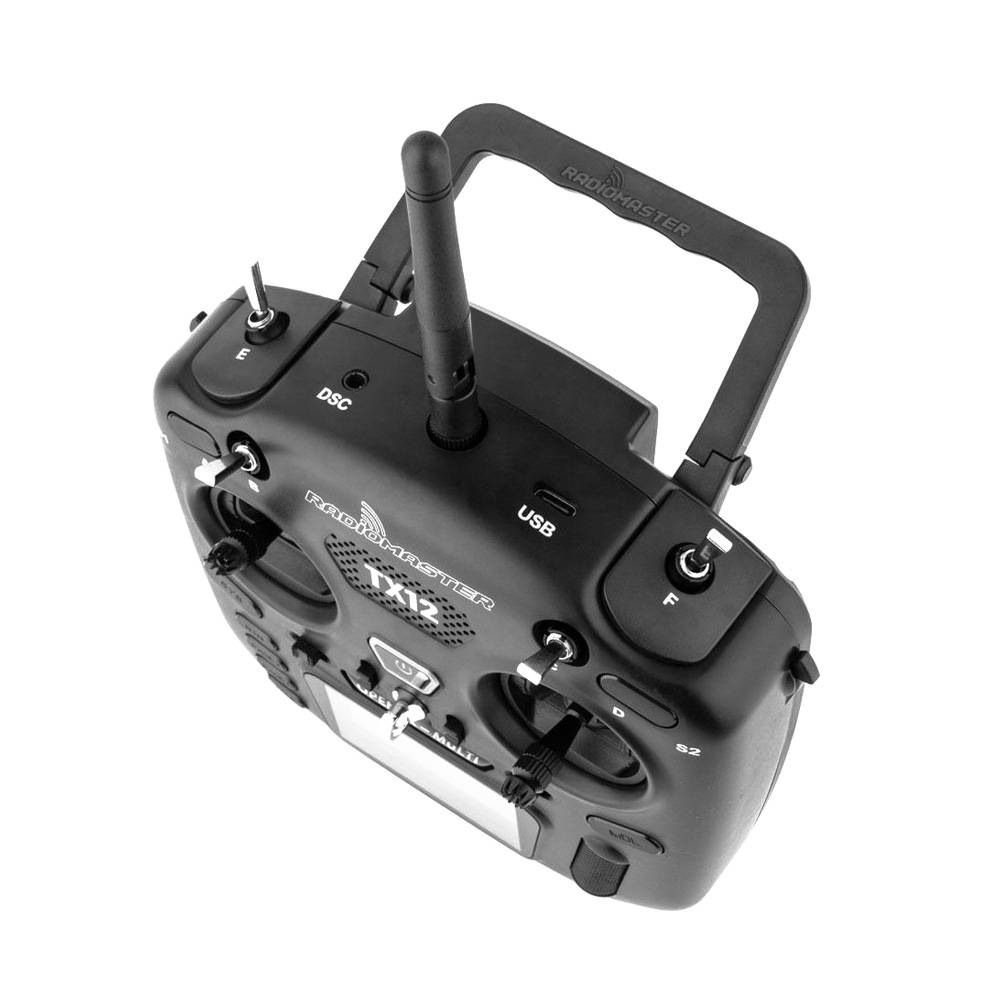

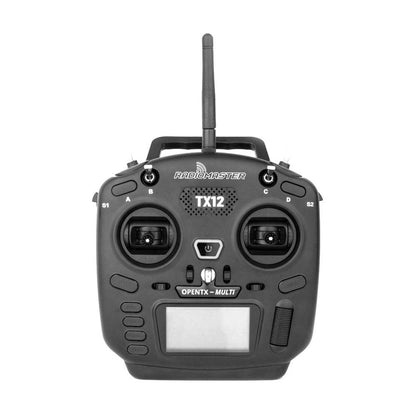

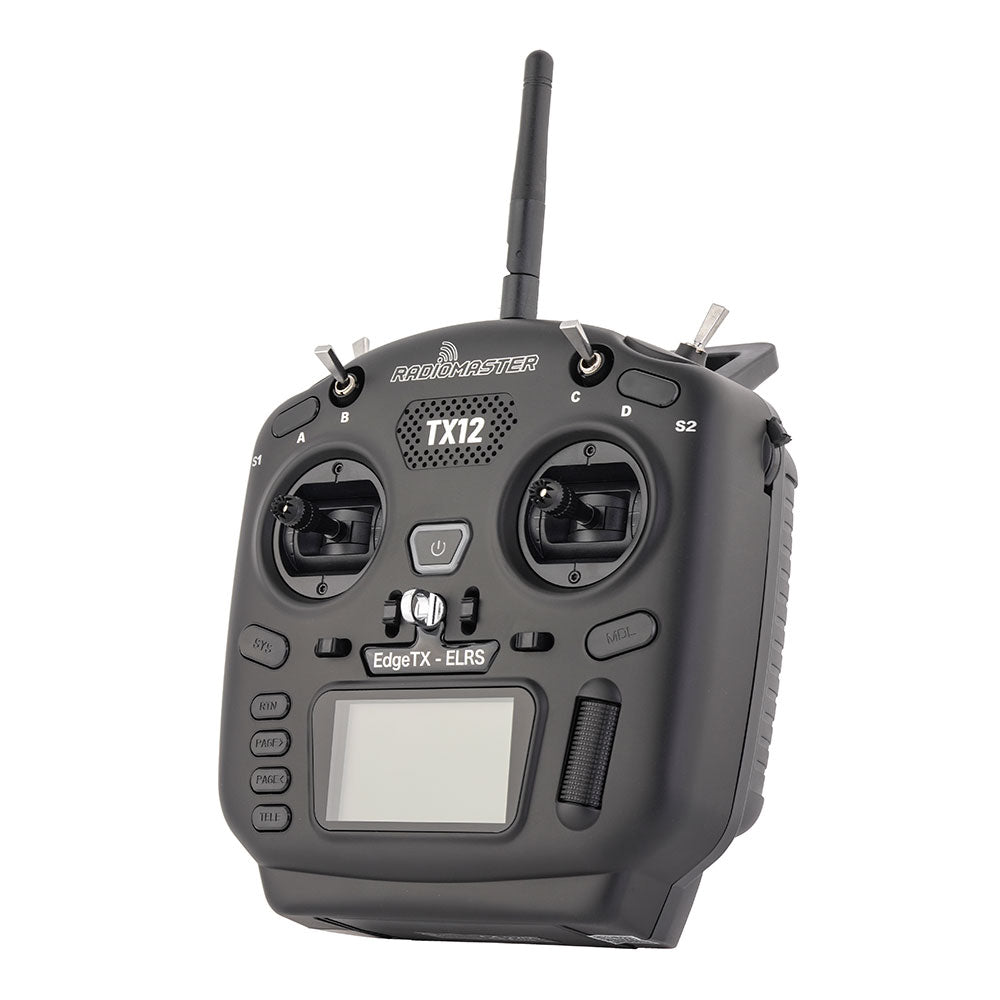

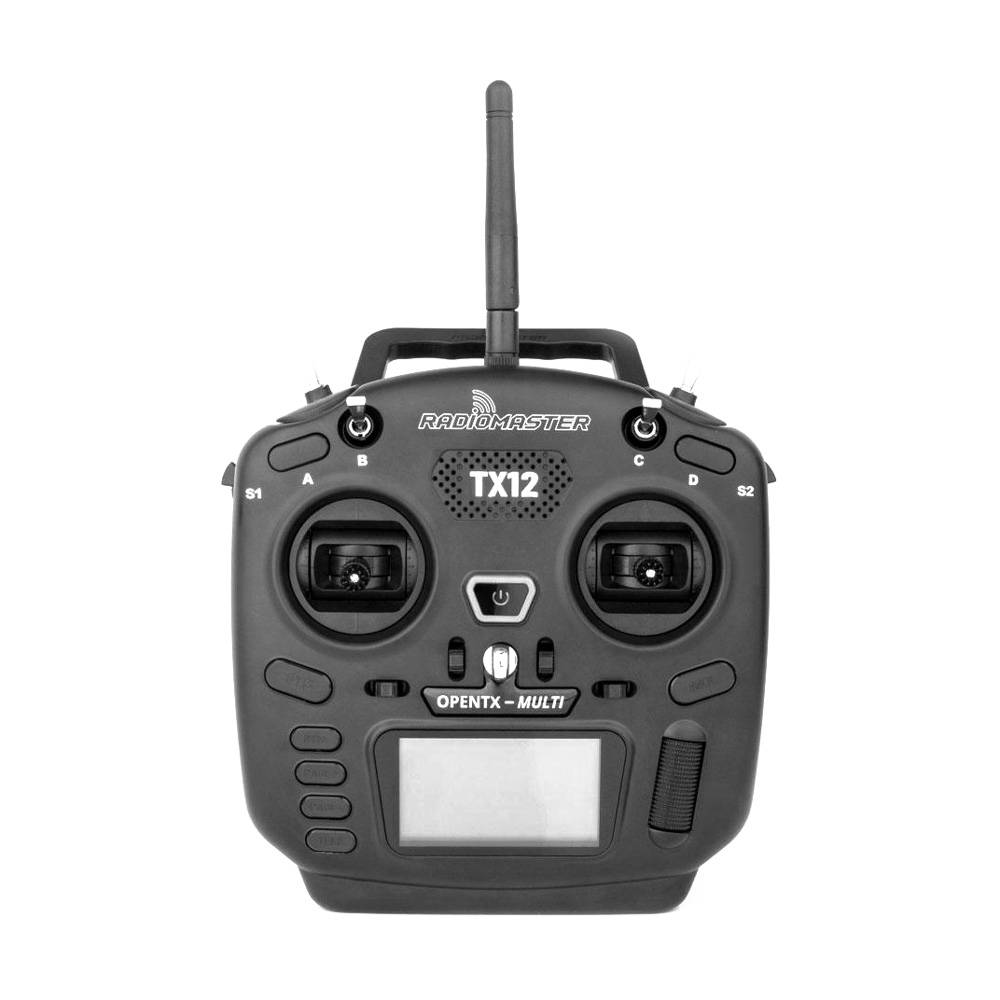

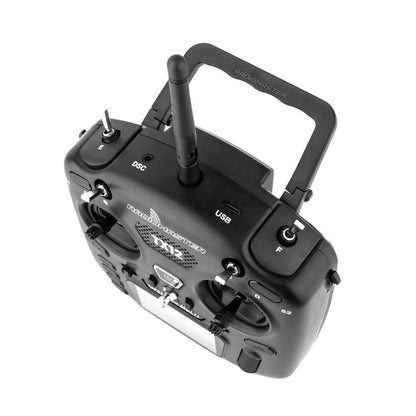

- Item: TX12 Mark II Radio
- Size: 170*159*108mm
- SD Card: Included
- Weight: 363g
Includes
- 1x RadioMaster TX12 MKII 2.4GHz 16CH Radio Transmitter
- 1x Antenna
- 1x USB-C Cable
- 1x Quick Start Guide
- 1x Sticker
