Product Details
Discover the RadioMaster Ranger, a cutting-edge ExpressLRS module that sets a new standard in design and durability. Its exceptional build, featuring a CNC machined aluminum case, not only presents a sleek aesthetic but also plays a crucial role in enhancing the cooling efficiency, ensuring longevity and peak performance.
Key Features:

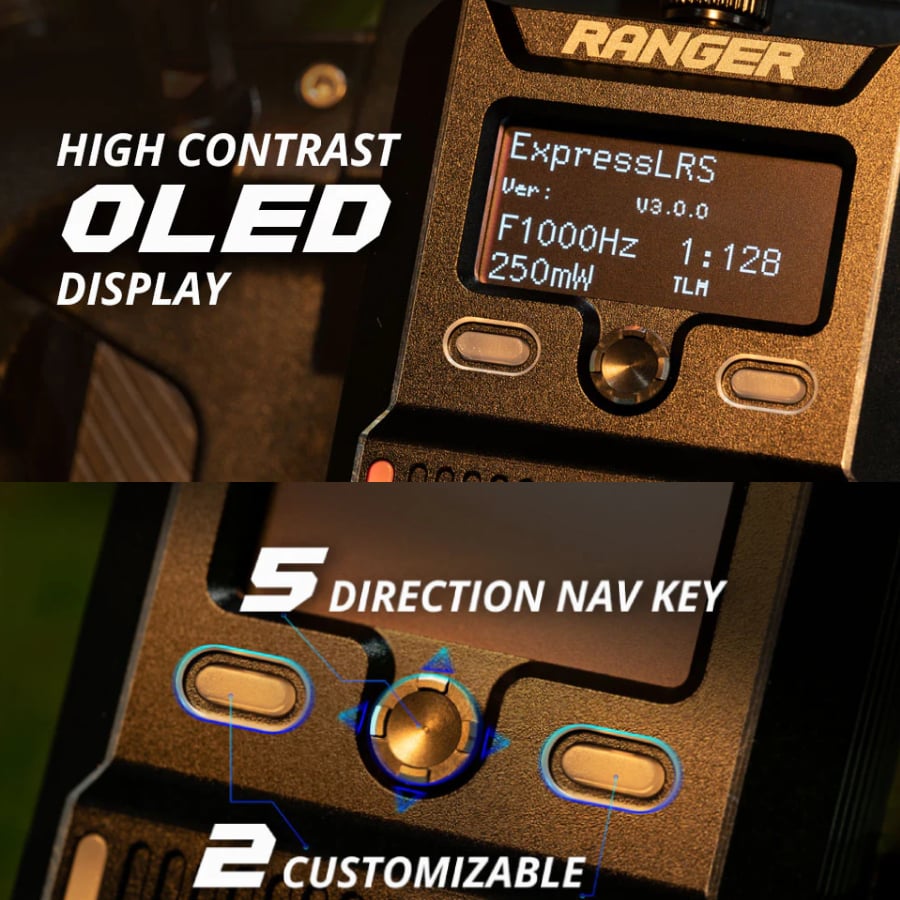

- OLED Display: The Ranger boasts a vivid OLED display, providing clear and immediate feedback for seamless operation.

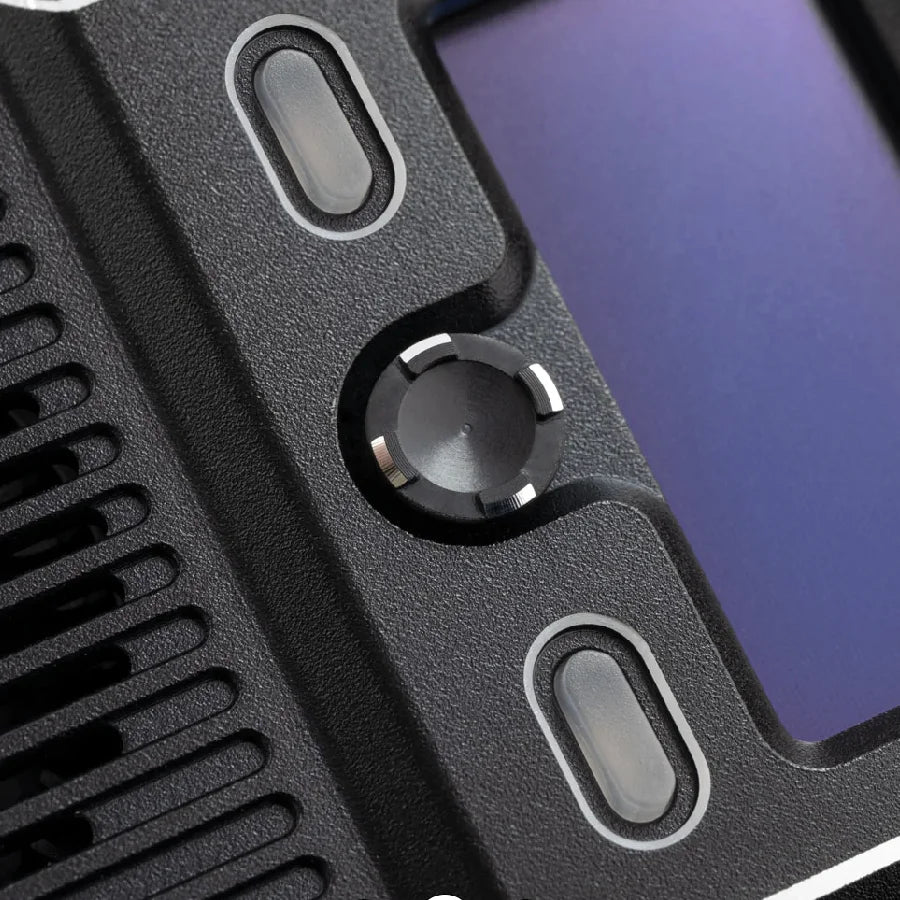

- User-Friendly Interface: Navigate effortlessly with a 5-directional menu key and two customizable shortcut keys, allowing quick adjustments and a personalized experience.
- Robust CNC Case: Crafted for durability, the rugged CNC case doubles as an effective heat sink, contributing to the module's superior cooling system.

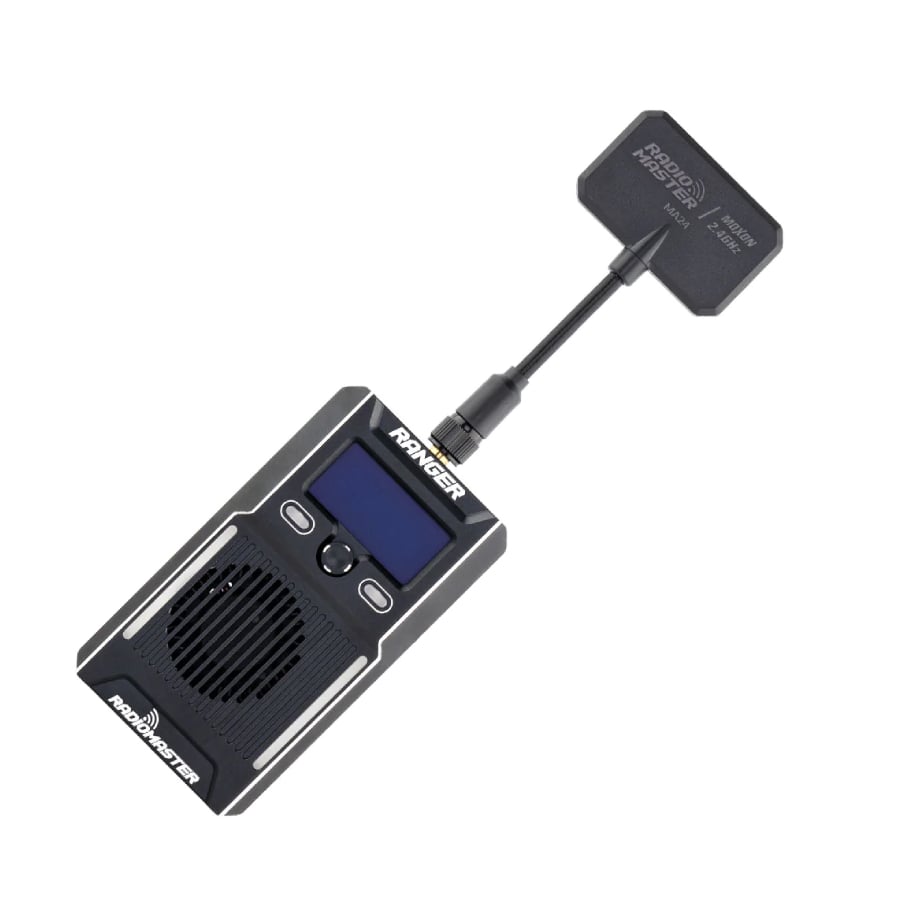

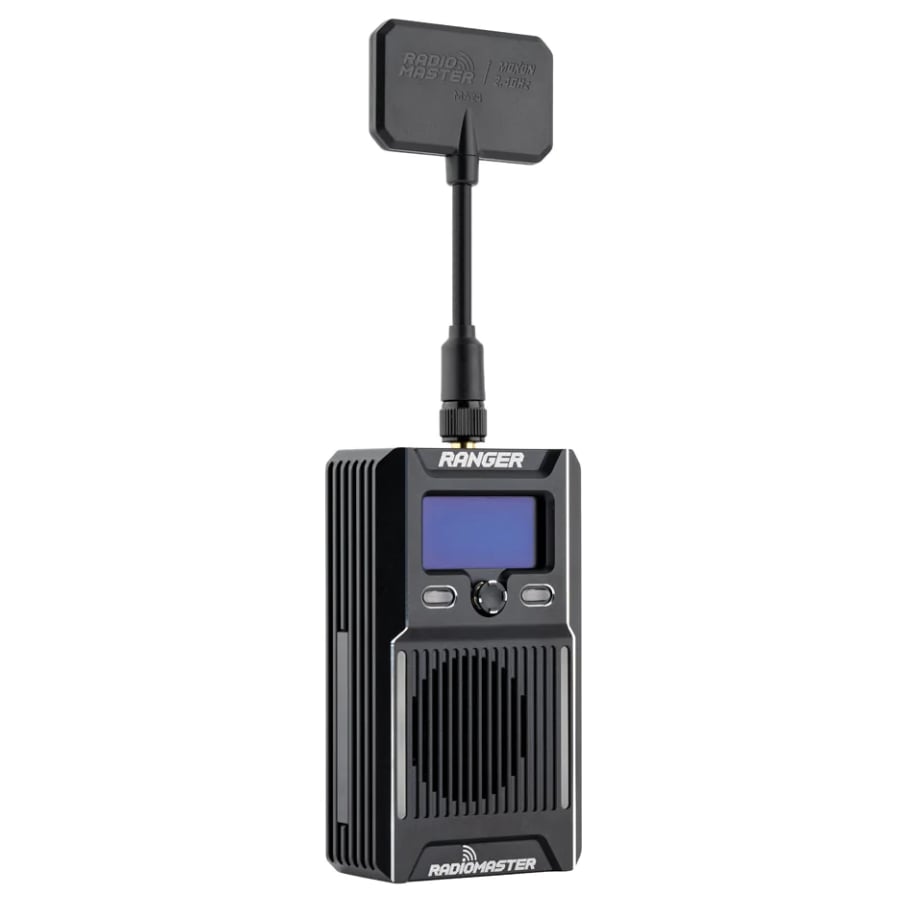

- Adaptable Antenna Options: Included are a T Antenna for general use and a RadioMaster Moxon antenna, ideal for long-range, directional applications.
- Versatile Compatibility: The package comes with micro and nano module adapters, ensuring compatibility with a wide range of radios, plus a CRSF cable for Futaba radios.
- High-Performance Specs: Enjoy packet rates up to F-1000Hz and a powerful output of up to 1 Watt. The module also supports Wifi and Bluetooth connectivity.
Specifications:
- Item Name: Ranger 2.4GHz ELRS Module
- Frequency Range: 2400 MHz - 2480 MHz
- MCU: Dual setup with ESP32(main) and ESP8285(aux)
- RF Chip: SX1281IMLTRT, delivering reliable performance
- Max Packet Rate: 500Hz/F-1000Hz
- Refresh Rate: Minimum 25Hz
- RF Output Power: Adjustable up to 30dBm (FCC standard)

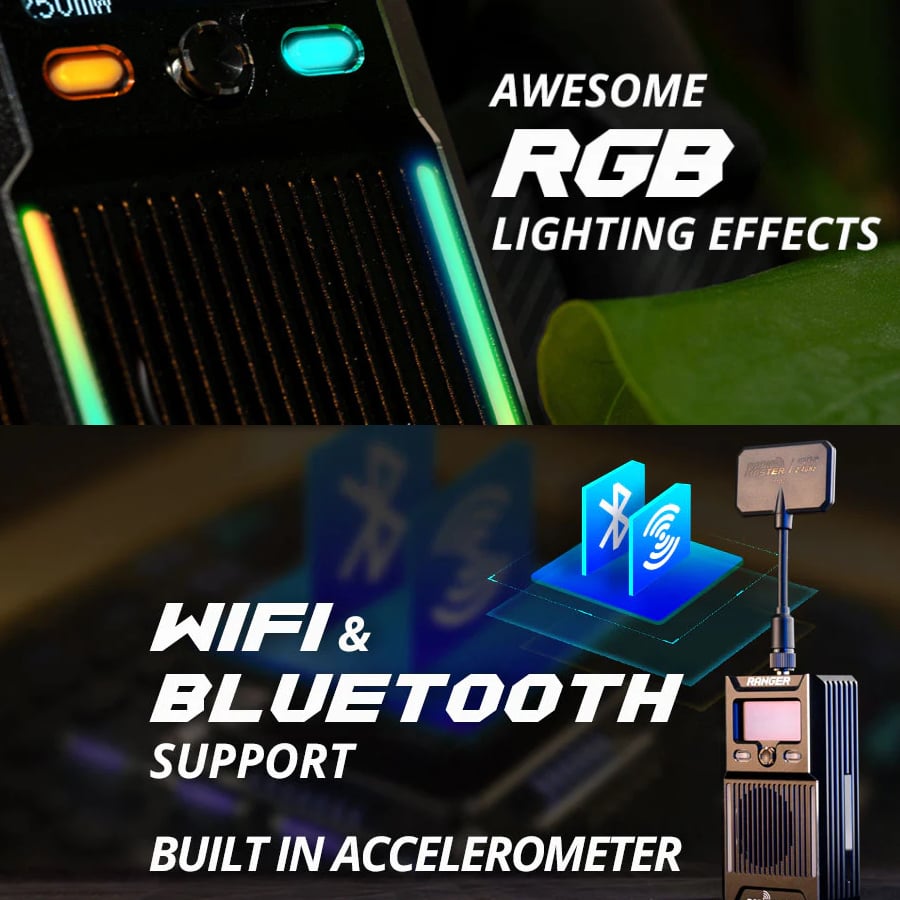

- Connectivity: Wifi and Bluetooth enabled
- Accelerometer: 3-Axis (STK8BA58 MEMS)
- Weight & Dimensions: Varies based on antenna selection, compact design of 95 51 25mm
In the Box:
- 1 x RadioMaster Ranger 2.4GHz ELRS Module
- T Antenna and Module adapters)
The RadioMaster Ranger is an exceptional choice for anyone seeking a robust, high-functioning ELRS module. With its state-of-the-art design, comprehensive features, and broad compatibility, it's ready to elevate your radio control experience to new heights. Whether for everyday use or specialized, long-range applications, the Ranger stands as a top-tier module in its class.
