Product Details

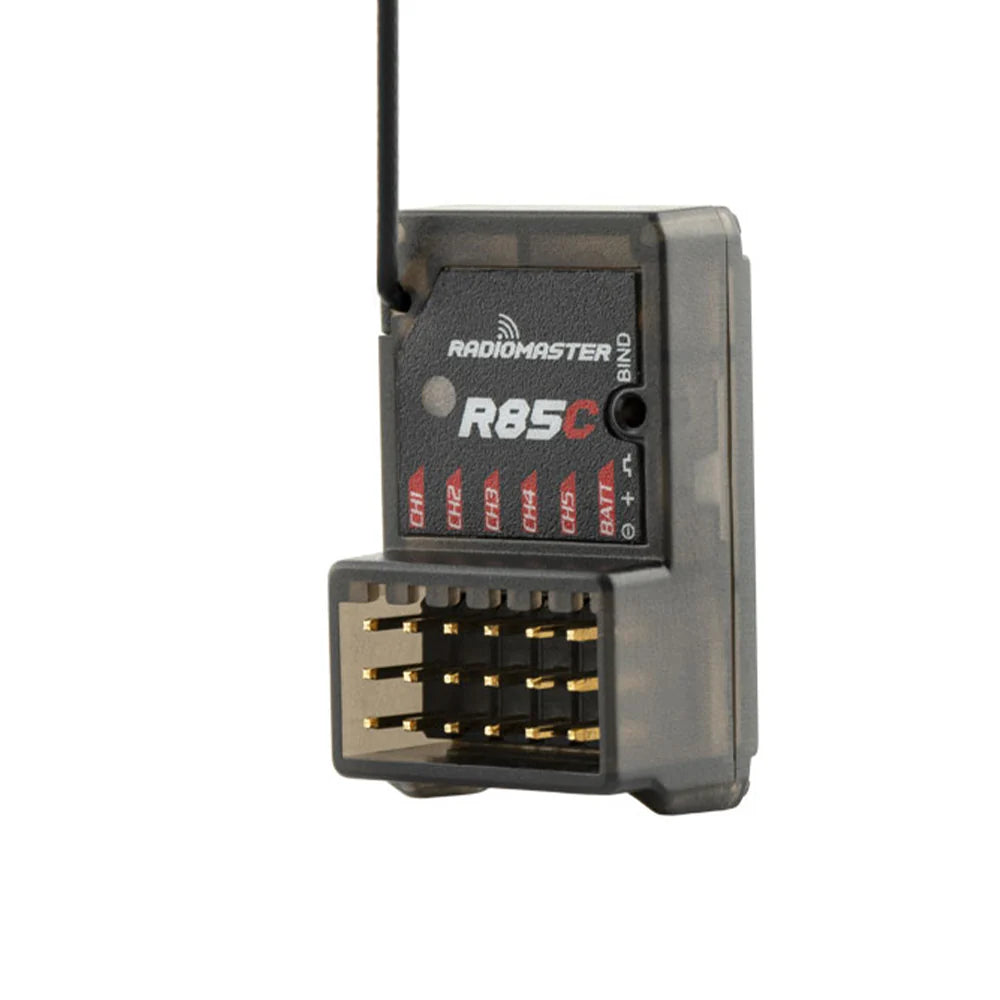

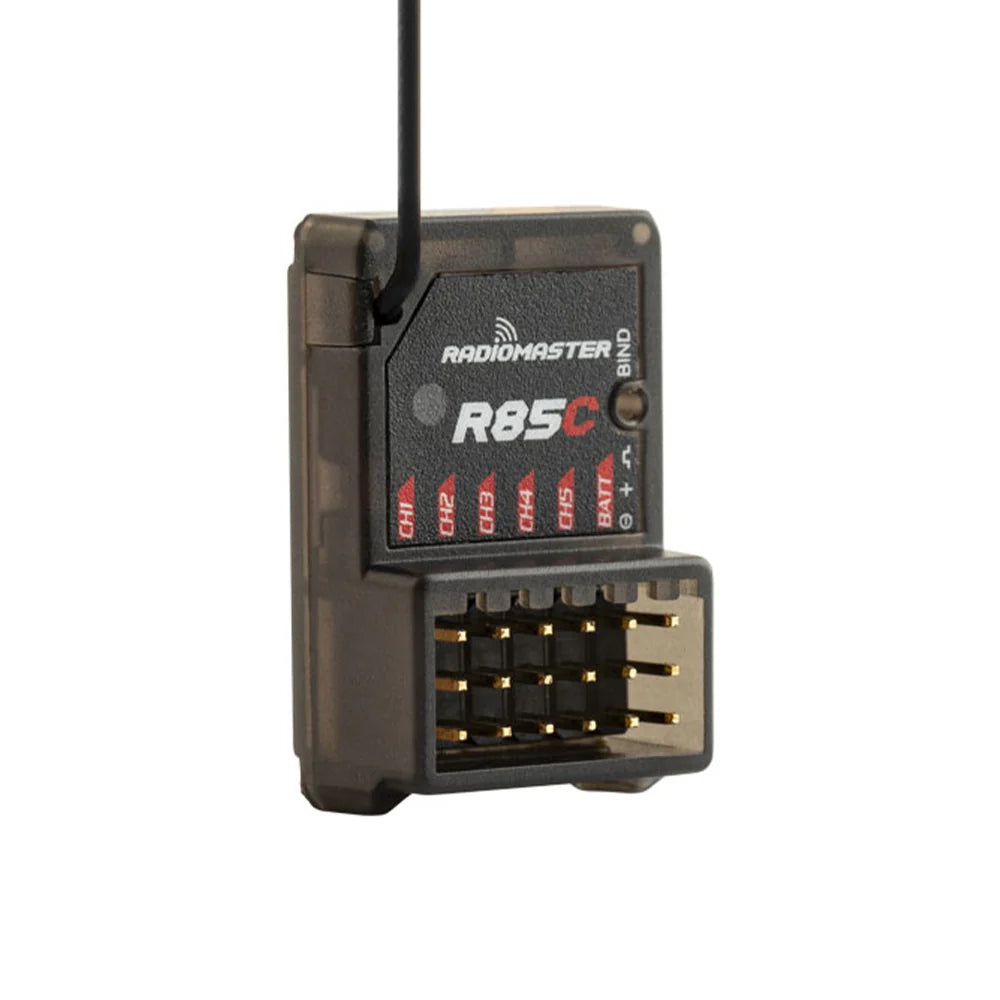

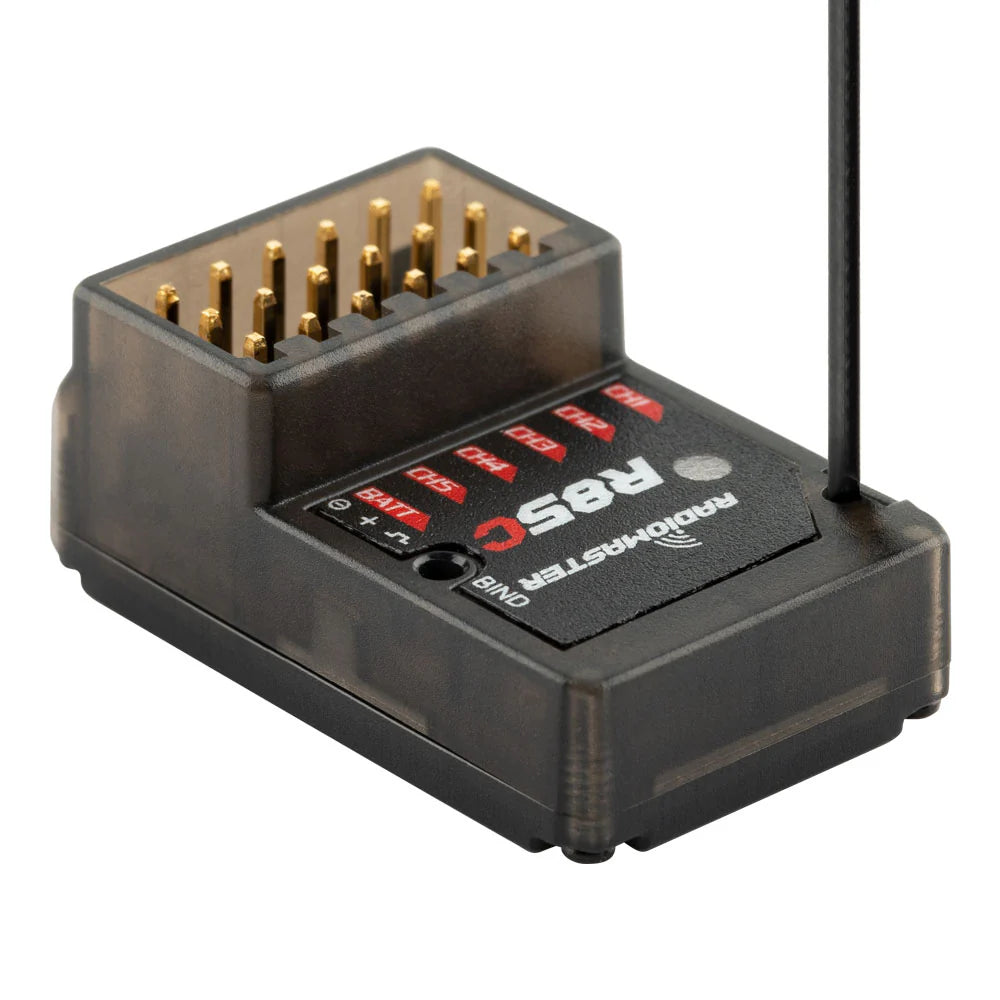

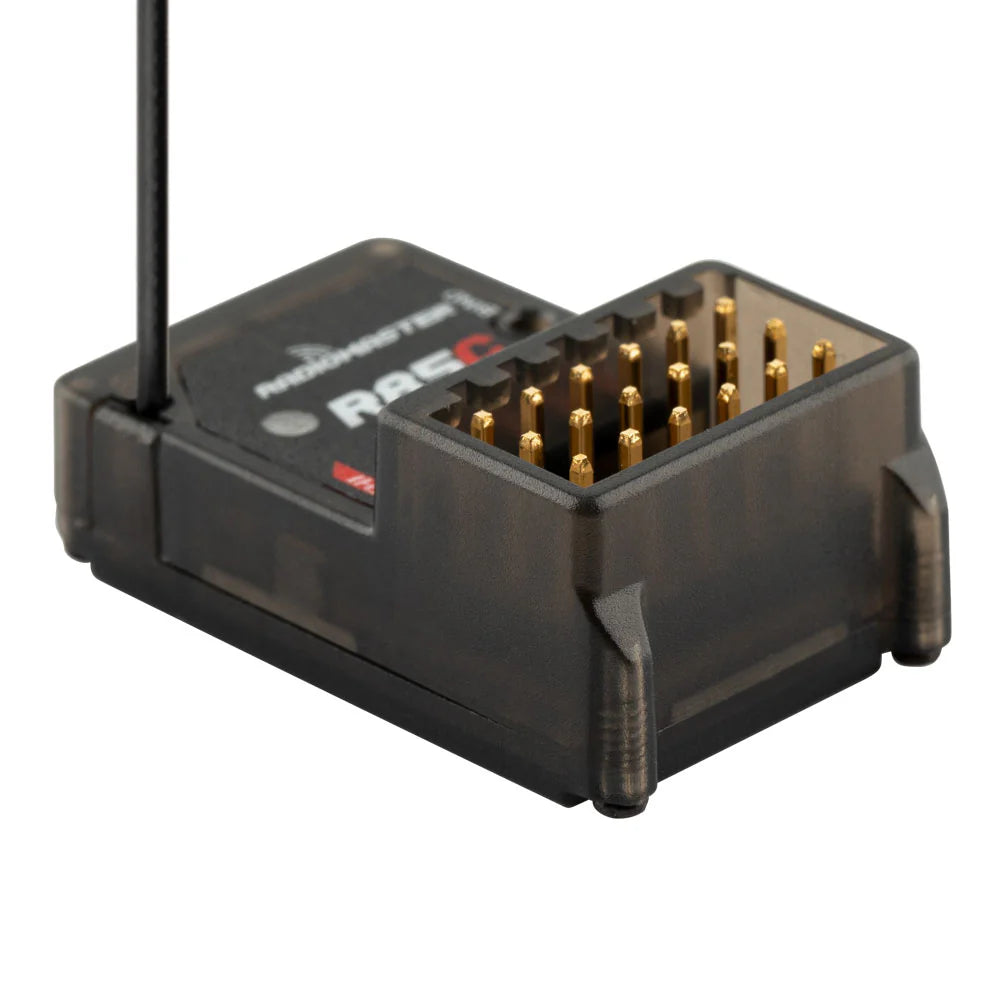

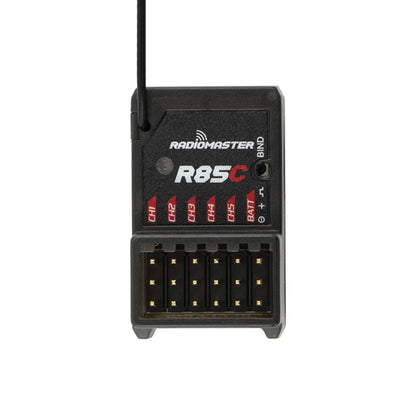

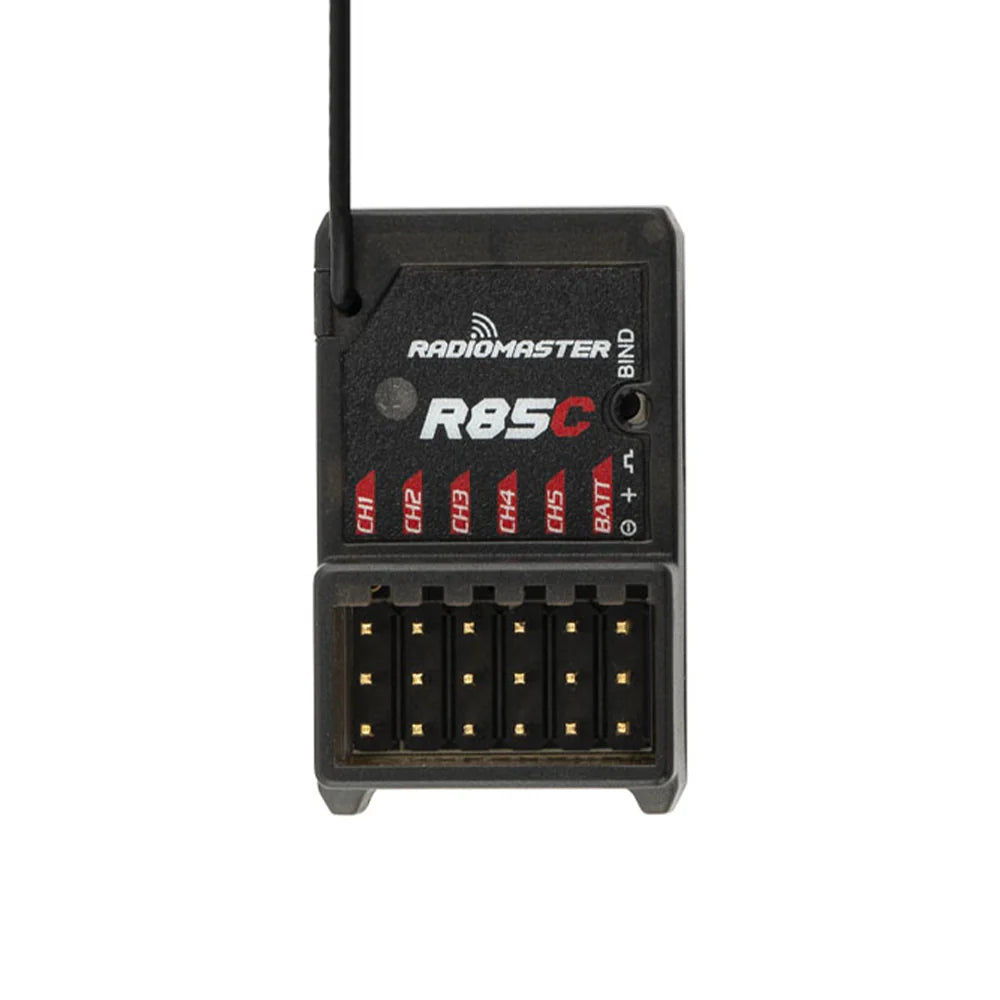

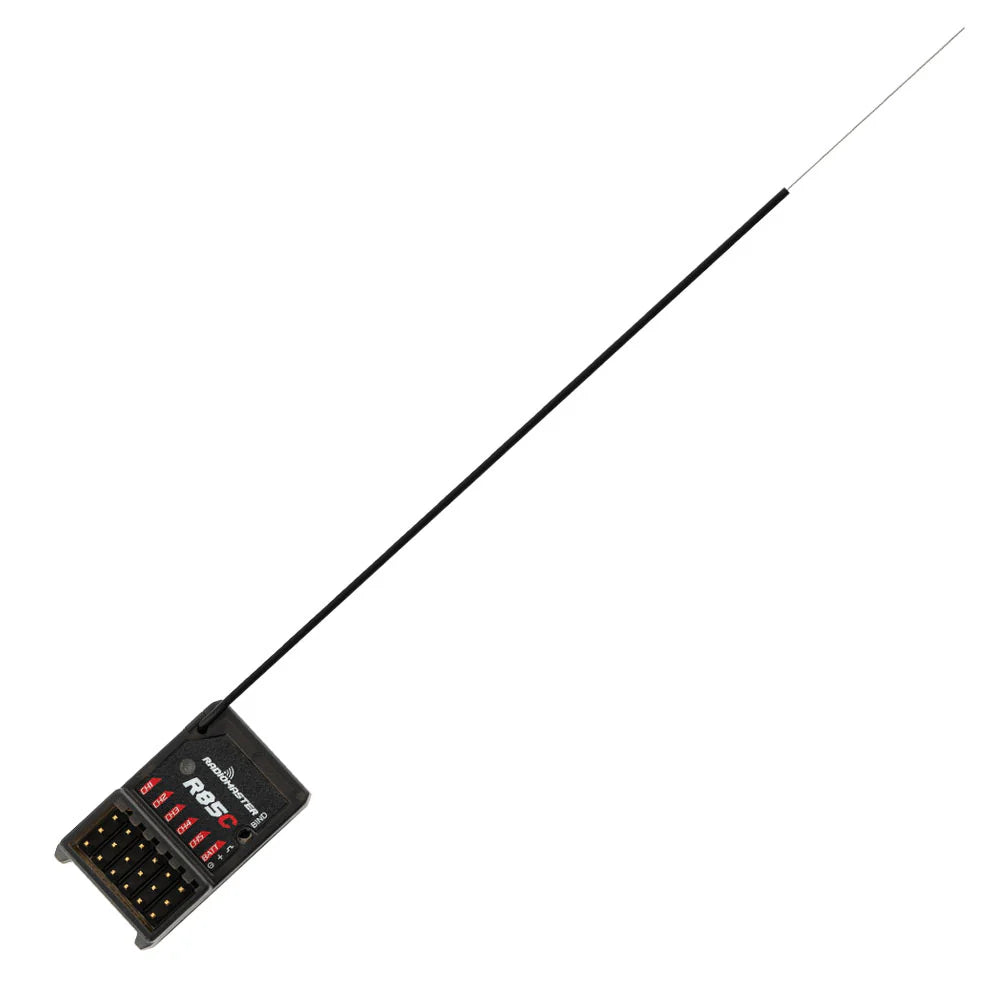

RadioMaster R85C 5CH FrSky D8/D16 & Futaba SFHSS Compatible PWM Receiver w/ TCXO
The RadioMaster R85C Receiver is a compact yet powerful receiver designed to meet the needs of serious RC hobbyists. Compatible with FrSky D8, D16 , and Futaba SFHSS protocols, it's perfect for a wide range of RC models, including drones and planes. This receiver doesn't just offer a long control range and reliable performance—it also features a built-in TCXO (temperature compensated crystal oscillator) for enhanced stability. The TCXO keeps your frequency control precise, even in extreme temperature conditions, reducing frequency drift and ensuring long-term signal integrity.
Weighing just 5.55 grams and with a high-sensitivity 2.4G antenna , the R85C ensures consistent performance over a 1km+ range . Its 5-channel PWM output makes it ideal for most basic to intermediate-level RC setups, all while maintaining an ultra-lightweight and compact design that fits neatly into any model.
Key Features:
- FrSky D8, D16 & Futaba SFHSS Compatibility : Broad protocol support across various RC systems.
- 5 Channel PWM Output : Ideal for a wide range of applications, from drones to planes.

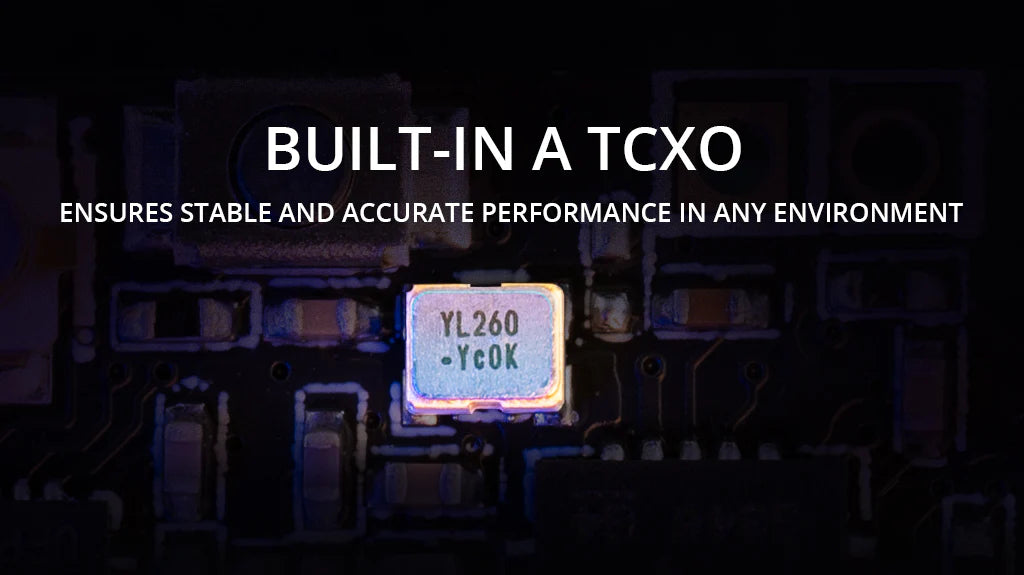

- Built-in TCXO : Temperature-compensated crystal oscillator ensures frequency stability and accuracy, even in extreme conditions.

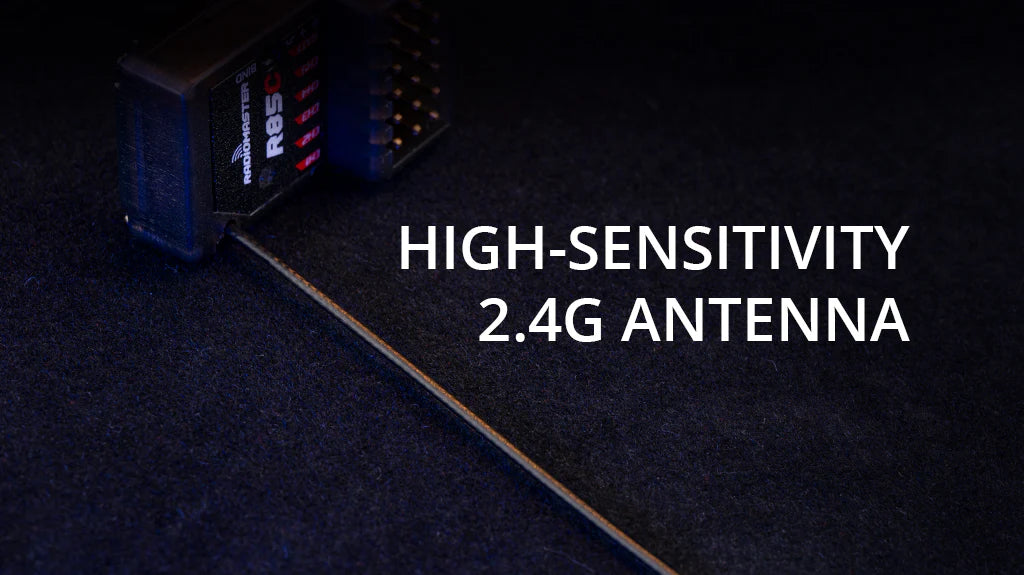

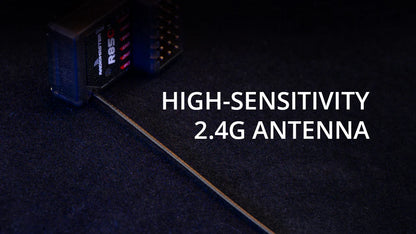

- High-Sensitivity 2.4G Antenna : Ensures strong, reliable signal reception over long distances.
- Lightweight & Compact : At just 5.55 grams, it's easy to integrate into any model.
- 1km+ Range : Fly or drive with confidence at extended ranges.
Specifications:
- Power Supply : DC 4.5 - 8.4V
- Frequency Range : 2400-2483.5Mhz
- Supported Protocols : D8, D16, SFHSS
- Output Channels : 5CH PWM
- Telemetry Power : 100mW / 20dBm
- Antenna Type : High-sensitivity 2.4G antenna
- Weight : 5.55 grams

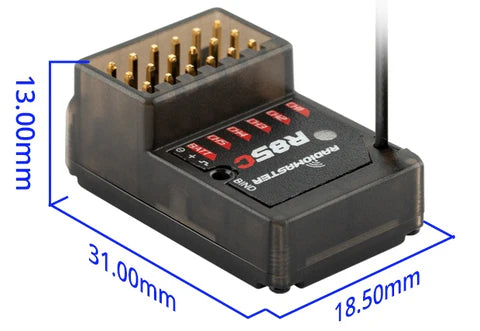

- Dimensions : 31.0 18.5 13.0 mm
- TCXO : Temperature compensated crystal oscillator for enhanced signal stability and accuracy.
What's in the Box:
- 1 x R85C Receiver
- 1 x User Card
Note : Accessory availability may vary based on supply.
