Product Details
Experience the power and reliability of ExpressLRS in a compact PWM format with the RadioMaster ER8G receiver! Designed for RC pilots who need direct servo control, this receiver provides 8 standard PWM output channels built upon the advanced ExpressLRS (ELRS) 2.4GHz protocol . Enjoy the benefits of long-range capability, low latency, and a robust connection for your aircraft.
The ER8G is an excellent choice for fixed-wing planes, gliders, or any model where you prefer direct servo connections without necessarily needing a full flight controller. It simplifies your setup while delivering top-tier performance. Get crucial flight information with built-in flight battery voltage telemetry (supporting DC 4.0 - 35V input), allowing you to monitor your power status directly from your compatible ELRS transmitter.
This receiver doesn't just stop at PWM; it also offers CRSF and SBUS serial output options for added flexibility if you decide to connect to a flight controller later. With telemetry power up to 100mW (adjustable via LUA script) and a high-sensitivity antenna, you get a solid data link back alongside precise control. Its slim and lightweight design (12g, 60mm long) makes it easy to integrate into various builds.
If you're searching for a dependable 8-channel ELRS PWM receiver with voltage telemetry and a compact form factor, the RadioMaster ER8G is a fantastic option.
Key Features:
- 8 PWM Channels: Direct output for servos and other PWM devices.
- ExpressLRS 3.3.0 Protocol: Pre-installed for high performance, long-range, and reliable link quality.
- Flight Battery Voltage Telemetry: Monitor pack voltage (DC 4.0 - 35V).

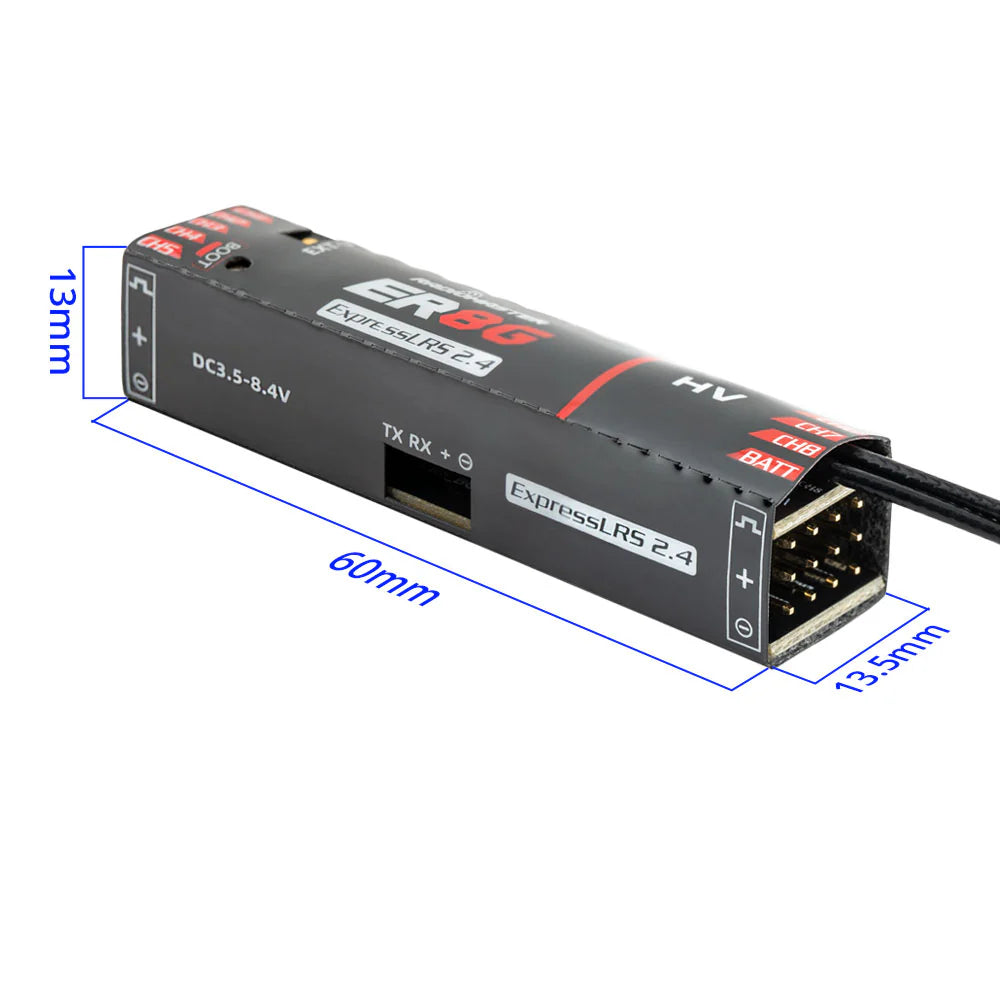

- Compact & Lightweight: Slim design (60x13.5x13mm) and only 12 grams.
- CRSF / SBUS Serial Output: Offers flexibility for different setups.
- Up to 100mW Telemetry Power: Strong data link back (LUA Adjustable).

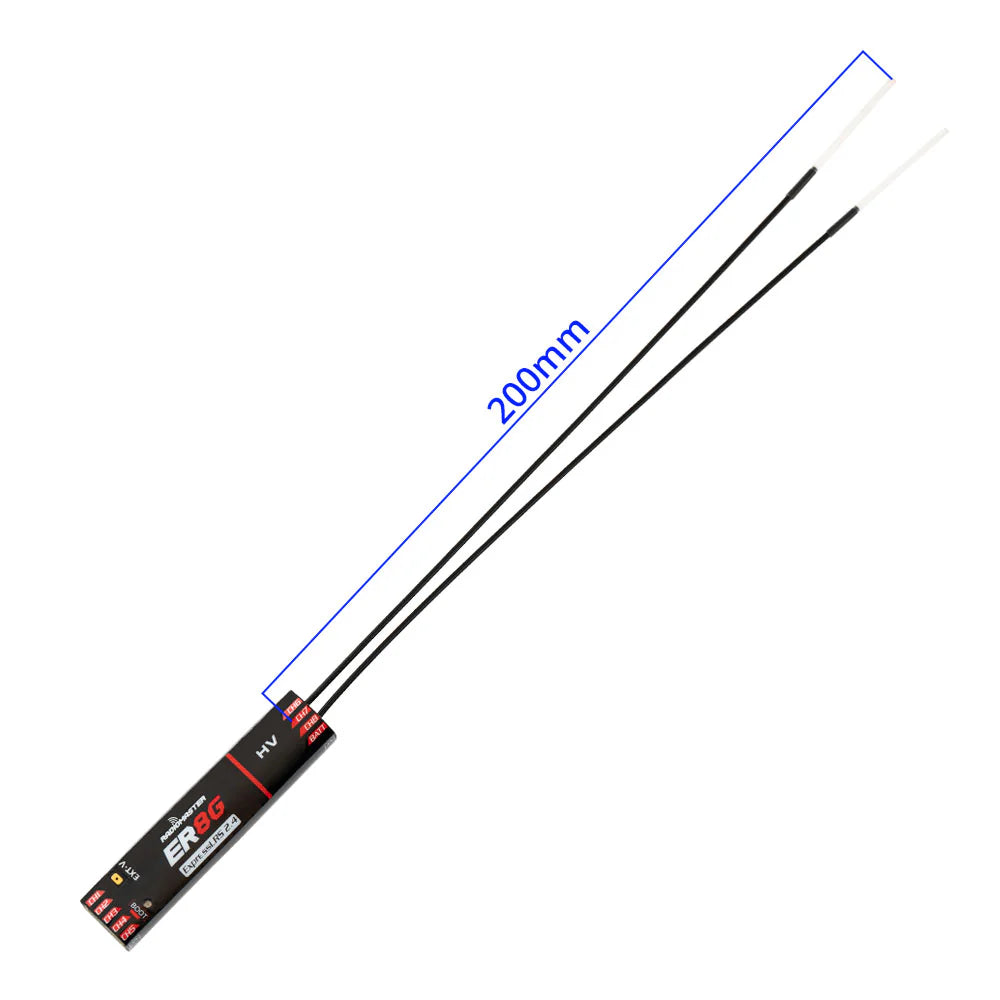

- High Sensitivity Antenna: 20cm antenna included for optimal range.
- Wide Voltage Input: Operates from DC 3.5V to 8.4V.
- Diversity Receiver: (Indicated by firmware name) Utilizes antenna diversity for improved signal robustness.
Specifications:
- Item: ER8G 2.4GHz ELRS PWM Receiver
- Power Supply: DC 3.5 - 8.4V
- Antenna Type: 20cm high sensitivity antenna
- Wireless Protocol: ExpressLRS 3.3.0 pre-installed
- Output Channels: 8CH PWM
- Serial Output: CRSF / SBUS
- Telemetry Power: Maximum 100mW (LUA configurable)
- Battery Voltage Detection Range: DC 4.0 - 35V
- Weight: 12 grams
- Dimensions: 60mm x 13.5mm x 13mm
-
Firmware:
- Device Category: Radiomaster 2.4Ghz
- Device: RadioMaster ER8-G 2.4GHz Diversity+8xPWM RX
What's in the Box:
- 1 * ER8G 2.4GHz ELRS PWM Receiver
- 2 * Heat-shrink tube
- 1 * Voltage telemetry wire (Type-A)
- 1 * CRSF wire
- 1 * ELRS- RX- SBUS wire
- 1 * User Card
Please note: Included accessories and wire types may vary slightly based on supply and manufacturer updates.
