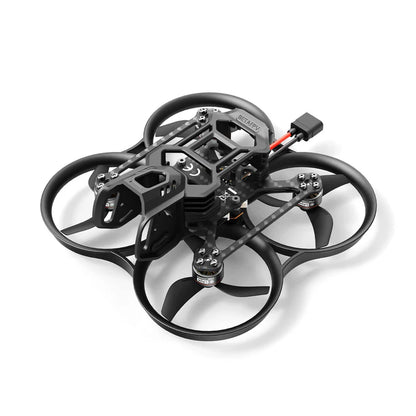

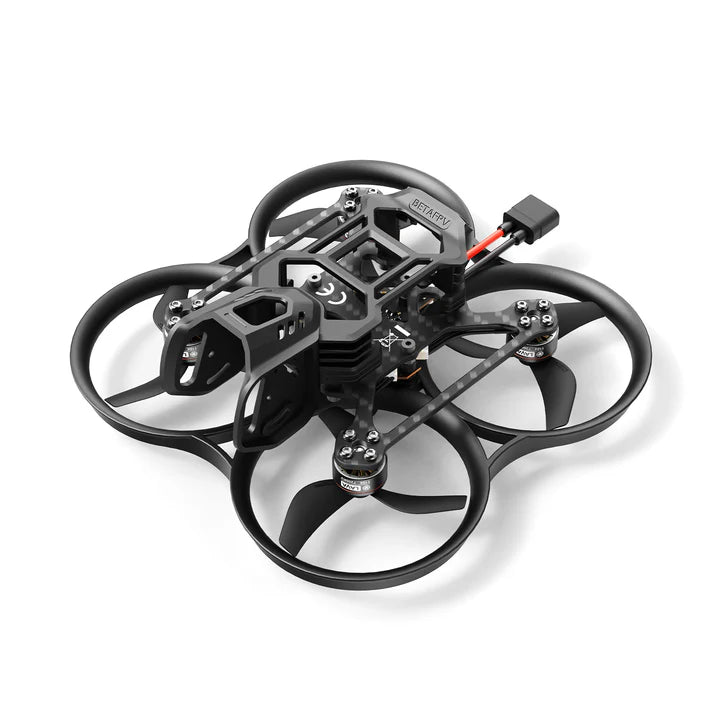

Pavo20 Pro II: The 2.2" DJI O4 Freestyle Whoop

Please note this is the PNP version, so does not include the DJI O4 Pro Air Unit

The Pavo20 Pro II has arrived because your current cinewhoop likely has the structural integrity of a wet biscuit. This 2.2-inch brushless whoop is engineered to carry the DJI O4 Air Unit or the beefier O4 Pro without flying like a bricks-and-mortar shop. We’ve packed in more tech than a Joshua Bardwell livestream to ensure your freestyle lines are as crisp as a fresh packet of Walkers, while the added RGB ensures the local CAA representative can spot your FPV drone from three counties away. It’s light, it’s loud, and it’s arguably the only reason you’ll actually enjoy flying in the British drizzle.

The "Upgraded II" Frame (Now With Fewer Screws to Lose)

We’ve overhauled the skeleton. Using crash-proof PA12 thickened ducts, the Pavo20 Pro II Frame is designed to survive your inevitable "watch this" moments. It features a revolutionary 4-screw assembly system with embedded nuts—because we know you’ve spent half your life crawling on the carpet looking for a dropped M2 bolt. This supported structure eliminates flex, making the quad feel more rigid than a flight examiner’s face during a botched landing.

O4 Air Unit Pro Bracket: Cinematic Silk

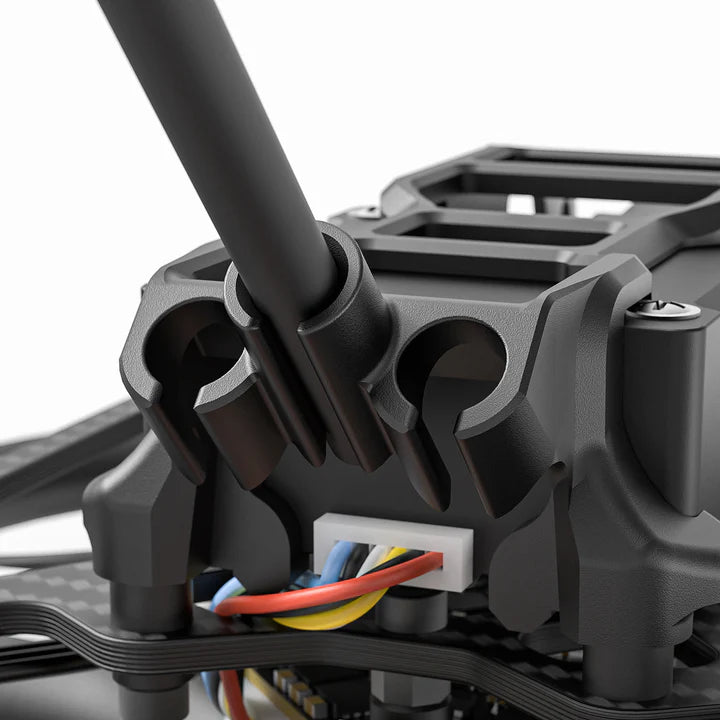

Vibration is the enemy of good footage, second only to forgetting to press record. The integrated O4 Air Unit Pro Bracket provides a reinforced, anti-vibration mount for your digital VTX. It offers a 0-40° tilt range and tool-free antenna swaps, so you can stop faffing with pliers and actually get back in the air. It even leaves space for ND filters, because we know you love a bit of motion blur to hide your shaky thumb movements.

Propulsion: Physics is More of a Suggestion

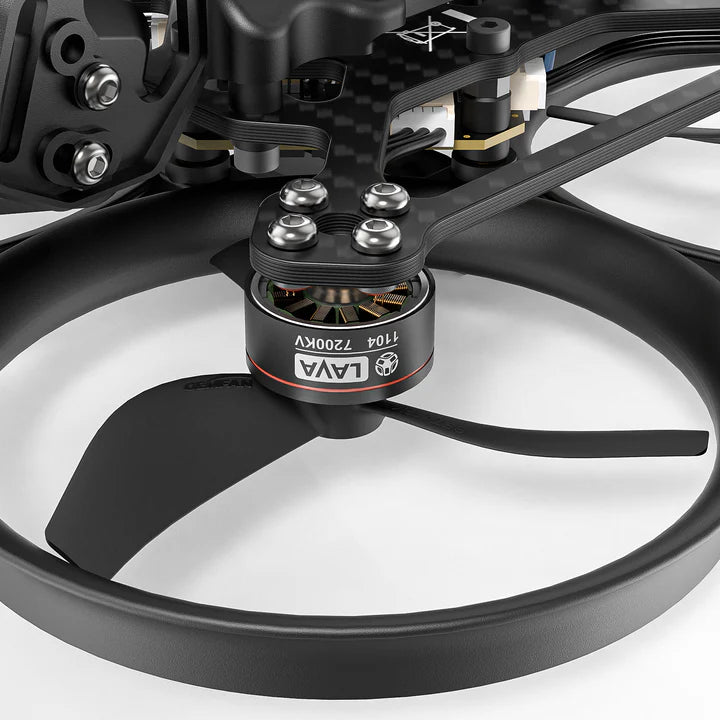

With a 6.2:1 thrust-to-weight ratio, this thing has more kick than a mule on espresso. We’ve paired the high-torque LAVA 1104 7200KV motors with co-developed Gemfan 2218 3-blade props. This combo provides an 8–11% thrust boost over previous models. It’s essentially a pocket rocket designed to make "Turtle Mode" a rare necessity rather than a lifestyle choice.

F4 20A AIO: The Brains of the Operation

Powering this madness is the ultra-light F4 2-3S 20A AIO FC V1. It weighs just 5.92g—less than a £1 coin—but handles enough current to keep your DJI O4 system stable with a dedicated 9V 2A dual BEC solution. It’s pre-optimized with PIDs for the O4 system, so you can skip the "tuning" phase where you usually just make things worse and go straight to the "flying" phase.

NightFire RGB Strip: Because Aesthetics Matter

If you aren't flying a glowing neon rectangle at 10 PM, are you even a pilot? The NightFire RGB LED strip is built-in, offering 10 preset effects and 7 colours. It helps with orientation during LOS recovery and looks fantastic in the "broken drone" photos you’ll eventually post on Discord. It’s the ultimate "look at me" accessory for the pilot who already has everything else.

ND Filters: Hollywood in a Whoop

Vertical installation for the DJI O4 Pro camera means you can slot in ND8, ND16, or ND32 filters faster than you can say "is that a no-fly zone?" It’s the easiest way to get that professional cinematic look without actually having to learn how to color grade in post-production.

Specifications

• Item: Pavo20 Pro II Brushless Whoop Quadcopter
• Wheelbase: 93.9mm
• FC: F4 2-3S 20A AIO FC V1
• Frame: Pavo20 Pro II Brushless Frame
• Motor: LAVA Series 1104 | 7200KV Brushless Motors
• Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Flight Time: 6'30'' (with LAVA 3S 550mAh Battery)
• RX Version: Serial ELRS, DJI SBUS
• HD VTX Bracket: O4 Air Unit Pro Bracket, O4 Air Unit Bracket II

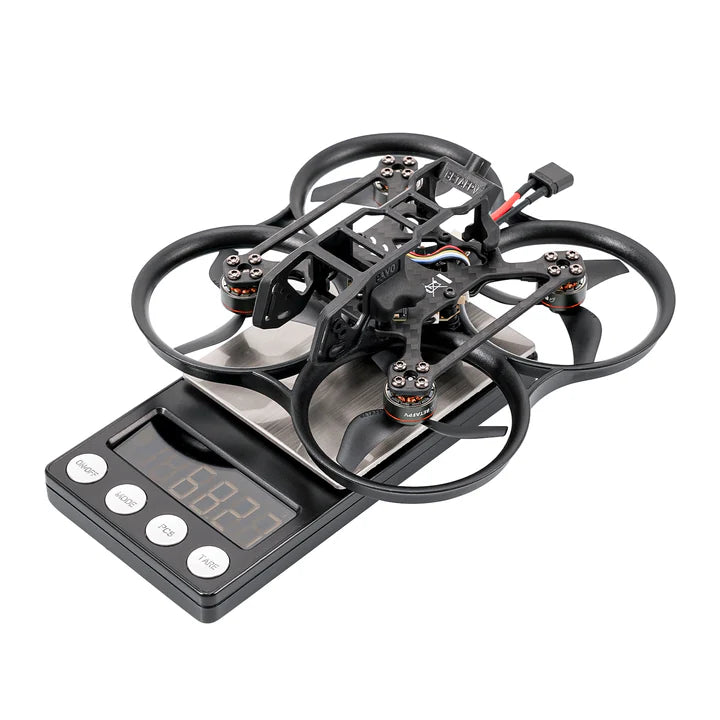

• Weight: 65.2g (PNP Version), 107.7g (O4 Pro included)
• Battery Connector: XT30
• Battery Slot: 20mm * unlimited height
• Strip: NightFire RGB LED Strip
• Supported VTX: DJI O4 Air Unit Pro, DJI O4 Air Unit
• Camera Filter Installation: Vertical
• Recommended Filter: ND Filter for O4 Pro Camera
• Recommended Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery

Cautions:

1. Please correctly connect the battery's positive and negative terminals to prevent drone damage.

What’s in the Box*

• 1× Pavo20 Pro II Brushless Whoop (PNP)
• 1× O4 Air Unit Pro Bracket & Hardware
• 4× Gemfan 2218 3-Blade Props
• 1× NightFire RGB LED Strip & Board
• 1× Screwdriver Kit (The "I've already got ten of these" special)

Pavo20 Pro II Comparison

Disclaimer

While the Pavo20 Pro II is tough, flying into a brick wall at 40mph will still result in a very expensive jigsaw puzzle.

Still Reading?

You’ve scrolled past the 7200KV LAVA motors and the 20A AIO FC specs just to see if I’d crack another joke. You’re clearly the type of pilot who checks their Betaflight blackbox data for fun on a Friday night. Stop over-analysing the 93.9mm wheelbase and just buy the thing—your DJI O4 goggles are getting dusty and we have a quarterly sales target to hit. Grab a LAVA 3S 550mAh battery while you're at it and go send it.
