Product Details

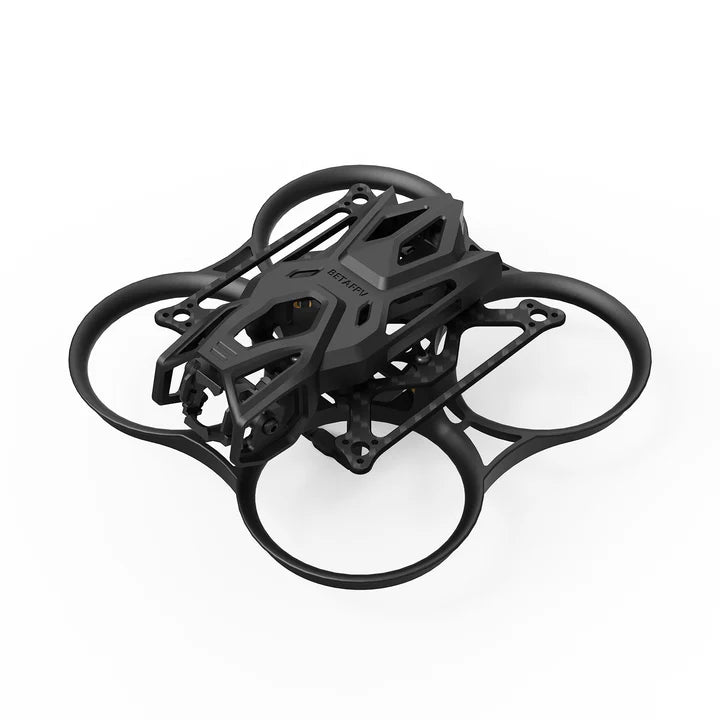

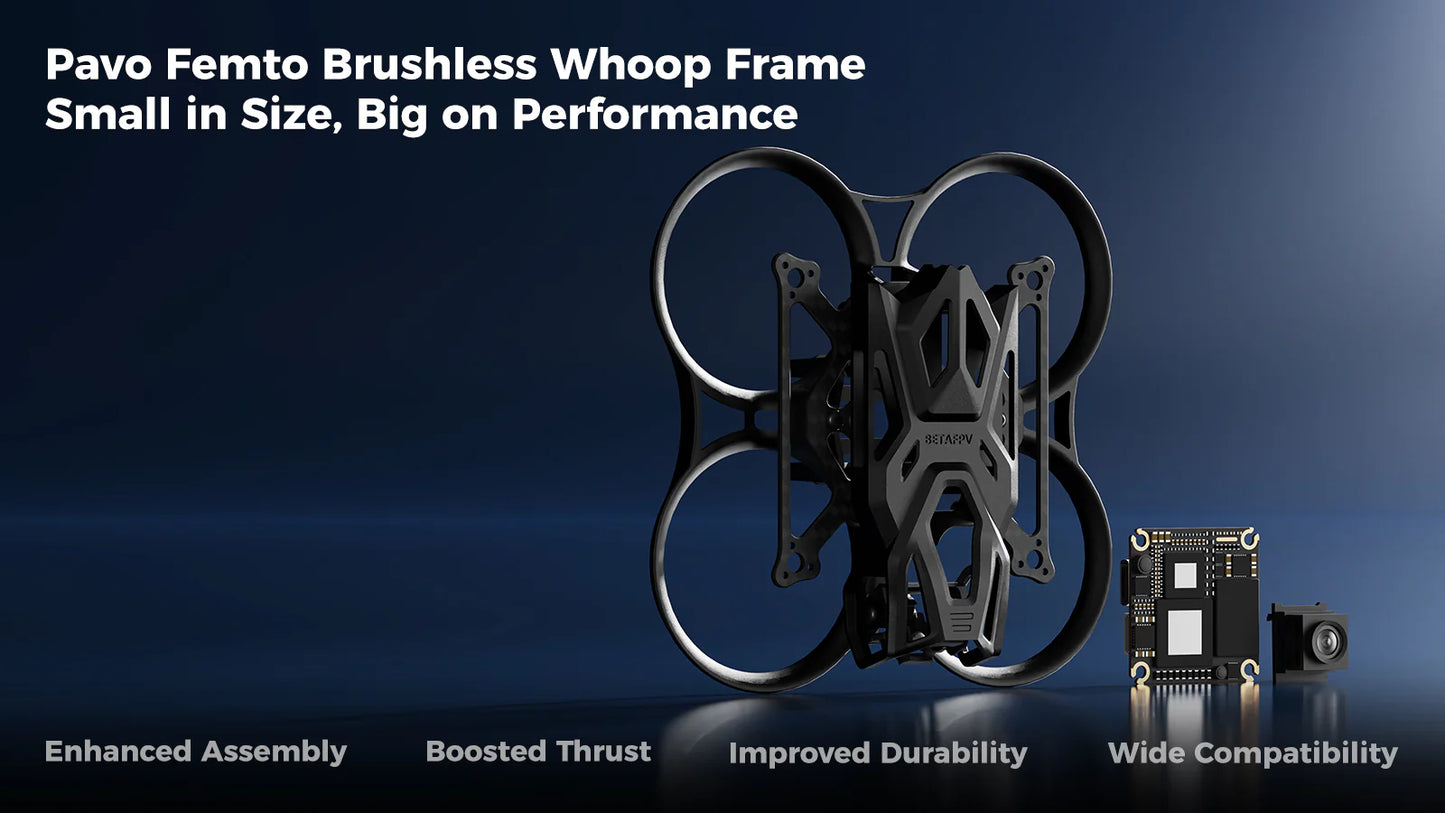

BetaFPV Pavo Femto Brushless Whoop Frame
Introducing the BetaFPV Pavo Femto Brushless Whoop Frame—a compact yet robust foundation designed to elevate your micro drone experience. Crafted with precision, this 75mm wheelbase frame is tailored for agility and durability, ensuring your flights are both exhilarating and reliable.
Key Features:
- Enhanced Thrust Performance: Inspired by rocket engine nozzle design, the Pavo Femto Frame optimizes whoop duct aerodynamics with precise height and thickness adjustments. Despite its smaller size, the frame achieves an approximate 4% thrust increase, providing enhanced power and stability.
- Improved Assembly: Features an improved connection between the whoop duct and the carbon fiber plate with added supports for a secure fit, ensuring quick and hassle-free assembly. Say goodbye to loose nuts and tedious installations.
- Enhanced Protection: Maintains the modular design while upgrading the DJI O4 Air Unit Bracket with a reinforced protective structure for its circuit board, enhancing durability and reliability during use.
- Versatile Compatibility: The O4 Air Unit Bracket includes the O4 Camera bracket and shock-absorbing components for O4 Air Unit, ensuring stable performance for high-quality footage. Its mounting holes are fully compatible with Pavo Femto, Pavo Pico, and Pavo20, making it ideal for various builds.

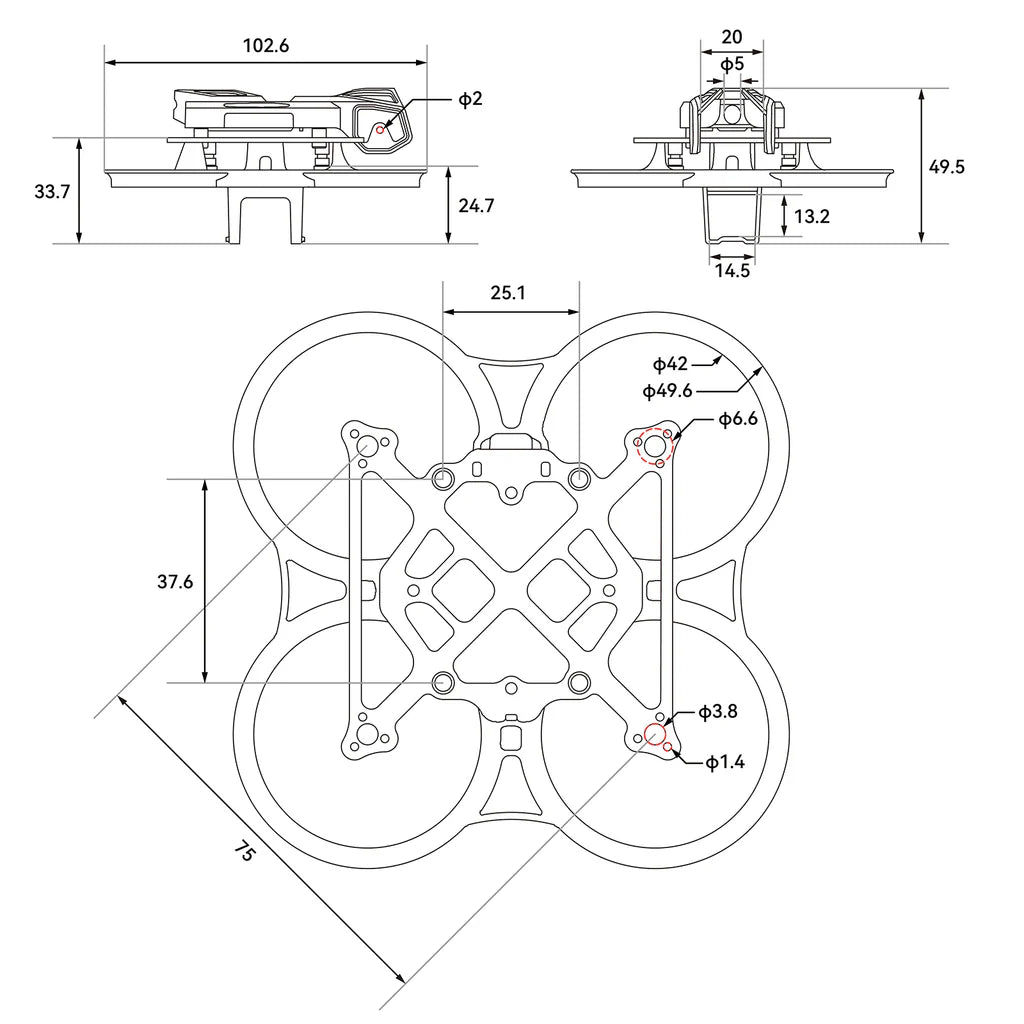

Specifications:
- Wheelbase: 75mm
- Carbon Fiber Plate Thickness: 2mm
- Whoop Duct Material: PA12
- Whoop Duct Weight: 8.64g
- Frame Weight: 22.16g
- Flight Controller Mounting Hole Size: 25.5mm x 25.5mm
- Motor Mounting Hole Size: 3*M1.4 EQS ø6.6
- O4 Air Unit Bracket Material: PA
- O4 Air Unit Bracket Weight: 6.05g
- Camera Mounting Spacing: 20mm
What's in the Box:
-
- 1 * Whoop Carbon Fiber Plate
- 1 * Whoop Duct
- 1 * Canopy for O4 Air Unit Bracket
- 1 * Bottom Plate for O4 Air Unit Bracket
- 1 * DJI O4 Camera Bracket
- 1 * Shock-absorbing Mount for DJI O4 Camera
- 1 * 5.8G VTX Antenna
- 6 * Shock-absorbing Balls for Flight Controller (8mm)
- 6 * Shock-absorbing Balls for O4 Air Unit Bracket (6.6mm)
- 6 * Shock-absorbing Pads for O4 Air Unit
- 6 * Shock-absorbing Balls for O4 Camera
- 6 * M2*10 Cylindrical Socket Head Cap Screws
- 4 * M2*14 Flat Head Socket Cap Screws
- 4 * M2*4 Flat Head Socket Cap Screws
- 6 * M1.4*5 Phillips Flat Washer Head Tapping Screws
Please note: Accessories may vary based on supply. Verify the package contents upon receipt.
