Product Details

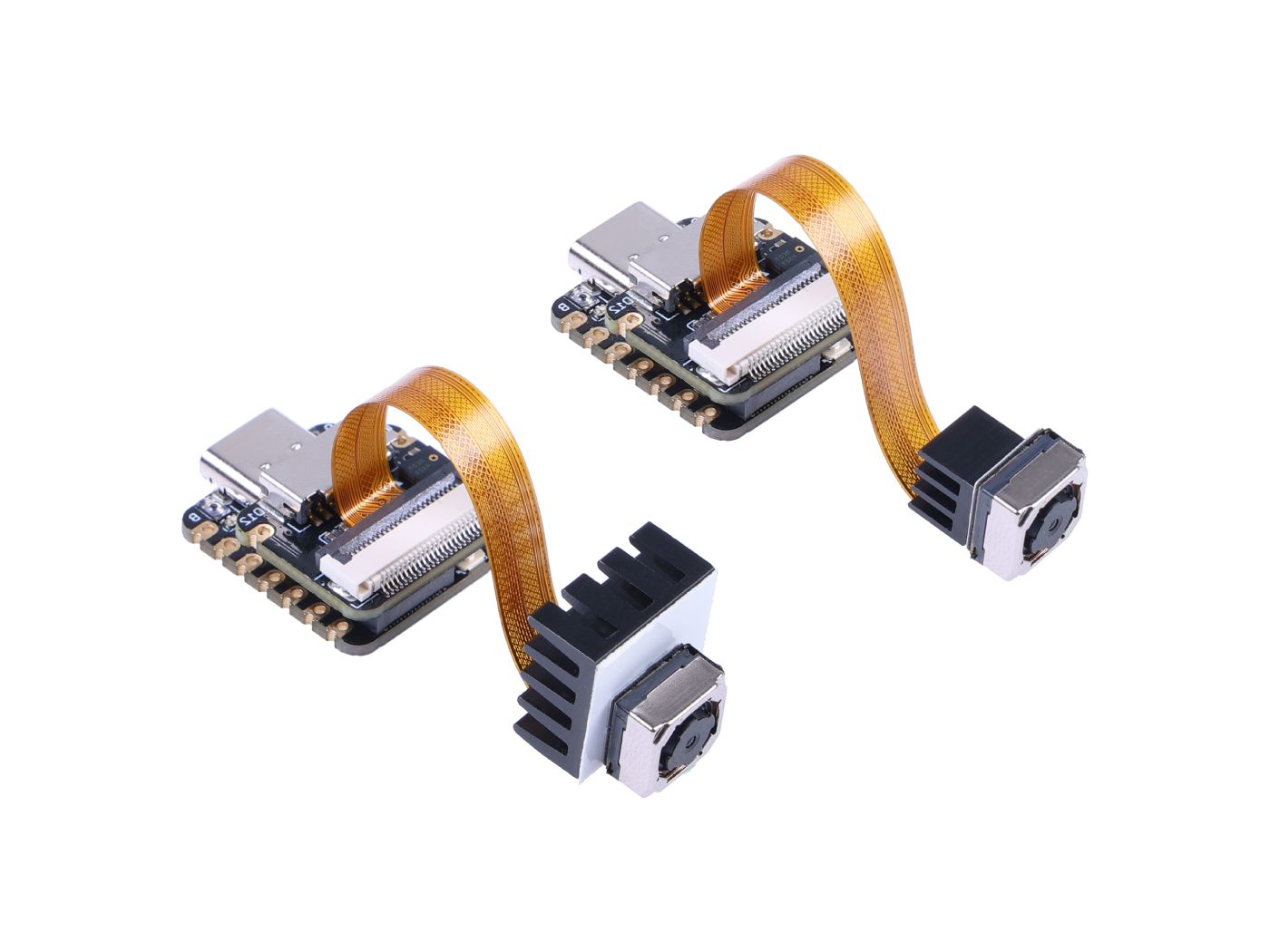

Unleash the power of high-resolution imaging with our OV5640 Camera, tailor-made for the XIAO ESP32S3 Sense. With the ability to snap from quaint QVGA to stunning QSXGA, this camera module is your gateway to capturing the world in all its glory.
Features:
- Tailor-Made Excellence: Designed exclusively for Seeed Studio's XIAO ESP32S3 Sense, ensuring seamless integration.
- Resolute Resolution: Ranging from 320x240 to a sweeping 2592x1944, details are as clear as your intentions.
- Colour Richness: Delivers 8/10-bit RGB RAW output, capturing life's palette without skimping on shades.
- Auto-Focus Wizardry: Keeps your shots sharp, so you can focus on what really matters - everything else.
- Thermal Hero: Braving 30℃ to 70℃ operational temps, it's hotter than the British summer (and certainly more reliable).
Our OV5640 Camera is not just a component; it's a visual maestro for your XIAO ESP32S3 Sense projects. Capturing images in a wide array of resolutions, it excels where others just show up. Its capacity for post-processing with RAW output is like having a darkroom at your fingertips.
Auto-focusing is not just a feature; it's your personal photography assistant, always ensuring the subject is crisp, clear, and ready for the 'gram. And with the robustness to withstand the mood swings of Mother Nature, this camera's versatility is as vast as your imagination.
We've thrown in a heat sink because we're cool like that. But remember, it's a camera, not a hand-warmer. Handle with care.
Where It Excels:
- Security: Keeping watch so you don't have to.
- Machine Vision: Gives your machines eyes, minus the judgment.
- Autonomous Vehicles: Because even robots need a co-pilot.
- Household Electronics: Upgrading your gadgets' vision from good to eagle-eyed.
Specifications:
- Pixel Parade: 1.4 µm x 1.4 µm (That's tiny, but mighty).
- Max Resolution: A dazzling 2592*1944. (Because we don't do mediocrity).
- Colour Output: Full colour, because life isn't just black and white.
- Power Efficiency: With core power at 1.5V ± 5%, it sips power like a fine wine.
- Temperatures: Storage from 0℃ to 50℃; operating from -30℃ to 70℃ (it's practically an all-weather friend).
| Specifications | OV5640 | OV2640 |
| Len Size | 1/4 inch | 1/4 inch |
| Pixel Size | 1.4 µm x 1.4 µm | 2.2um x 2.2um |
| maximum resolution | 2592*1944 | 1600*1200 |
| color type | color | color |
| Output formats |
RAW RGB
RGB565/555/444 CCIR656 YUV422/420 YCbCr422 compression |
YUV(422/420)/YCbCr422
RGB565/555 8-bit compressed data 8/10-bit Raw RGB data |
| Power Supply | core: 1.5V ± 5% (with embedded 1.5V regulator) | core: 1.2 VDC ± 5% |
| analog: 2.6 ~ 3.0V (2.8V typical) | analog: 2.5-3.0 VDC | |
| I/O: 1.8V / 2.8V | I/O 1.7-3.3V | |
|
Guaranteed
storage temperature |
0℃ to 50℃ | 0℃ to 50℃ |
| Guaranteed Operating temperature | -30℃ to 70℃ | -30℃ to 70℃ |
| maximum image transfer rate | QSXGA(2592*1944):15fps | CIF(352*288): 60fps |
| 1080p:30fps | SVGA(800*600): 30fps | |
| 1280*960:45fps | CIF(352*288): 60fps | |
| 720p:60fps | ||
| VGA (640*480):90fps | ||
| QVGA (320*240):120fps |

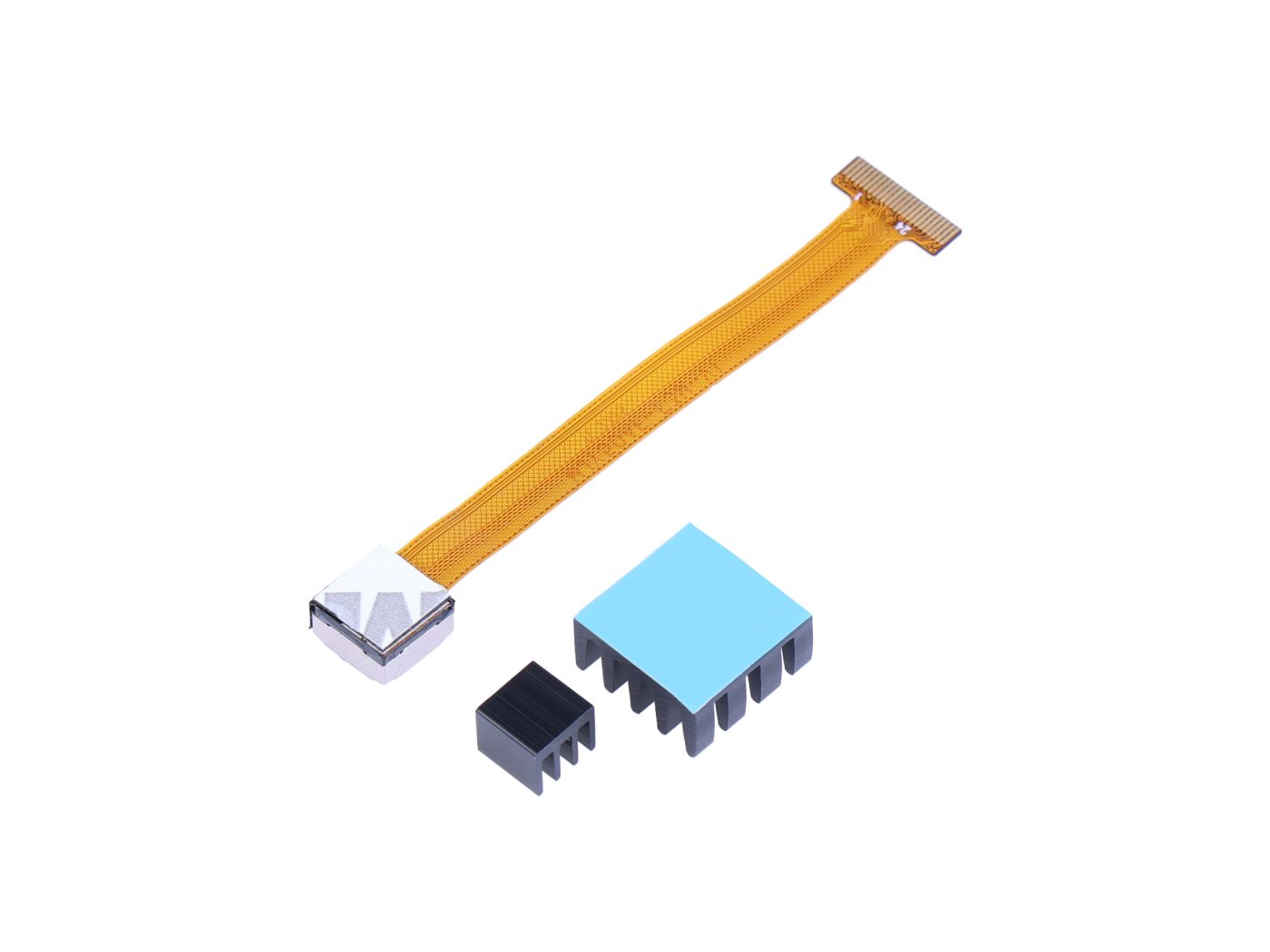

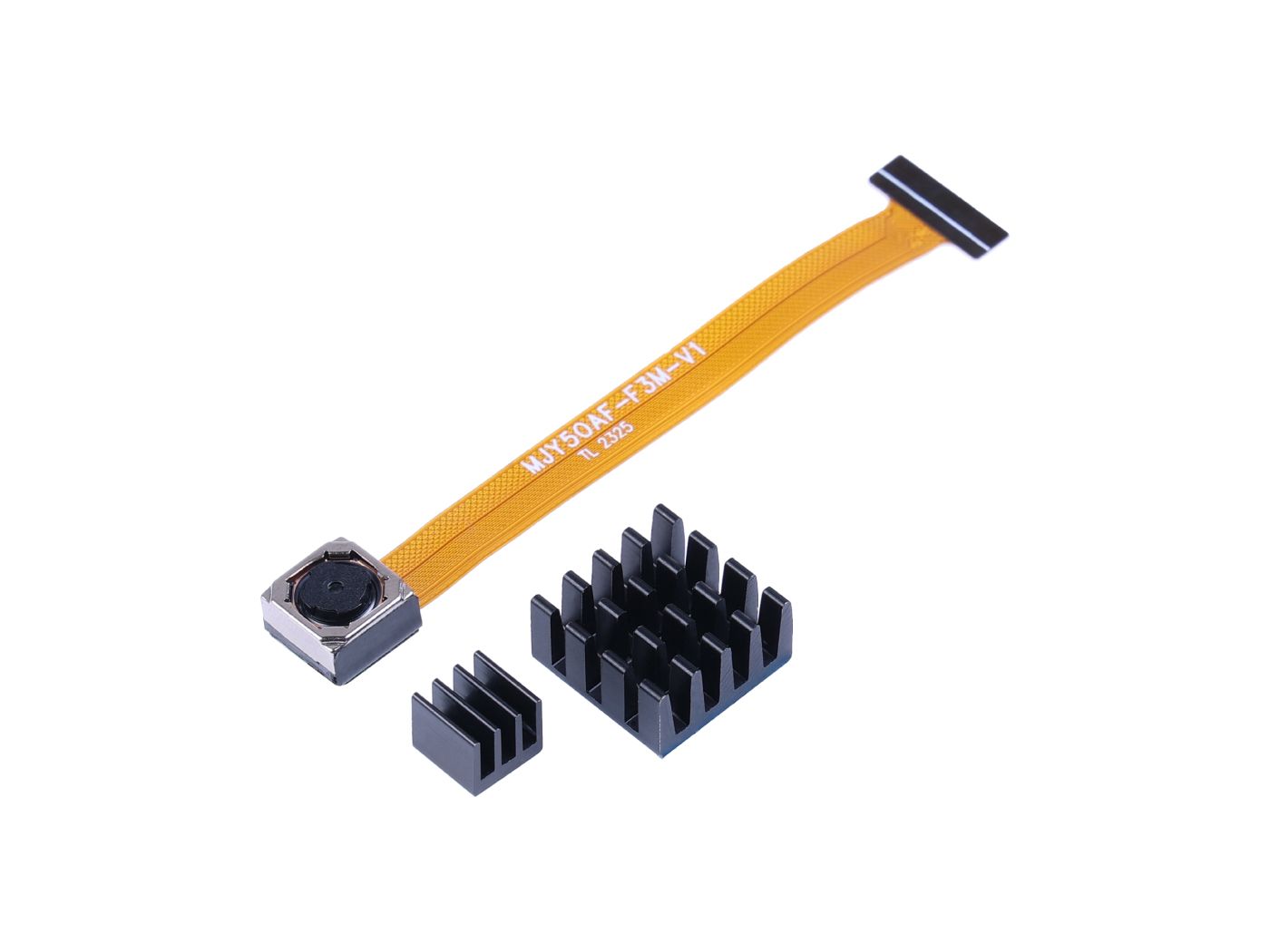

In the Box:
- 1x OV5640 Camera Module (because that's why you're here).
- 1x 7x6x7 mm heat sink (tiny but mighty).
- 1x 14x14x7 mm heat sink (because bigger can be better).
