Product Details

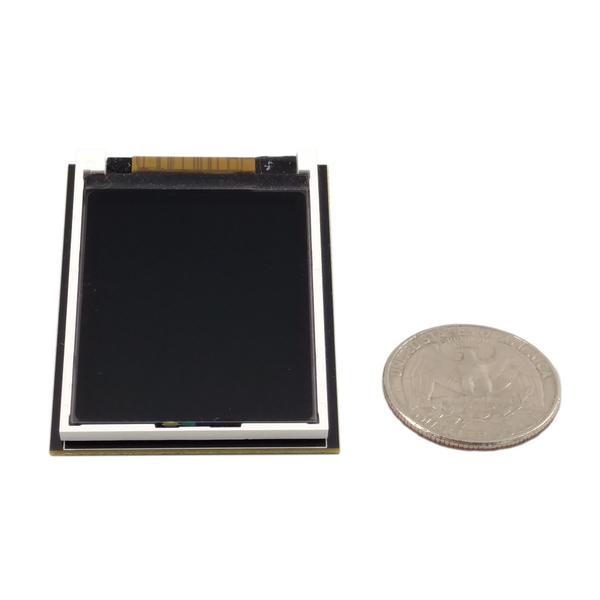

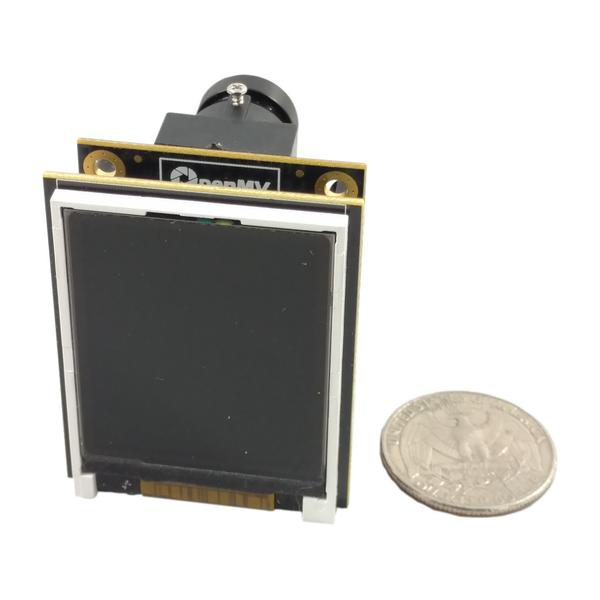

The LCD Shield gives your OpenMV Cam the ability to display what it sees on-the-go while not connected to your computer. It features a 1.8" 128x160 16-bpp (RGB565) TFT LCD display with a controllable backlight. Your OpenMV Cam's firmware has built-in support for controlling the LCD Shield using the lcd module .
Applications

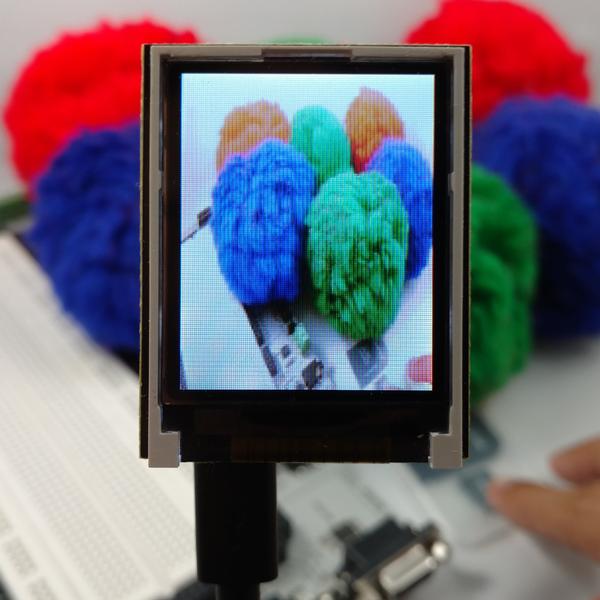

The LCD Shield is great for robotic applications where you need to debug your OpenMV Cam in the field - like when debugging a line following robot. For example, you can use the LCD Shield to display the frame buffer after you've thresholded and drawn markups on an image.

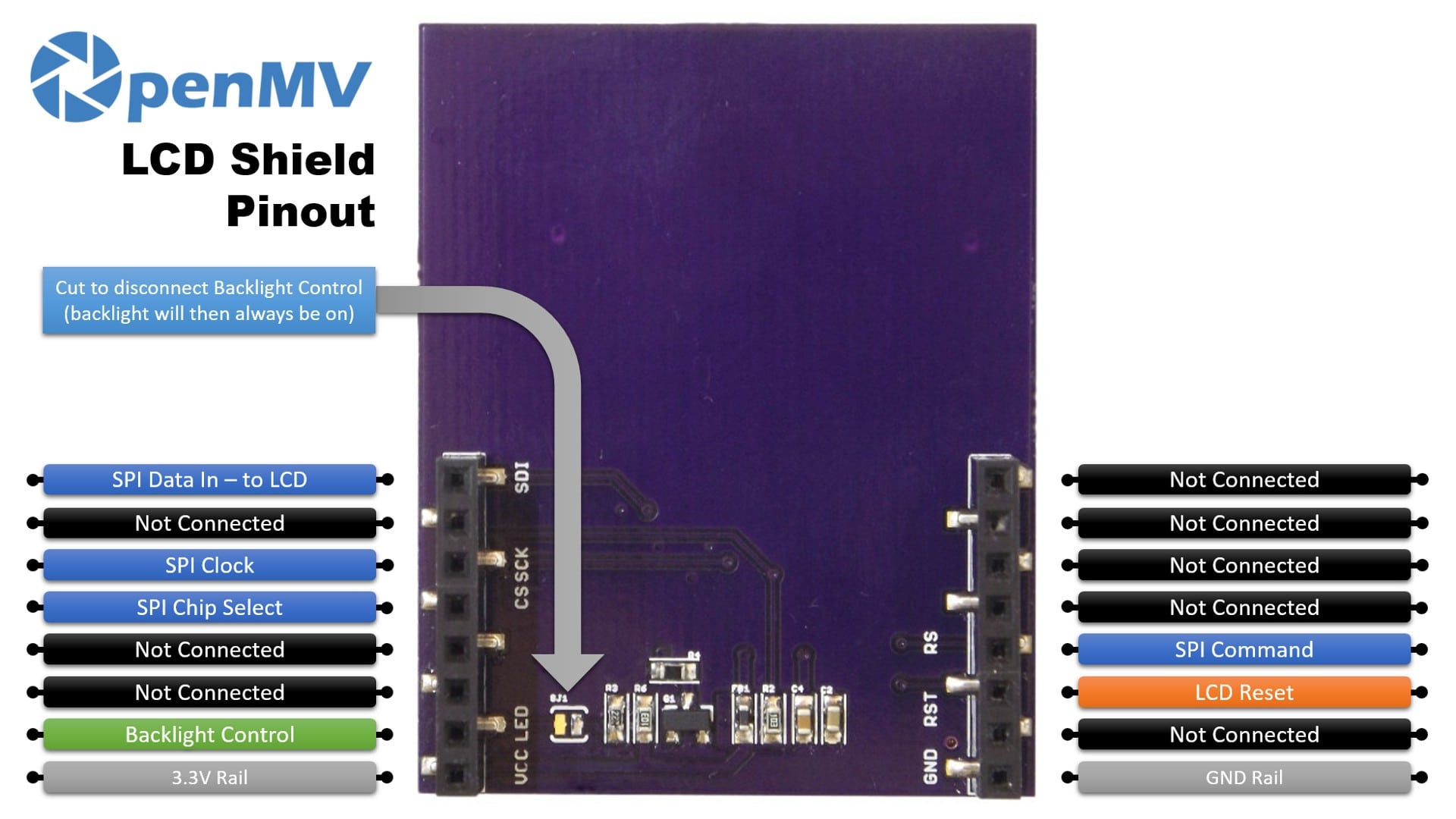

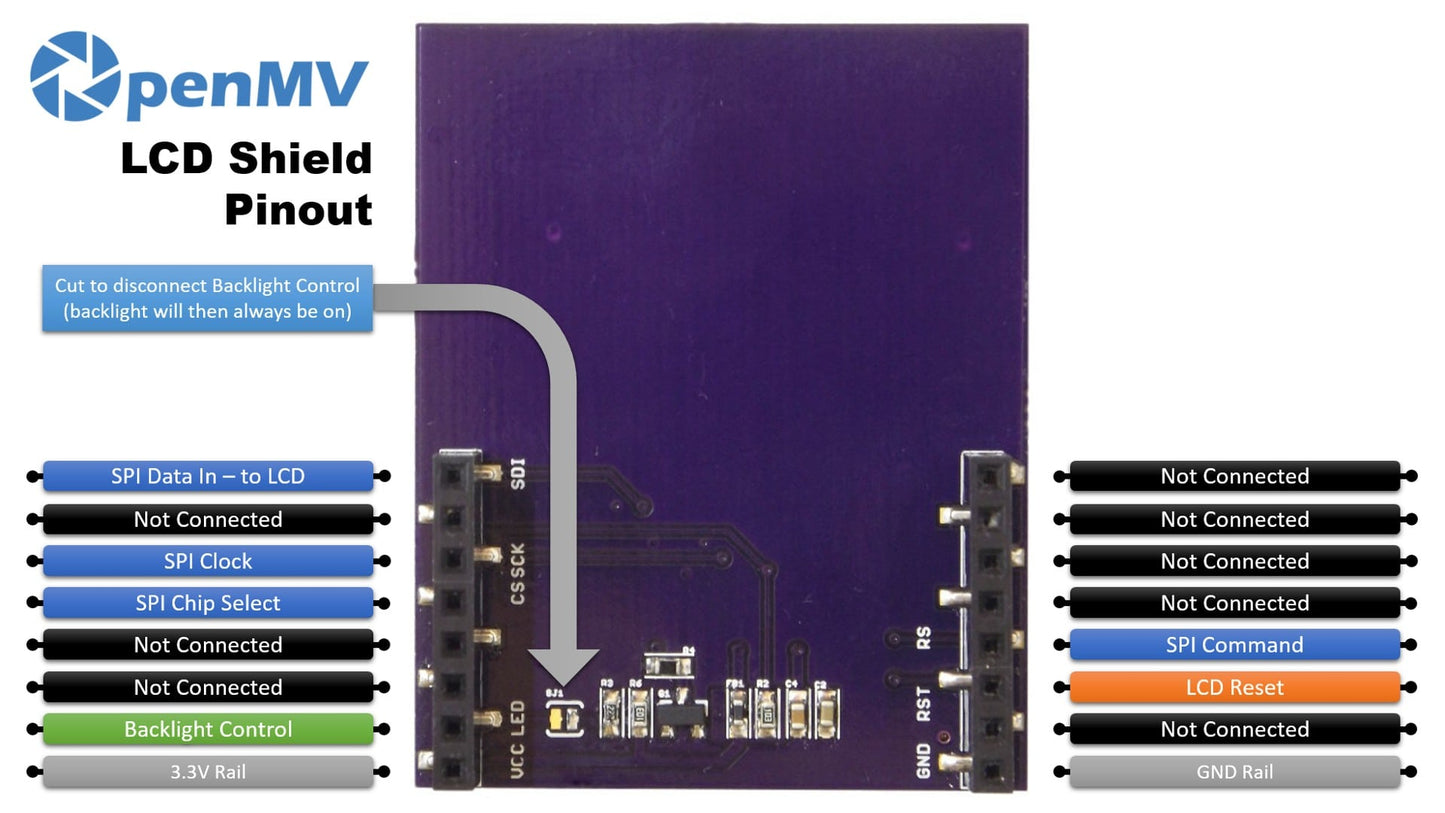

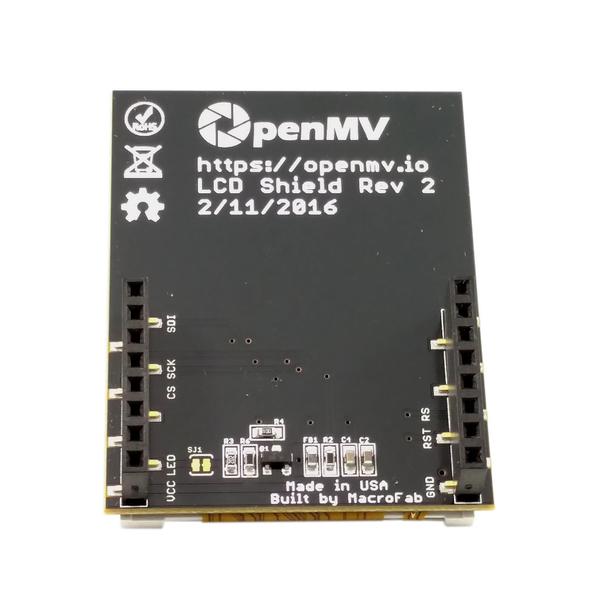

Pinout
Specifications
| Screen Type | 1.8" TFT LCD |
| Horizontal Resolution |
128 pixels (28.03mm)
0.18mm pixel pitch |
| Vertical Resolution |
160 pixels (35.04mm)
0.18mm pixel pitch |
| Display Colors | 64K 16-bit RGB565 |
| Weight | 13g |
| Length | 48mm |
| Width | 38mm |
| Height | 13mm |
Power Consumption
| Idle Backlight Off | < 1mA @ 3.3V (> 100mA w/ Cam) |
| Idle Backlight On | 30mA @ 3.3V (130mA w/ Cam) |
| Active Backlight Off | 10mA @ 3.3V (150mA w/ Cam) |
| Active Backlight On | 40mA @ 3.3V (180mA w/ Cam) |
Temperature Range
| Storage | -30°C to 80°C |
| Operating | -20°C to 70°C |
