Product Details

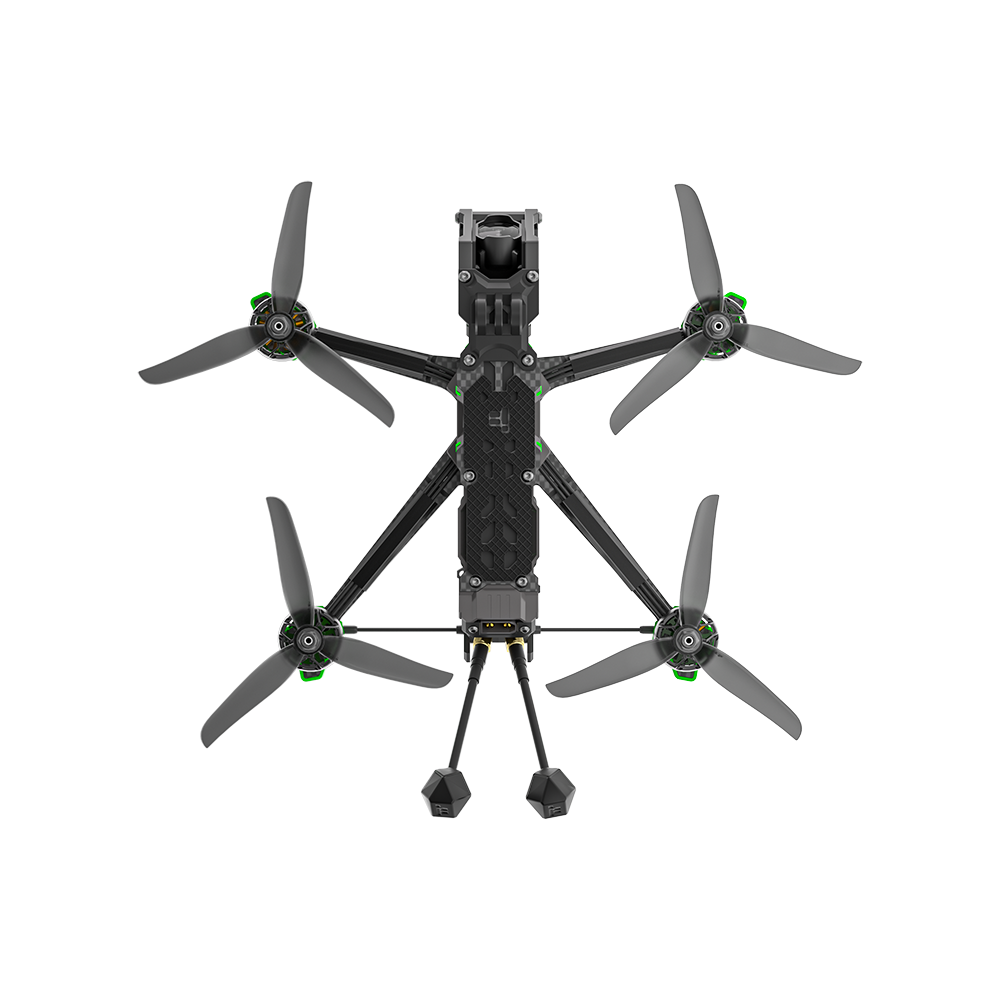

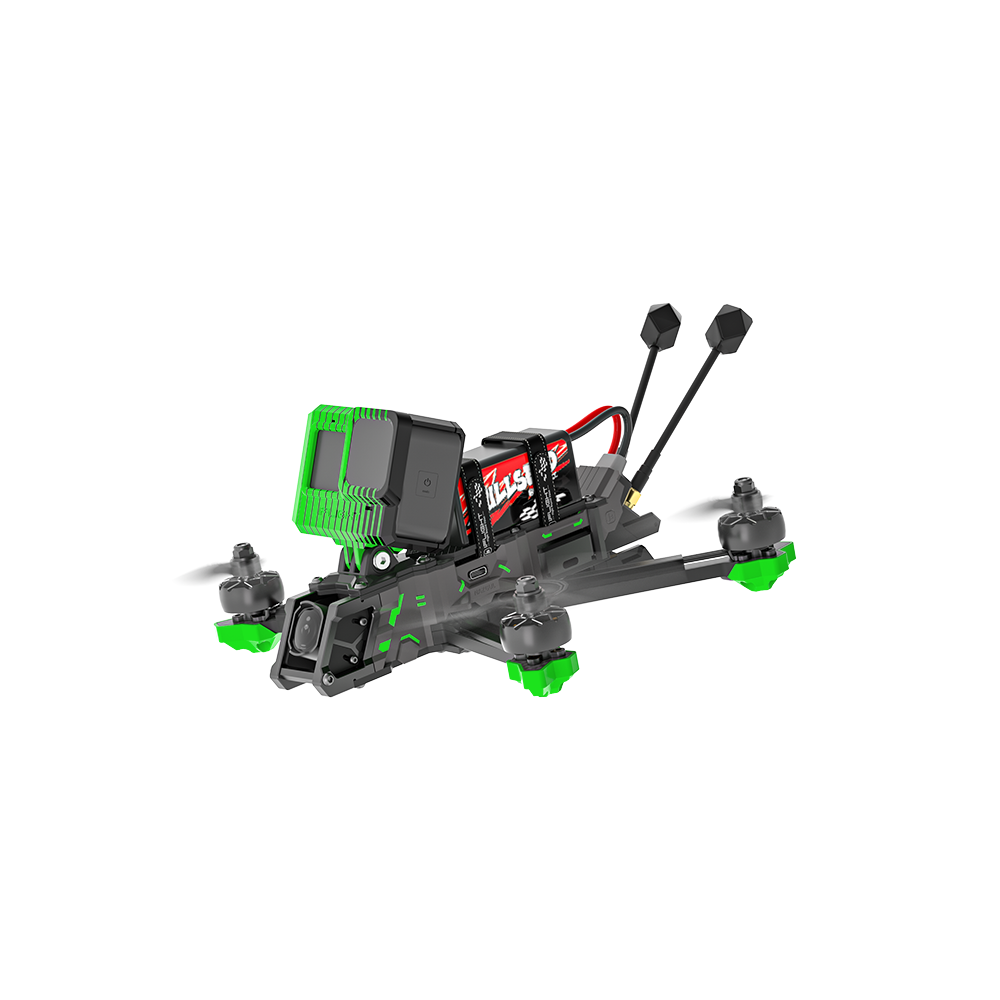

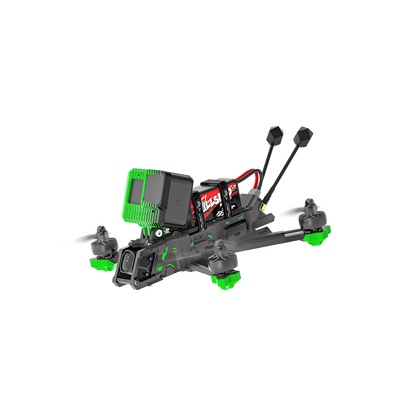

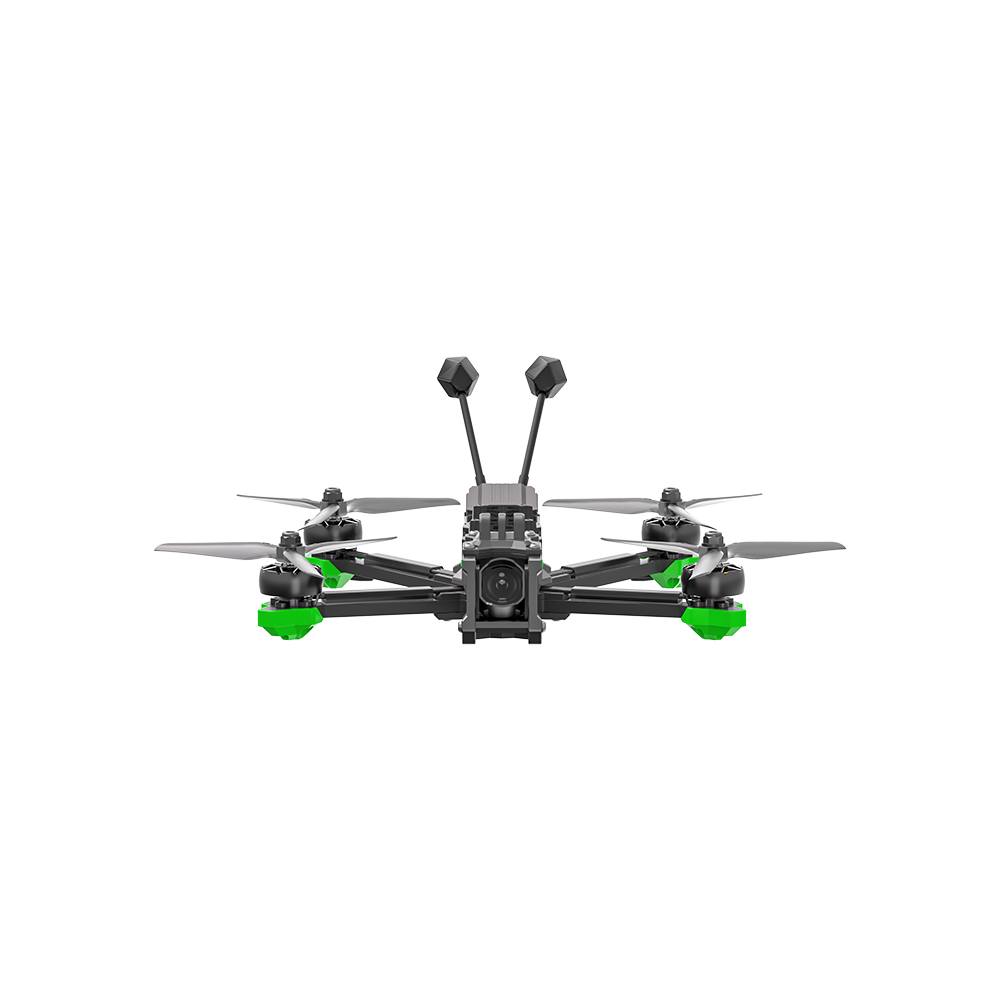

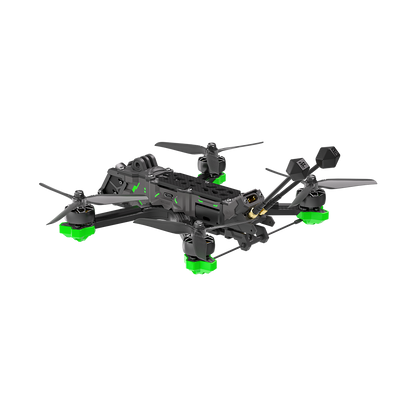

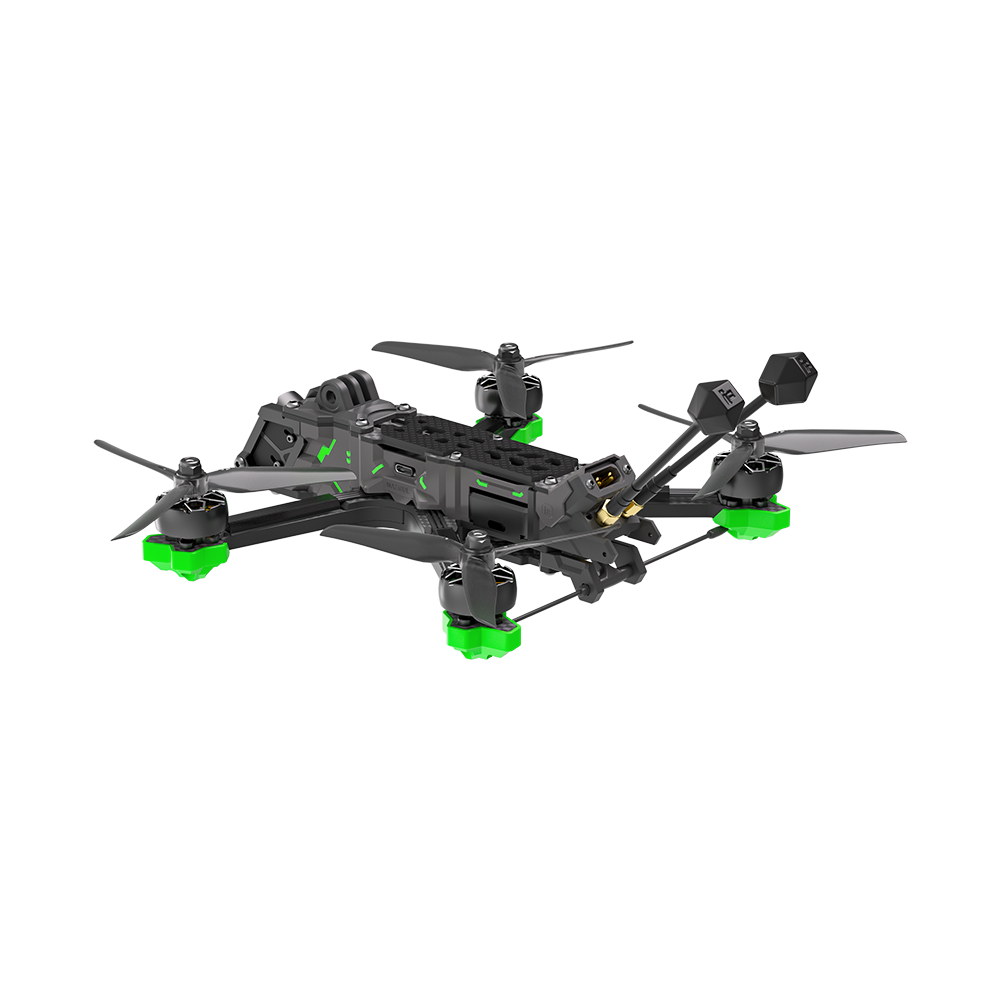

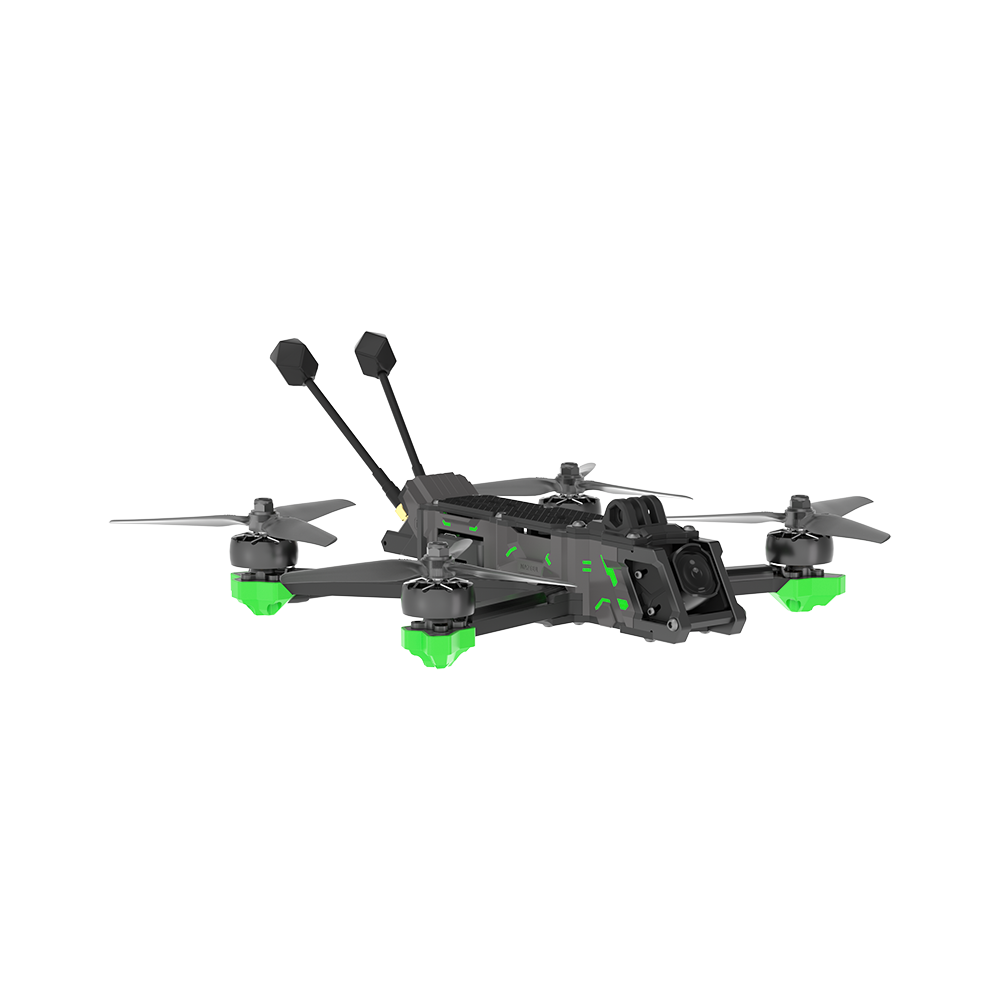

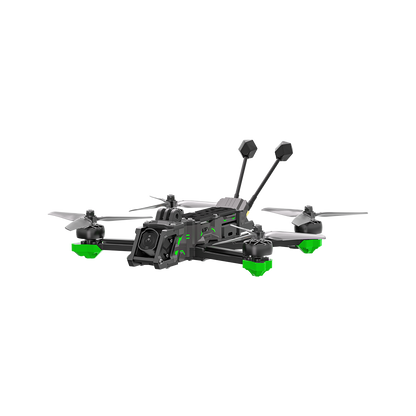

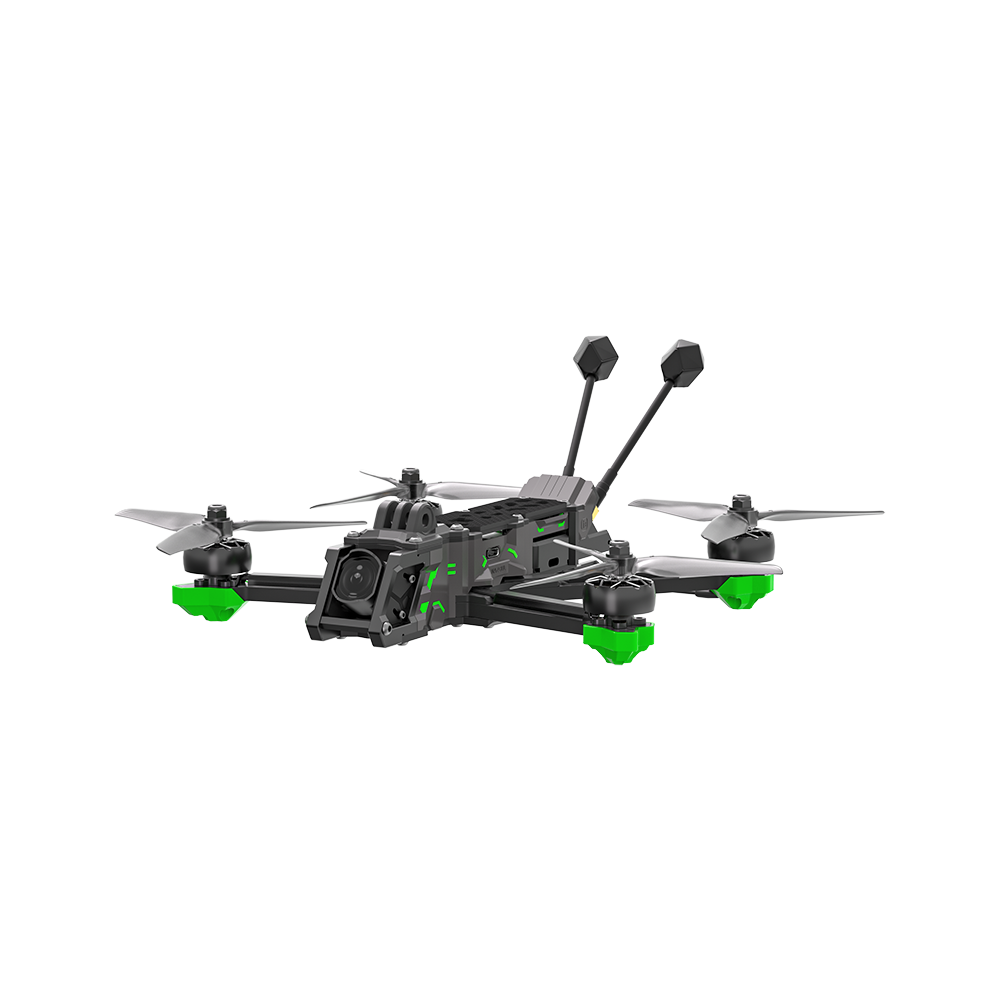

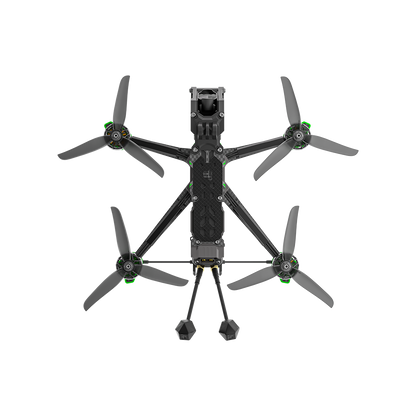

Evoque F5 V2 O4 HD - Freestyle Power Meets Cinematic Precision
Step into the future of FPV flight with the Evoque F5 V2 O4 HD , the ultimate 5-inch Bind-and-Fly drone for enthusiasts and professionals alike. Powered by DJI's O4 Pro Air Unit , this drone delivers stunning 4K stabilized video , seamless real-time 1080p/100fps transmission , and a 155° ultra-wide field of view , all while maintaining incredible low-light performance thanks to its 1.1/1.3-inch sensor . With a durable yet lightweight Nazgul frame , high-performance XING2 2207 motors , and thoughtful design upgrades like an anti-spark battery plug and improved airflow, this drone is ready to dominate freestyle circuits and cinematic skies.
Key Features
1. High-Performance XING2 Motors
The XING2 2207 1750KV motors are built for speed, torque, and smoothness. With a titanium alloy shaft, unibell construction, and Japanese NSK bearings, these motors ensure reliability and performance for freestyle maneuvers and extended flight sessions.
2. DJI O4 Pro Air Unit - Unmatched Visuals
Capture breathtaking footage with the 4K-capable O4 Pro Air Unit . With a 1/1.3-inch image sensor , 155° ultra-wide-angle lens , and features like RockSteady 3.0+ stabilization and D-Log M for color grading, you'll get cinematic visuals every flight. Real-time video transmission at 1080p/100fps and low latency (24ms) ensures an immersive FPV experience.
3. Upgraded Nazgul Frame for Protection and Performance
The latest Nazgul frame features illuminated side panels, TPU protective parts, and improved dirt and debris protection to keep your electronics safe during crashes. Its optimized airflow ensures components stay cool without adding unnecessary weight.
4. Anti-Spark Battery Plug for Longevity
The XT60 connector includes an anti-spark filter to prevent voltage spikes when plugging in your battery, extending the lifespan of your electronics and ensuring consistent performance.
5. Seamless Bind-and-Fly Experience
Pre-tuned and tested out of the box, the Evoque F5 V2 makes FPV accessible to all skill levels. Pair it with your DJI goggles and remote, and you're ready to take off in minutes.
Specifications
- Geometry: DeadCat (DC)
- Flight Controller (FC): BLITZ Mini F722
- ESC: BLITZ Mini E55 4-IN-1 2-6S 55A
- Motors: XING2 2207 1750KV
- Propellers: Nazgul F5 props
- Wheelbase: 223mm
- Weight (Without Battery): 436g ±5g
- Takeoff Weight: Approx. 712g ±10g (with 6S 1480mAh battery)
- Max Speed: 190 km/h
- Max Hover Time: Approx. 7.5 minutes (no load, with 6S 1480mAh)
- Video Transmission: DJI O4 Air Unit Pro (4K stabilized video)
- Maximum Video Transmission Range: Up to 15 km (FCC), 8 km (CE/SRRC)
- Max Takeoff Altitude: 3200m
- Operating Temperature: -10°C to 40°C
- Max Wind Speed Resistance: Level 7

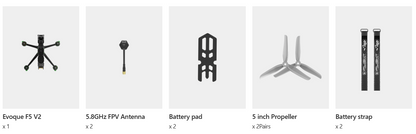

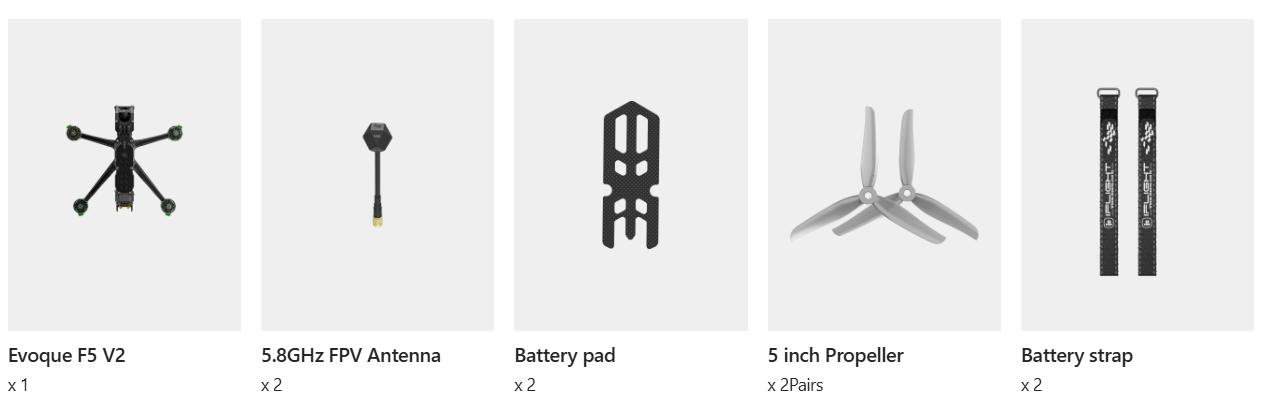

What's in the Box
- 1 x Evoque F5 6S O4 HD BNF
- 2 x Antennas
- 1 x Battery Pad
- 1 x Propeller Pair (Nazgul F5)
- 1 x Battery Strap
Important Note
The included accessories may vary slightly depending on supply. Check box contents upon delivery.
Compatibility
-
Supported Goggles:
- DJI Goggles 3 / DJI Goggles N3 (with DJI FPV Remote Controller 3)
- DJI Goggles 2 / DJI Goggles Integra (with DJI FPV Remote Controller 2)
- Radio Transmitter: Compatible with other RX modules configured for the SBUS protocol .
Disclaimers
- iFlight products are intended for civilian use only and may not be used for military or illegal purposes.
- Compliance with export control laws is required.
- For support, visit iFlight Support .
