Product Details

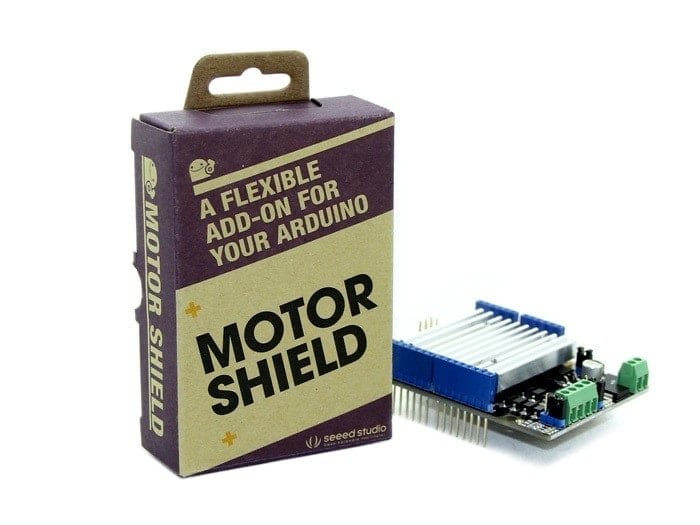

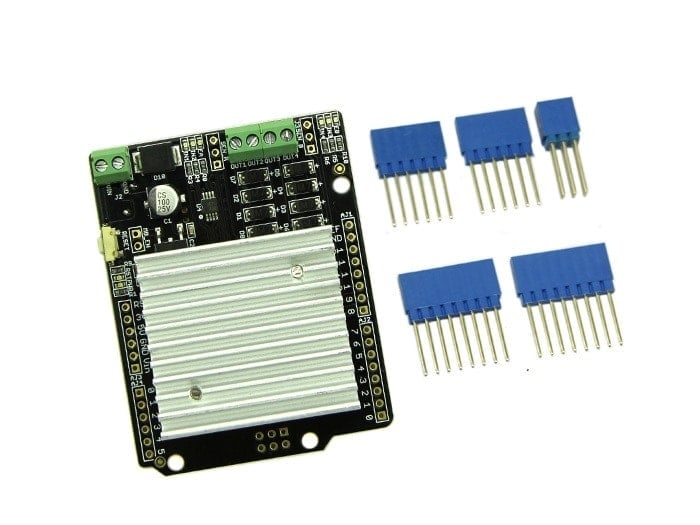

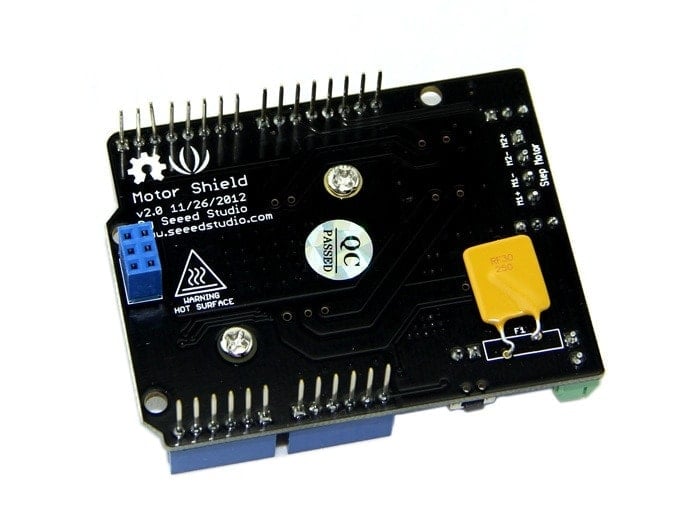

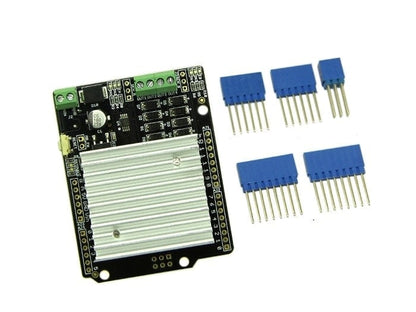

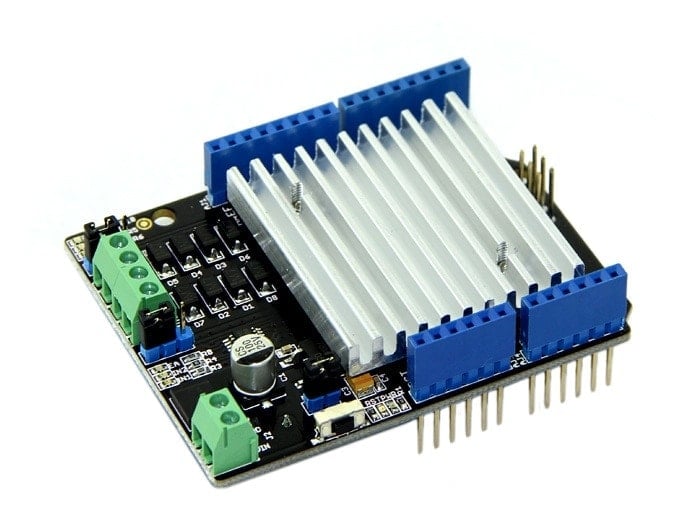

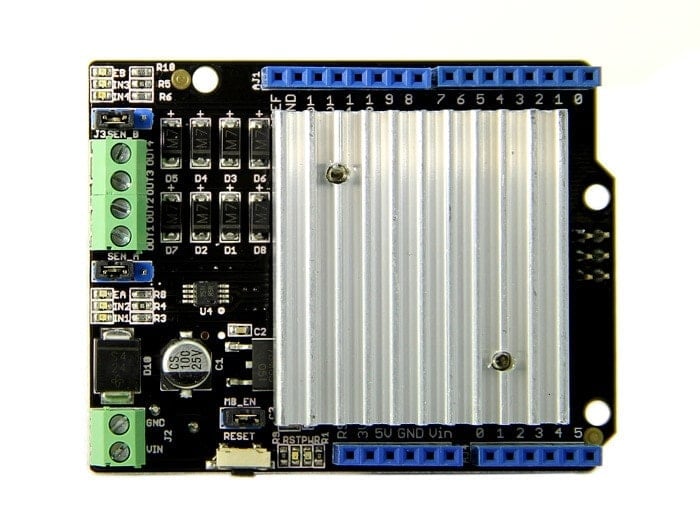

The Motor Shield is a perfect platform for robotics and mechanical applications. It enables the Arduino to drive two brushed DC motors or one 4-wire two-phase stepper motor. Based on the Dual Full-Bridge Drive Chip L298, it is able to drive two DC motors or a steper motor. The Motor Shield can either be powered directly by Arduino or by an external 5V~15V power supply via the DC jack. This module can be used for the development of micro robots and intelligent vehicles, etc.
Motor Shield Features
- Arduino/Seeeduino compatible
- Standardized shape design
- LED enable indicator
- LED rotation direction indicator
- Overcurrent turn-off
Specifications
- Operating Voltage: 5V
- Motor Supply Voltage: 6 - 15V
- Output Current(For Each Channel ): 1.6 - 2A
- Output Duty Range: 0%~100%
Example usage
Documents
Please visit our
wiki page
for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials
