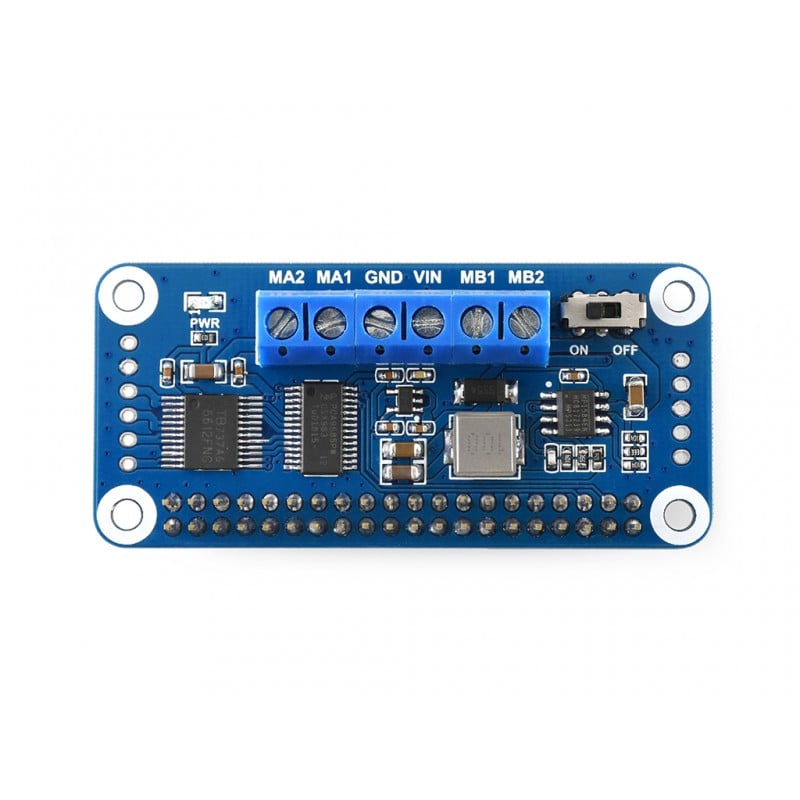

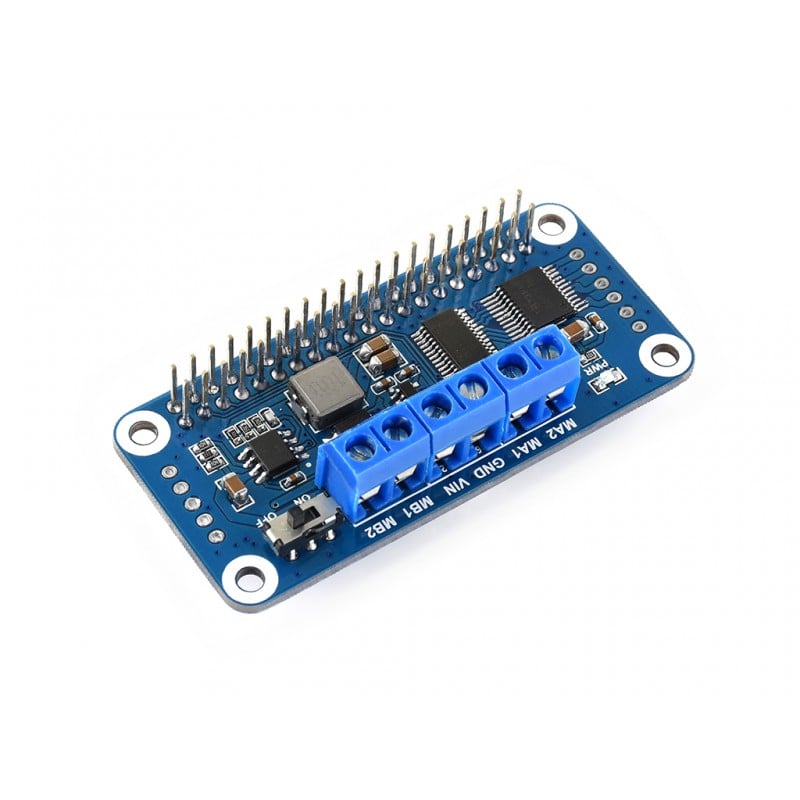

Product Details
Key Features

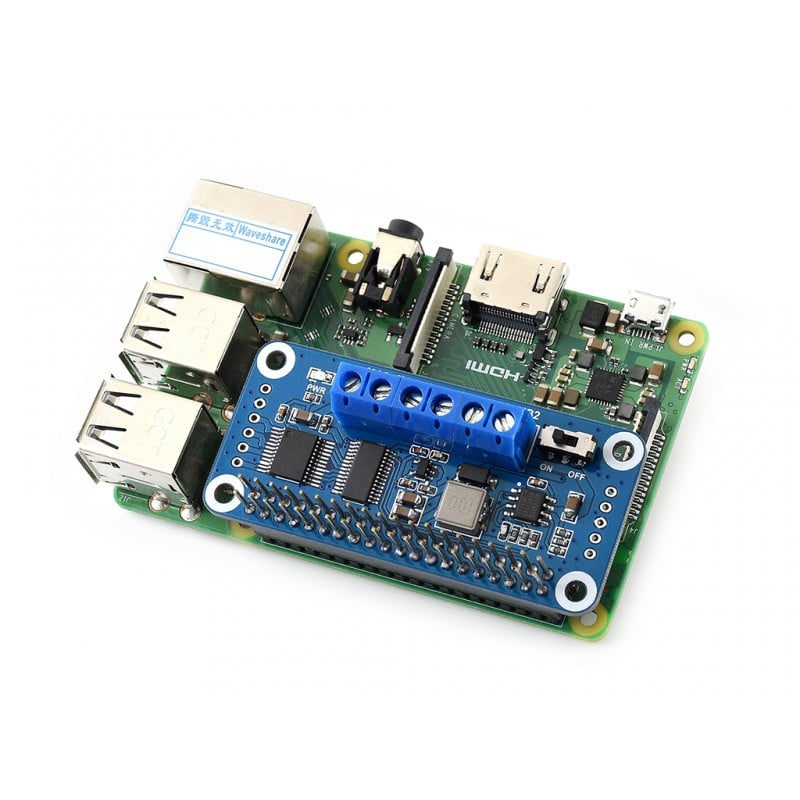

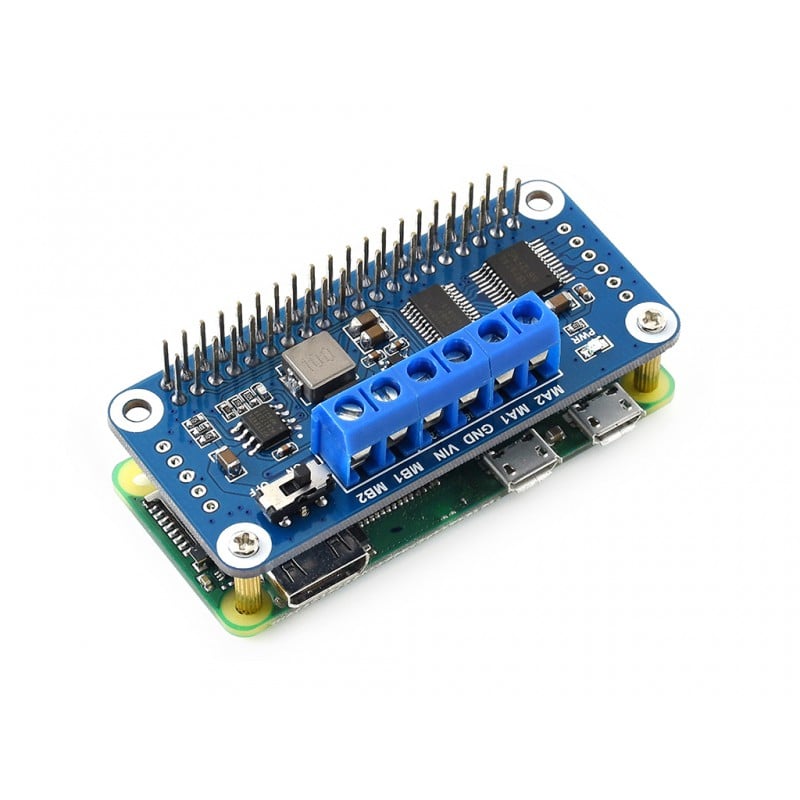

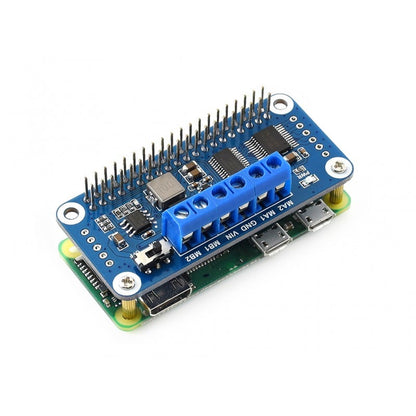

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

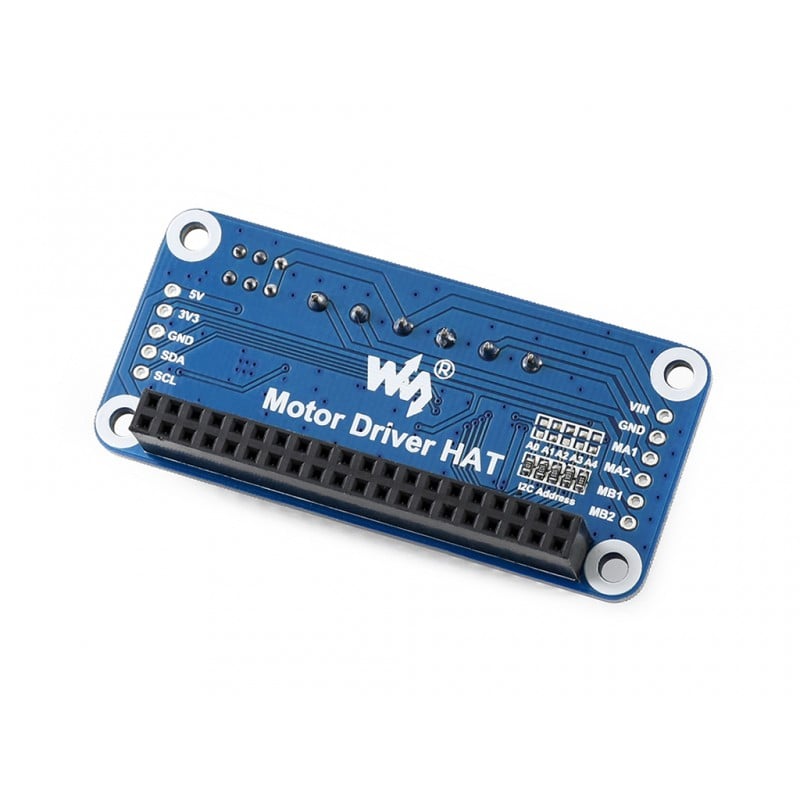

- I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules
- Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
- Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
- Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
- Reserved I2C control pins, allows to work with other control boards
- Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
Specification
- Power supply: 6V~12V (VIN terminal)
- Logic voltage: 3.3V
- PWM driver: PCA9685
- Control interface: I2C
- Motor driver: TB6612FNG

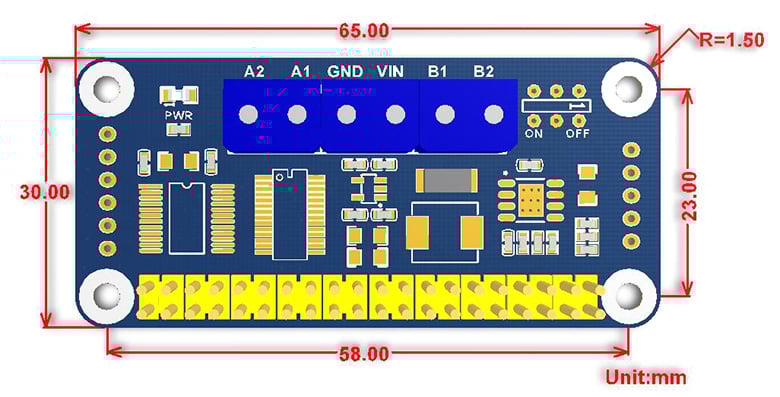

- Dimension: 65mm x 30mm
- Mounting hole size: 3.0mm
