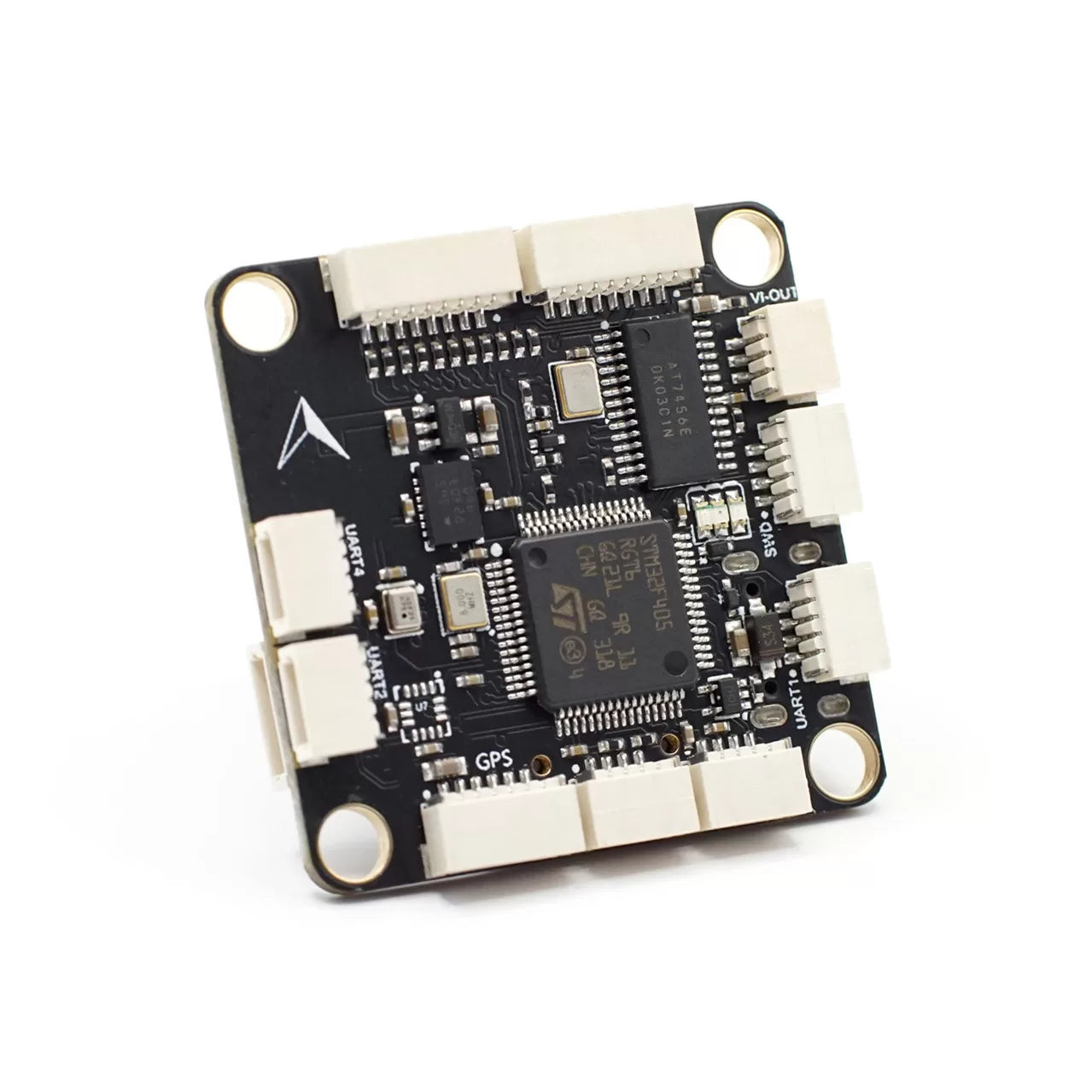

MicoAir405v2: The Brain Your Drone Deserves (But Probably Won't Appreciate)

Congratulations. You’ve scrolled past 400 identical-looking green boards to find this one. Is it life-changing? Well, it's a flight controller, not a lottery win, but it will certainly stop your quad from flying like a drunk brick. Based right here in the UK, we at Unmanned Tech know that you need hardware that can survive your 'ambitious' flying style.

This board suppors INAV and Ardupilot.

Why You Want It

Look, we know the drill. You want something that doesn't spontaneously combust the moment you plug in a 6S LiPo. The MicoAir405v2 is built for pilots who actually want to spend more time in the air than hunched over a repair stand smelling of burnt flux. It’s got an F405 chip that’s faster than your ability to react to a ghost branch. If you're still reading this, you're either a spec-nerd or you've already burnt out your last three boards. Welcome home.

Specs

• MCU: STM32F405RGT6 (Runs faster than your PC did in 1998)
• IMU: BMI270 (Silky smooth, unlike your rough-air landings)
• OSD: AT7456E (Standard, because we aren't savages)
• Input Voltage: 3S-6S (Please don't try 12S, we don't want to hear about it)
• BEC: 5V/2A (Enough juice to keep your RX from crying for help)
• Blackbox: 16MB Flash (To record exactly why you crashed)
• Mounting: 30.5x30.5mm (The gold standard for real drones)

In the Box

• 1x MicoAir405v2 Flight Controller
• 4x Anti-vibration gummies (Because your motors are noisier than a toddler)
• 1x Wiring Harness (For those who find soldering too intimate)

Compatibility

Compatible with Betaflight, INAV, and most frames that aren't held together by literal string. Pairs beautifully with any 4-in-1 ESC that hasn't already given up on life.

Highlights

• Durability: Survives most 'rapid unscheduled disassemblies'.
• Plug & Play: Assuming you actually know how to use a soldering iron and don't bridge 5V to Ground like a total amateur.

Notes

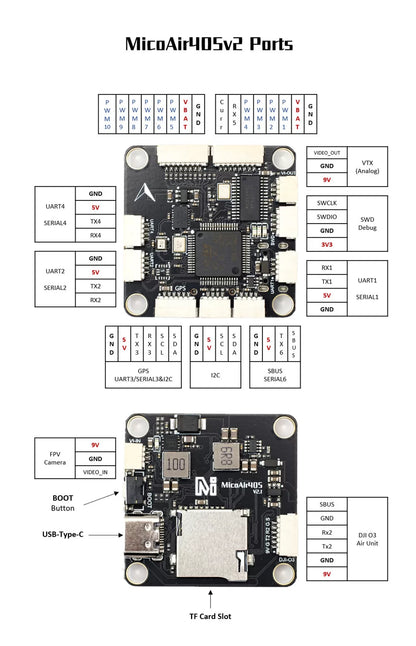

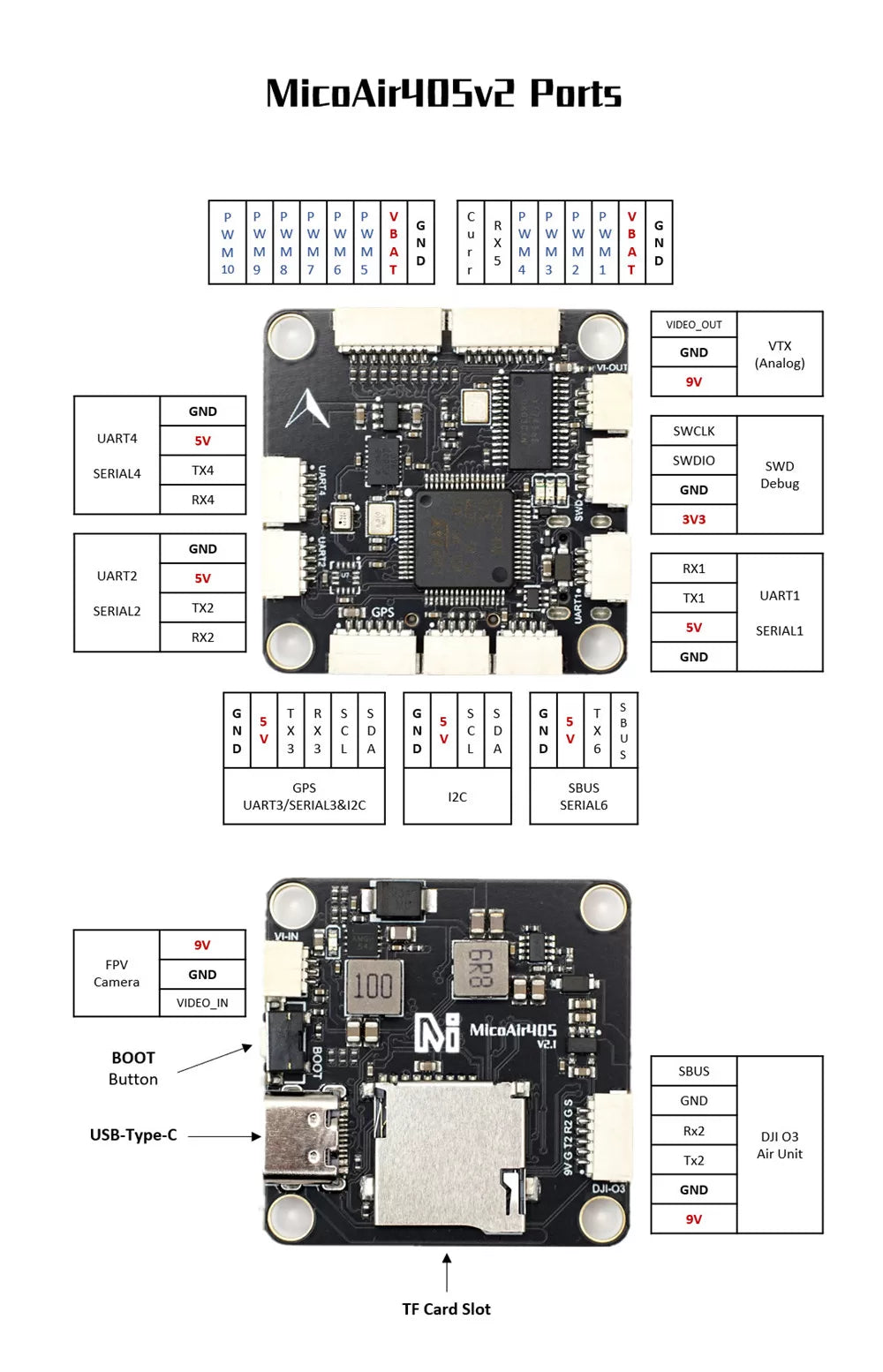

Ensure you check your pinouts twice. Or don't, and buy another one from us tomorrow. We won't judge, we'll just take your money.

Disclaimer

Warranty does not cover direct impacts with concrete, oak trees, or your neighbor’s shed. Use common sense, if you have any left.

Still Here?

You’re either a web crawler or someone who really loves reading product descriptions. Either way, stop overthinking it. This MicoAir405v2 is the F405 FC upgrade your FPV drone build needs. Add it to your basket before the next guy does. #FPV #DroneLife #MicoAir #Betaflight #Maker
