Product Details

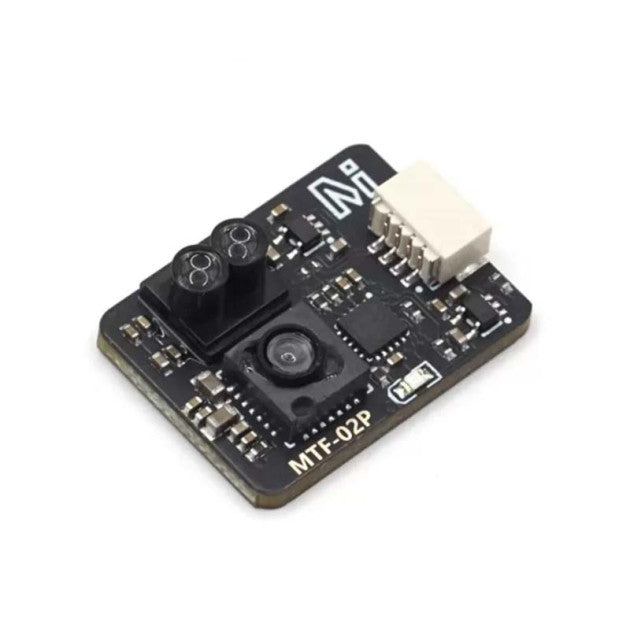

MicoAir MTF-02P Optical Flow & Lidar Sensor
If you like flying indoors or in concrete bunkers where GPS goes to die, you need this. The MTF-02P is basically a tiny camera combined with a laser rangefinder that screams "I AM HERE" to your flight controller so it doesn't drift aimlessly into a wall.

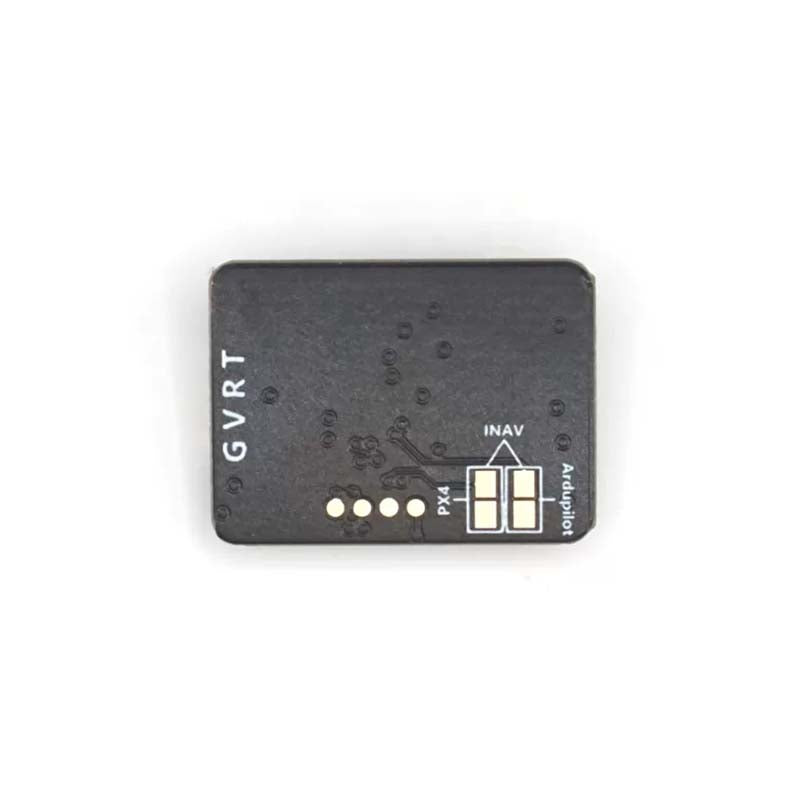

It’s a solid solution for altitude hold and position stability in GPS-denied environments. It speaks Mavlink (ArduPilot/PX4) and MSP (iNav), but fair warning: switching protocols involves bridging solder pads. If you aren't comfortable with a soldering iron, this might not be for you.
A couple of ground rules: It needs light (at least 60 Lux). If you try to position hold in a pitch-black room, you will crash. It also needs to be at least 8cm off the ground to work properly.
Key Stats:

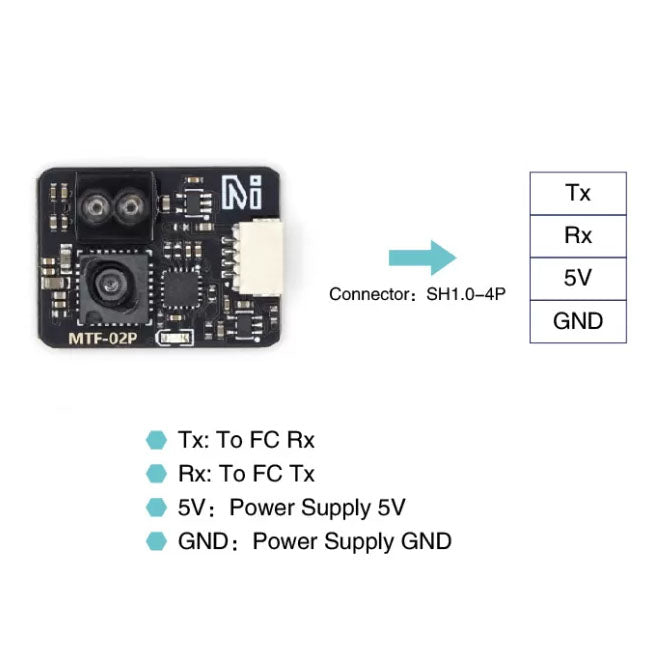

- Compatibility: iNav, ArduPilot, PX4 (UART).
- Tech: Optical Flow (for velocity) + Laser Rangefinder/Lidar (for altitude).
- Range: Lidar works from 2cm up to 6m.

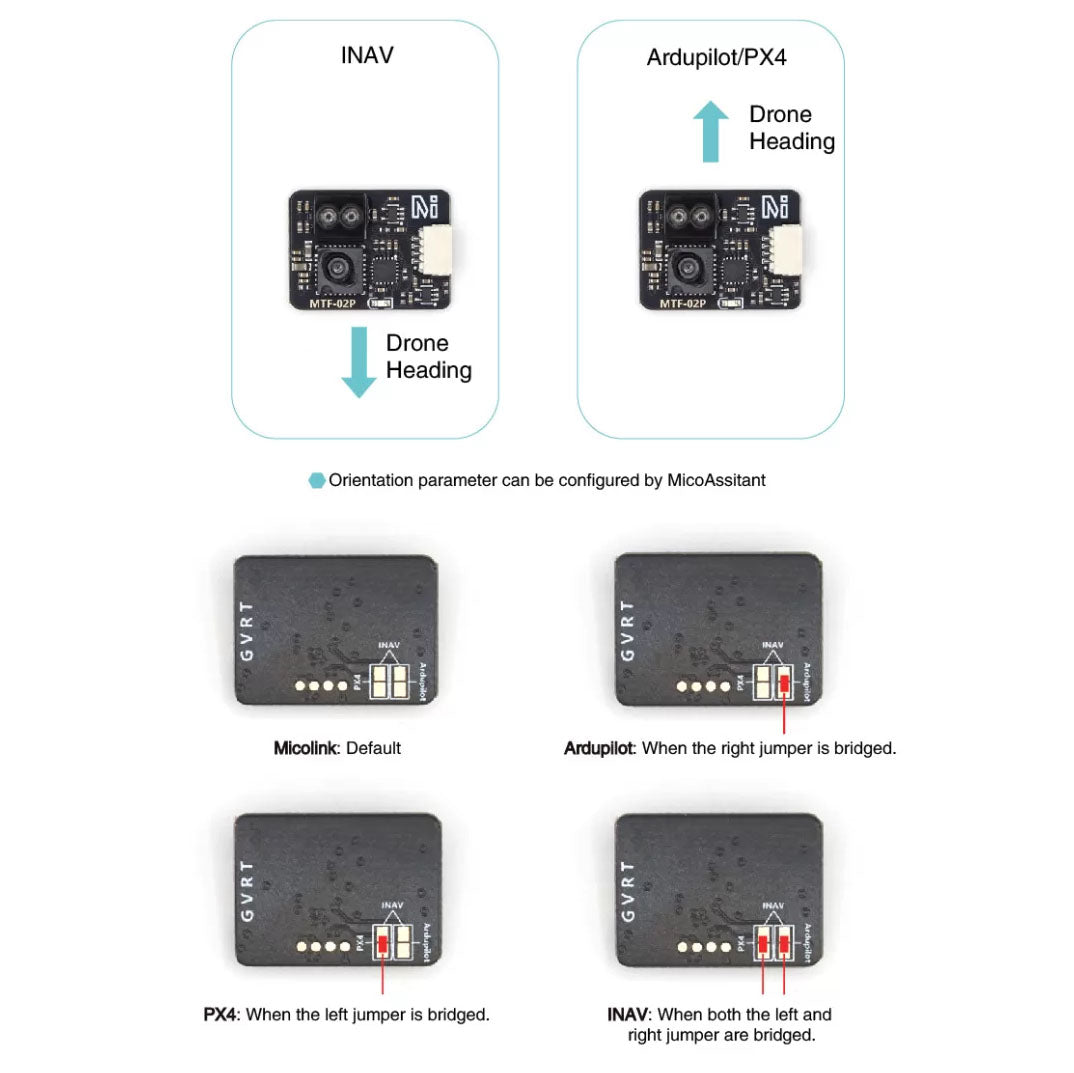

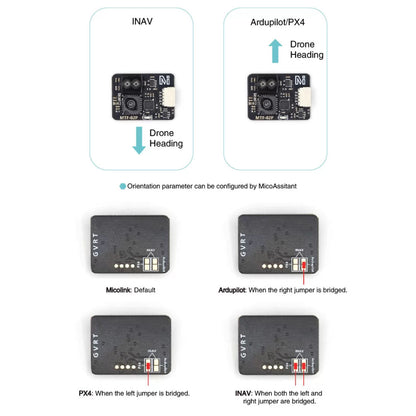

- Protocols: Micolink, Mavlink, MSP (Configurable via solder bridge).
- Weight: 1.5g. You won't even notice it's there.
Technical Specifications:
| Input Voltage | 4-5V |
| Power Consumption | 0.5W |
| Lidar Range | 0.02 - 6m (@ 90% reflectivity) |
| Optical Flow FOV | 42° |
| Lidar FOV | 2° |
| Output Rate | 50Hz |

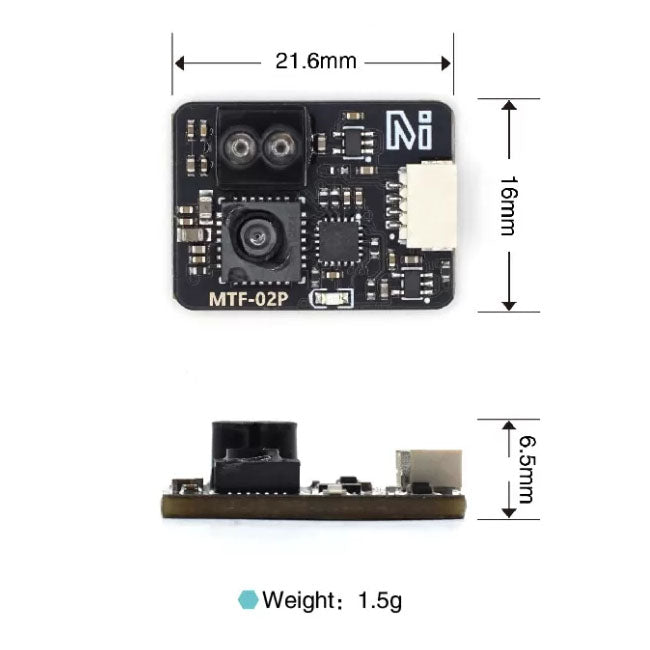

| Dimensions | 21.6 x 16 x 6.5mm |

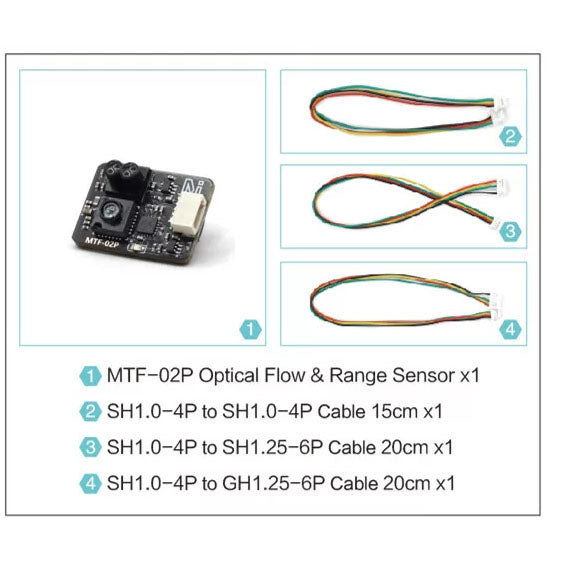

Package Includes:
- 1x MTF-02P Sensor Module
- 1x Cable Set (Because we aren't monsters)
