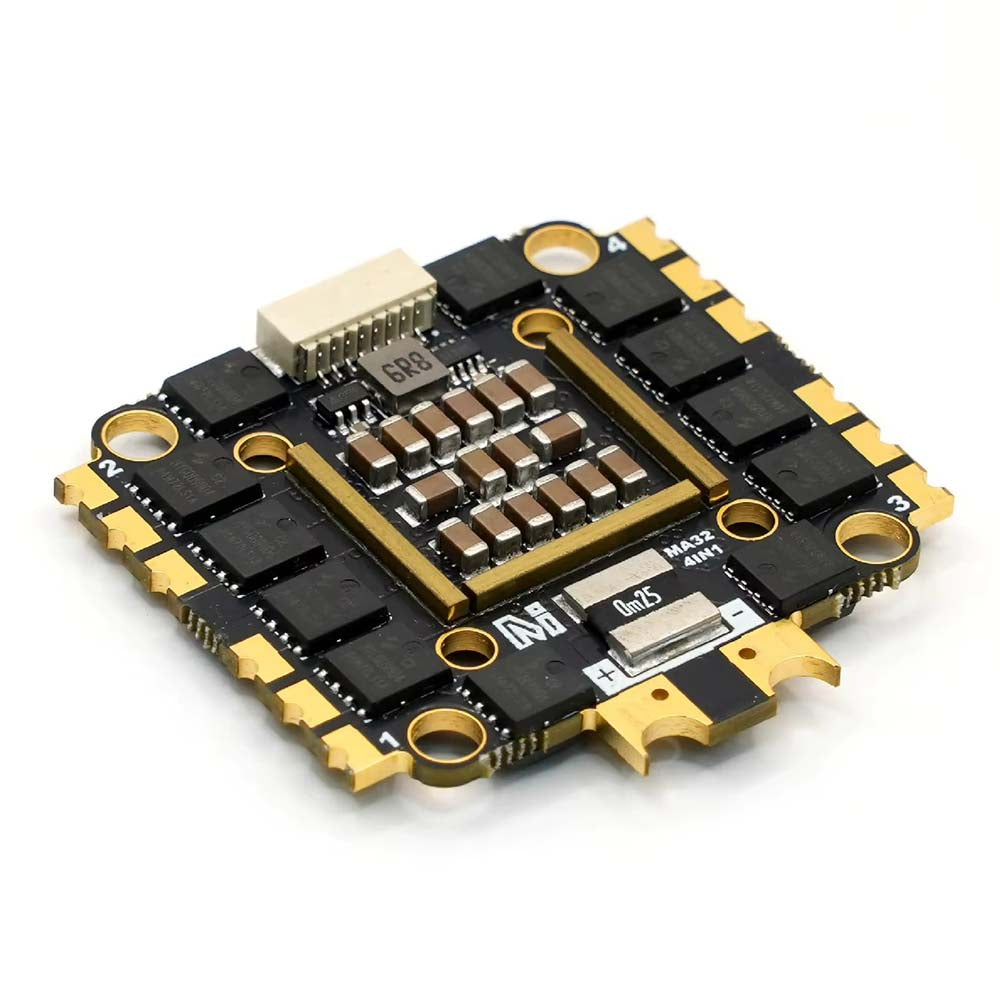

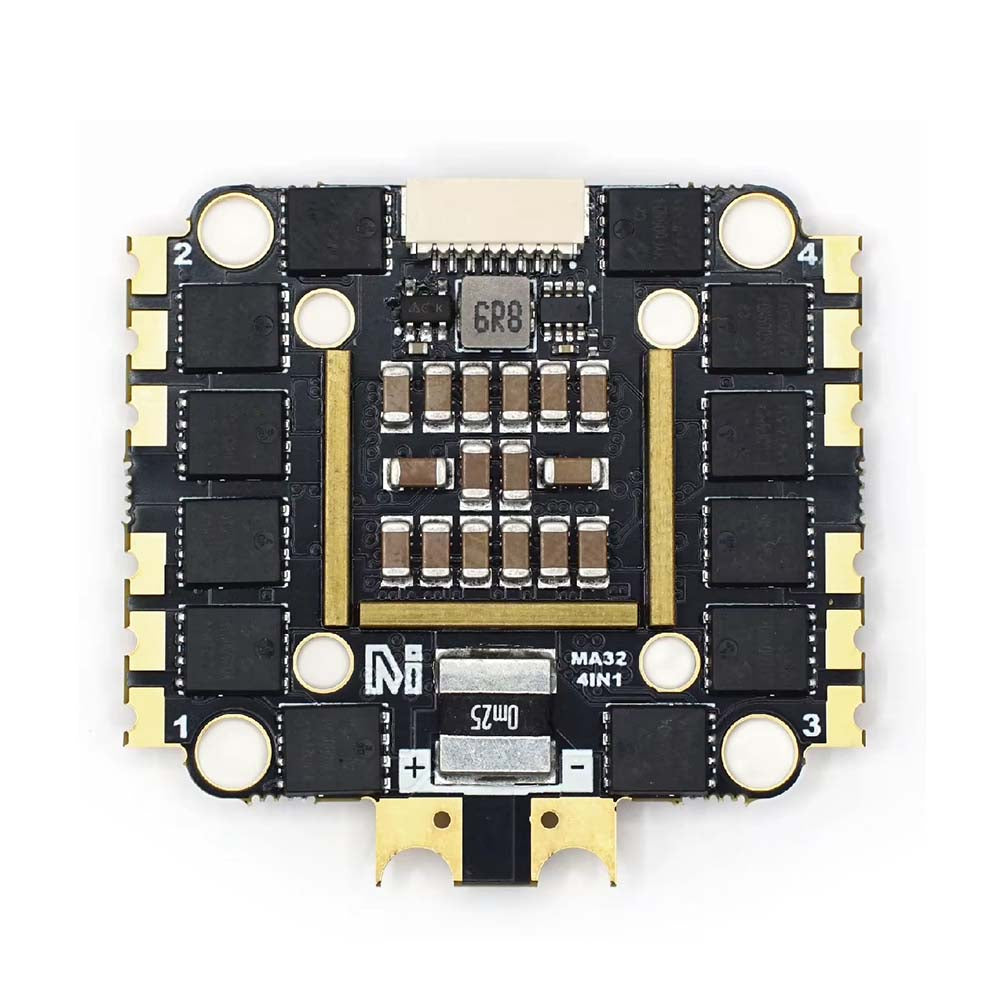

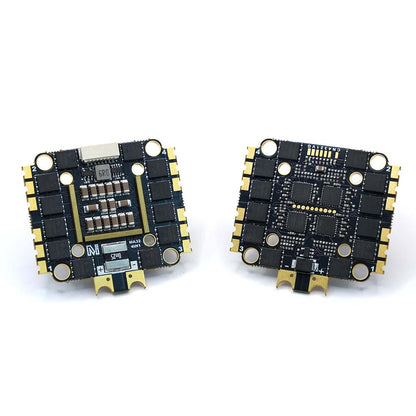

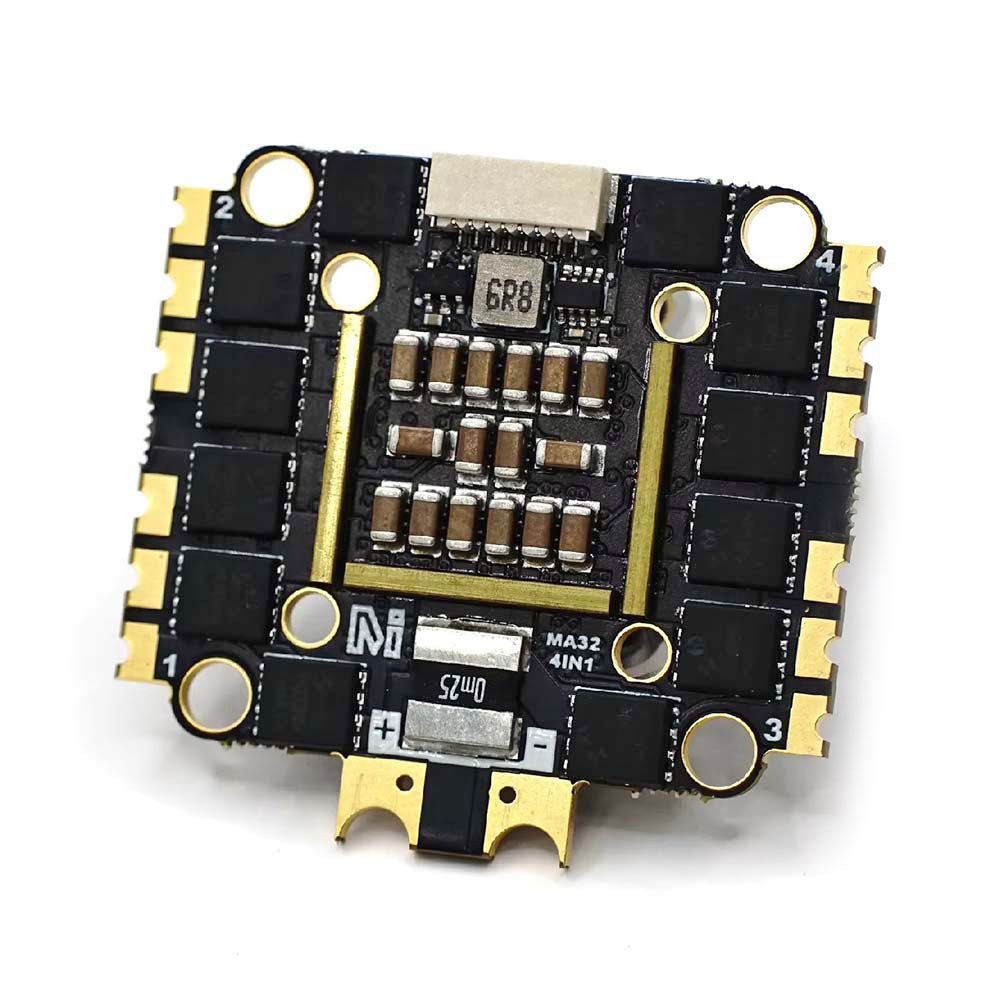

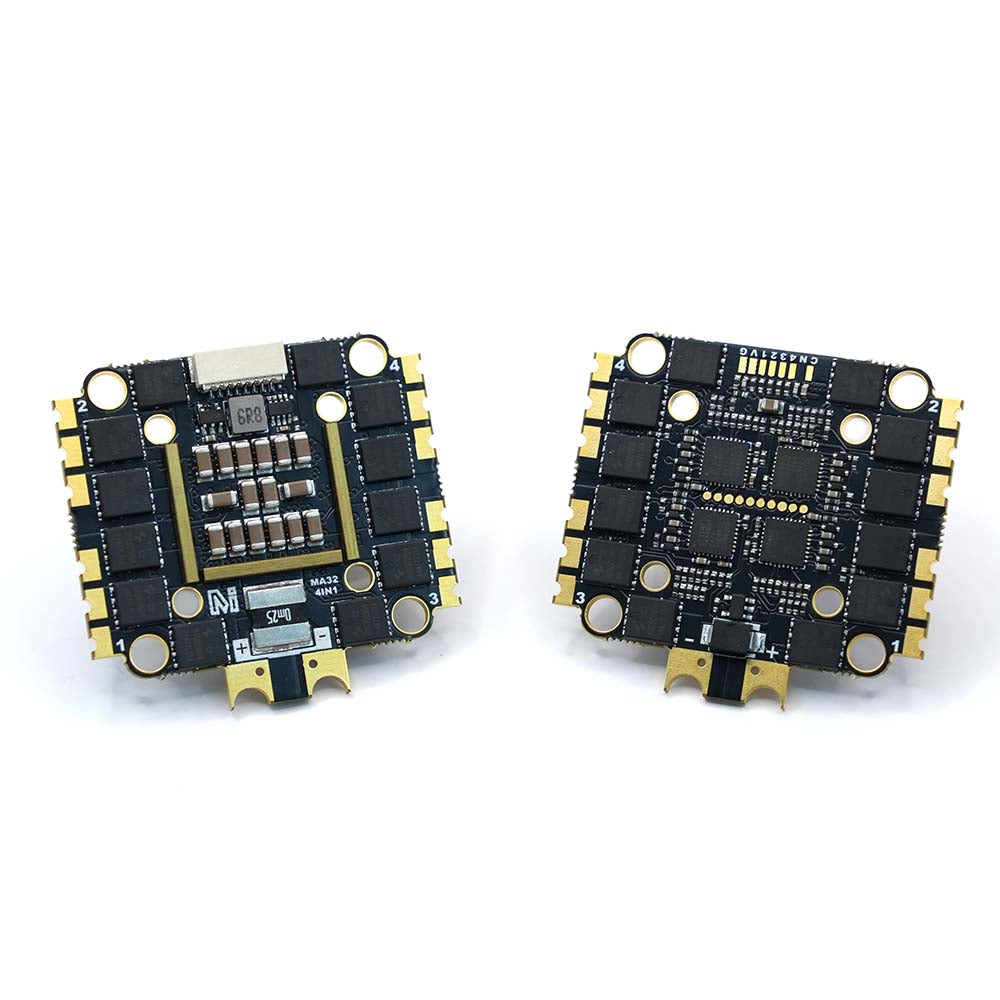

MicoAir 55A AM32 ESC

So, you finally decided to move on from those budget ESCs that smell like burnt ozone after a light punch-out? Welcome to the AM32 club. The MicoAir 55A is here to prove that you can have high-performance 32-bit processing without selling your kidney on the FPV black market. It runs AM32 firmware, which is basically the 'cool indie band' of the ESC world right now—better performance, more customization, and it makes you look like you actually know how to tune a quad.

Why You Want It

Let’s be honest: you’re probably going to send this into a concrete pillar at 80mph. When you do, you’ll want those 55 Amps of continuous current handling to at least try and power through the shame. With its dual-mounting options, this ESC is more flexible than a yoga instructor on a juice cleanse, fitting both your 20x20 and 30.5x30.5 builds. It’s the 'one size fits most' solution that actually works for once.

Specs

• Firmware: AM32_F4A_4IN1_F421_2.17
• PWM Freq: 48KHz
• ESC Protocol: PWM/DShot300/600
• Power Input: 2-6S LiPo
• Continuous Current: 55A * 4
• MOSFET RDS(on): 0.75mR
• Current Sensor Output: 12.75mV/A

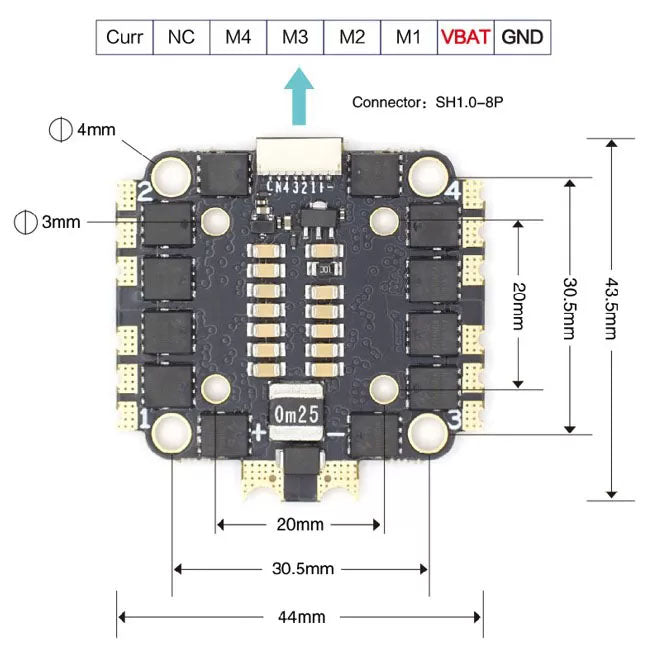

• Mounting: 20*20mm(Φ3mm) / 30.5*30.5mm(Φ4mm)

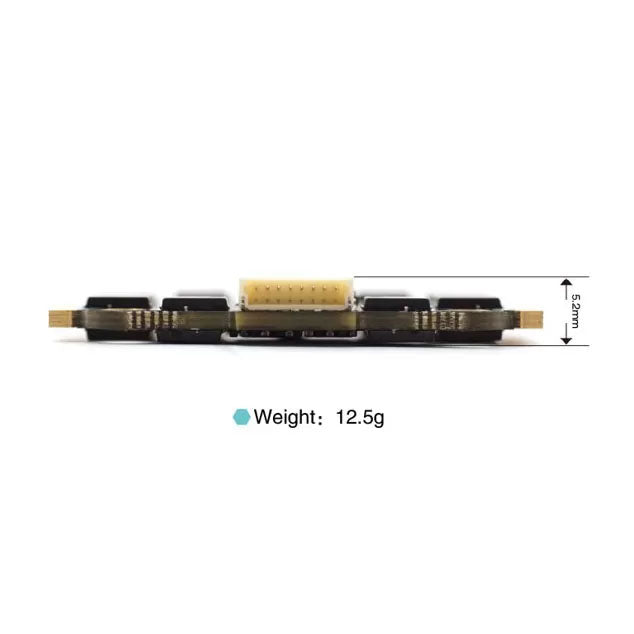

• Dimension: 44 * 43.5 * 5.2 mm
• Weight: 14g


In the Box

• 1x MicoAir 55A ESC (The main event)
• 1x Softmount Kit (To soak up your bad tuning vibes)
• 1x XT60 with cable (The standard-issue lifeline)
• 1x Interconnect cable (The bit you'll lose in the grass)

Compatibility

Works with any flight controller that speaks DShot and has a soul. Ideal for 5-inch freestyle rigs and racing drones that need to survive a UK winter session.

Highlights

• AM32 Firmware: Pre-flashed and ready to make your motors sing.
• Dual Mounting: Fits your tiny frame and your big frame. Choices are good.
• Heavy Duty: 55A rating means it won't quit just because you tried a triple matty flip.

Notes

Ensure you use the provided capacitor if you value your electronics. Solder properly; a cold joint is just a crash waiting to happen. Unmanned Tech UK is not responsible for your 'expert' soldering skills.

Disclaimer

Electricity is dangerous. Don't lick the pads. Use a smoke stopper. If you burn your house down, we're out of the loop.

Still Here?

Stop scrolling and start soldering. This MicoAir 55A AM32 ESC is the upgrade your FPV drone racing rig deserves. Grab yours from Unmanned Tech UK before the robots take over. #FPVLife #AM32 #MicoAir #DroneRacing #UKFPV
