SVPDB-8S Adjustable Servo Power Distribution Board (5V-8.2V, 4A Continuous)
Tired of your servos fainting mid-flight? The SVPDB-8S Servo Power Distribution Board exists to pump clean, adjustable voltage directly to your servos without relying on an overworked flight controller. Designed for large-scale RC aircraft and high-power servo setups, this board offers a reliable power bridge for demanding builds.
Whether your servos sip 5V or chug down 8.2V, this board's got your back—with selectable output settings at 5V, 6V, 7.2V, and 8.2V. With 4A continuous current and up to 7A bursts, your electronics can finally breathe easy.
No reverse polarity protection though, so maybe don't wire it blindfolded.
Key Features:
- Wide Input Range : 5.5V to 36V—great for varied RC setups

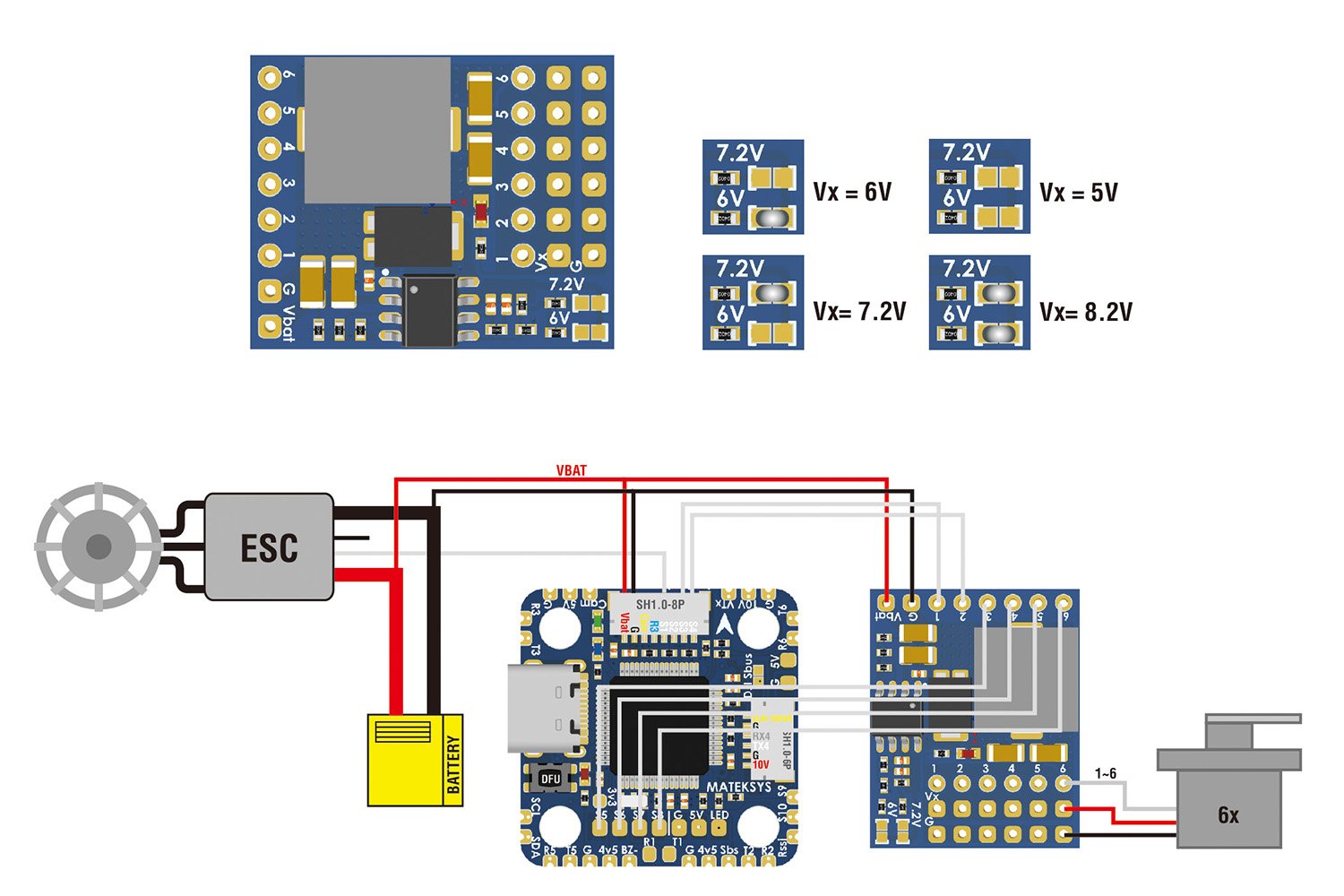

- Adjustable Servo Voltage : Choose between 5V, 6V, 7.2V, or 8.2V (default: 5V)
- High Current Handling : 4A continuous, 7A burst for beefy servos
- Efficient Power Delivery : 100% duty cycle when input is below voltage setting
- Built-in Safety : Short-circuit tolerant (up to 3 seconds)

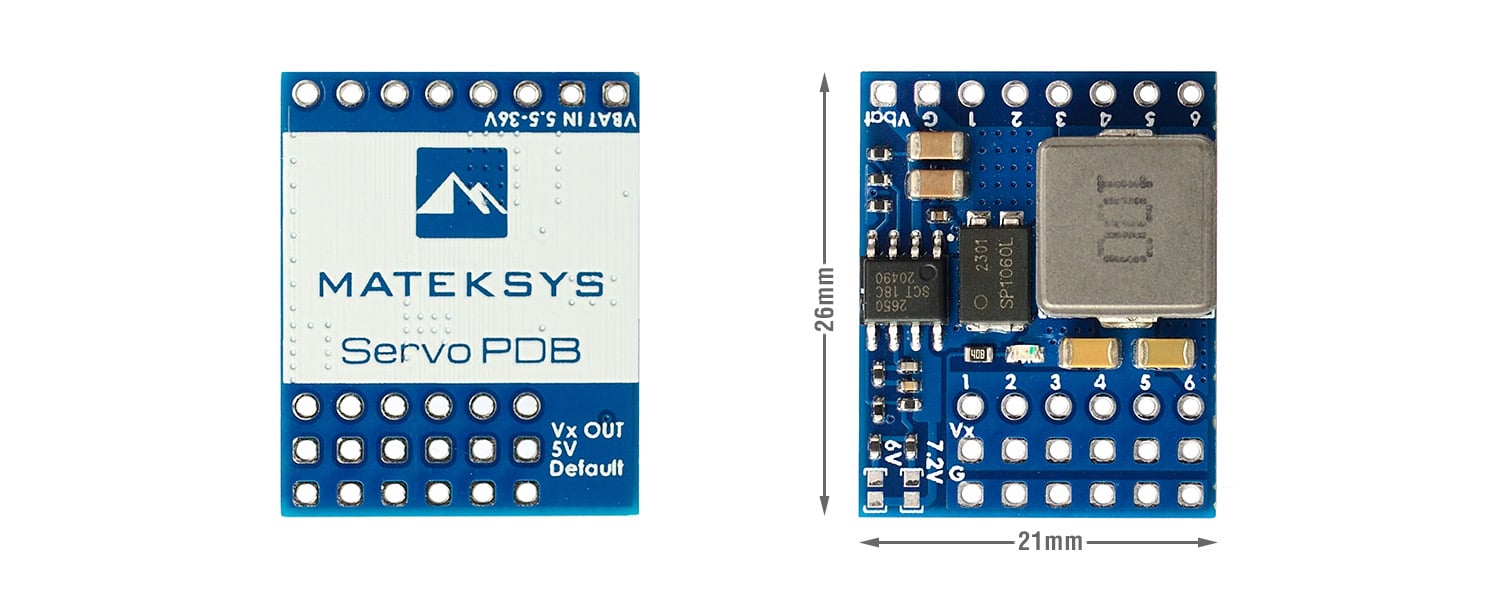

- Compact & Lightweight : 26 x 21 x 5mm, only 4g
- Pin Spacing : Standard 2.54mm Dupont compatible
Ideal For:

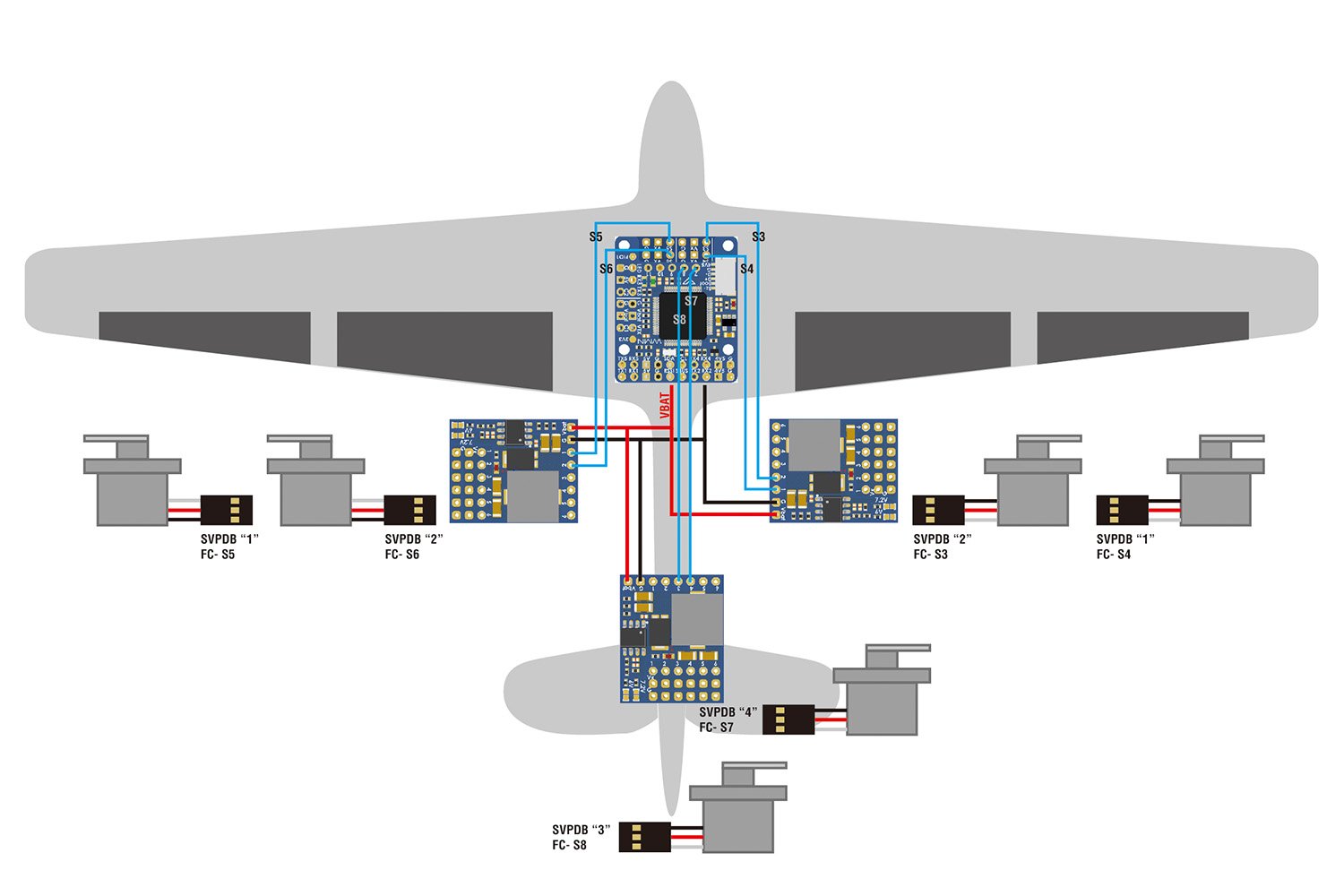

- RC planes and UAVs without dedicated servo BECs
- Power-hungry servo arrays
- Minimizing voltage sag across long servo wire runs
In the Box:
- 1x SVPDB-8S Adjustable Servo Power Distribution Board
- Pre-soldered Dupont 2.54mm pin headers
Disclaimer : Included accessories may vary depending on supply. We don't make the rules—our suppliers do.
