Product Details

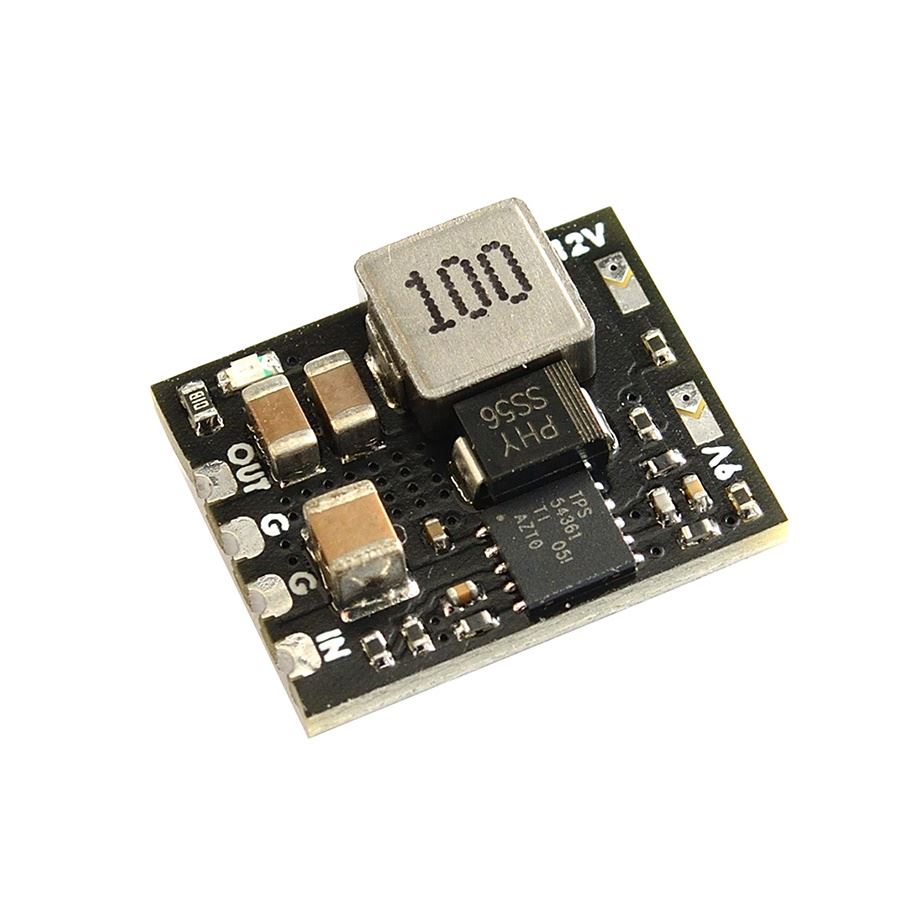

The Matek Micro BEC 6-60V is a syncronous step-down converter with selectable 5V, 9V or 12V output (default 5V). The Matek Micro BEC is rated for 1.3A-2.8A continuous current depending on input/output voltage.
Specifications
- Wide 6V to 60V Operating input range
- Start up voltage >=6.7V
- VOut 5V, 9V or 12V ADJ. Default is 5V
- Duty Cycle 100%
- Cont current: Input voltage and heat depending
- Stand current: <5mA
- OCP Protection and Hiccup
- Thermal shutdown
- Output short-circuit tolerant
- No protection for reversed input polarity

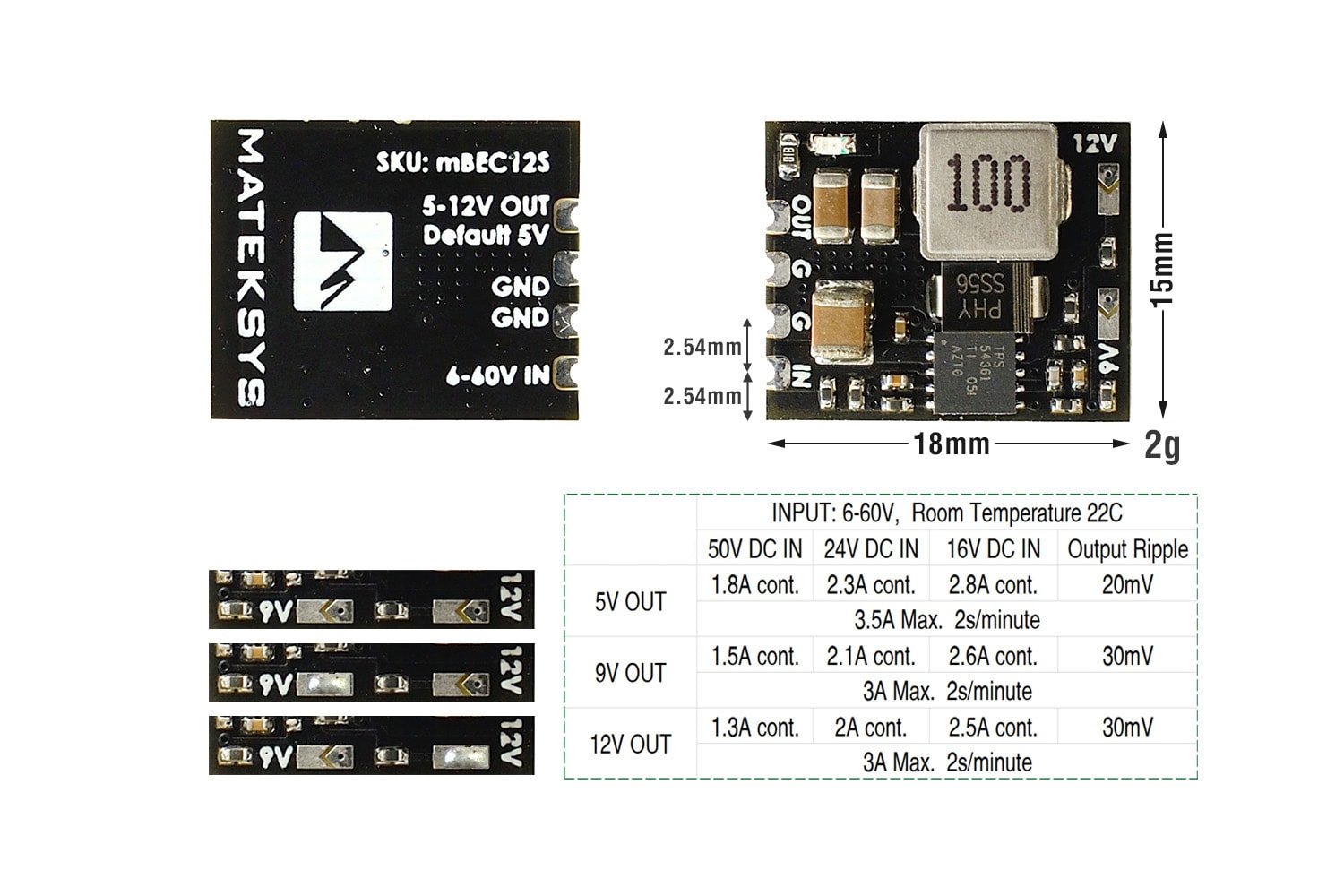

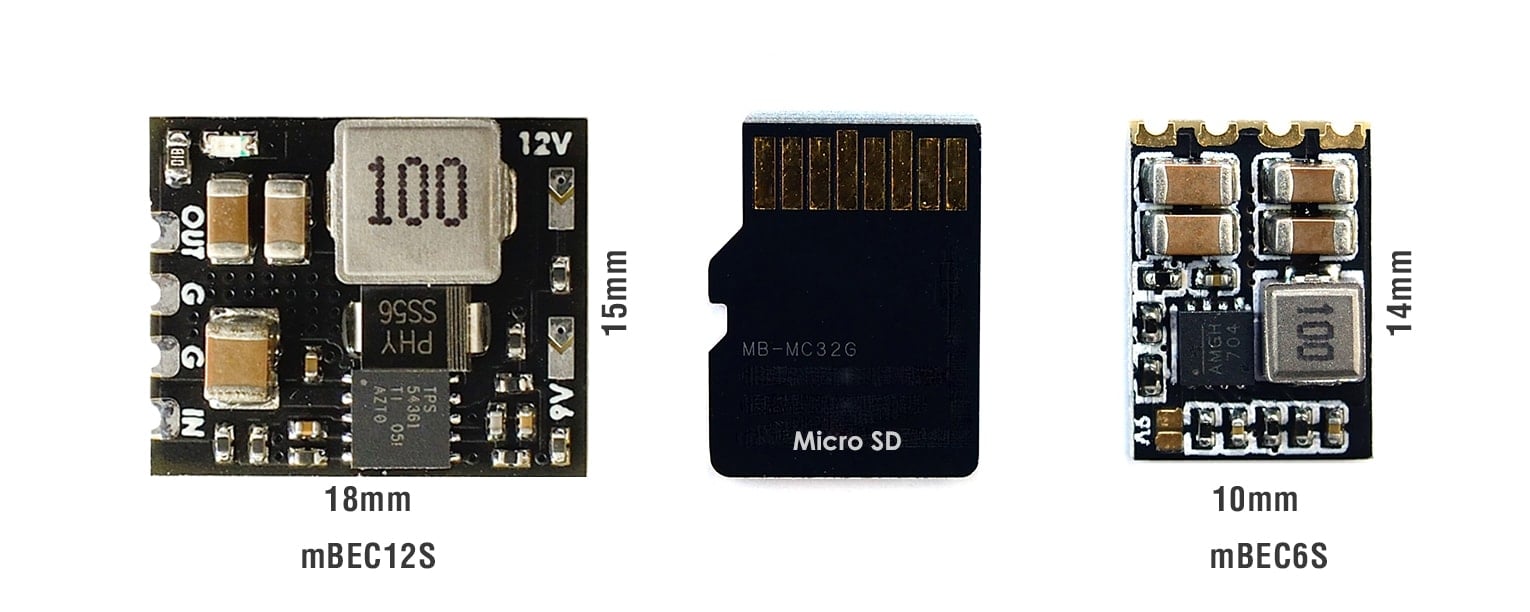

- Size and Weight: 18x15x4.5mm 2g
Included
- 1x Bec Module
