Product Details

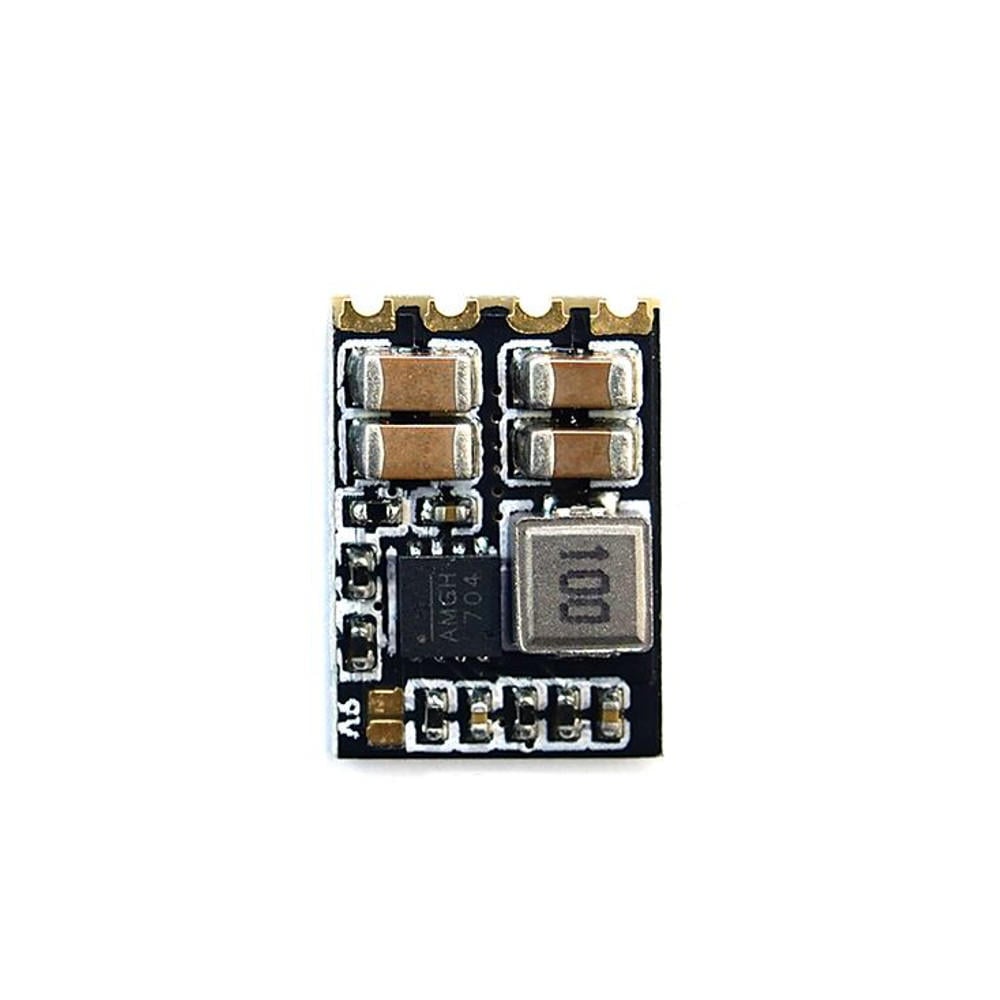

This is an adjustable BEC that can accept 6-30V output and convert it to a constant 5V, or 9V (default is 5V) output. Ideal for powering things like your ESC, receivers, DJI Air unit or VTX. Rated at 1.5A this BEC will handle most things you need on your quadcopter.
Features
-
High Efficiency Synchronous Step-down regulator
-
Wide 6V to 30V Operating Input Range
-
OCP Protection and Hiccup
-
Thermal Shutdown
-
Output Short-circuit tolerant (5 seconds/minute)
Specifications
- Brand name: Matek Systems
- Item name: Micro BEC
- Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)

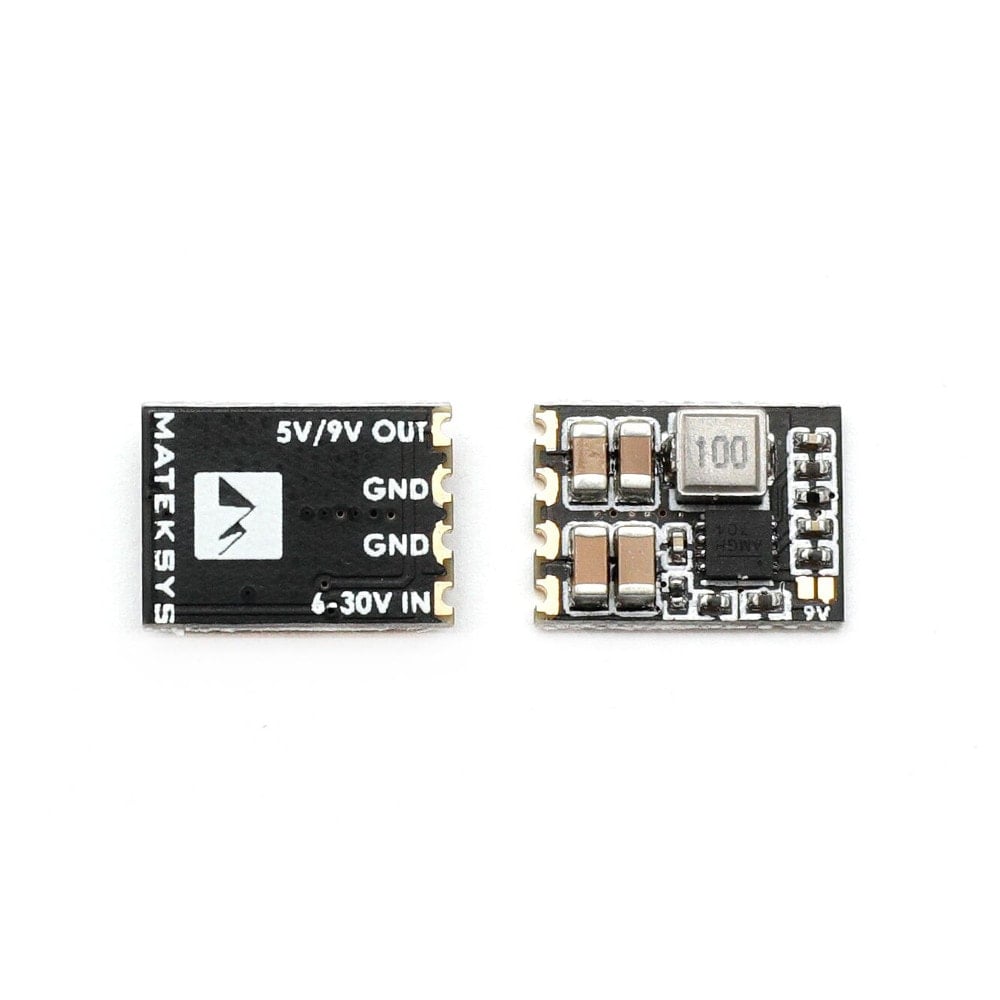

- VOut 5V or 9V Adj. Default is 5V.
- VOut Load Regulation: 2%
- Standby current: <5mA
- Maximum Duty Cycle: 95%
- Pins distance: 2.54mm

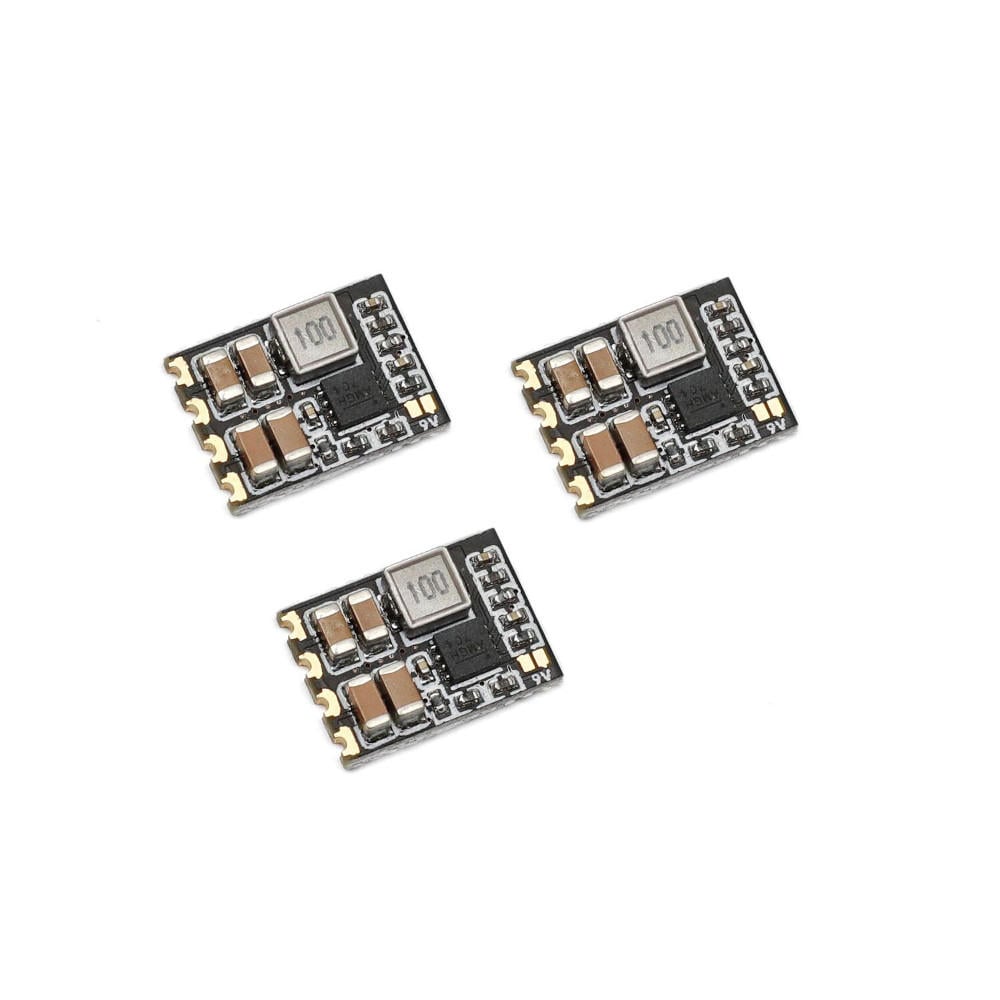

- Quantity: 3Pcs

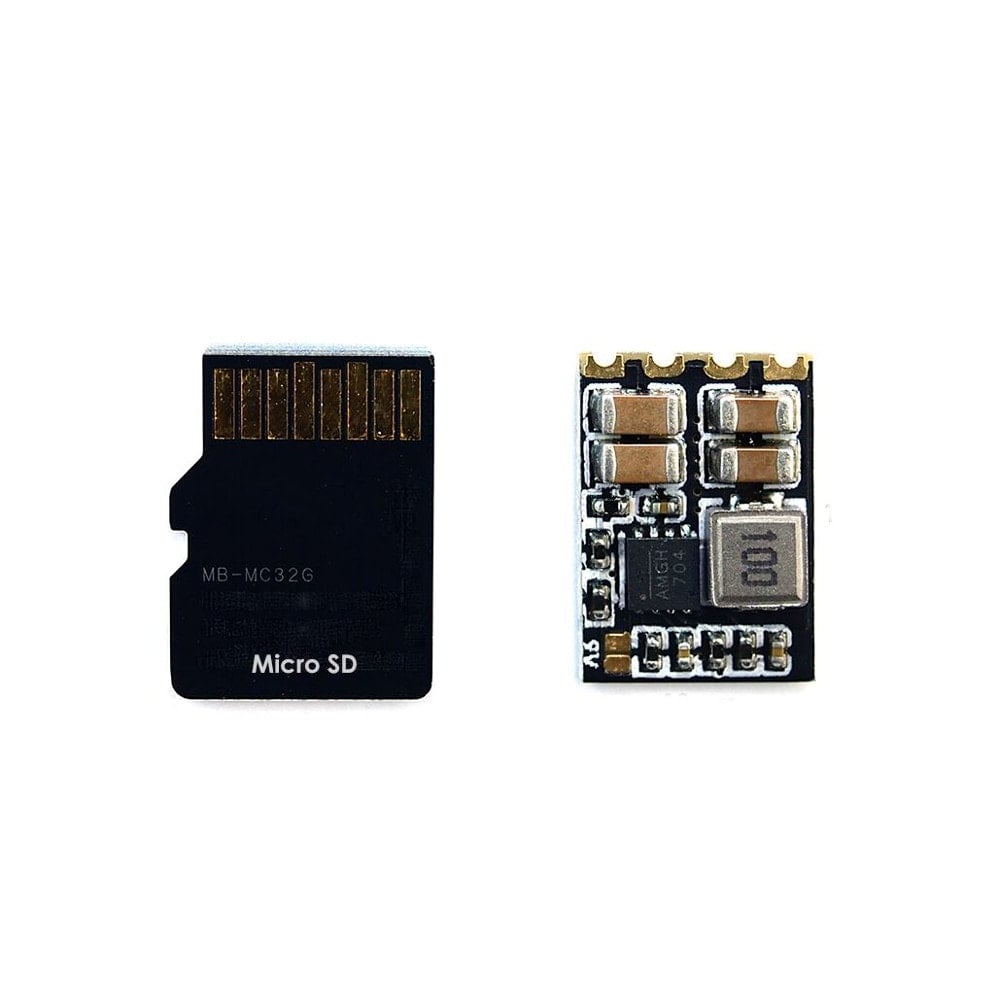

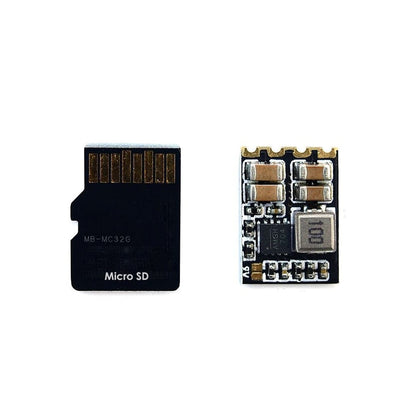

- Size: 10x14x3mm
- Weight: 1g
Included
- 3x Bec Module
