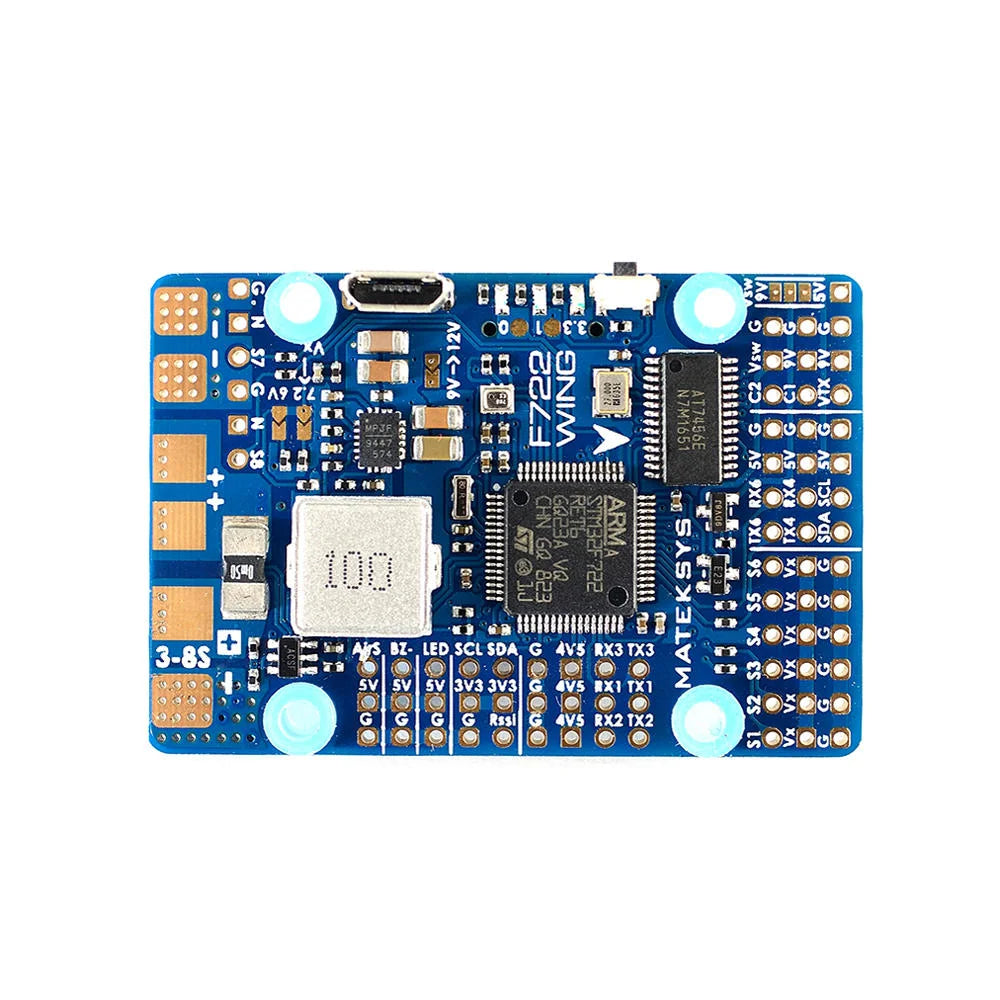

The Matek F722 Wing takes everything you loved about the F405, but beefs up the processor to give you extra processing power to crank up the PID loop speed. The F722 packs in all the sensors you need for fixed wing flight as well as offering high spec BECs to power everything on your drone.

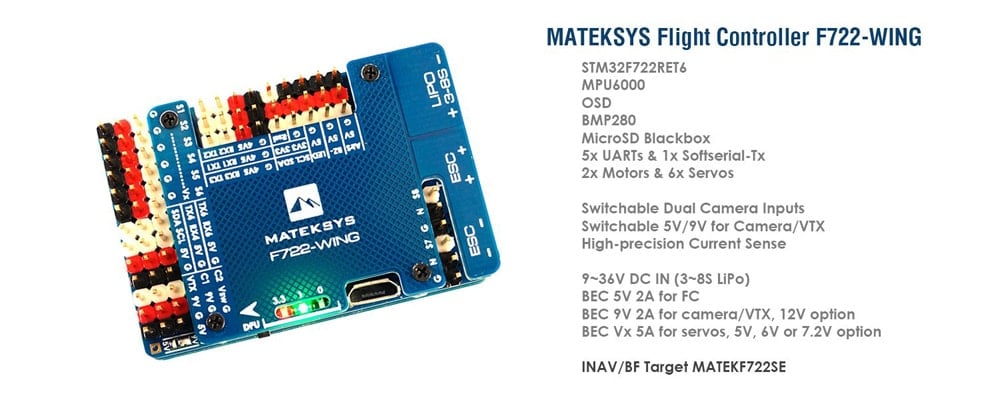

Specifications
- MCU: 216MHz STM32F722RET6
- IMU: MPU6000 (SPI)
- Baro: BMP280 (I2C)
- OSD: AT7456E (SPI)
- Blackbox: MicroSD card slot (SPI)
- 5x Uarts (1,2,3,4,6) with built-in inversion
- 1x Softserial-Tx
- 2x Motors, 6x Servos outputs
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, AirSpeed)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- Switchable Dual Camera Inputs
- Switchable 5V/9V for Camera/VTX
- High-precision Current Sense
- TR/SA VTX control: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Analog Airspeed sensor: Yes
- Digital Airspeed sensor: Yes
Firmware Support
- INAV Flight/BetaFlight
- Target: MATEKF722SE
- Arduplane support comming soon
Kit Contents
- 1x Matek F722 Wing Flight Controller
- 3x header Pin rows (no soldered on)

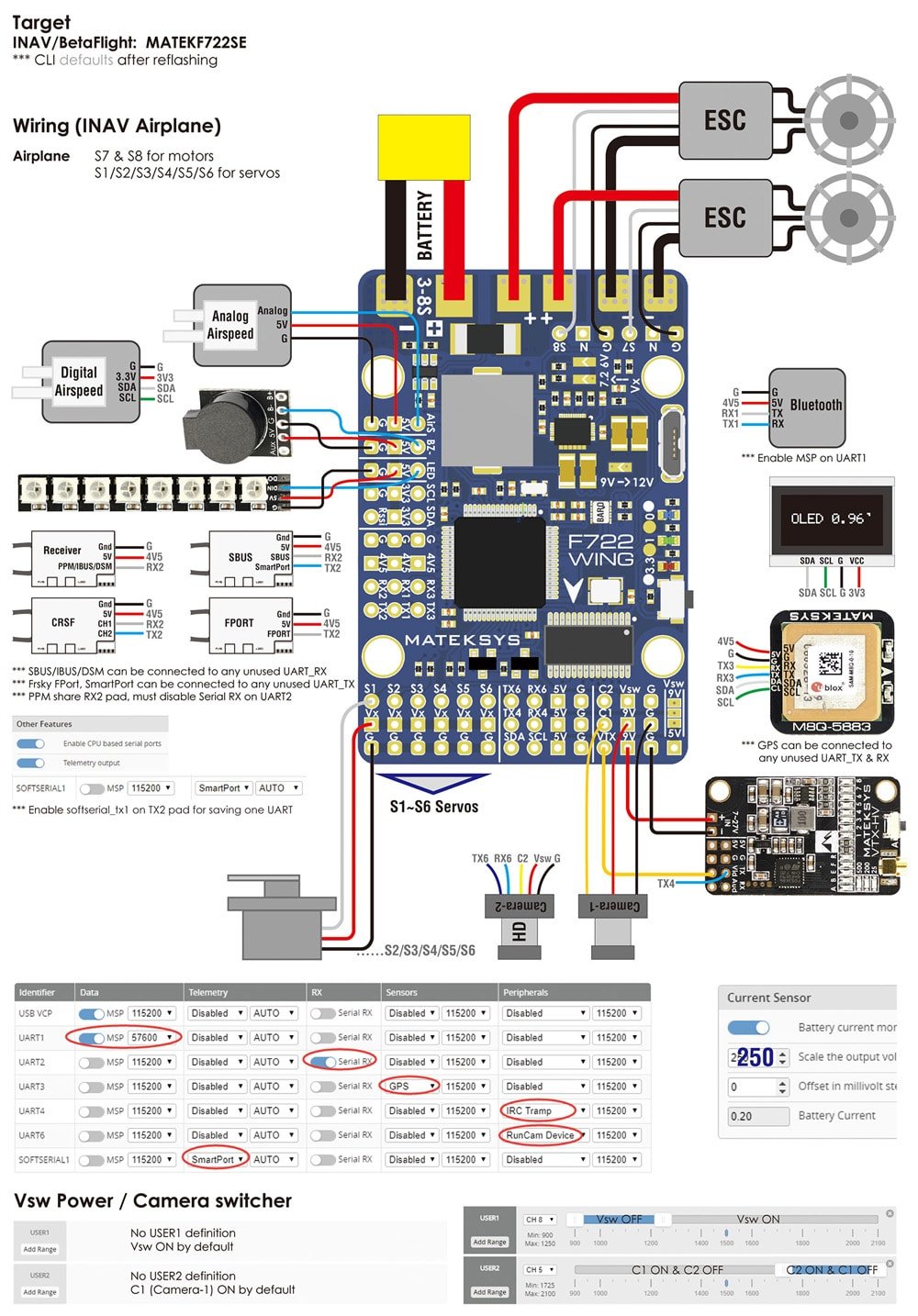

Manual
F722-WING VS F405/F411-WING
| F722-WING | F405-WING | F411-WING | |
| MCU |
216MHz
STM32F722
|
168MHz
STM32F405
|
100MHz
STM32F411
|
| IMU | MP6000 | MP6000 | MP6000 |
| BARO | BMP280 | BMP280 | BMP280 |
| OSD | AT7456E | AT7456E | AT7456E |
| BlackBox | MicroSD | MicroSD | / |
| Firmware |
INAV
BetaFlight
|
INAV
ArduPilot
|
INAV
BetaFlight
|
| Dual Camera In | Yes | / | / |
| 5V/9V Switcher | Yes | / | / |
|
Current
Sense
|
High precision
132A
|
104A | 78A |
| Max.Voltage | 36V(8S) | 30V(6S) | 30V(6S) |
| Motors | 2 | 2 | 2 |
| Servos | 6 | 7 | 5 |
| UART | 5 | 6 | 2 |
| Softserial | 1 | 1 | 1 |
| Uart Inversion | All | RX2 | RX1 |
| 5V for FC | 2A | 2A | 2A |
| 9V for VTX | 2A | 2A | / |
| Vx for Servos | 5A | 5A | 3A |
| LDO 3.3V | 200mA | 500mA | 200mA |
| Size | 54x36 | 56x36 | 41x28 |
| Weight | 25g | 25g | 12g |

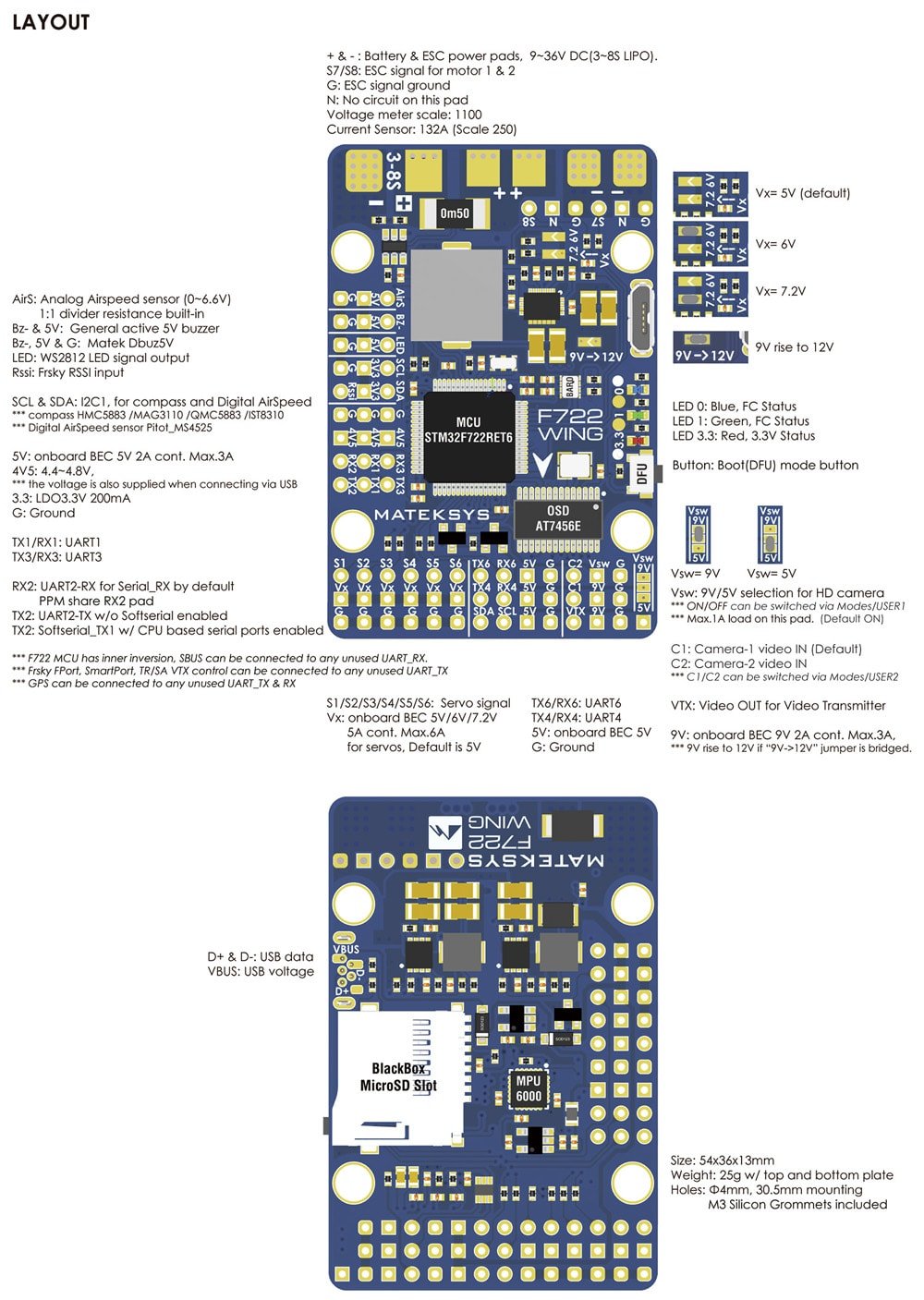

PDB
- Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
- 2x ESC power pads
- Battery Voltage Sensor: 1:10 (Scale 1100)
- Current Senor: 132A, 3.3V ADC, Scale 250
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps, Max.3A
- 12V option with Jumper pad
BEC Vx output
- Designed for Servos

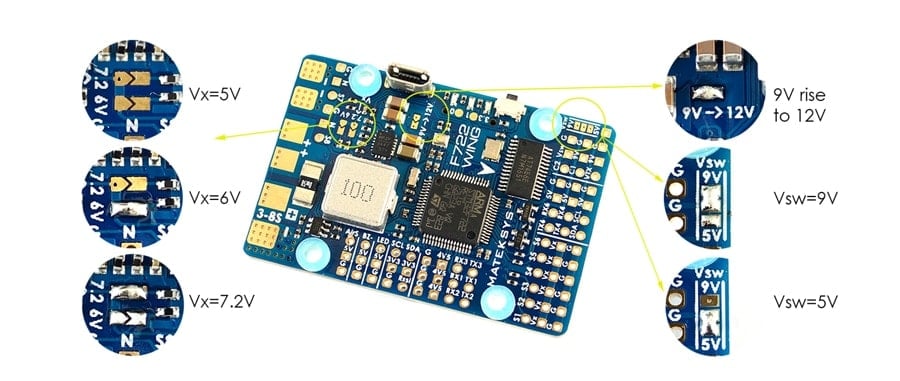

- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 5 Amps, Max.6A
- Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output
- Designed for Baro / Compass module and Spektrum RX
- Linear Regulator
- Continuous current: 200mA

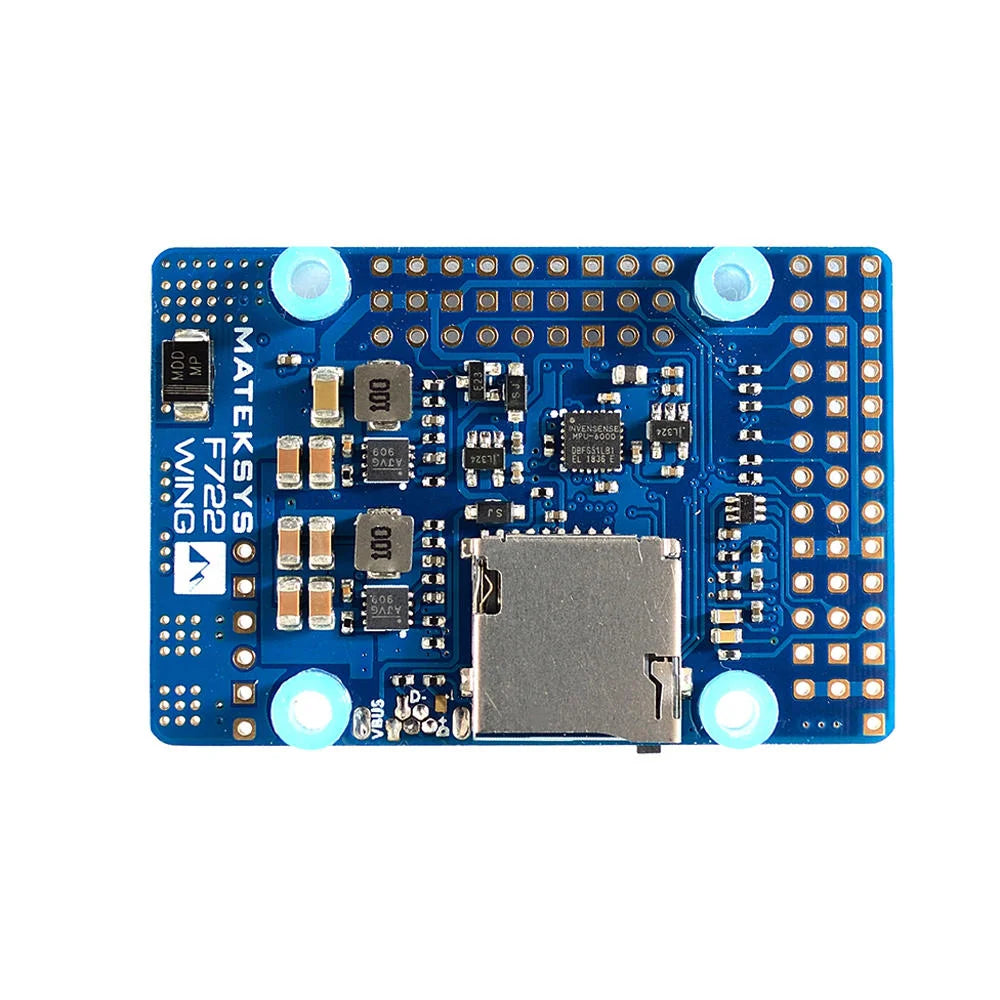

Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

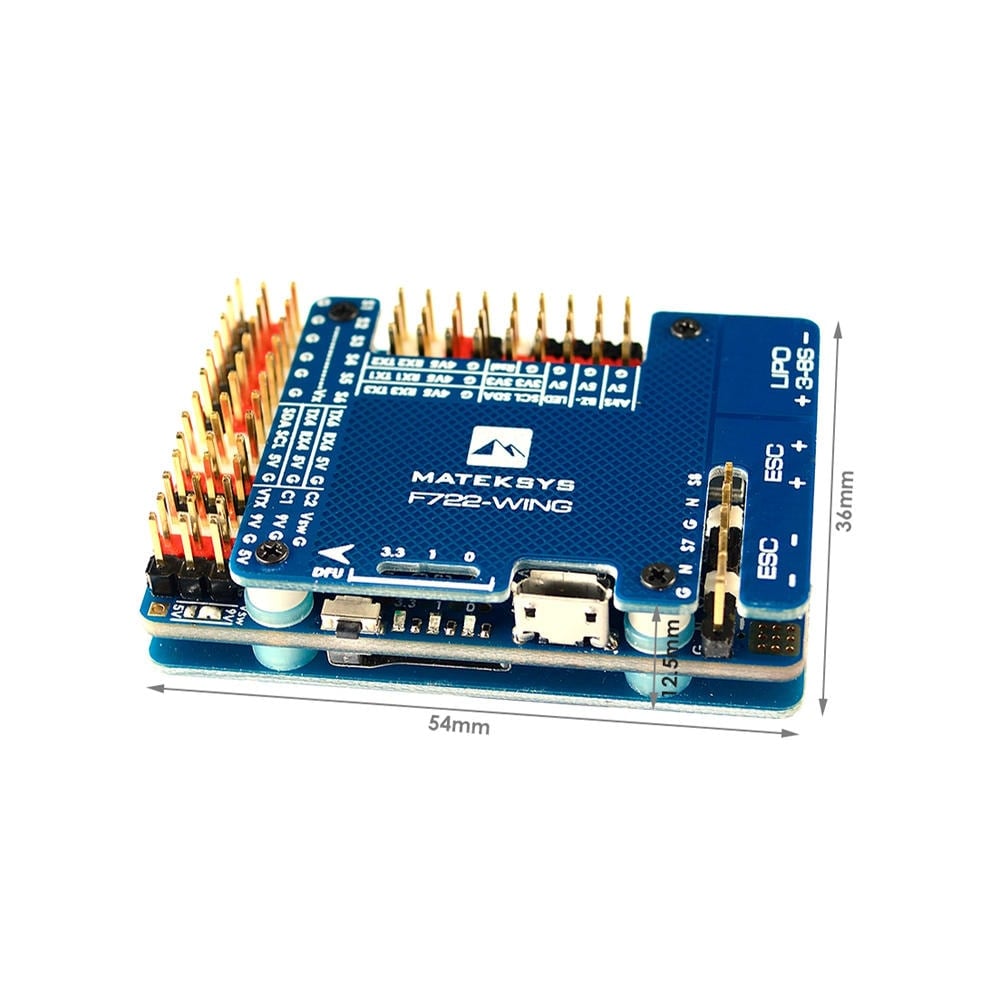

- Dimensions: 54 x 36 x 13 mm
- Weight: 25g
