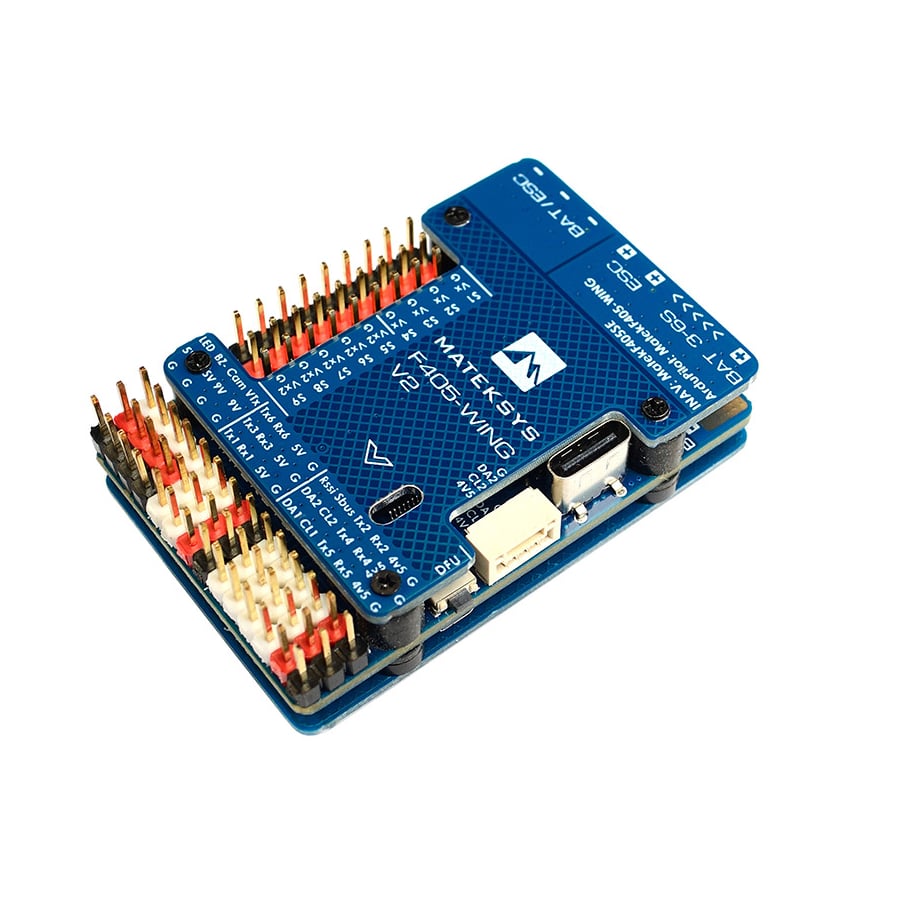

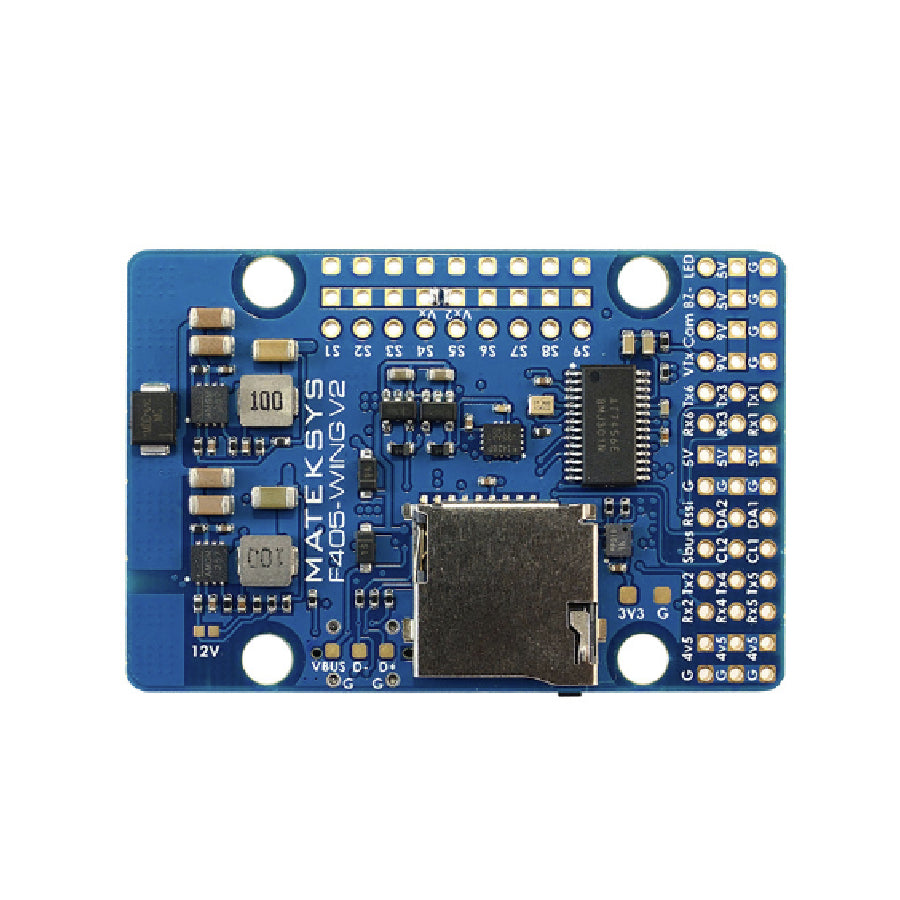

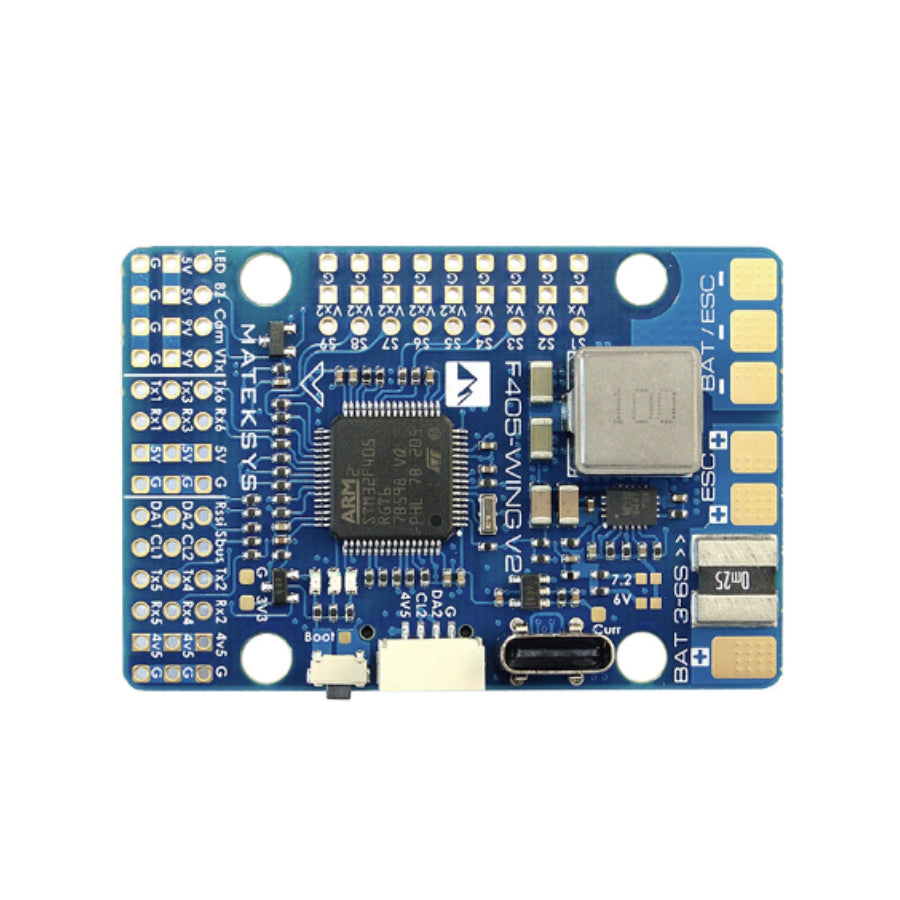

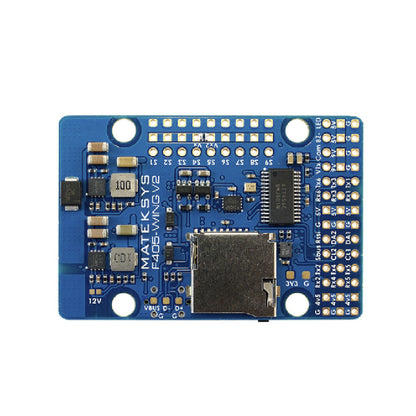

The Matek F405 Wing V2 Flight Controller - Your "Wingman" in the Sky
We get it. You've got the need for speed, precision, and—dare we say it?—a little bit of showing off. There's nothing more frustrating than a flight controller that can't keep up with you, the Maverick of FPV flying.
Say Hello to Your New Best Friend: The Matek F405 Wing V2 Flight Controller This isn't just any flight controller; this is your trusty co-pilot, your aerial concierge, your avian oracle! Boasting a dedicated target in INAV software (MATEKF405SE) and compatibility with ArduPilot, it's designed for all you fixed-wing aficionados who demand nothing but the best.
✨ Product Highlights:
- Say Goodbye to Power Struggles : Multiple high-output BECs—5V/5A for servos, and options for 9V/2A or 12V/2A for FPV gear. Oh, and let's not forget that cheeky 5V/2A for your fancy GPS and RC receiver.
- So Many Ports, It's Like a USB Party : 6 UARTs? Check. 2x I2C? Double-check. MicroSD for blackbox logging? You bet.
- Powerhouse of a CPU : An STM32F405RGT6 MCU that clocks at 168MHz. Yep, we just went full geek on you.
- See Your Flight Stats in Real-Time : An integrated OSD (On Screen Display) gives you live telemetry data right in your FPV goggles.
- Keep it Stable, Keep it Cool : Features an IMU with ICM42688-P and a DPS310 Barometer. Your flight stability just got an upgrade.
- Compact and Featherweight : Mounting at just 30.5 x 30.5mm and weighing 25g, this is the flight controller equivalent of a gymnast—nimble yet strong.
📋 Specifications:
MCU and Firmware
- MCU : STM32F405RGT6, 168MHz, 1MB Flash
- INAV : MATEKF405SE (INAV 6.0 or newer)
- ArduPilot : MatekF405-Wing (ArduPlane 4.4 or newer)
Power Distribution Board
- Input Voltage Range : 9-30V (3-6S LiPo) w/TVS protection
- Current Sensor : 220A, 3.3V ADC
BEC Outputs
- 5V, 9V/12V, Vx, and 3.3V Options
- Current Ratings : From 200mA to 5 Amps, depending on the BEC

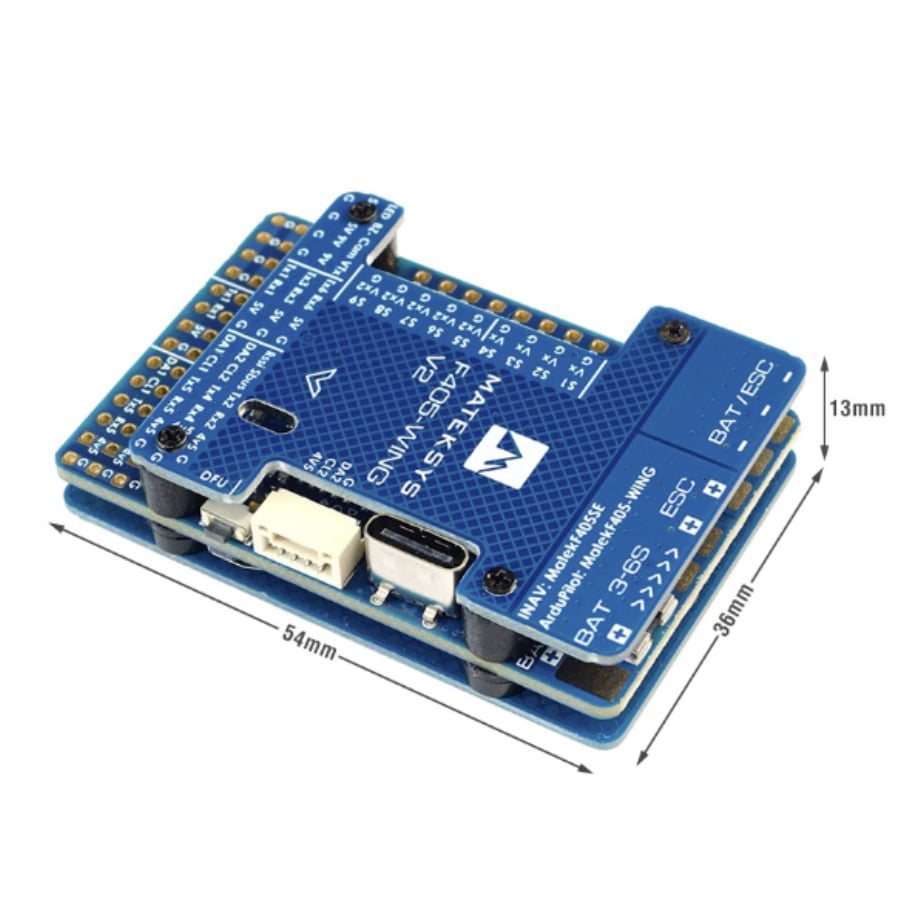

Physical Dimensions
- Mounting : 30.5 x 30.5mm
- Weight : 25g
📦 What's in the Box?
- 1x Matek F405 Wing V2 Flight Controller
- 3x Header Pin Rows (Ships unsoldered, so you can customize your setup)
🚀 Get Ready to Take Your Fixed-Wing FPV to New Heights (Literally)! So, what are you waiting for? You're a click away from the Matek F405 Wing V2, the wingman you've always needed but never knew you could have. Take off like a legend, fly like a pro, and land like a hero.
