Product Details
Features
- ExpressLRS 3.0 firmware
- 2.4GHz Frequency
- 6 PWM Outputs
Specifications
- Power dissipation: 45mA(binding), 85mA(wifi mode)
- RF Frequency: 2.4GHz (2400~2480MHz)

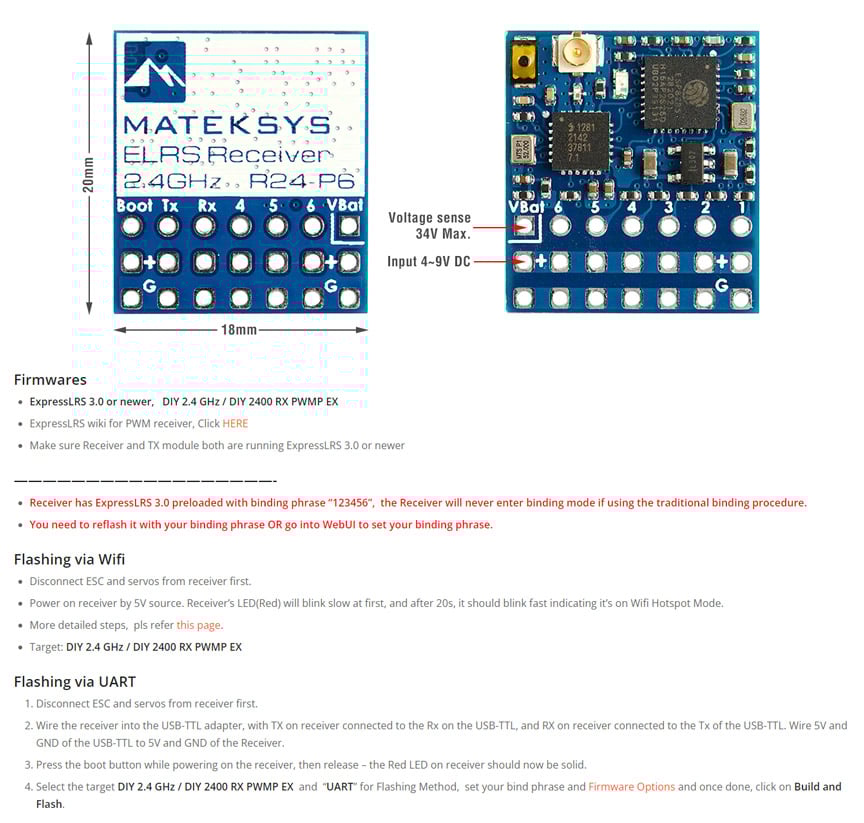

- Voltage sense: 34V Max. @ "VBat" pad
- Input voltage: 4~9V DC @ "+" pad
- Support 2~8S VBat voltage sense
- Antenna connector: IPEX MHF 1
- Receiver output protocol: PWM
- Telemetry power: 12dbm
- PCB size: 20mm x 18mm
- Weight: 2g w/ antenna

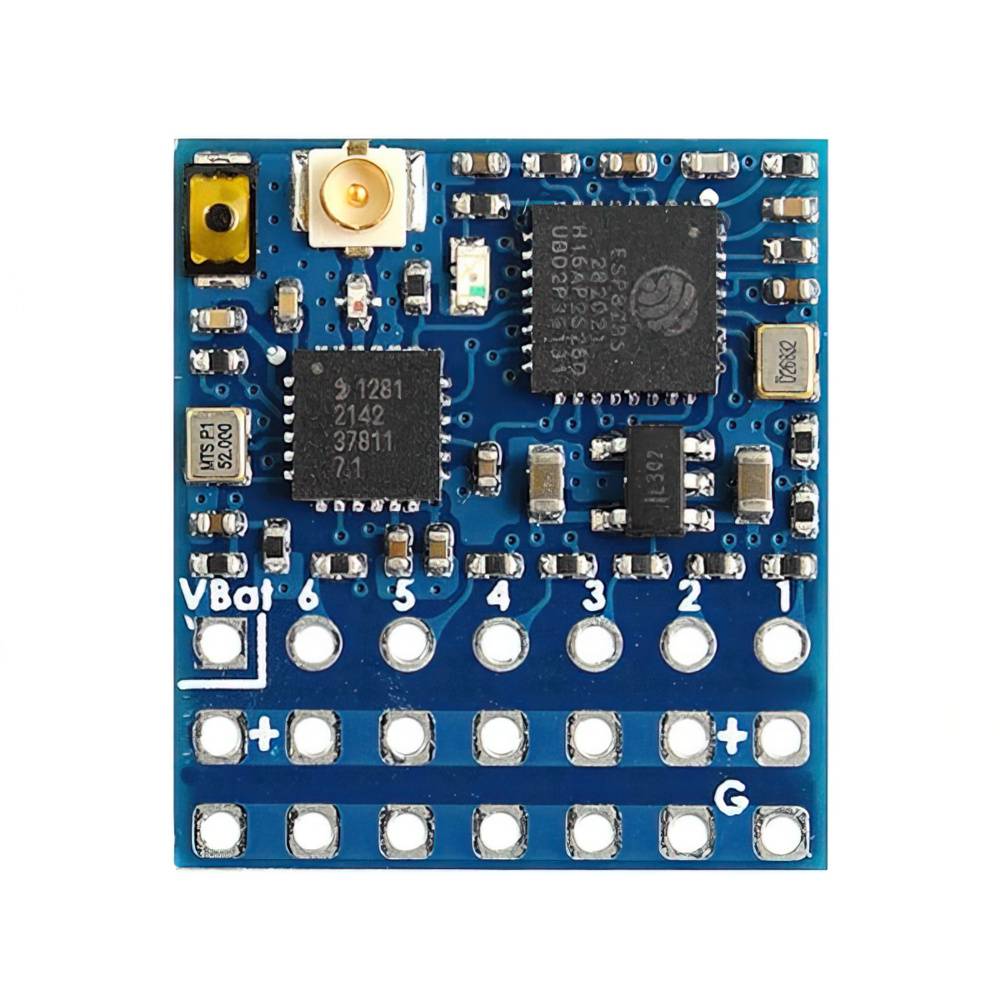

- ESP8285, SX1281
- PWM outputs: 6
Includes

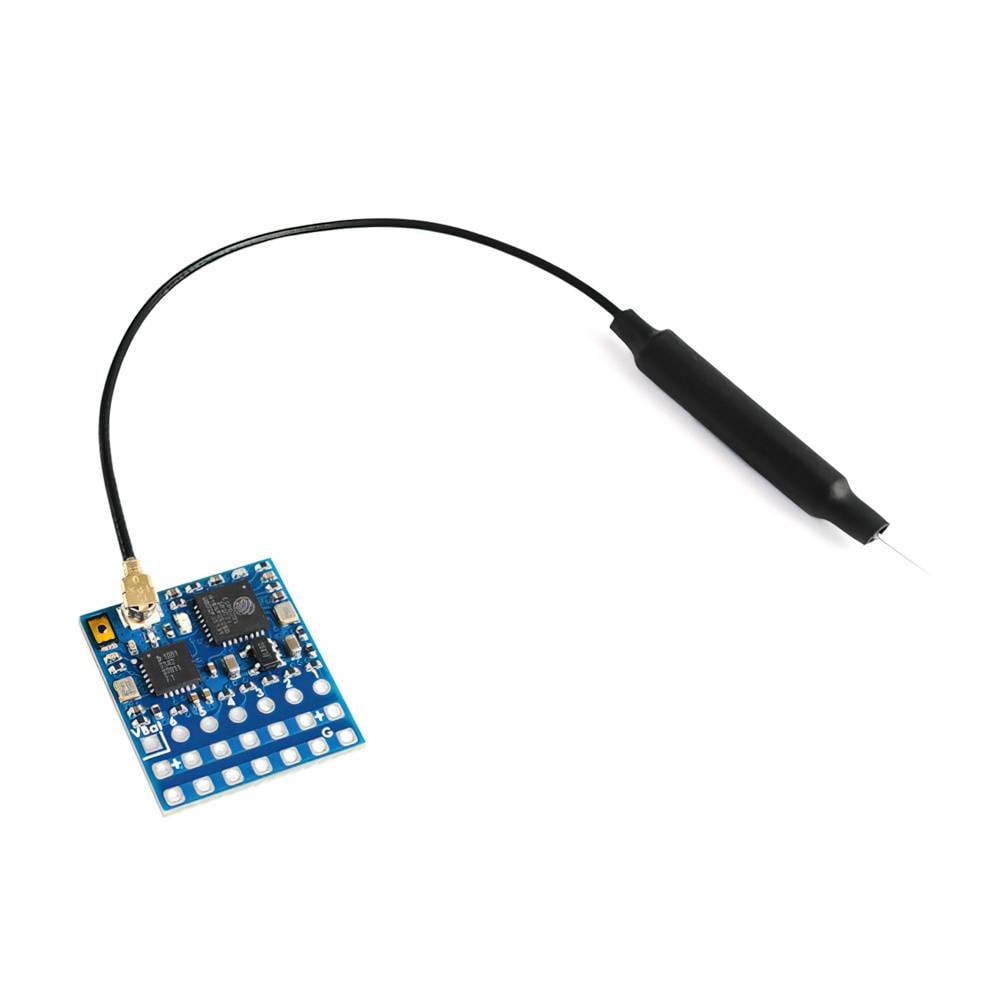

- 1x MATEKSYS ExpressLRS 2.4GHz Receiver - PWM ELRS-R24-P6
- 1x IPEX MHF1 Antennas. 15cm
- 1x Dupont 2.54 pins
