Product Details
Features
- All DLVR series is the best airspeed sensor ArduPilot currently support
Specifications
- Sensor: All sensors DLVR-L10D, Industrial temperature range
- DLVR-L10D Sensor
- Interface: I2C (SCL & SDA)
- Sensor I2C address: 0x28
- Pressure Ranges: 2500Pa
- Maximum Pressure: 75kPa
- Operating Temperature: -25°C ~ 85°C
- Board Supply voltage: 4~5.5V DC
- Working current: 5mA
- Red LED: 3.3V power indicator

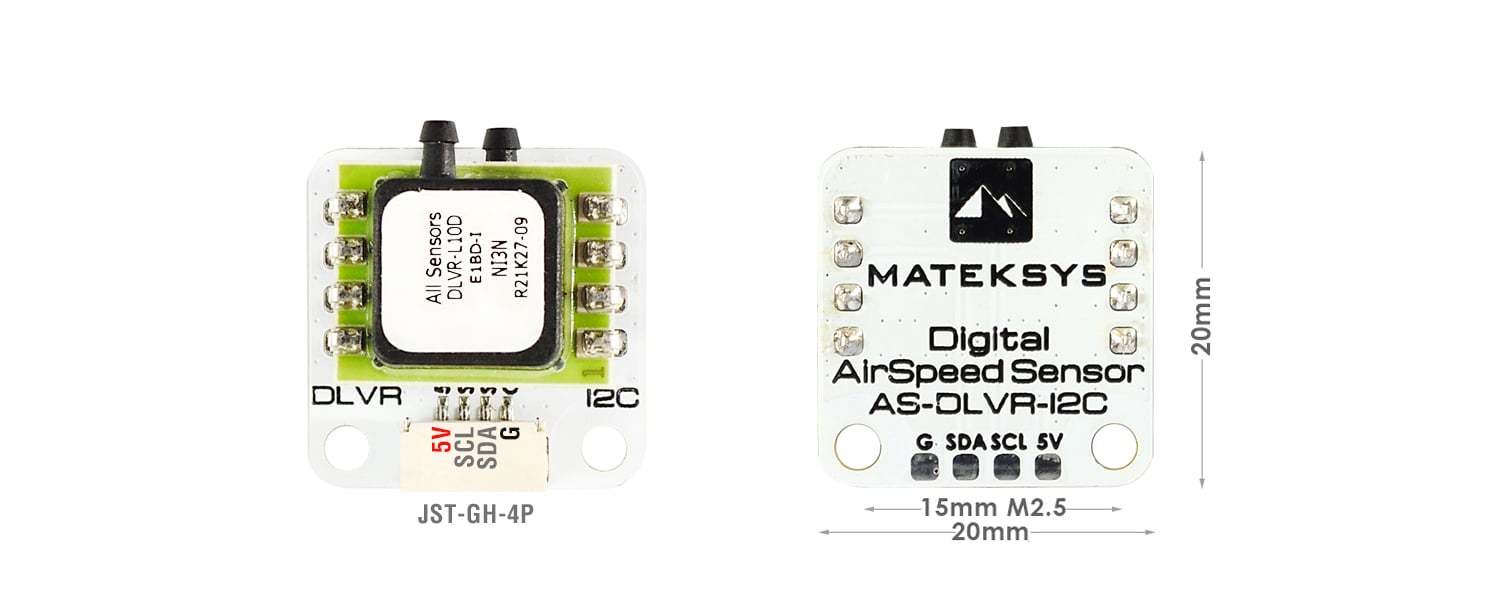

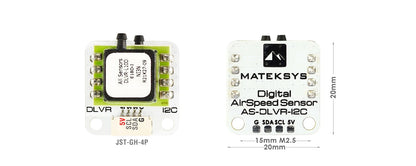

- JST-GH sequence: 5V, SCL, SDA, GND
- Weight: 3.5g (sensor board)

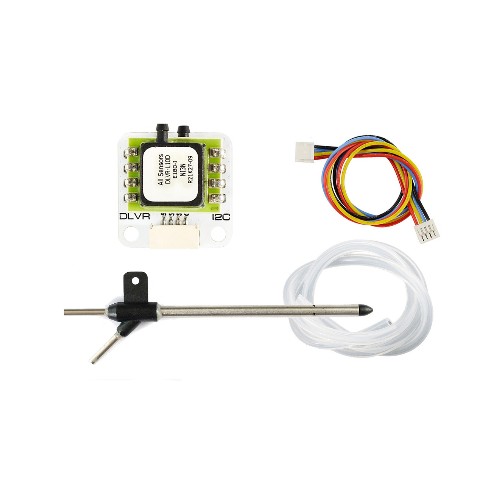

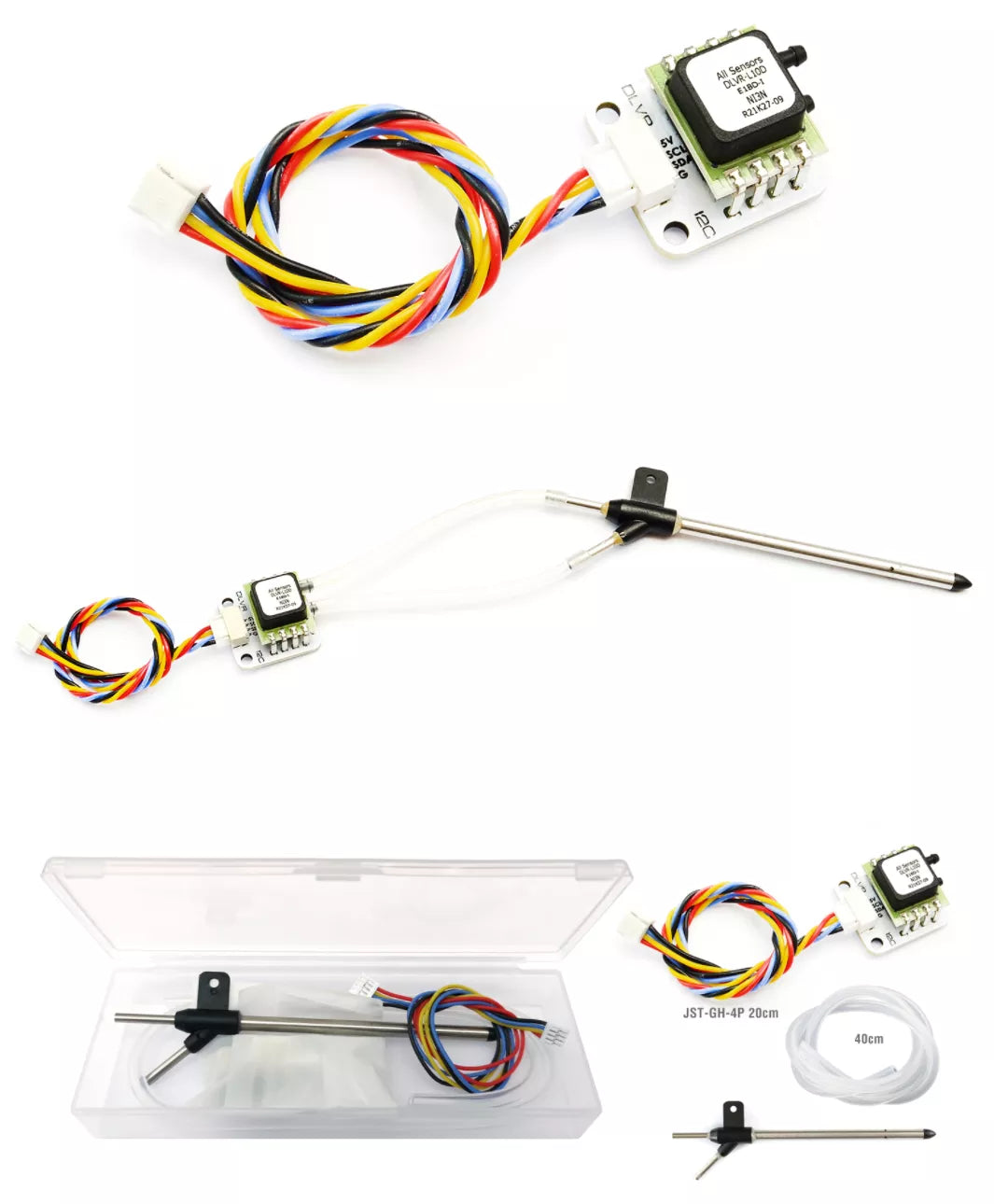

Included
- 1x AS-DLVR-I2C Sensor Board.
- 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
- Pitot Tube.
Wiring
- 5V to FC 4~5.5V
- SCL to FC I2C_SCL
- SDA to FC I2C_SDA
- G to FC GND
- Clear silicon tubing 40cm
Parameters
- ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)
