Product Details

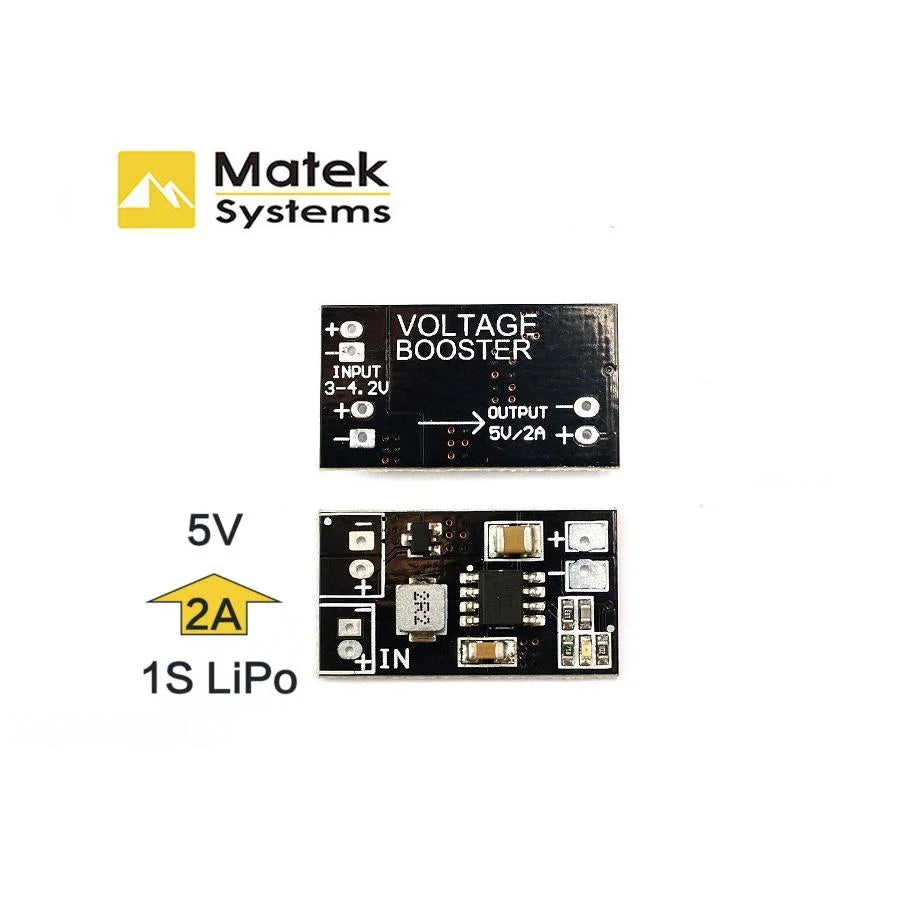

VB2A5 is a compact, high-efficiency, synchronous step-up converter for a single-cell Li-ion/polymer battery. It can boost the voltage to 5V, allowing you to run a receiver on a single cell lipo.
Features
- Used for boosting the 1S battery to 5V, power supply for receiver.
- Synchronous step-up converter.
- Guaranteed 2A Output Current at VOUT = 5V from 3.3V Input
- Reverse input polarity protection.
- Over-temperature protection.
Specifications
-
Brand Name: Matek
-
Item Name: Voltage Booster
-
Item NO.: VB2A5V
-
Continuous Current: 2A @Vout=5V Input>3.3V, Max2.5A
-
Input Voltage: 3V - 4.2V
-
Output Voltage: 5V fixed
-
Output Current: Continuous 2A, Max 2.5A
-
Quiescent Dissipation: <5mA
-
Typical Efficiency: 90%~95%
-

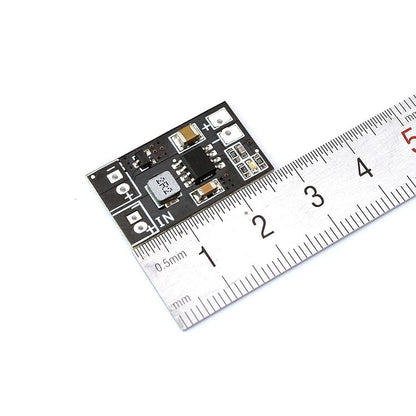

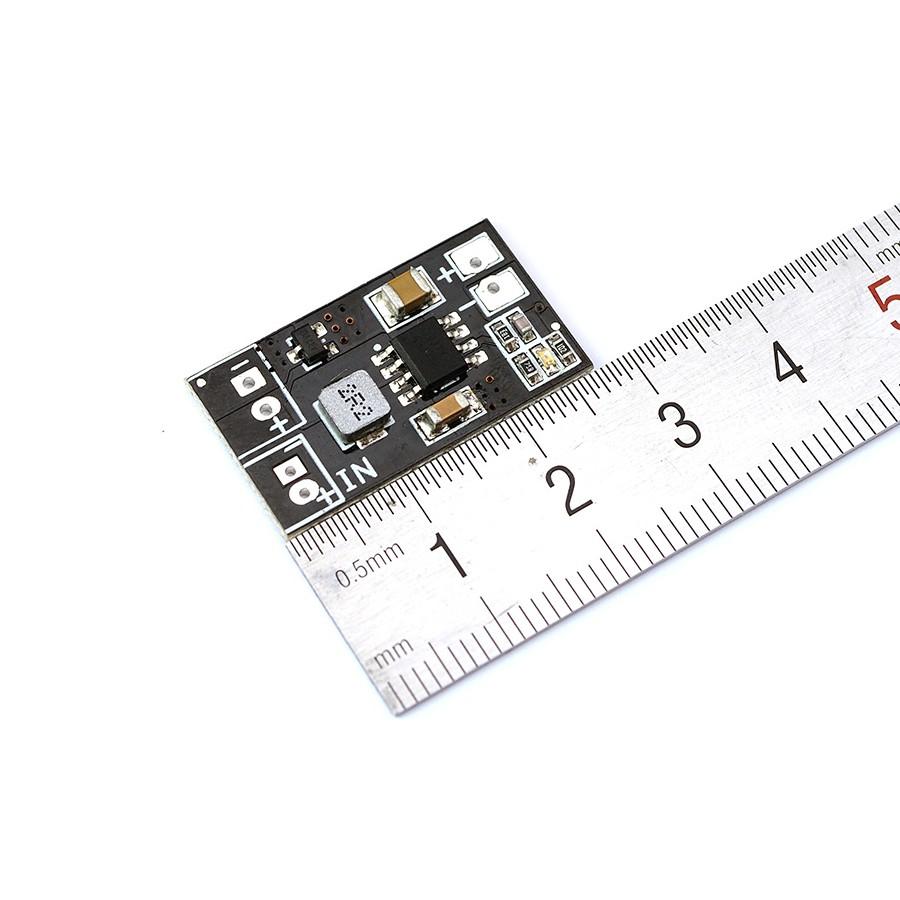

Size: 27*15*3mm
-

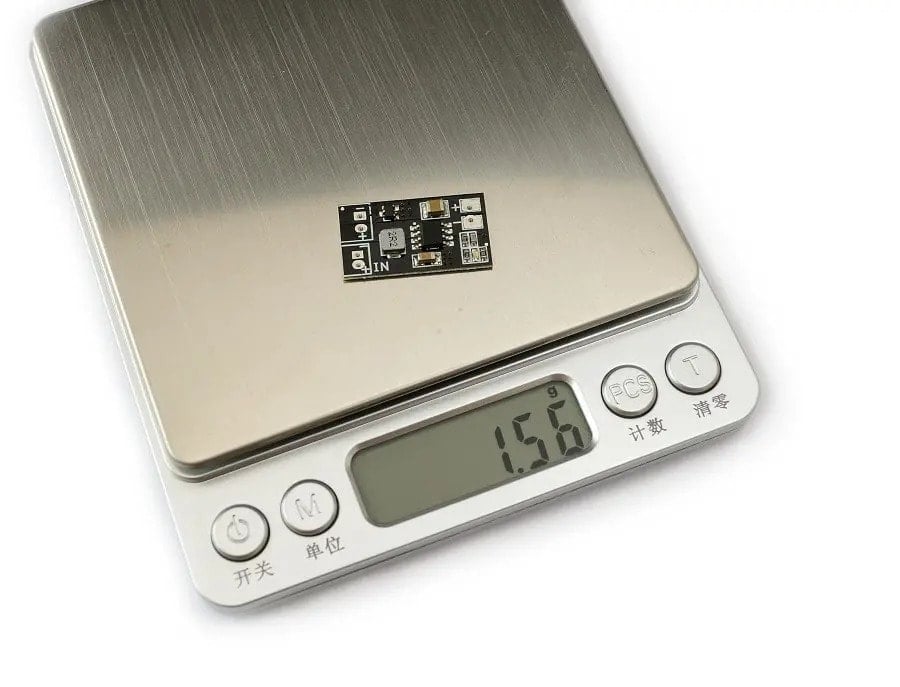

Weight: 1.5g
Included
- 1x VB2A5V Module
