Product Details
This product is designed to handle just about any motor you want to throw at it with its 70A+ continuous current rating. Ideal if you a pushing your quad to the limit in a race.

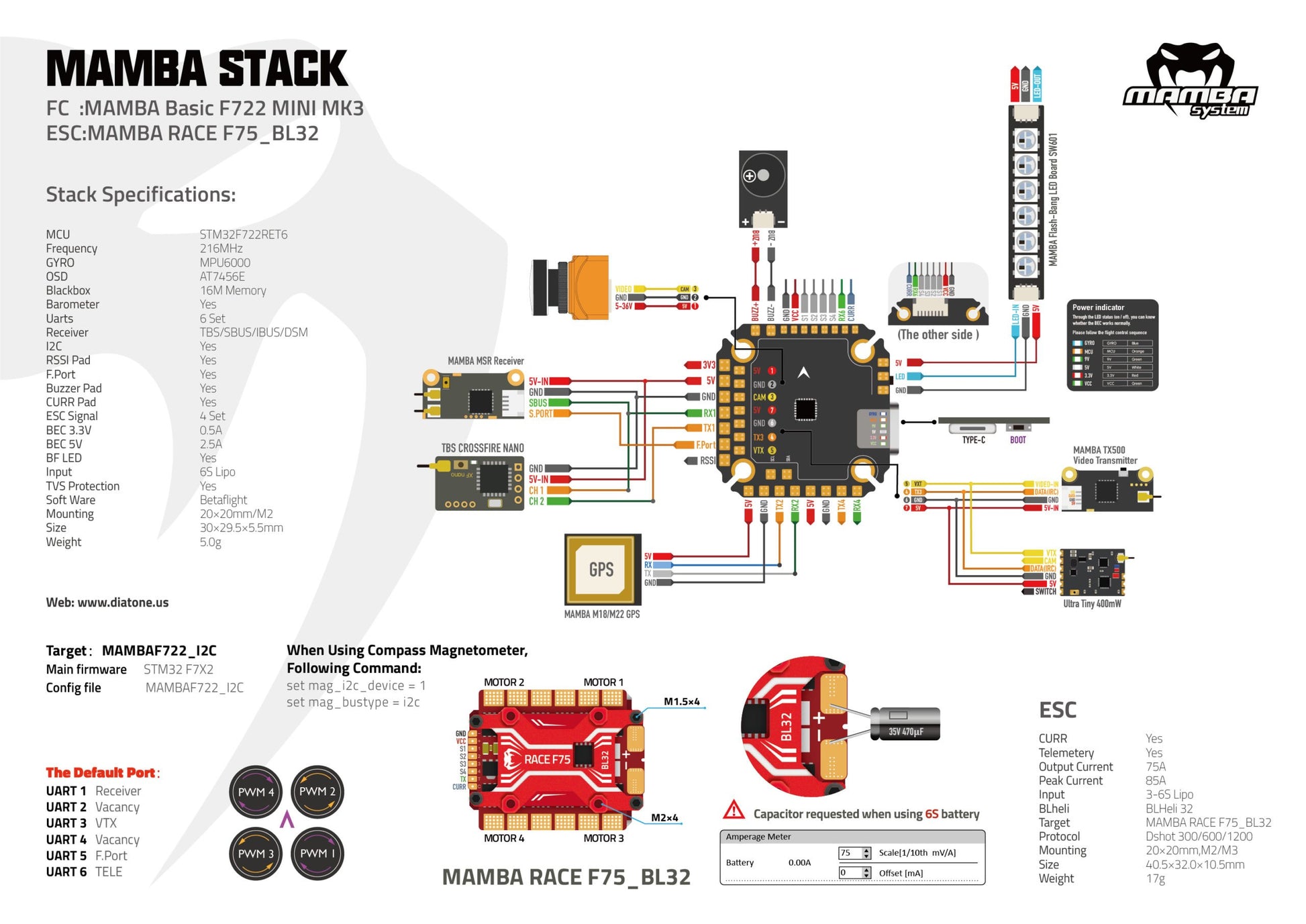

FC Specifications
- MAMBA Basic F722MINI MK3
- MCU: 216MHz STM32F722RET6
- GYRO: MPU6000
- Barometer: Yes
- OSD: Yes
- Blackbox: 16M Flash Memory
- Uarts: 6 Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller: BF LED
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 2~6S Lipo (8.4~25.2V)
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 2.5A
- MOUNTING: 20mm, M2
ESC Specifications
- MAMBA RACE F75_BL32
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
- CONTINUE CURRENT: 75A×4
- BURST CURRENT: 85A (10S)
- BEC: NO
- SOFT: Dshot300/600/1200
- Target：BLHeli_32
- MAMBA RACE F75_BL32
- TVS Protection: Yes

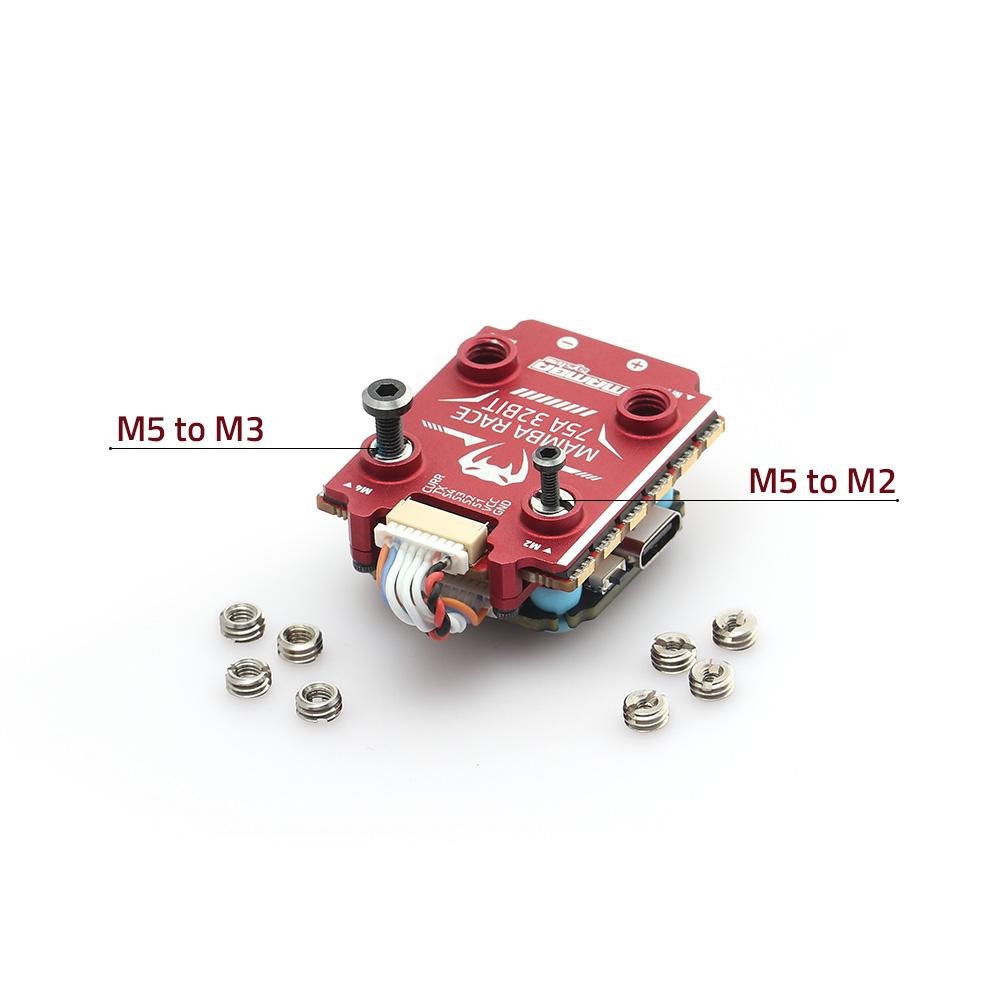

- MOUNTING: 20mm/M3/M2
Included
- Mamba F722 Mini MK3 Flight Controller
- Mamba Race F75 BLheli32 4in1 ESC
- High-Frequency 470uF/35V ×1
- 8pin sh1.0 ×2
- 16AWG 60mm ×2
- AMASS Original XT60
