Product Details
FC Specifications

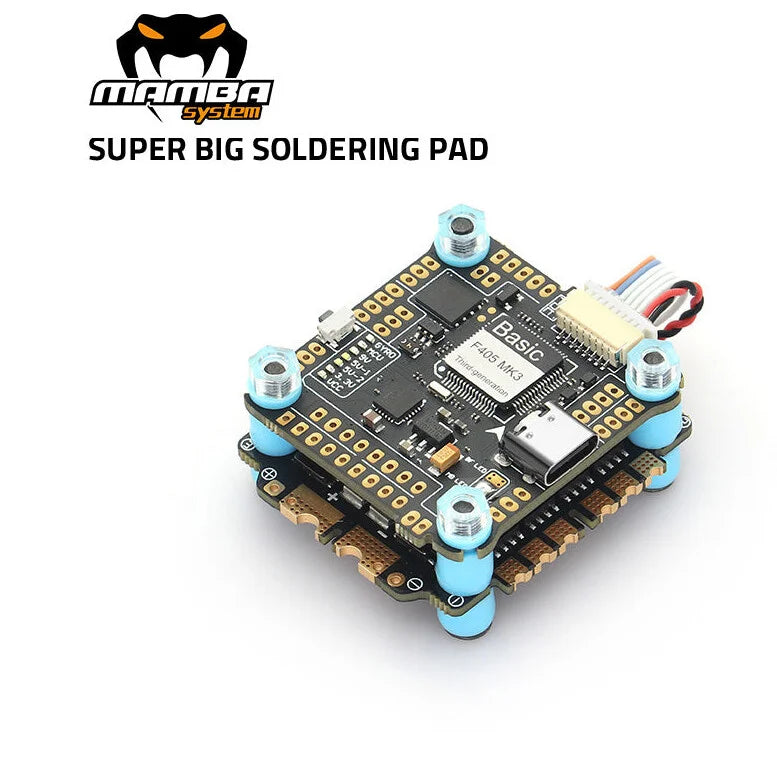

MAMBA Basic F405MK3 lite
MCU: 168MHz STM32F405RGT6
GYRO: MPU6000
Barometer: No
OSD: Yes
Blacbox: 16M Flash Memory
Uarts: 5Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED（4 Set 2812 LED）
F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A & 9V 3A
MOUNTING: 30.5mm,M3
ESC Specifications

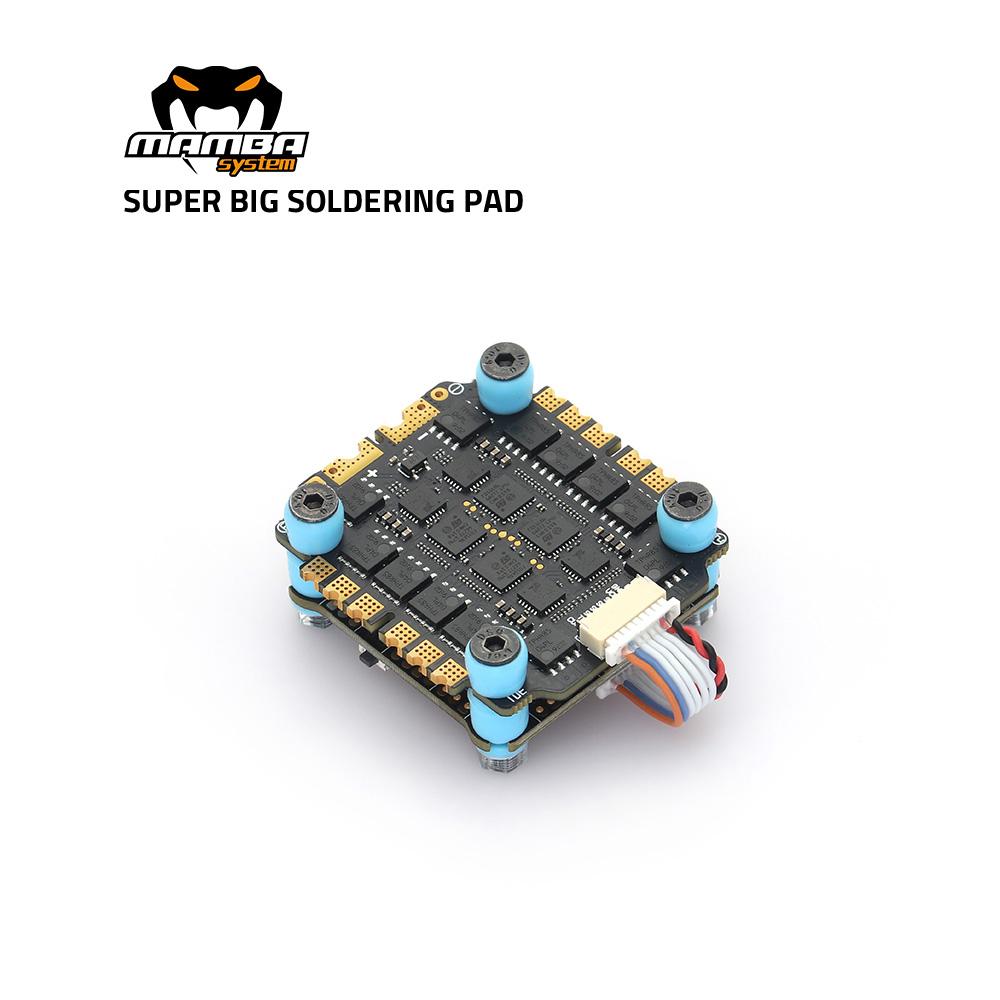

MAMBA F40_BLS
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:40A×4
BURST CURRENT:50A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 30.5mm/M3
Supply
High-Frequency 470uF/35V ×1
8pin sh1.0 ×2
12AWG 100mm ×2
AMASS Original XT60
