Product Details

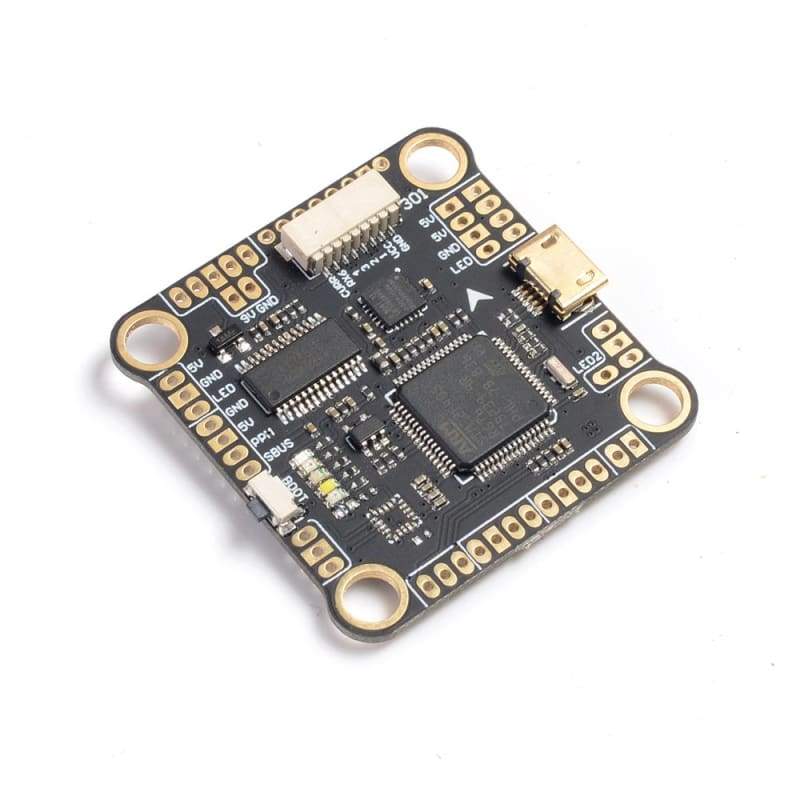

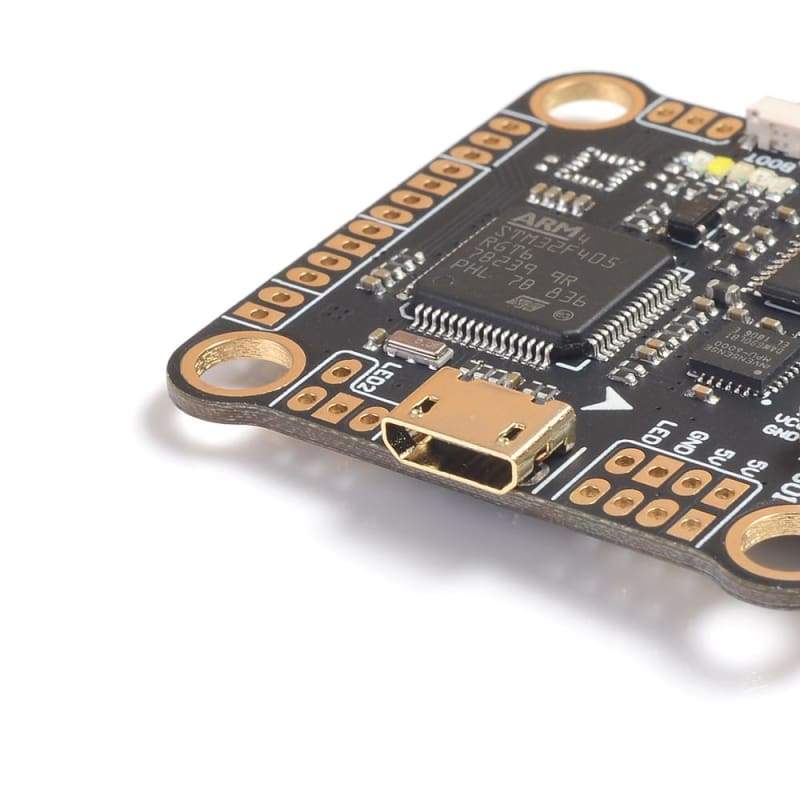

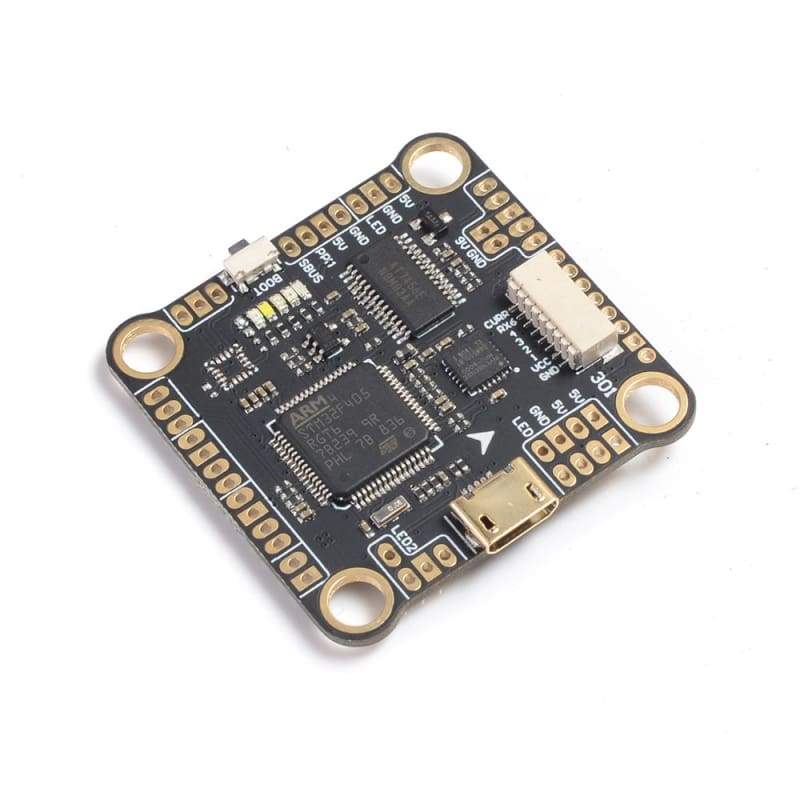

This is the Mamba F405 mk2 V2 flight controller from diatone. The Mamba F405 includes an F4 MCU, MPU6000 IMU, 16Mb dataflgiht for blackbox, an OSD and a built in 5V/2A BEC.
Specifications
MCU: 168MHz STM32F405RGT6 32BIT
IMU: ICM42688P
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 3Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
PDB Specifications
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2.5A & 9V 2A
FC Firmware
BetaFlight
Target: FURYF4OSD (Legacy)
Physical
Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 7.5g
Included
- 1 x F405 Betaflight Flight Controller
