Product Details

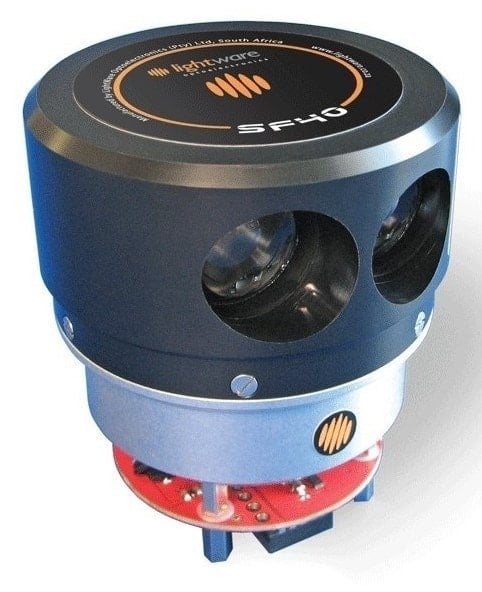

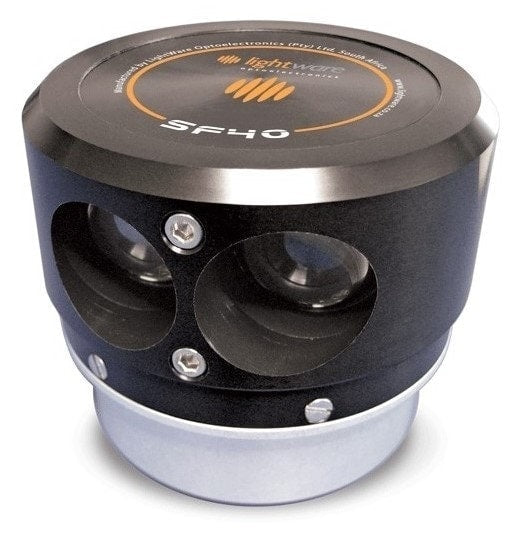

The SF40/C is a laser scanner for which provides UAVs with simultaneous localization and mapping intelligence. With 100 % data saturation at 5 image updates per second, multi-directional collision avoidance is enabled.
- Easy to configure using the built-in menus and LightWare Terminal software
- Fully calibrated and ready to run
- Complete with power, interface and micro USB cables.
Specifications
| Weight | 270 g (excluding cables) |
| Range | 0 ... 100 m (natural targets) |
| Revolutions per second | 4.5 / 2.25 / 1 (Measuring mode is selectable) |
| Resolution | 0.12 / 0.06 / 0.03 meters (based on rev/sec) |
| Readings per revolution | 2022 / 2022 / 1654 (based on rev/sec) |
| Readings per second | 9158 / 4578 / 1654 (based on rev/sec) |
| Outputs & interfaces | Serial, two hardwired alarms, servo connections & spare |
| Power supply voltage | 6.5 … 30.0 V DC |
| Power supply current | 1 A (max) |
| User power supply voltage | 2.7 V … 5.5 V DC |
| Laser power | 20 W (peak), 11 mW (average), Class 1M |
| Dimensions | 91 mm (height) x 79 mm (largest diameter) |
| Operating temperature | 0 ... 40°C |
| Approvals | FDA: 1410968-000 (2017/09) |
| Optical aperture | 51 mm |
| Beam divergence | 0.2° |
| Lens material | Acrylic |
