Product Details

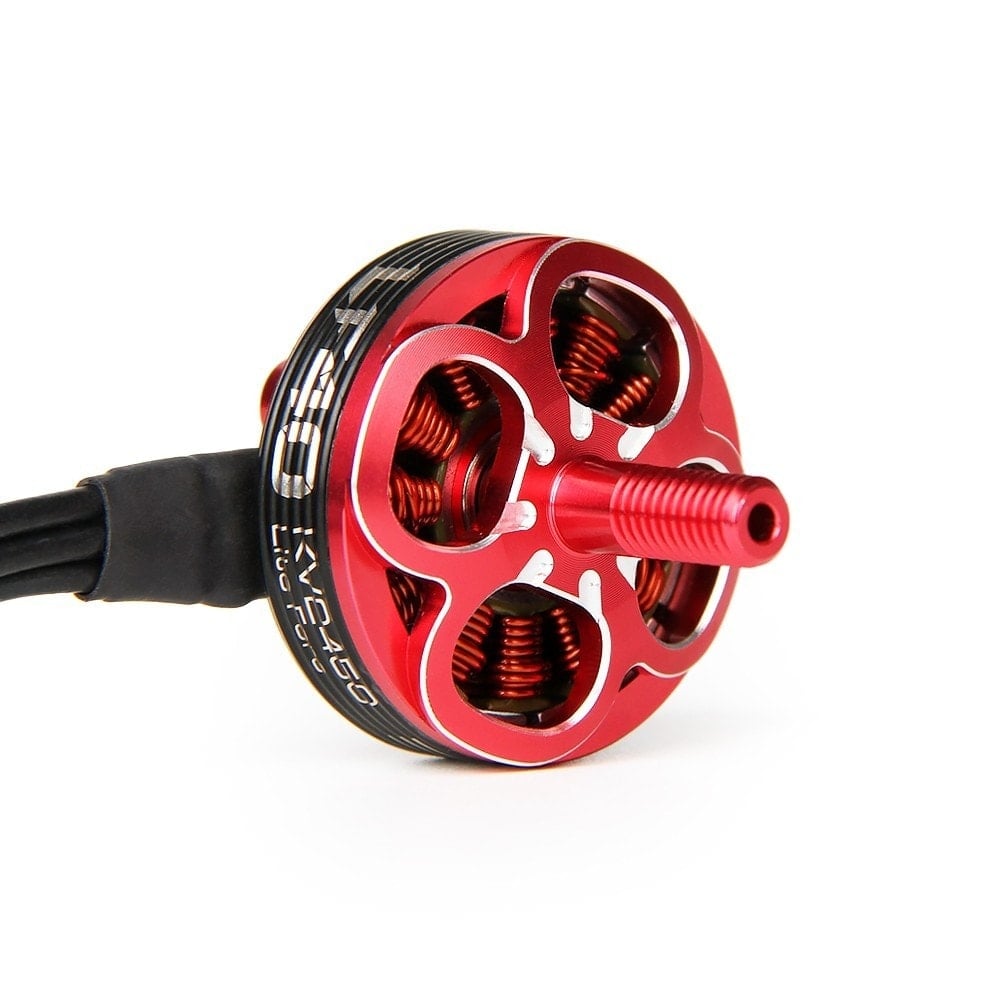

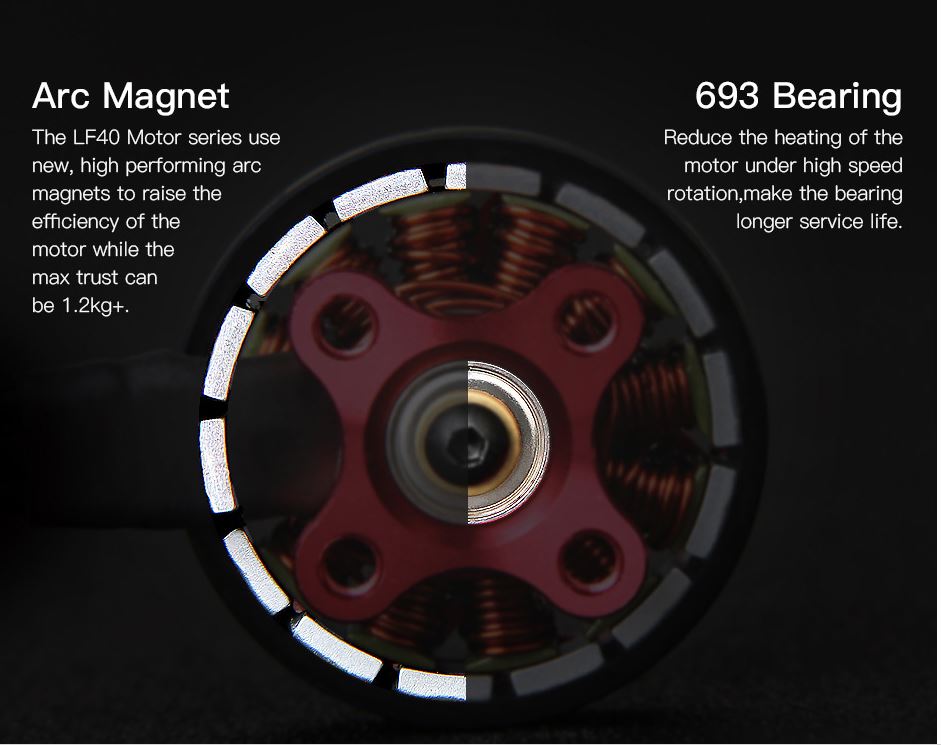

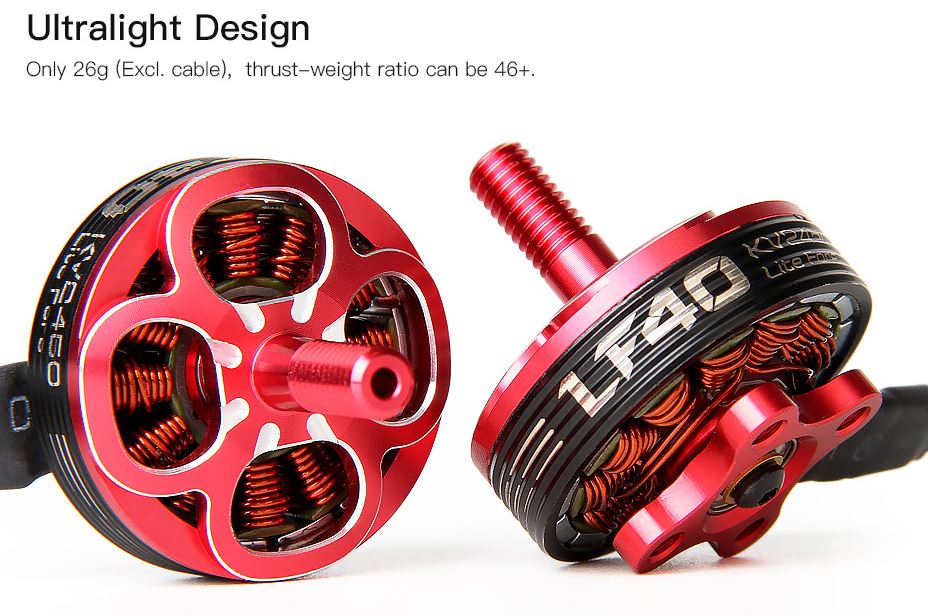

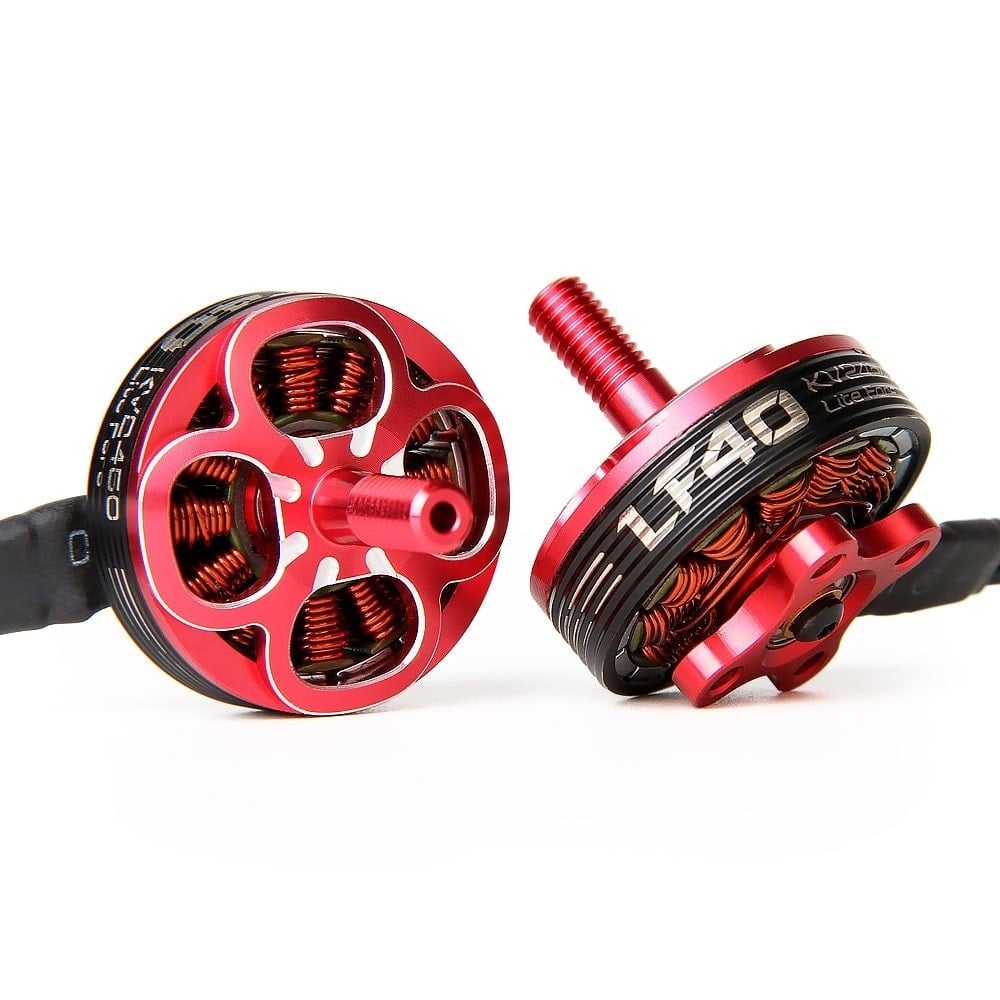

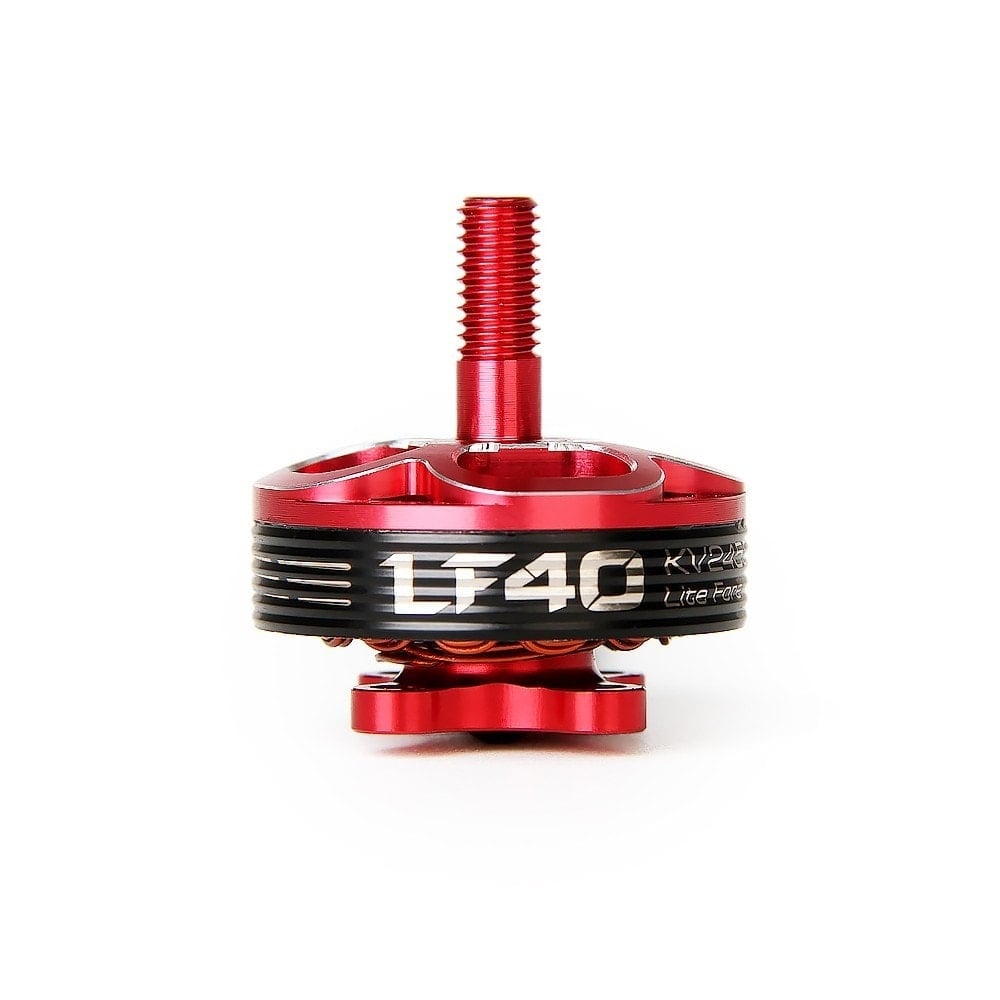

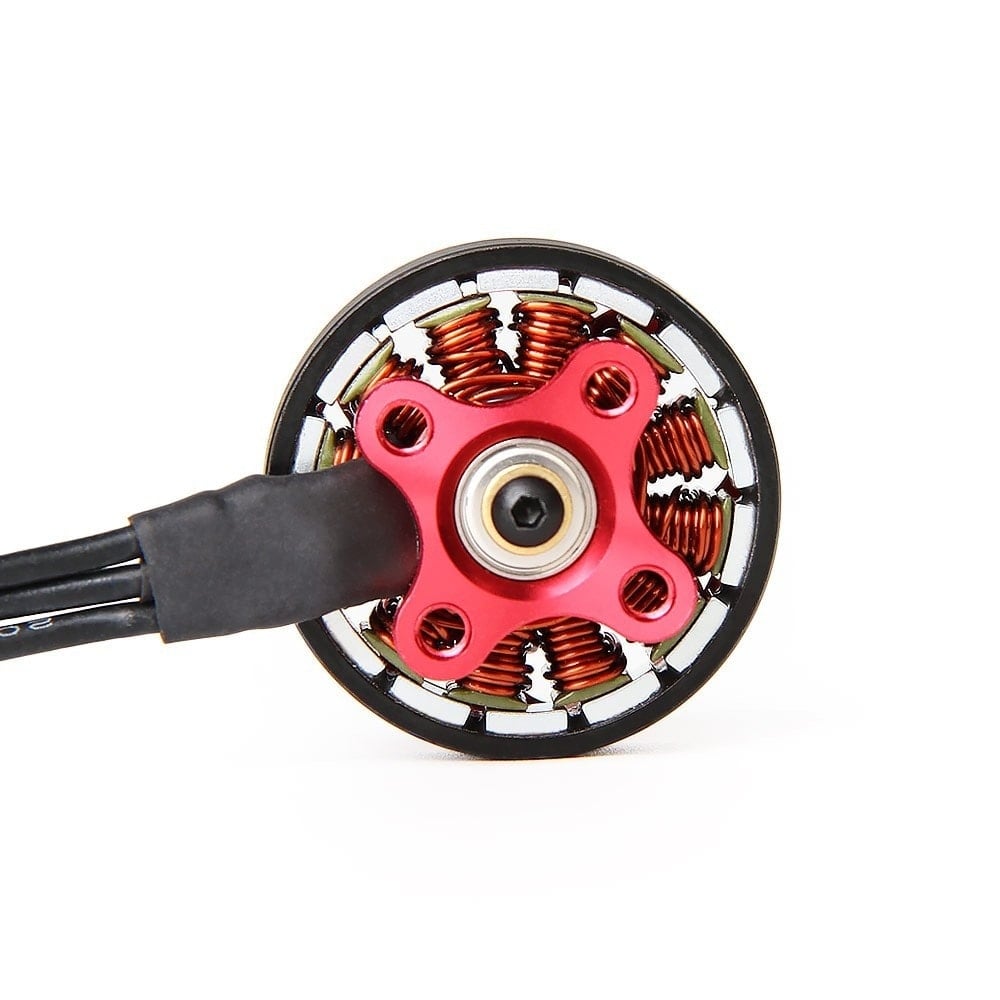

This is the LF40 motor from Tmotor. Designed to offer the best value for money the LF40 gives you some serious performance (over 1.2Kg of thrust) from a top tier motor company and a reasonable price. The LF40 features arc magnets to increase the motors efficiency and power along with 693 bearings to reduce heating. In addition the LF40 weighs in at just 26g (without wires), giving this motor a thrust to weight ratio of 46!
Specifications
- KV: 2450
- Internal Resistance: 62mΩ
- Shaft Diameter: 3mm
- Weight Including Cables: 29.5g
- No. of Cells (Lipo): 3-4S
- Max Continuous Power : 558W
- Configuration: 12N14P

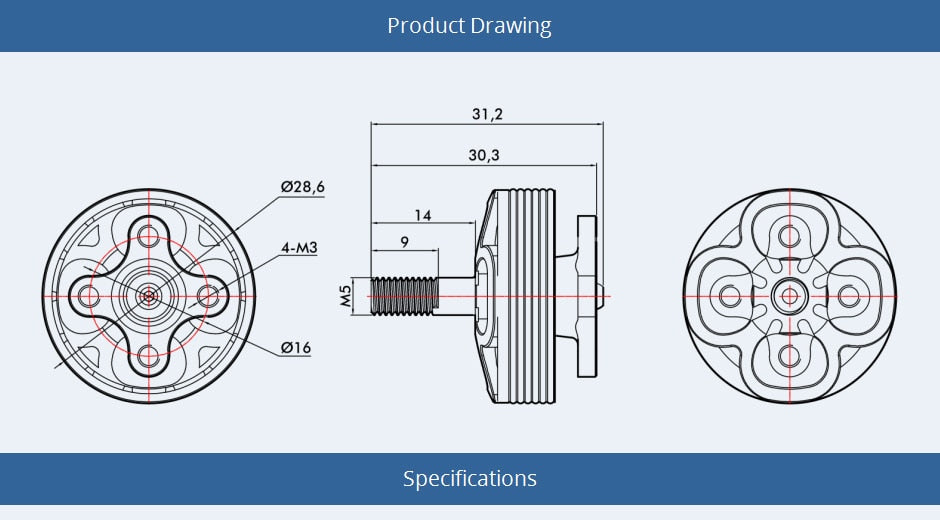

- Motor Dimensions: Φ28.6*30.3
- Cable length: 20# 150mm
- Weight Excluding Cables: 26g
- Idle Current(10V): 1.1A
- Max Current(60s): 36A
Product Contents
1 x LF40 2305 2450KV Brushless Motor
