Product Details

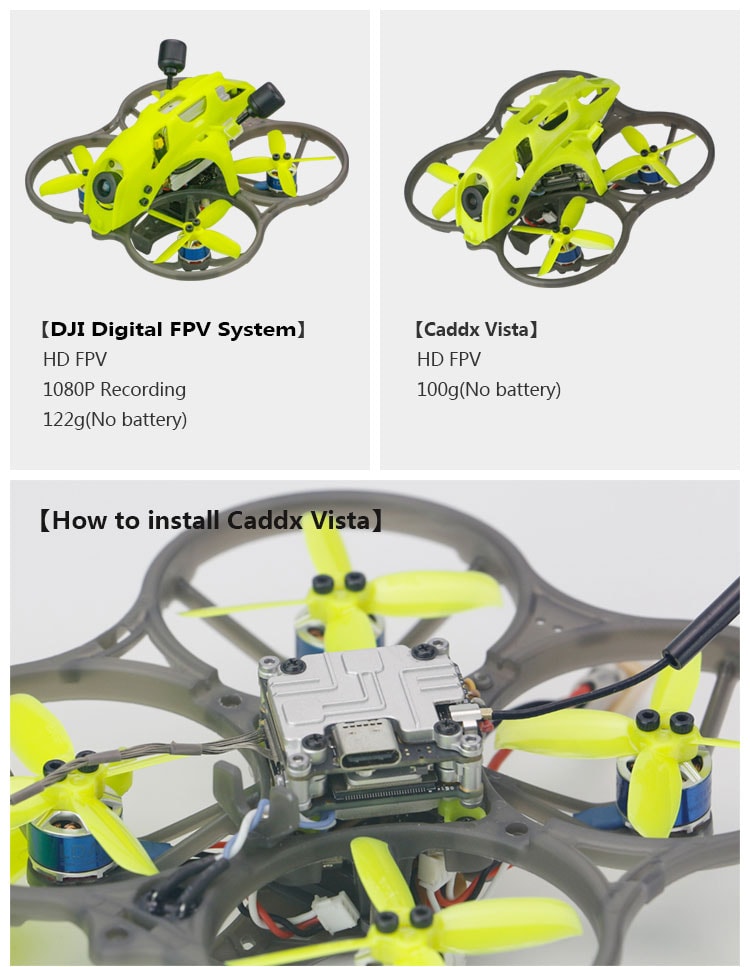

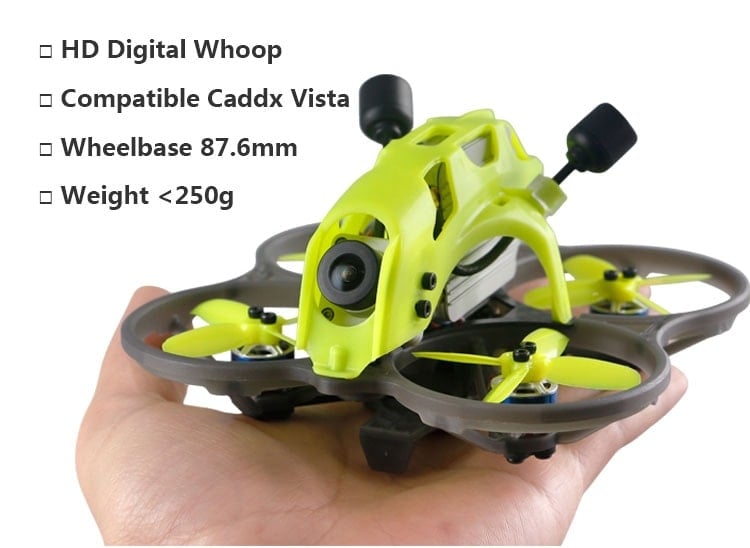

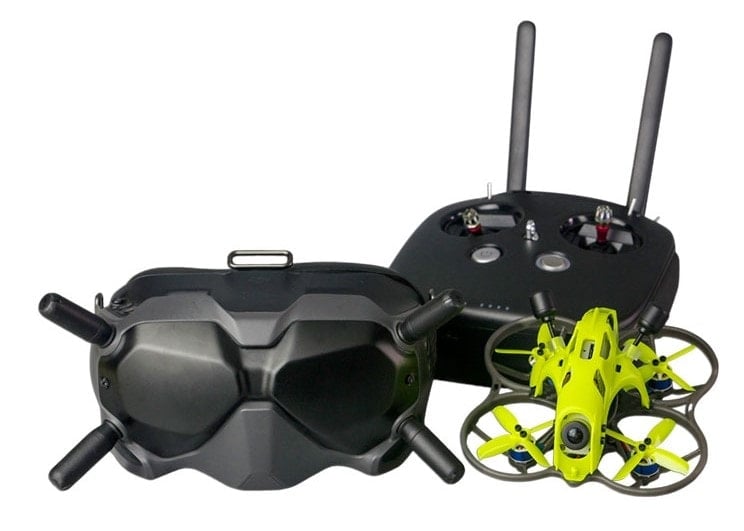

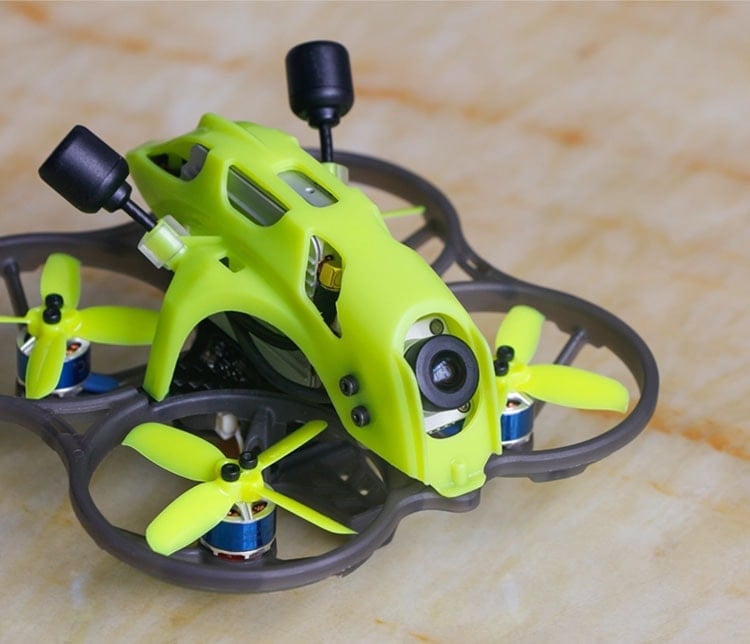

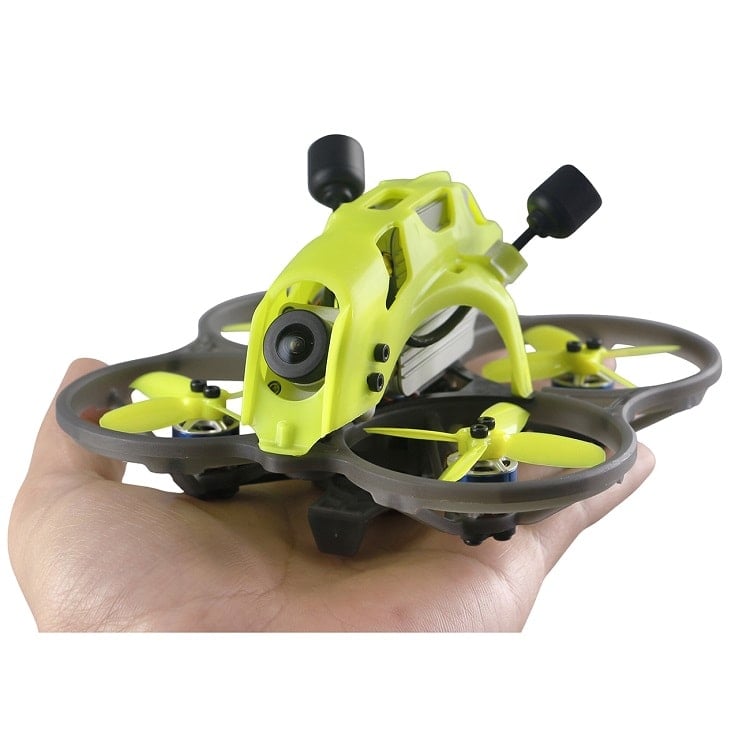

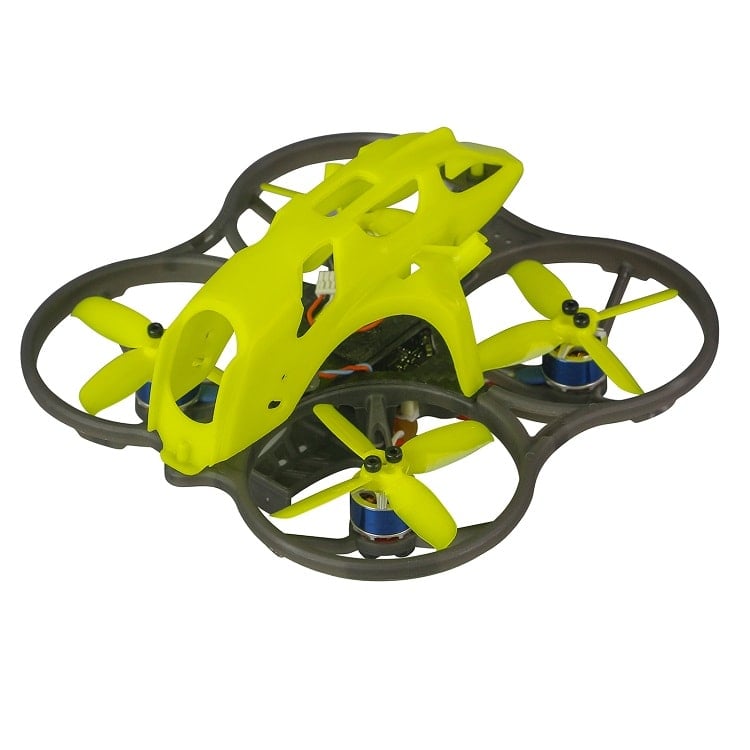

Tiny whoops are great fun but until now have always had to use analogue video transmitters. However if you want to have that full DJI HD experience on a whoop quad, the ET85D is your answer. Running beefy 1105 motors, with 2" props all in a full whoop style frame with guarded props, this quad is great for indoor digital HD FPV flying.

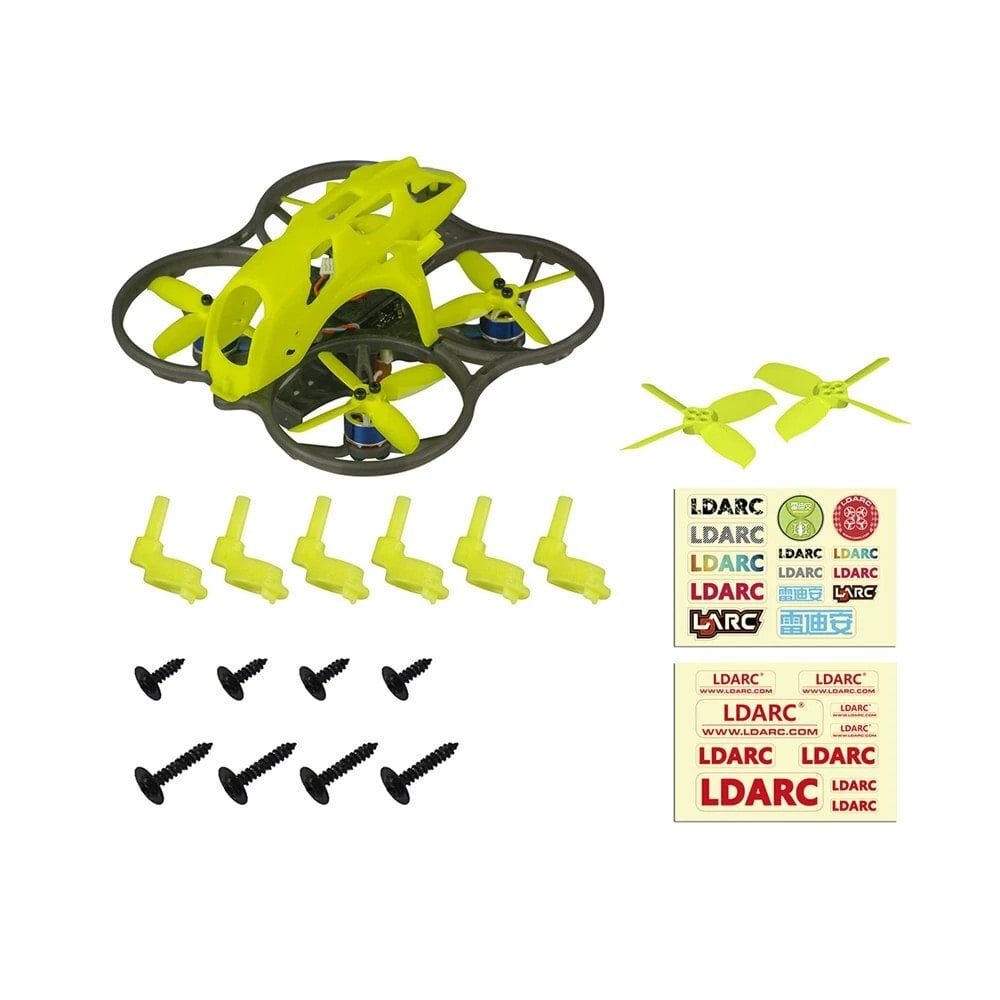

This quad includes the pre-assembled frame with motors, ESC and FC all pre installed. A pre-soldered cable is included for the full size DJI air unit so you can simply plug it in. The Caddx Vista will require some soldering. See mounting instructions below.
Specifications
| ET85D 87.6mm Frame Kit |
Wheelbase: 87.6mm
Material: Carbon Fiber Upper Plate Thickness: 1mm Bottom Plate Thickness: 2mm Camera Angle: 15-45 Degree Kit Weight: 24g |
| F411E12A F4 Flight Controller AIO 12A ESC |
Brand Name: LDRAC
Model: F411E12A Item Name: F4 Flight Controller MCU: STM32F411 MPU: MPU6000 Firmware Target: MATEKF411 OSD: AT7456E, Support Betaflight OSD Onboard Current Senstor ( Current Scale Value 210) Support DSM2/X, SBUS, IBUS, Crossfire, F.Port Receiver Input Voltage: 2-4S Lipo ESC Max Current 12A Each Way BLheli_S 4in1 ESC, Target: G_H_30 |
| XT1105 4250 3-4S Brushless Motor |
Brand Name: LDARC
Model: XT1105 Item Name: 1105 4250KV Motor Input Voltage: 3-4S Lipo Shaft Diameter: 1.5mm Mounting Hole: 9x9mm, M2 Weight: 6.1g |
| 2045 2x4.5 2 Inch 4-Blade Propeller |
Brand Name: LDARC
Item Name: 2045 2x4.5 2 Inch 4-Blade Propeller Quantity: 10 CW & 10 CCW |
| 5.8G 48CH 25/100/200mW FPV Transmitter |
Power: 0/25/100/200mW
Working Voltage: 5V, Support IRC-Tramp Camera 5V Power Output CLC filter Antenna Use IPEX Socket |
| FPV Camera ( NOT Included) | NO Camera, support 19mm / 20mm Width FPV Camera |
| Receiver ( NOT Included) | NO Receiver |
| Lipo Battery ( NOT Included) | Recommend LDARC 4S 14.8V 430mAh Lipo Battery XT30 Plug |

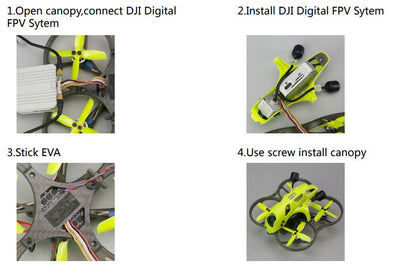

How to install DJI Air Unit
Please refer to manual for full details

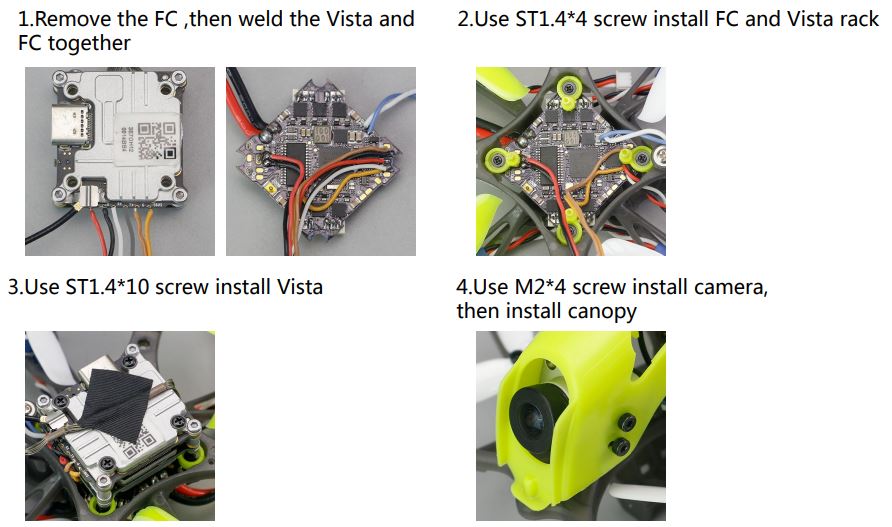

How to install Caddx Vista Air Unit
Please refer to manual for full details
