Product Details

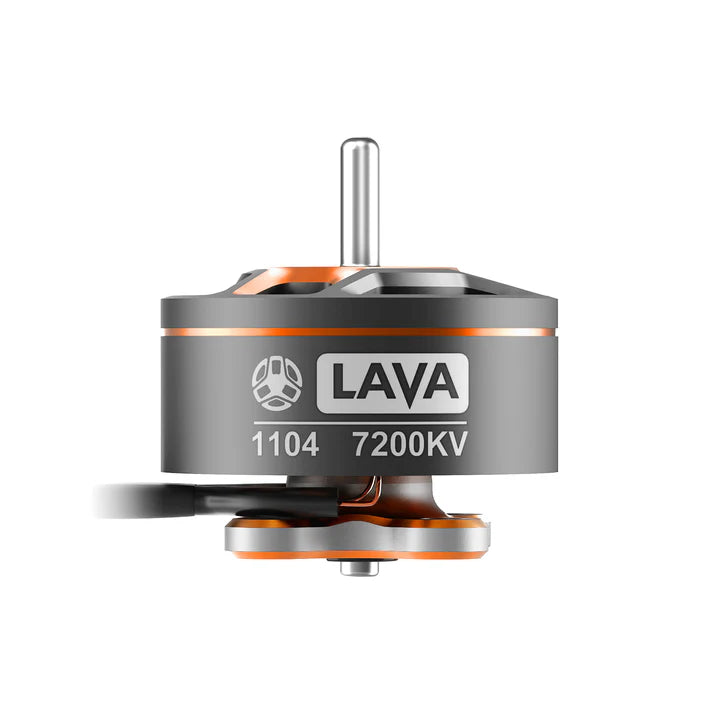

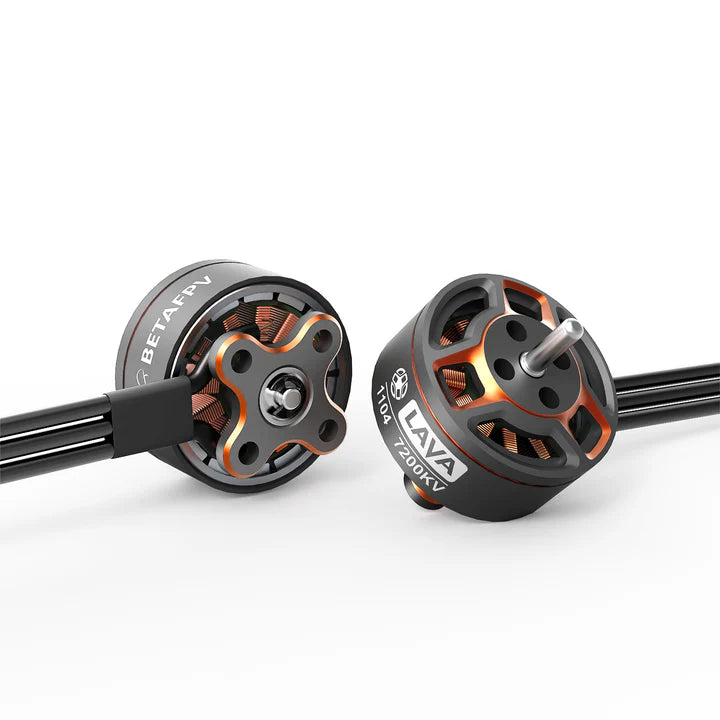

LAVA Series 1104 | 7200KV Brushless Motor (24mm Wire) - Precision Power for 3S 2.2" Cinewhoops
The LAVA Series 1104 | 7200KV Brushless Motor is the powerhouse your 3S 2.2" quad needs to conquer the skies. Engineered for optimal torque and thrust, this motor delivers unparalleled smoothness and efficiency. Whether you're chasing cinematic perfection or indulging in freestyle acrobatics, the LAVA 1104 lets you fly with precision and flair.
Pair it with Gemfan 2218 3-blade propellers and an F4 2-3S 20A AIO flight controller for an agile, high-thrust setup that can handle professional aerial filming demands. Designed specifically for cinewhoop drones like the Pavo20 Pro, this motor redefines power and control for lightweight quadcopters.
Key Features
- Precision-Engineered for Freestyle : Tailored for 3S 2.2" quads, offering swift, responsive handling for freestyle or cinematic flights.
- Thrust-to-Weight Brilliance : Achieves max thrust over 230g with a thrust-to-weight ratio exceeding 5:1 for exhilarating aerial performance.
- Unmatched Efficiency : Delivers 4.7g/w at low throttle and maintains 1.9g/w even under full load for extended, efficient flight sessions.
- Durable Design : Lightweight yet powerful at 5.3g, with robust mounting and wiring that ensures long-lasting performance.
Specifications
- Maximum Power : 122.5W
- Maximum Current : 10.2A

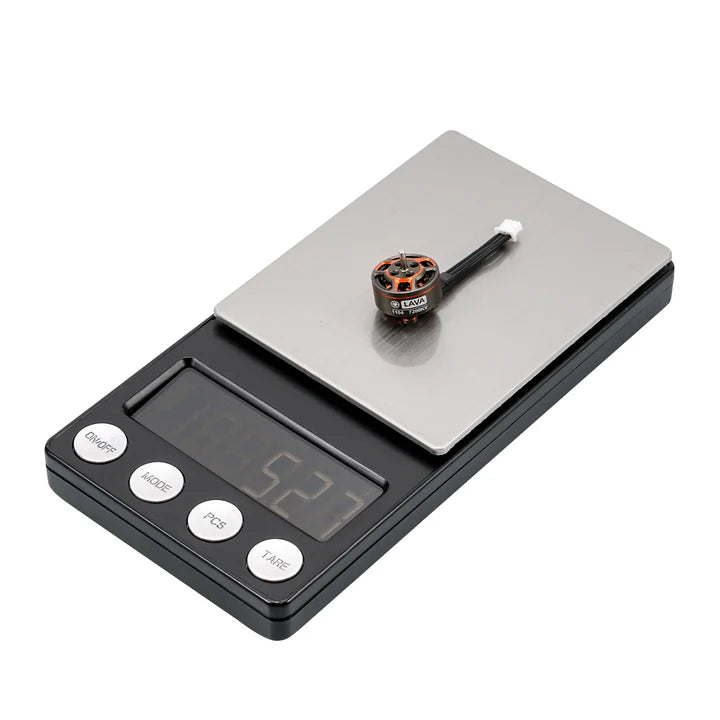

- Weight : 5.3g
- Shaft Diameter : Ø1.5mm
- Shaft Length : 5mm
- Wire Specification : 28AWG
- Wire Length : 24mm (with connector), 80mm
- Motor Mounting Hole Size : 4 × M2 Ø9mm
- Propeller Mounting Hole Size : 4 × M2 Ø5mm
Note: The 24mm wire version includes a connector and is ideal for the Pavo20 Pro.
What's in the Box
- 1 × LAVA Series 1104 | 7200KV Brushless Motor
- 4 × M2 × 4 Hex Flat Head Screws
- 4 × M2 × 5 Hex Flat Head Screws
