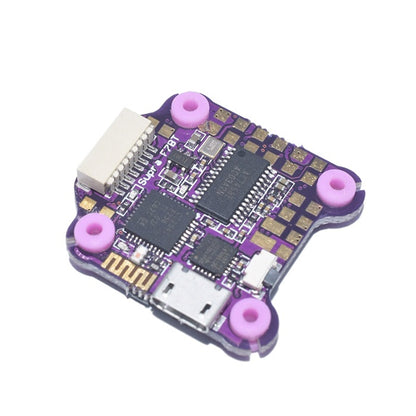

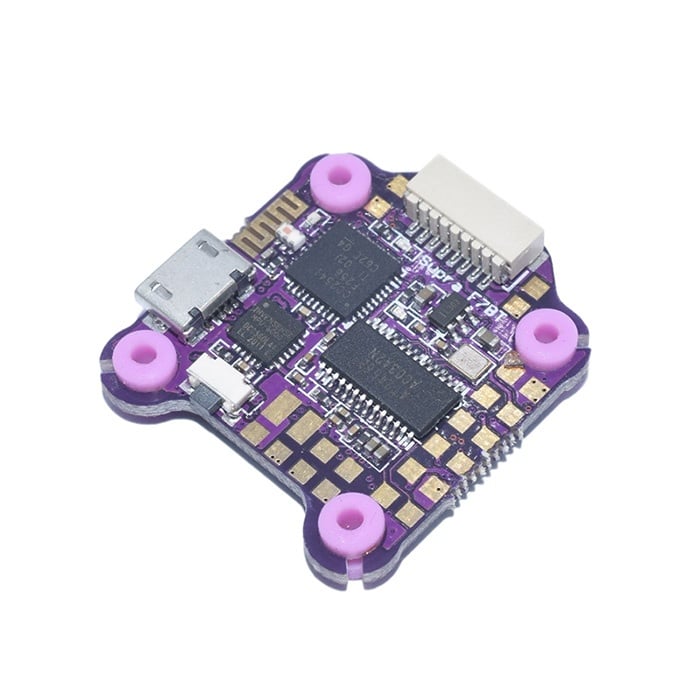

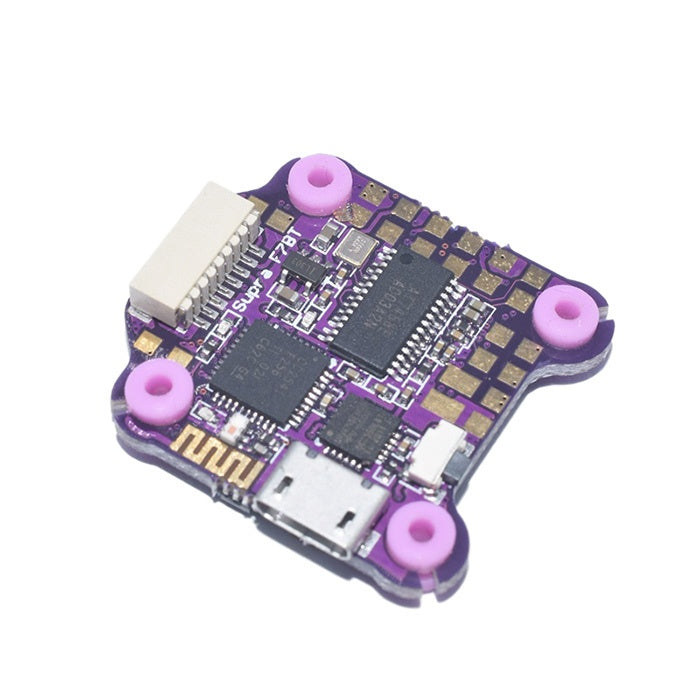

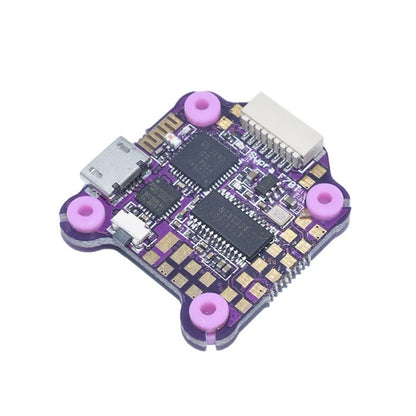

Product Details
Integrated OSD, built-in 5V/2A (internal power supply, receiver, LED, BUZZER and other power supply), 9V/3A BEC (camera and image transmission mode power supply, its opening and closing can be controlled by USER2), two independent BEC work separately , Do not interfere with each other, optimized circuit design, high-performance hardware, to further ensure the powerful performance of flight control.
Rich and complete interface definition, 6-channel UART. In addition, the 8P 1.0MM socket is designed to facilitate the direct input of the plug line, connect with BLHELI 32-bit ESC, and support data return (RX1).
Integrated Bluetooth 4.0, support mobile phone APP Bluetooth wireless parameter adjustment, convenient for field optimization parameters, especially novices no longer worry about the driver.
Specification
- Model: SupraF7BT

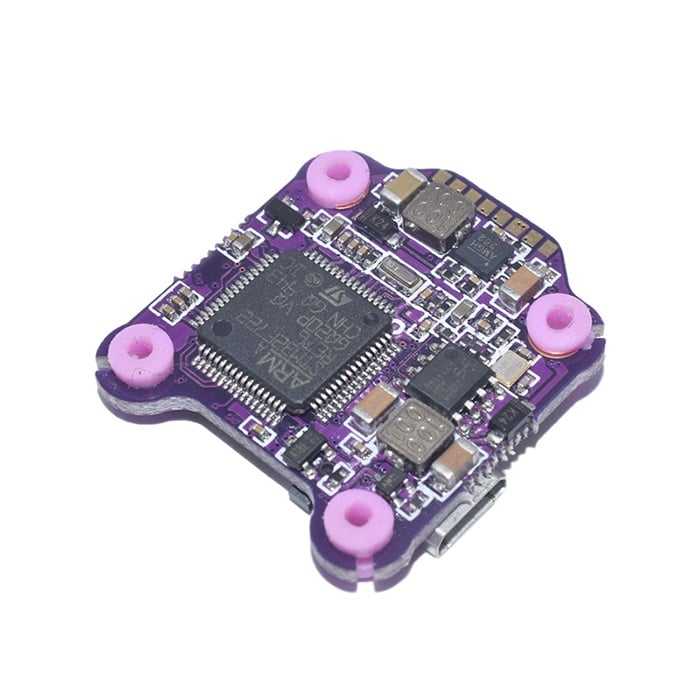

- Main control chip: STM32F722RET6216MHz
- Gyroscope: MPU6000 gyroscope (SPI)
- Barometer: None
- OSD chip: AT7456E
- Black box: None
- RGB LED support
- BB sound: support
- Input voltage: 2-6S
- I2C interface: support
- BEC-1: 5V/2A (internal power supply, receiver, LED, BUZZER, etc. power supply)
- BEC-2: 9V/3A (camera and image transmission mode power supply, its opening and closing can be controlled by USER2, turn on the power when selected, the shipment is fully open by default, please configure the channel control switch by yourself)
- Serial control port: six channels (UART1, UART2, UART3, UART4, UART5, UART6)
- Bluetooth: support (port UART4, baud rate 115200, name Supra)
- Flight control firmware: Betaflight
- Goal: JHEF7DUAL.HEX
- Conversion of hole position and shock-absorbing ball hole position: 20*20mm, φ3mm
- Flight control size: 30*27mm
- Weight: 8g
Included
- 1x F7 Flight Controller Board
