Product Details
This is a BLheli 32 4in1 ESC from JHE MCU, known for making reliable but affordable flight electronics, this ESC is no different. It packs high voltage MOSFETS along with a 32bit STM32 processor on each ESC to let you push your motors to the max. Works great with the JHE F7 BT flight controller .
Please take care when connecting this ESC to your flight controller as this ESC connector uses a non standard connection order
Key Features
- 32Bits ARM Cortex MCU STM32F051 48MHZ CPU
- Strong anti-interference ability
- PCB adopts 6-layer, low inner resistance
- Built-in Current detection module, which can cooperate with the flight control to detect the current value
Specifications
- Brand Name: JHEMCU
- Model: BL32-55
- Item Name: 55A BLheli_32 4in1 Brushless ESC
- Input Voltage: 3-6S (12-26V)
- Con. Current: 55A
- Burst Current: 60A
- NO BEC Output
- Firmware: BLHeli_32
- Size: 39x40mm
- Mounting Hole: 30.5x30.5mm, M4
- Weight: 10.9g
- Support DShot1200, DShot600, DShot300, DShot150, Oneshot125, MultiShot, PWM

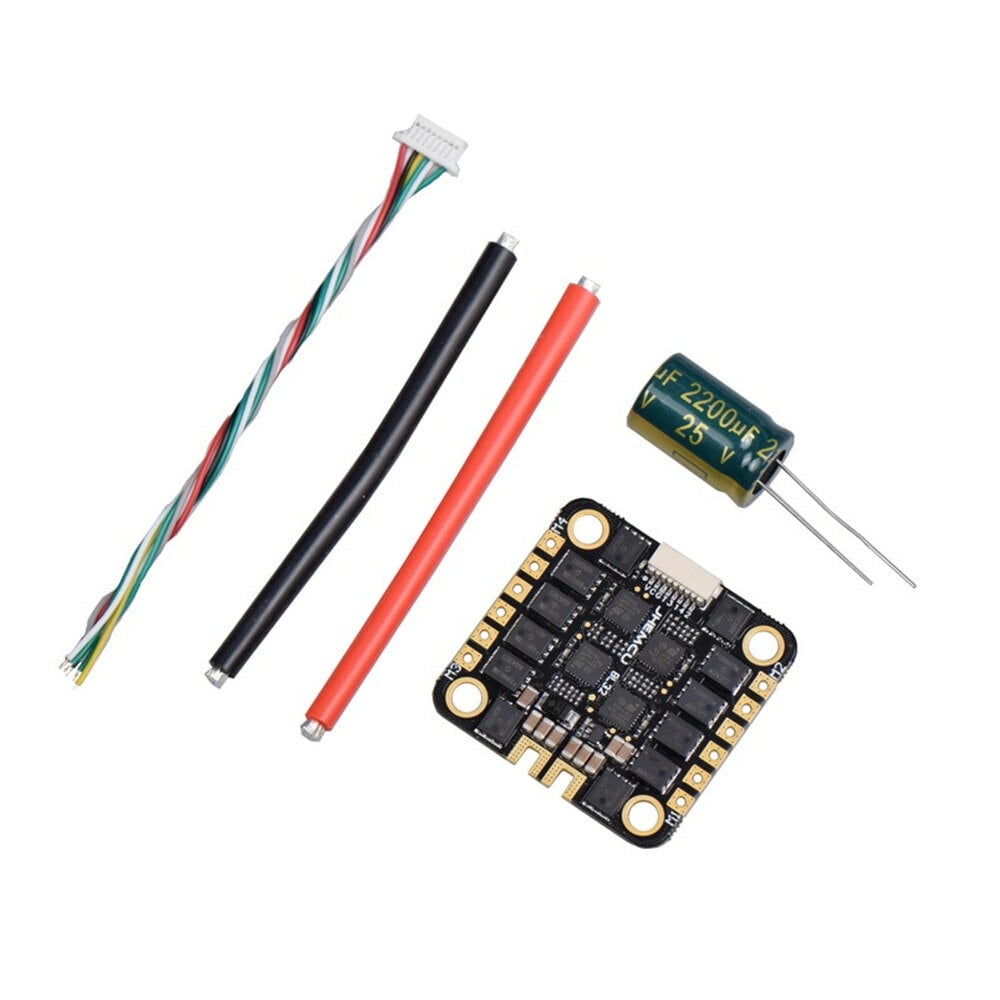

Included
- 1x JHEMCU 55A BLheli_32 4in1 ESC Board
- 1x 8P 1.0mm Cable
- 2x Power Cable (14AWG)
- 1x Capacitor

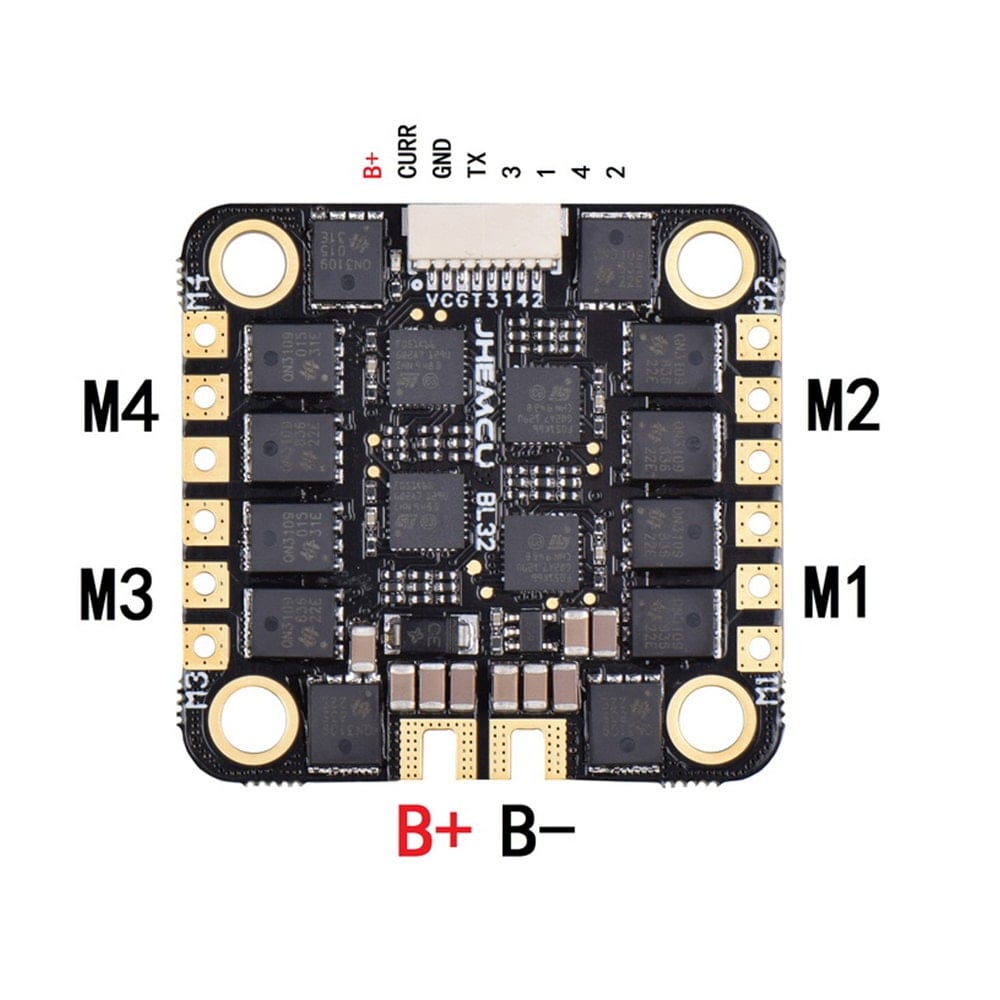

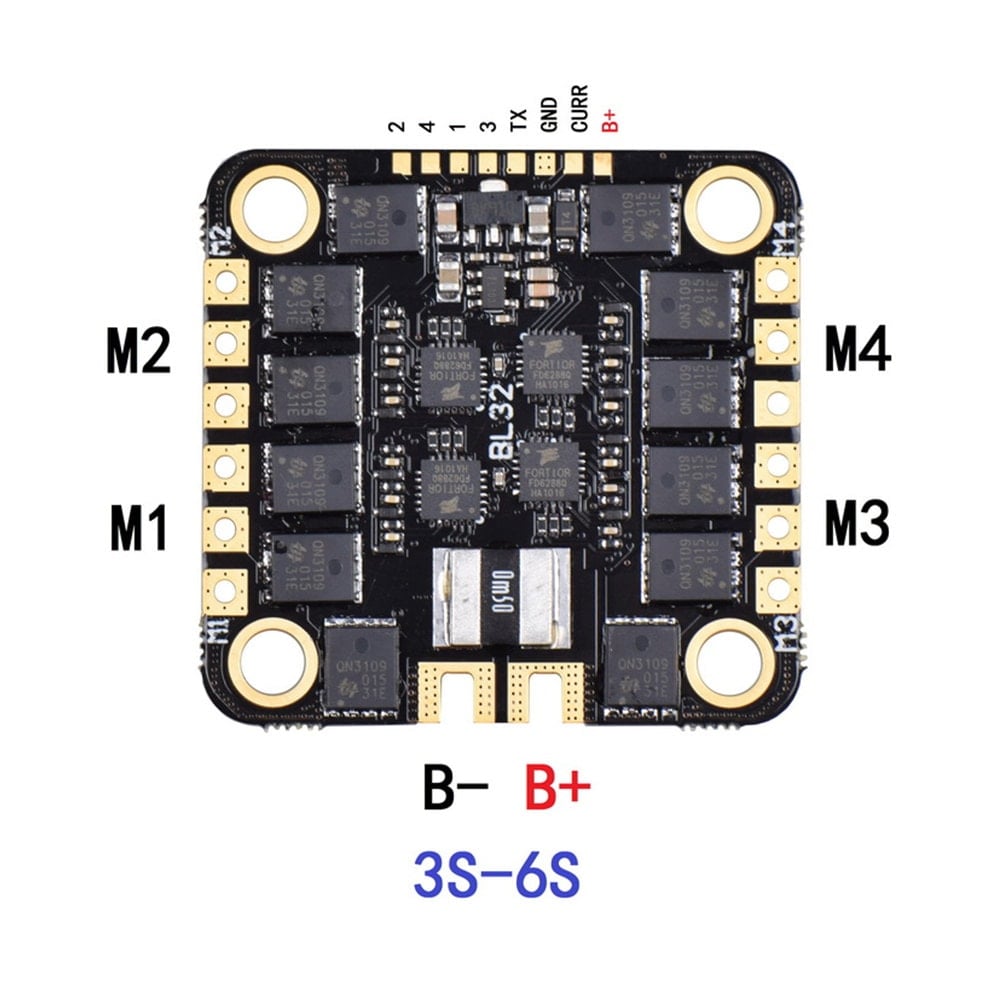

Pinout
Please take care when connecting this ESC to your flight controller as this ESC connector uses a non standard connection order
