Product Details

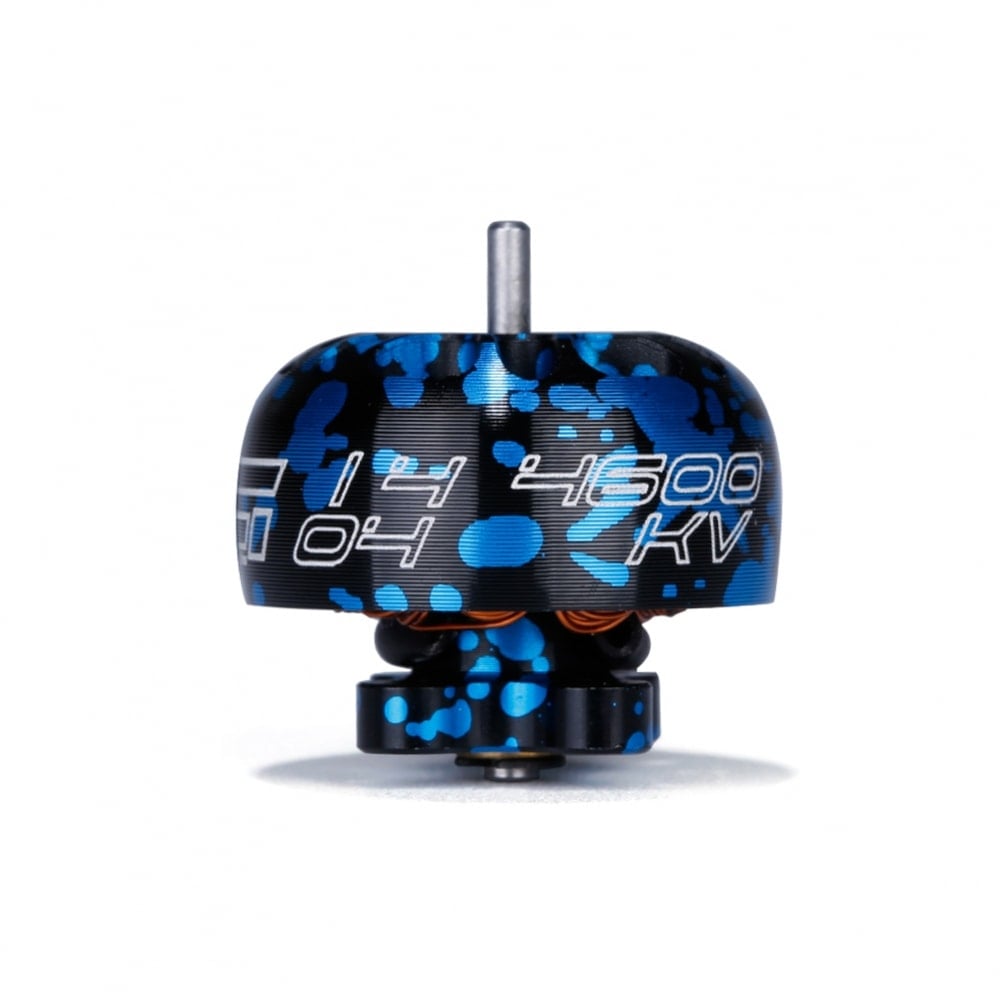

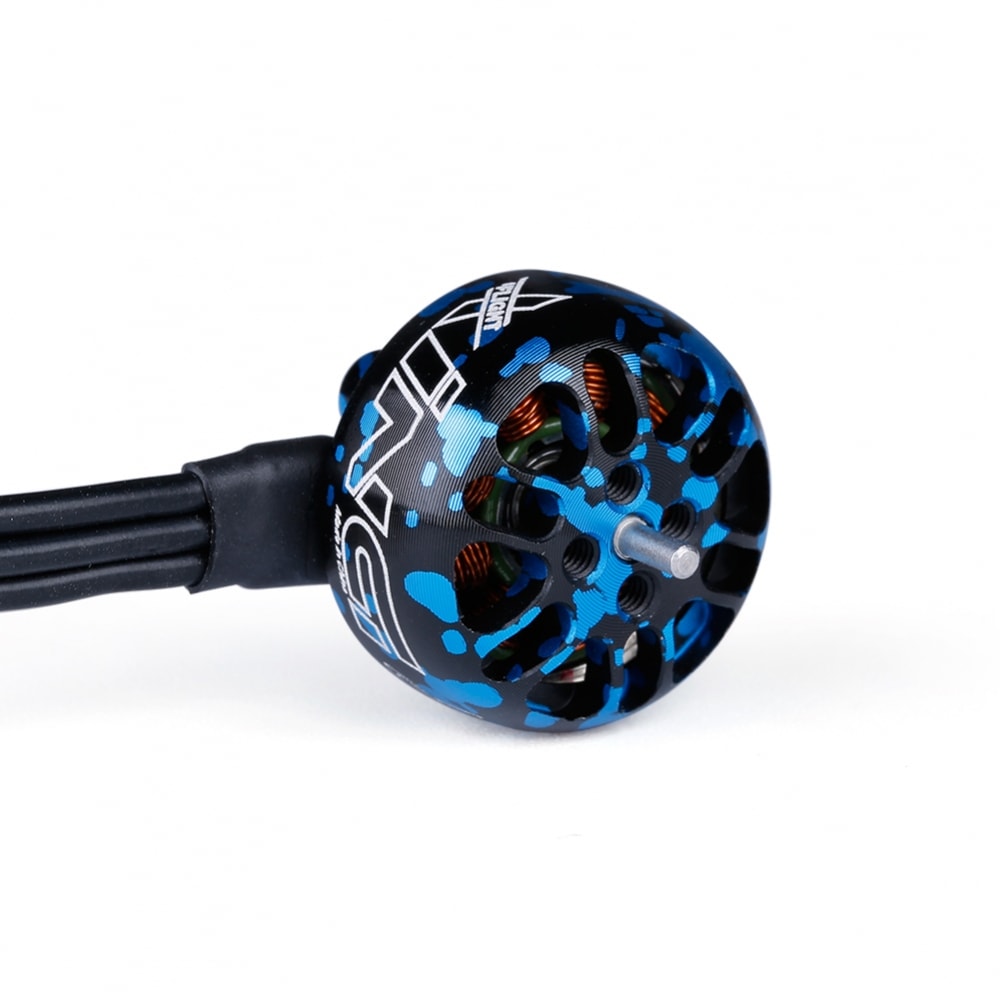

Built using the same philosophy as the rest of the Xing series they are super durable with their uni-body bell, giving you a super lightweight toothpick class 1404 motor at just 8.5g (without wires). Apart from that they also feature awesome paintwork that will blow your mind.
- 3800 kV version best for 3S builds
- 4600 kV version best for 4S builds
Key Features

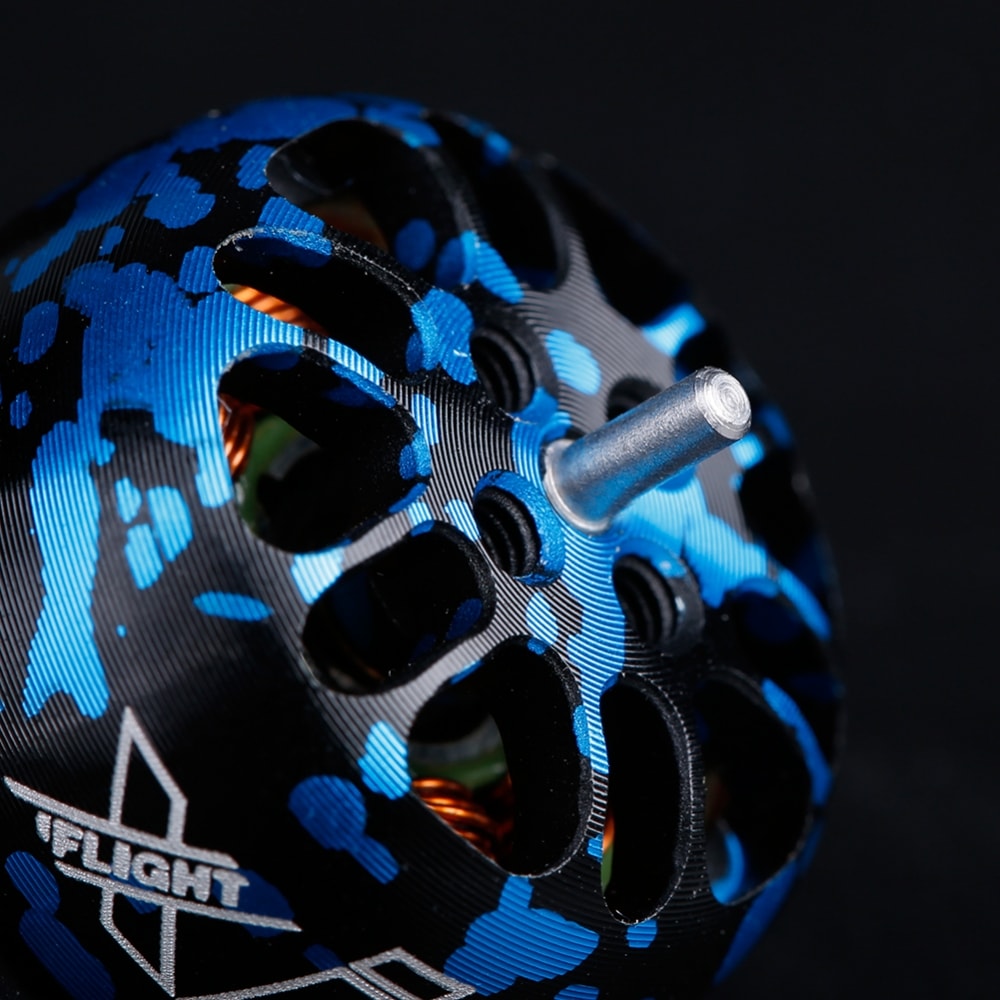

- Unibell milled aluminum
-

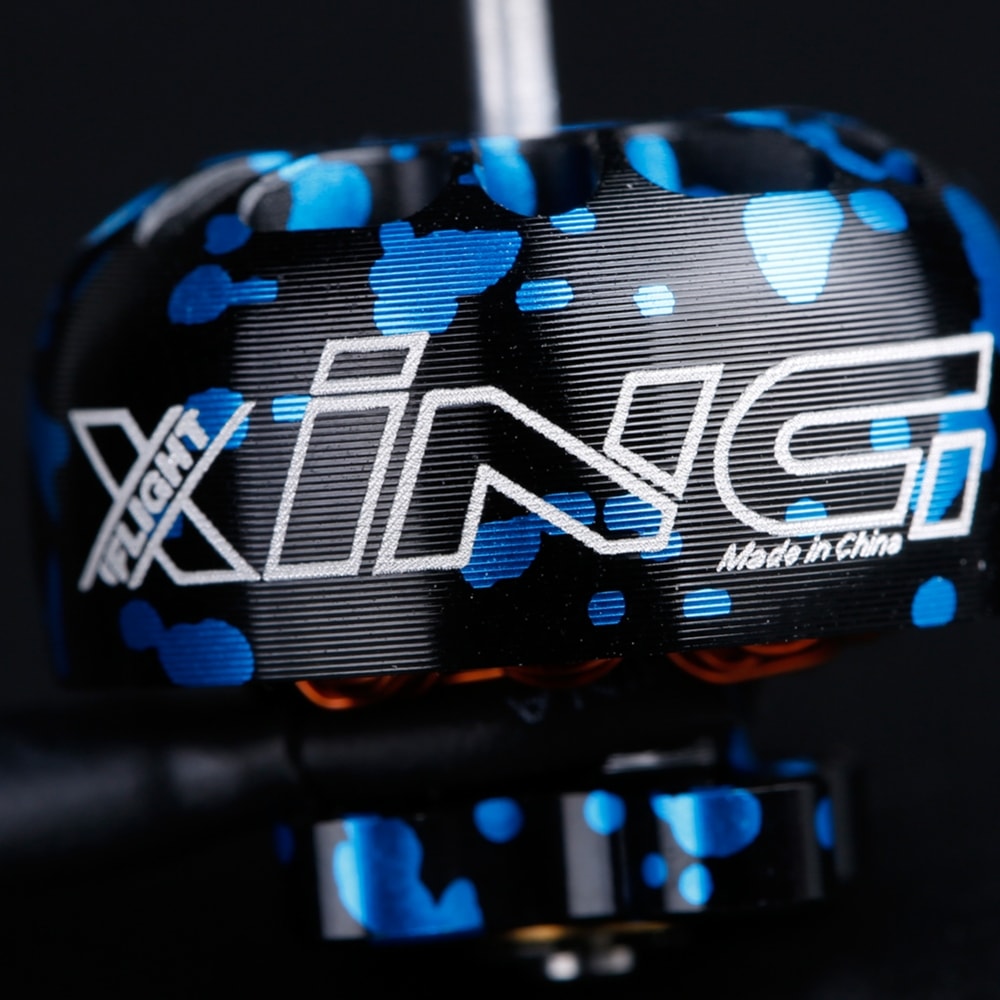

Unique iFlight coating design technology
- 7075 aluminum brushless motor
Specifications
- Voltage: 2S-4S
- KV Option: 3600KV/4600KV/7500KV

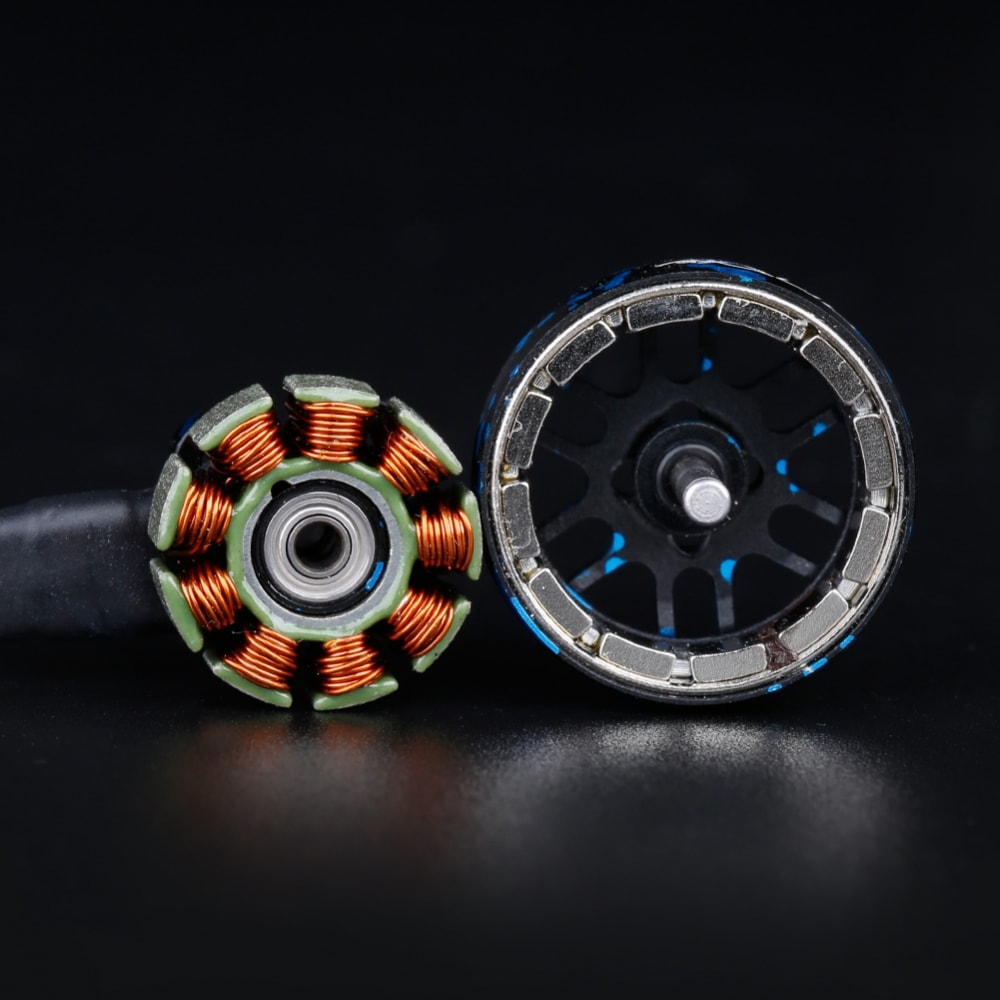

- Configuration: 9N12P
- Stator Diameter: 14mm
- Stator Length: 4mm
- Shaft Diameter: 1.2mm
- Motor Dimensions(Dia.*Len): Φ18.3×12.5mm
- No.of Cells(Lipo): 2-4S
- Max Continuous current(A): 11.8A
- Max Continuous Power(W): 174.6W
- Internal resistance: 0.28Ω

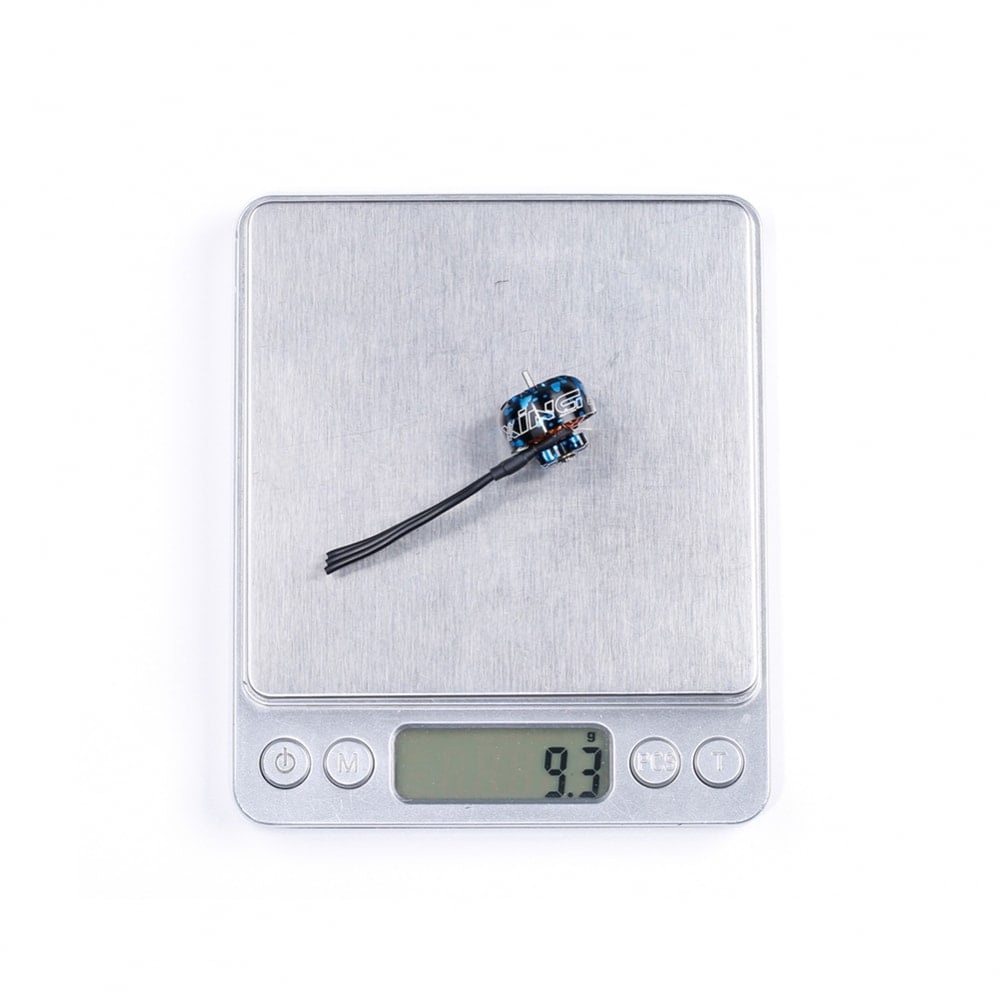

- Weight: 8.5g(without cable)

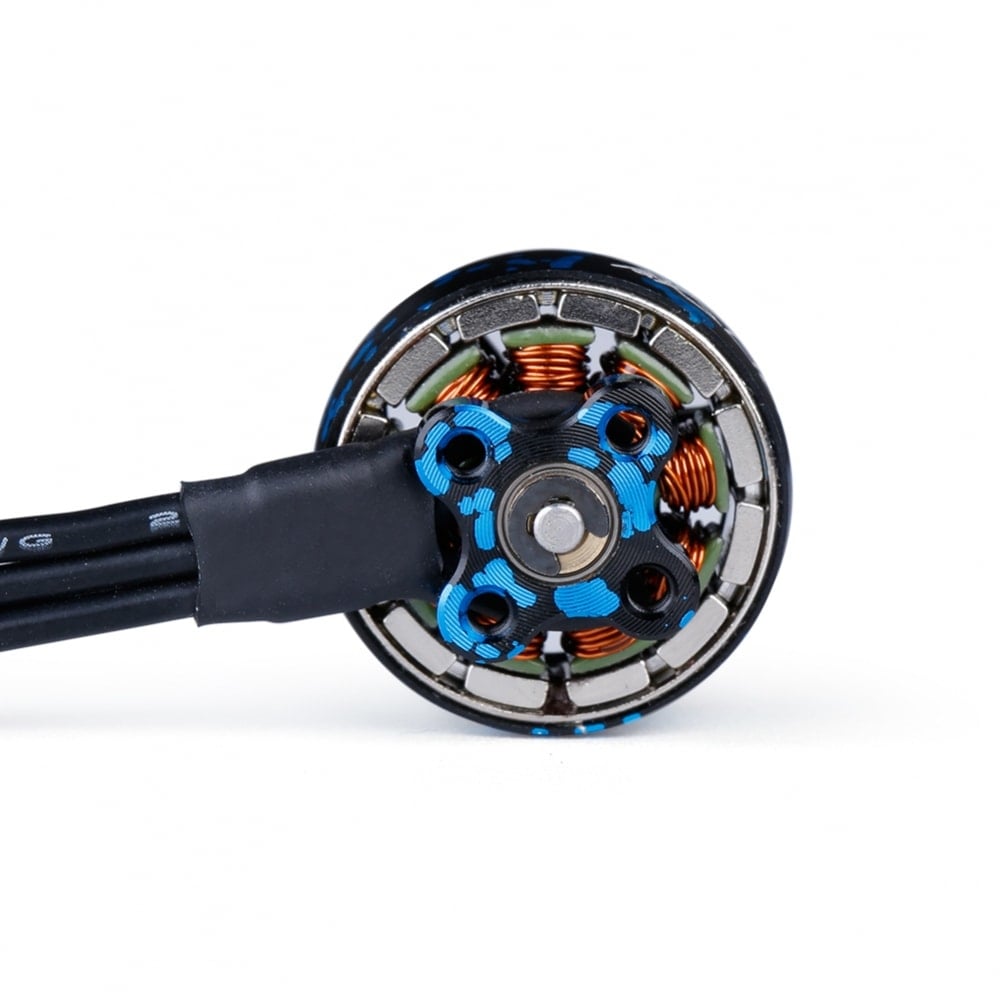

- Uses 11xx mounting pattern
Included
- 1pc x MOTOR XING NANO X1404 motor
- 4pcs x m2*5 screws
