Product Details
The iFlight XING series motor was designed and named after FPV pilot & specialist Patrick Xing. Together, they have designed a one of a kind motor, one that will stand out from the crowd as well as perform great.

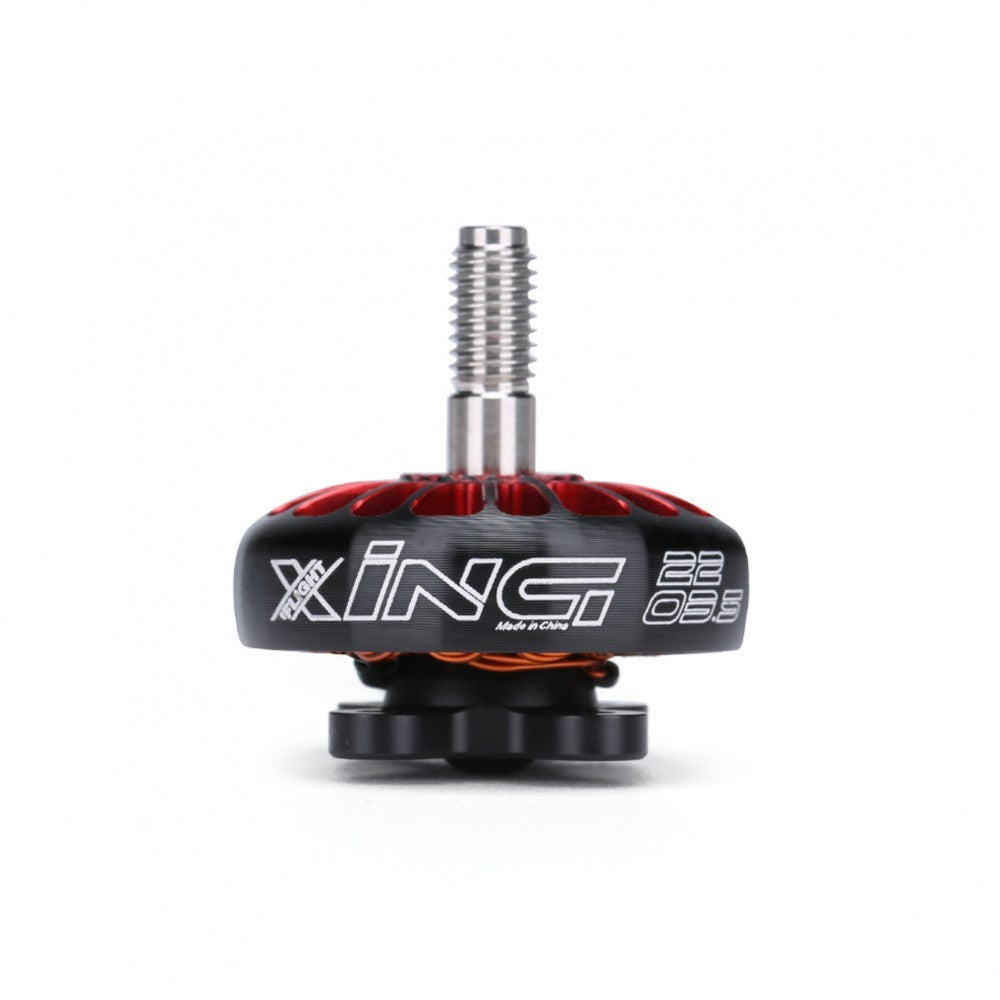

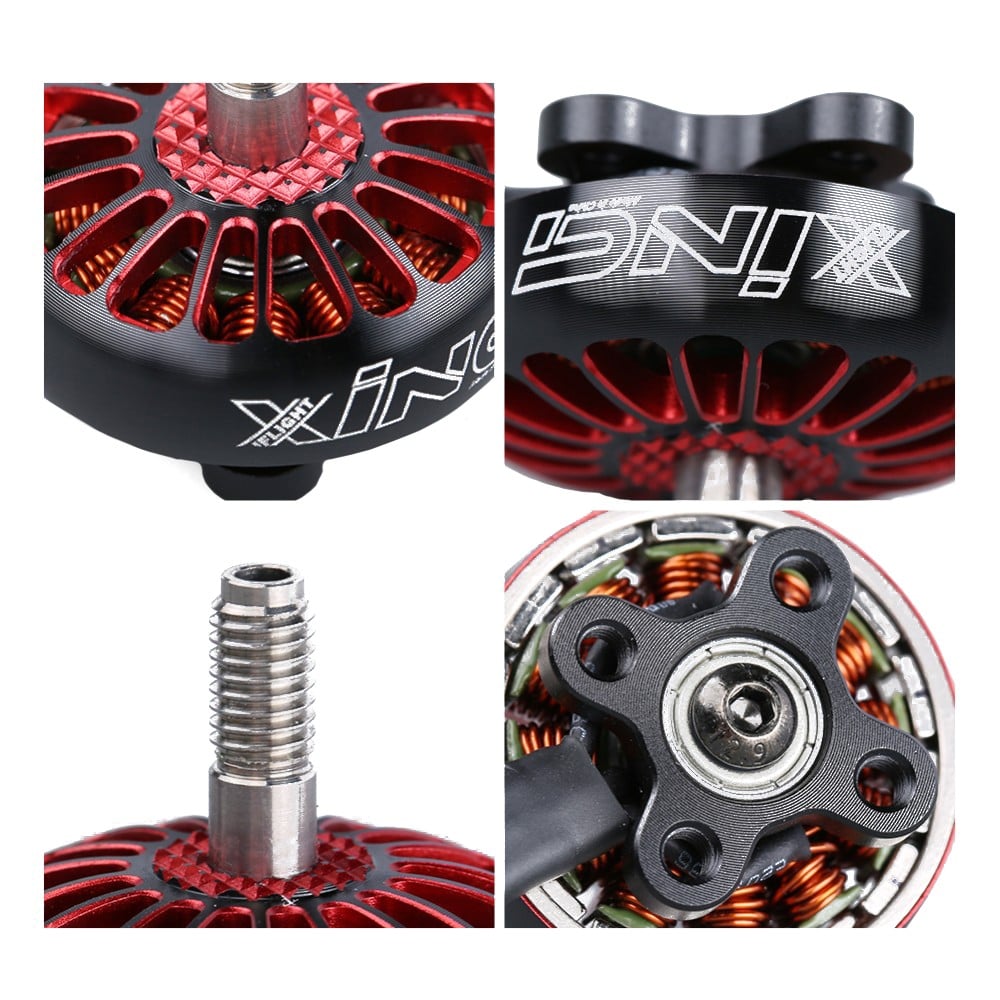

The XING 2203.5 sized motor features a high-strength 5mm titanium alloy shaft, N52H curved magnets, M3 shaft screw, and larger Japanese NSK 9x9x4 bearings.
Features
- 5mm outer titanium alloy shaft
- Japanese NSK 9x9x4 bearings
- N52H curved magnets
- Motor wires protected
- Dynamically balanced
Specifications
- Model: XING 2203.5
- KV: 2500KV / 3600KV (select)
- Version: CW Screw Thread
- Input Voltage: 4S/6S Lipo
- Configuration: 12N14P
- Stator Diameter: 22mm
- Stator Length: 5mm

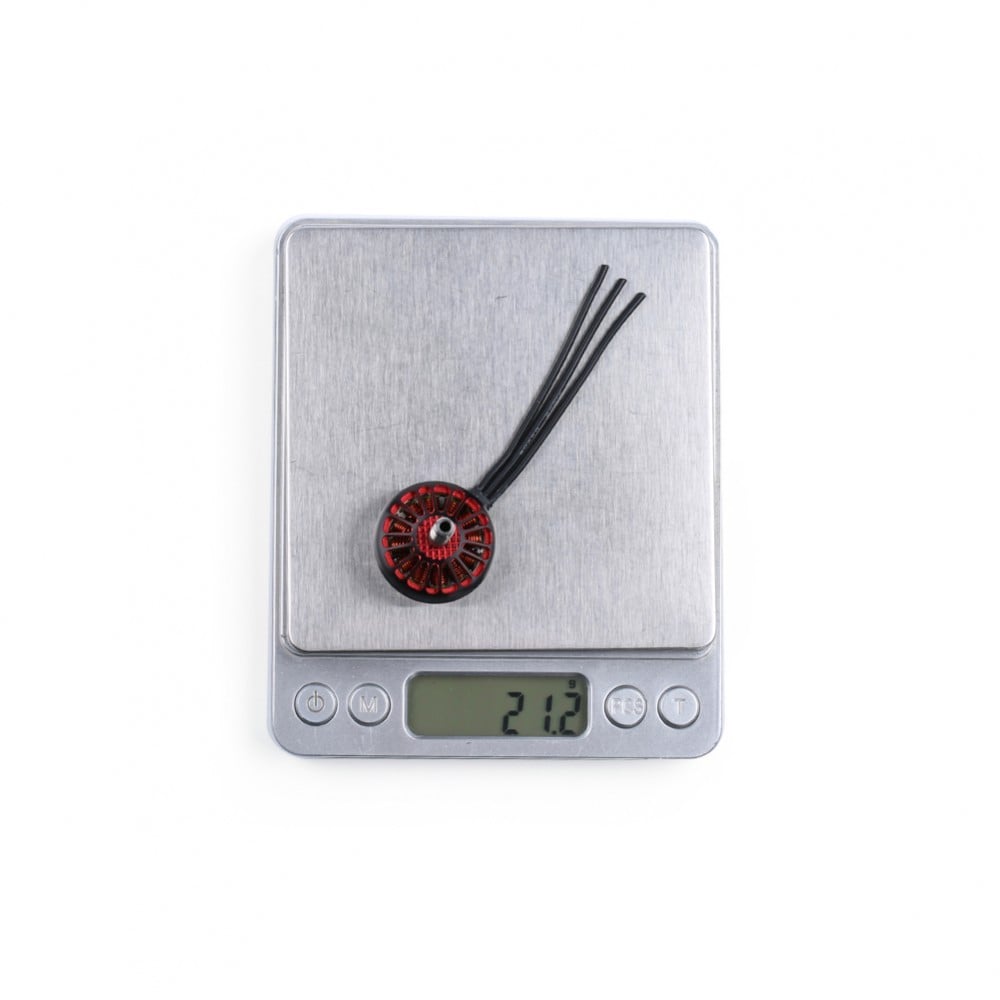

- Weight: 21.2g with a short wire
- Wire length: 22AWG 150mm
-
Mounting pattern:
- 12*12mm on 3600kV version
- 16*16mm on 2500kV version
Includes
- 1 x XING 2203.5 Brushless Motor (KV is optional)
- 4 x m3*6 screws
- 1 x M5 Flanged Nylon Insert Lock Nut
